1. Produttu Finituview
The QUOLIX Q-268 Walkie Talkies are designed for clear and reliable communication for children aged 3-12. These rechargeable devices offer a range of features to enhance outdoor play and communication.
Funzioni chjave:
- Disegnu ricaricabile: Built-in rechargeable battery with USB-C charging.
- Comunicazione clara: Crystal-clear sound quality with noise cancellation technology.
- Funzione VOX: Trasmissione attivata da a voce per un funziunamentu à mani libere.
- Torcia integrata: Integrated LED flashlight for use in low-light conditions.
- 22 Canali FRS: Provides multiple channels for private communication.
- Long Range: Up to 1.86 miles (3 KM+) in ideal, unobstructed conditions.
- Durable & Portable: Compact, lightweight design made from high-quality ABS plastic, with included belt clip and lanyard.
- Chjave Serratura: Prevents accidental channel or setting changes.
- Certificazione FCC: Ensures compliance with safety and communication standards.

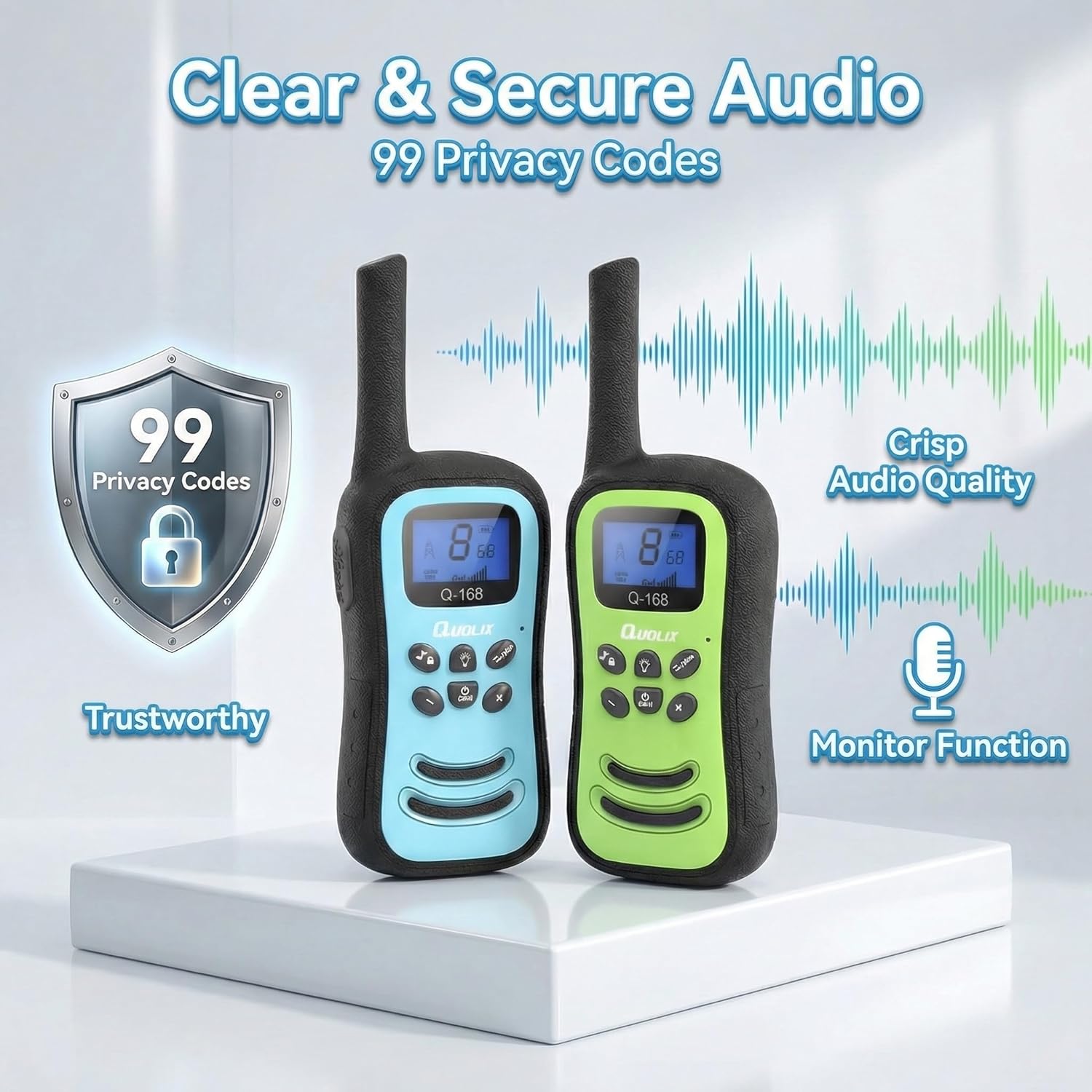

Image 1.1: QUOLIX Q-268 Walkie Talkies highlighting clear and secure audio features.
2. Ciò chì hè in a scatula
Verificate u cuntenutu di u pacchettu per assicurà chì tutti l'articuli sò presenti:
- 3 x QUOLIX Q-268 Walkie Talkies
- 3 x Cavi di carica USB
- 3 x Clips per cintura
- 3 x Cordini
- 1 x Manuale d'usu in inglese
3. Informazioni di sicurezza
Read all safety instructions before using the device. Failure to follow these instructions may result in injury or damage to the product.
- Supervisione di l'adulti: Always ensure children are supervised while using the walkie talkies.
- Sicurezza di a batteria: The walkie talkies contain non-removable lithium-ion batteries. Do not attempt to open, replace, or dispose of the battery in fire. Avoid exposing the device to extreme temperatures.
- Periculu di suffocazione: Small parts like lanyards and belt clips can pose a choking hazard to young children.
- Esposizione à l'acqua: These walkie talkies are not water-resistant. Avoid exposure to water or excessive moisture.
- Pulizia: Use a soft, dry cloth for cleaning. Do not use harsh chemicals or abrasive cleaners.
- Conformità FCC: This device complies with FCC regulations. Any unauthorized modifications may void the user's authority to operate the equipment.
4. Setup
4.1 Charging the Walkie Talkies
- Locate the USB-C charging port on the side or bottom of the walkie talkie.
- Connect one end of the provided USB-C charging cable to the walkie talkie.
- Cunnette l'altra estremità di u cavu USB-C à un adattatore di alimentazione USB cumpatibile (micca inclusu) o à a porta USB di un urdinatore.
- A luce indicatrice di carica nantu à u walkie-talkie s'illuminerà per mustrà ch'ellu hè in carica.
- Una carica cumpleta dura di solitu circa 2.5 ore. A luce indicatrice cambierà o si spegnerà una volta chì a carica hè cumpleta.
Image 4.1: Walkie Talkie connected for USB-C charging.
4.2 Accensione / spegnimentu
- Per accende, tene premutu u Potenza / Menu buttone finu à chì u schermu s'illumina.
- Per spegne, tene premutu u Potenza / Menu buttone finu à chì u schermu si spegne.
4.3 Attaccà a clip di cintura è u cordinu
- Clip per cintura: Slide the belt clip into the designated slot on the back of the walkie talkie until it clicks securely into place.
- Cordicella: Thread the lanyard through the small loop at the top of the walkie talkie and secure it.
Image 4.2: Walkie Talkie worn with a lanyard for easy carrying.
5. Operating Instructions
5.1 Selezzione di u Canale
- Cù u walkie-talkie accesu, appughjà u buttone Menu u buttone una volta. U numeru di u canale nant'à u display lampeggerà.
- Aduprà u Su (+) or giù (-) i buttoni per selezziunà u canale desideratu (1-22).
- Press u Menu button again to confirm the channel selection, or wait a few seconds for it to set automatically.
- Ensure all walkie talkies intended for communication are set to the same channel.
5.2 Pulsante Push-to-Talk (PTT).
- To transmit your voice, press and hold the large PTT button located on the side of the walkie talkie.
- Parlate chjaramente in u microfonu.
- Rilascia u PTT buttone per fermà a trasmissione è ascoltà una risposta.
5.3 Voice-Activated Transmission (VOX)
The VOX function allows you to transmit without pressing the PTT button, activating automatically when you speak.
- Press u Menu button multiple times until the VOX icon appears on the display.
- Aduprà u Su (+) or giù (-) buttons to select a VOX sensitivity level (e.g., 1-3, with 3 being most sensitive) or turn VOX off.
- Press u Menu buttone per cunfirmà.
Image 5.1: Hands-free communication using the VOX feature.
5.4 Utilizà a linterna
- Press u torcia button (usually marked with a lightbulb icon) to turn the LED flashlight on.
- Appughjà torna u buttone per spegne a torcia.
Image 5.2: Child using the integrated flashlight feature.
5.5 Funzione Key Lock
- Per attivà a serratura chjave, appughjà è mantene premuta Lock button (often combined with the music note icon) until a lock icon appears on the display. This prevents accidental changes to channels or settings.
- Per disattivà, tene premutu è tene premutu u buttone Lock buttone di novu finu à chì l'icona di lucchettu sparisca.
5.6 Funzione Monitor
- Press u LUN button to temporarily disable squelch and listen for weak signals on the current channel. This can be useful for checking if a channel is clear or for hearing faint transmissions.
Video 5.3: Official product video demonstrating key features and usage of the QUOLIX Walkie Talkies.
6. Mantenimentu
6.1 Pulizia
- Wipe the exterior of the walkie talkie with a soft, slightly damp tela.
- Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the device's finish or internal components.
- Ensure no moisture enters the charging port or microphone/speaker openings.
6.2 Cura di a batteria
- To prolong battery life, recharge the walkie talkies regularly, even if not in frequent use.
- Evitate di scaricà cumpletamente a batteria spessu.
- Do not expose the device to extreme heat or cold, as this can degrade battery performance and lifespan.
- The battery is non-removable. Do not attempt to open the device or replace the battery.
6.3 Storage
- When not in use for extended periods, store the walkie talkies in a cool, dry place, away from direct sunlight and moisture.
- Ensure the devices are fully charged before storing them for a long duration.
7. Risoluzione di prublemi
If you encounter issues with your QUOLIX Q-268 Walkie Talkies, refer to the following common problems and solutions:
| Prublemu | Causa Possibile | Soluzione |
|---|---|---|
| Nisun putere | A batteria hè scaricata. | Recharge the walkie talkie using the provided USB-C cable. |
| Nisun sonu o mala qualità di sonu | Incorrect channel/privacy code; Low volume; Obstructions. | Ensure both units are on the same channel. Adjust volume. Reduce distance or move to an open area. |
| Cortu intervallu di cumunicazione | Environmental obstructions (buildings, trees); Low battery; Weather conditions. | Move to an open area. Ensure batteries are fully charged. Range is reduced by physical barriers. |
| Interference or unwanted transmissions | Other users on the same channel. | Cambià à un altru canale. |
| I buttoni ùn rispundenu micca | U bloccu di i tasti hè attivatu. | Deactivate the key lock by pressing and holding the Lock button. |
8. Specificazioni
| Feature | Detail |
|---|---|
| Marca | QUOLIX |
| Numero di mudellu | Q-268 |
| Numero di canali | 22 canali FRS |
| Protocolu di Frequency | FRS (Family Radio Service) |
| Tipu di tuner | UHF |
| Gamma Massima di Parlà | Up to 1.86 Miles (3 KM+) in ideal conditions |
| Tipu di batterie | 1 Lithium Ion (included, non-removable) |
| Voltage | 3.6 Volts |
| Interfaccia di carica | USB-C |
| Funzioni spiciali | Lightweight, Built-in LED Flashlight, VOX Function |
| Livellu di resistenza à l'acqua | Ùn hè resistente à l'acqua |
| Certificazioni | Certificatu FCC |
| Cumpunenti inclusi | 3 Walkie Talkies, 3 USB cables, 3 Belt clips, 3 Lanyards, 1 User Manual |
Image 8.1: Dimensions of the QUOLIX Q-268 Walkie Talkie.
Image 8.2: Illustration of walkie talkie range under various environmental conditions.
9. Garanzia è Support
9.1 Garanzia infurmazione
The QUOLIX Q-268 Walkie Talkies come with a 1-Annu di Garanzia da a data di compra. Questa garanzia copre i difetti di fabricazione è i malfunzionamenti in cundizioni d'usu nurmale. Ùn copre micca i danni causati da un usu impropriu, incidenti, mudificazioni micca autorizate o manutenzione impropria.
9.2 Assistenza Clienti
For any questions, technical assistance, or warranty claims, please contact QUOLIX customer service. Refer to the contact information provided on the product packaging or the official QUOLIX websitu.
