Pro Chaser Carburetor Instruction Manual

1. Introduzione

This manual provides essential information for the proper installation, operation, and maintenance of your Pro Chaser Carburetor. This carburetor is designed as a replacement part for various Cub Cadet tractor models, including LTX1042KH, RZT-42, and RZT-50KH, as well as specific part numbers 13AP91AS010, 13AP91AS056, 17AF2ACS010, 17WF2ACS009, and 17YF2ACP009.

Prima di prucede cù a stallazione, cun curaview the images provided in this manual and compare them with your existing carburetor to ensure compatibility. Minor design differences can exist between models. If you are uncertain about compatibility, consult a qualified technician or contact customer support with clear images of your current carburetor.

Figura 1.1: In generale view of the Pro Chaser Carburetor. This image displays the general appearance and primary components of the carburetor.

2. Informazioni di sicurezza

Always prioritize safety when working with fuel systems and internal combustion engines. Failure to follow these safety guidelines may result in personal injury or damage to equipment.

• Prutezzione di l'ochji: Always wear safety glasses or goggles to protect your eyes from fuel, debris, and other hazards.
• Ventilazione: Travagliate in un locu ben ventilatu per evità l'inalazione di i vapori di carburante.
• Periculu d'incendiu: Fuel is highly flammable. Keep open flames, sparks, and other ignition sources away from the work area. Do not smoke.
• Disconnection di a batteria: Disconnect the spark plug wire or battery ground cable before beginning any work to prevent accidental engine starting.
• Superfici calde: Engine components can remain hot for an extended period after operation. Allow the engine to cool completely before servicing.
• Manipolazione di u carburante: Handle fuel with care. Wipe up any spills immediately. Store fuel in approved containers.
• Strumenti adatti: Use appropriate tools for the job to prevent damage to components or injury.

3. Setup è Installazione

This section outlines the steps for replacing your old carburetor with the new Pro Chaser unit. If you are unfamiliar with engine repair, it is recommended to seek professional assistance.

3.1. Cumpunenti inclusi

Verificate chì tutti i cumpunenti sò presenti in u vostru pacchettu:

• 1 x Carburatore
• 1 x Fuel Hose
• 1 x Filtru di carburante
• 3 x Gaskets (various types for different mounting configurations)
• 1 x Shut Off Valve
• 2 x Candele d'accensione

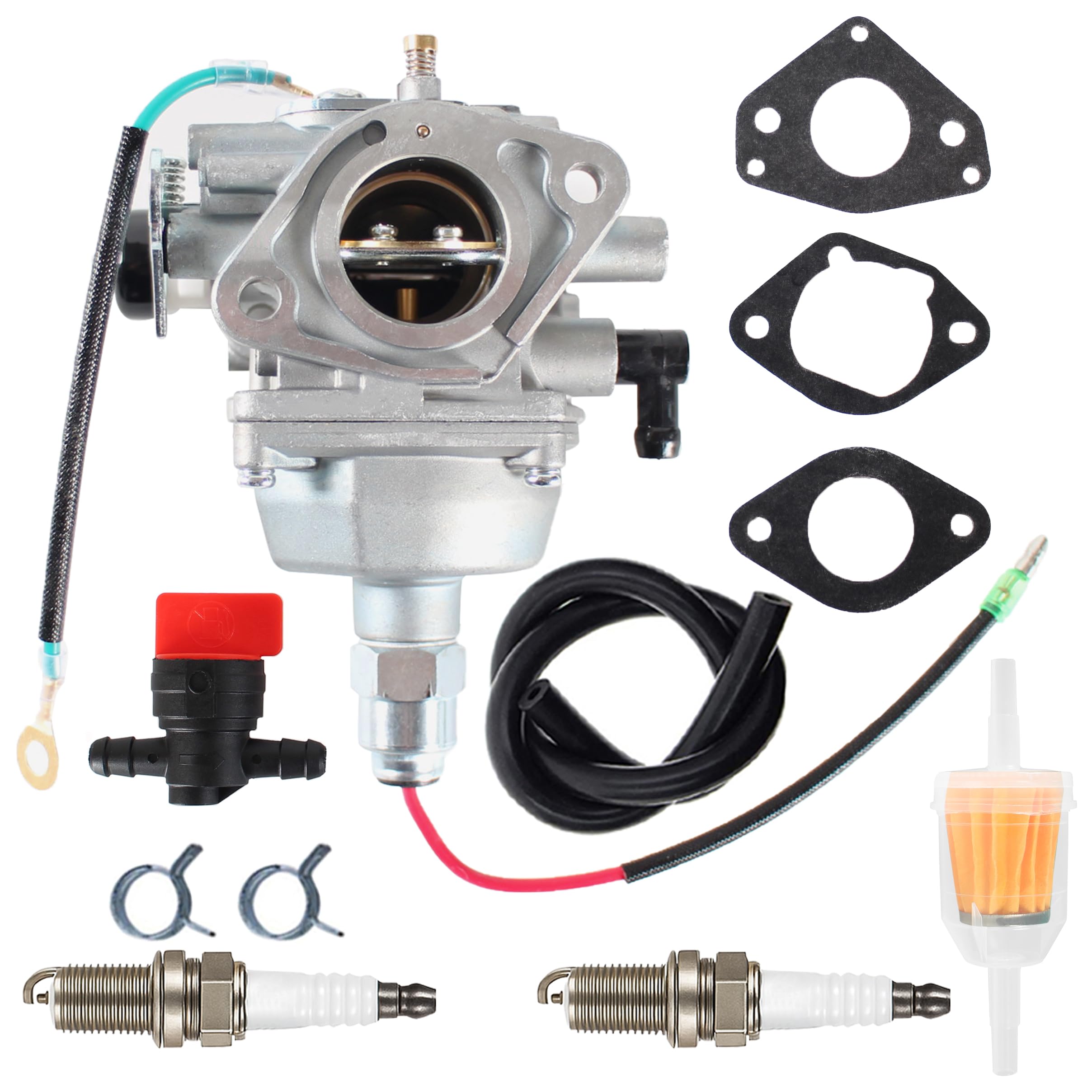

Figura 3.1: The Pro Chaser Carburetor kit, showing the carburetor, fuel hose, fuel filter, gaskets, shut-off valve, and spark plugs.

3.2. Strumenti Required

• Set di chiavi a presa
• Set di cacciaviti (à testa piatta è Phillips)
• Pinze
• Linea di carburante clamp or pinch-off tool
• Stracci puliti
• Container for draining fuel

3.3. Preparazione

1. Assicuratevi chì u mutore hè frescu.
2. Disconnect the spark plug wire(s) to prevent accidental starting.
3. Locate the fuel shut-off valve (if present) and turn it to the OFF position.
4. Place a suitable container under the carburetor to catch any spilled fuel.

3.4. Rimozione di u vechju carburatore

1. Carefully disconnect the fuel line from the carburetor. Use a fuel line clamp if no shut-off valve is present to minimize fuel spillage.
2. Disconnect any throttle linkage, choke linkage, and electrical connections (if applicable) from the old carburetor. Note their positions for reassembly.
3. Remove the mounting nuts or bolts that secure the carburetor to the engine intake manifold.
4. Gently remove the old carburetor and any old gaskets. Dispose of old gaskets properly.

3.5. Installazione di un novu carburatore

1. Clean the mounting surface on the engine intake manifold to ensure a proper seal.
2. Select the correct gaskets from the included set that match your engine's configuration. Install the new gaskets onto the mounting studs or manifold.
3. Carefully position the new Pro Chaser Carburetor onto the mounting studs, ensuring the gaskets are properly seated.
4. Secure the carburetor with the mounting nuts or bolts. Tighten them evenly to prevent warping, but do not overtighten.
5. Reconnect the throttle linkage, choke linkage, and any electrical connections. Ensure they operate smoothly without binding.
6. Install the new fuel filter in the fuel line, ensuring the flow direction is correct (if indicated).
7. Connect the new fuel hose to the carburetor and secure it with a clamp. If using the included shut-off valve, install it in an accessible location in the fuel line.
8. Replace the old spark plug(s) with the new ones provided in the kit. Gap the new spark plugs according to your engine manufacturer's specifications if necessary.

Figura 3.2: Latu view of the carburetor, highlighting the fuel inlet and linkage connection points.

4. Operating Instructions

After installation, follow these steps for initial start-up and basic operation.

4.1. Start-up iniziale

1. Assicuratevi chì tutte e cunnessione sianu sicure è chì ùn ci sianu perdite di carburante.
2. Refill the fuel tank with the appropriate fuel type for your engine.
3. Open the fuel shut-off valve (if installed).
4. Reconnect the spark plug wire(s).
5. Set the choke to the appropriate starting position (usually full choke for a cold engine).
6. Start the engine according to your tractor's manufacturer instructions.
7. Once the engine starts, gradually move the choke to the OFF position as the engine warms up.
8. Allow the engine to run for a few minutes to reach operating temperature and check for smooth operation.

4.2. Basic Adjustments

Most modern carburetors are pre-set and do not require extensive adjustments. However, if your engine runs rough or idles poorly after installation, minor adjustments may be needed. Refer to your engine's service manual for specific adjustment procedures.

• Velocità idle: If the engine idles too fast or too slow, locate the idle speed screw (if present) and adjust it gradually until the engine idles smoothly at the recommended RPM.
• Mixture Screws: Some carburetors may have idle mixture screws. Adjust these only if necessary and with caution, as improper adjustment can affect engine performance and emissions. Typically, turn the screw in until it lightly seats, then back it out 1.5 to 2 turns as a starting point. Fine-tune for the smoothest idle.

5. Mantenimentu

Regular maintenance ensures optimal performance and extends the life of your carburetor and engine.

• Filtru di carburante: Inspect the fuel filter regularly (e.g., annually or every 50 operating hours) and replace it if it appears dirty or clogged. A clogged fuel filter can restrict fuel flow to the carburetor.
• Filtru à l'aria: Ensure the engine's air filter is clean and free of debris. A dirty air filter can cause the engine to run rich and affect carburetor performance.
• Bugie di Spark: Inspect the spark plugs periodically. Clean or replace them if they are fouled, worn, or damaged. The included spark plugs should be gapped correctly for your engine.
• Fuel System Cleaning: If the equipment is stored for an extended period, drain the fuel system or use a fuel stabilizer to prevent fuel degradation and carburetor clogging.
• Pulizia esterna: Keep the exterior of the carburetor clean from dirt, dust, and oil buildup.

6. Risoluzione di prublemi

Questa sezione furnisce suluzioni à i prublemi cumuni chì pudete scuntrà. Per prublemi più cumplessi, cunsultate un tecnicu qualificatu.

7. Specificazioni

Figura 7.1: U fondu view of the Pro Chaser Carburetor, showing the float bowl and drain screw.

8. Garanzia infurmazione

The Pro Chaser Carburetor comes with a manufacturer's warranty. Please refer to the following details:

• Periudu di garanzia: 90 ghjorni da a data di compra.
• Copertura: Questa guaranzia copre i difetti in i materiali è a manuvra in usu normale.
• Esclusioni: The warranty does not cover damage resulting from improper installation, misuse, neglect, accident, unauthorized repairs, or normal wear and tear.

For warranty claims or further details, please retain your proof of purchase and contact customer support.

9. Assistenza Clienti

If you have any questions regarding the installation, operation, or maintenance of your Pro Chaser Carburetor, or if you encounter any issues not covered in this manual, please contact our customer support team.

Quandu cuntattate l'assistenza, per piacè tenete pronte l'infurmazioni seguenti:

• Numeru di mudellu di u produttu: PC310312
• Data di compra
• Descrizzione di u prublema

Contact information for Pro Chaser can typically be found on the product packaging or the retailer's websitu induve l'articulu hè statu acquistatu.
