1. Importanti Instructions Safety
Please read all instructions carefully before using the Crompton Infraserve Infrared Cooktop. Retain this manual for future reference.
- Sicurezza elettrica: Ensure the cooktop is connected to a grounded power outlet with the correct voltage. Do not use if the power cord or plug is damaged.
- Prutezzione di surriscaldamentu: The cooktop is equipped with overheat protection. If the temperature exceeds safe limits, the unit will automatically shut off.
- Piazzamentu stabile: Always place the cooktop on a stable, flat, and heat-resistant surface to prevent tipping.
- Ventilazione: Do not block the ventilation openings of the cooktop. Ensure adequate space around the unit for proper airflow.
- L'acqua è l'umidità: Do not immerse the cooktop in water or any other liquid. Avoid operating with wet hands.
- I zitelli è l'animali: Keep the appliance out of reach of children and pets during operation and while cooling down.
- Superficie calda: The cooking surface remains hot after use. Allow it to cool completely before cleaning or moving.
- Usu previstu: Use the cooktop only for its intended purpose of cooking food. Do not use for heating rooms or other non-food items.
2. Produttu Finituview
The Crompton Infraserve Infrared Cooktop is a 2000-watt appliance designed for efficient and versatile cooking. It features a durable crystal glass surface and intuitive touch panel controls.

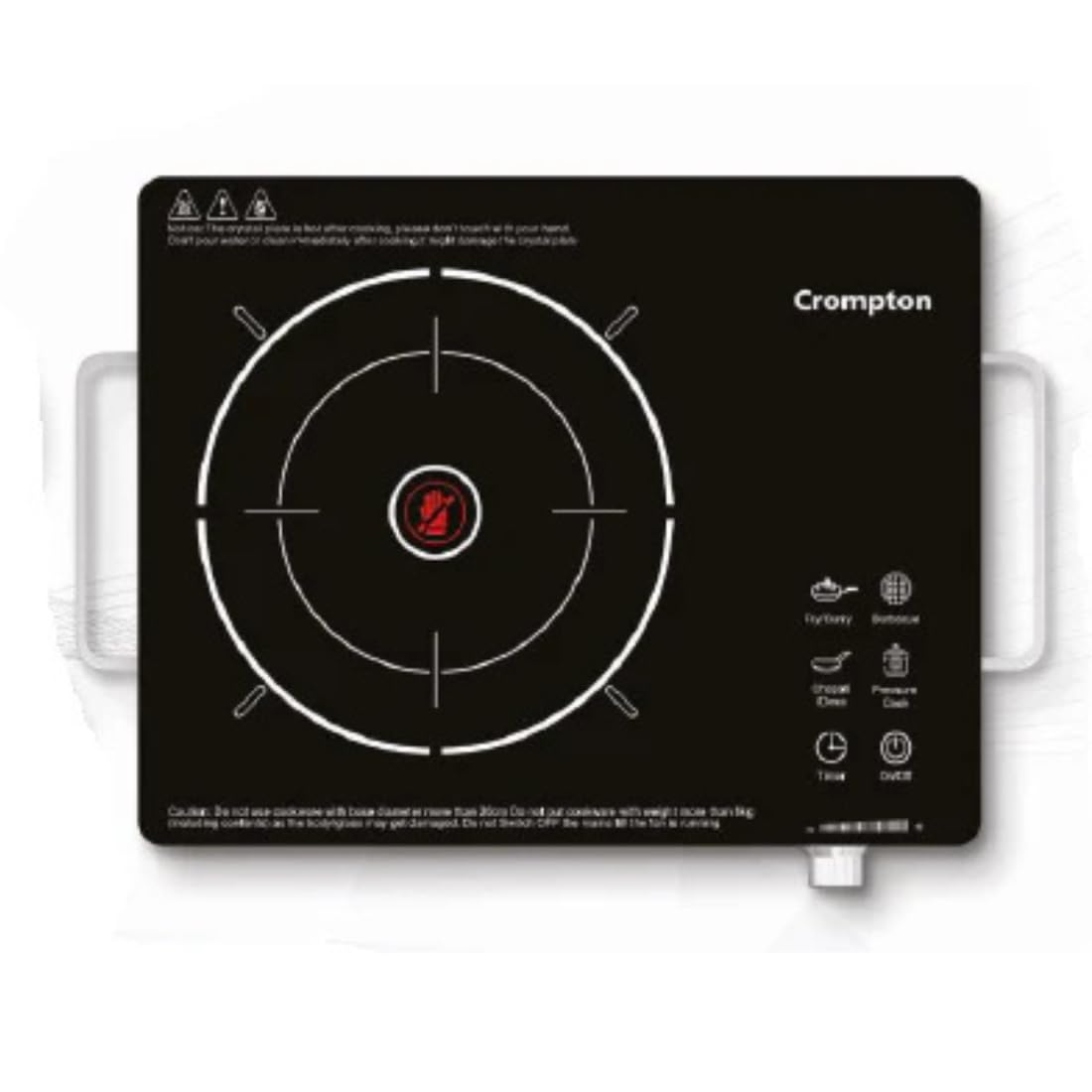

Figure 1: Crompton Infraserve Infrared Cooktop. This image displays the cooktop's sleek black crystal glass surface, the central infrared heating zone, and the touch control panel with various function icons.
Cumpunenti chjave:
- Crystal Glass Surface: The primary cooking area, durable and heat-resistant.
- Infrared Heating Element: Located beneath the glass, provides even heat distribution.
- Cuntrolli di u pannellu tattile: User-friendly interface for power, temperature, and preset functions.
- Aperture di ventilazione: Located on the sides or bottom for cooling.
- Cordone d'alimentazione: Per cunnette si à una presa elettrica.
3. Installazione è Primu Usu
Unpacking:
- Eliminate cù cura u pianu di cottura è tutti l'accessori da l'imballu.
- Verificate s'ellu ci hè qualchì dannu durante u trasportu. S'ellu hè dannighjatu, ùn l'utilizate micca è cuntattate l'assistenza clienti.
- Ensure all included components are present: 1 Infrared cooktop, 1 BBQ Grill, 2 Pcs skewer, 1 Warranty Card.
- Eliminate i materiali di imballaggio in modu rispunsevule.
Placement:
- Place the cooktop on a dry, stable, and heat-resistant surface.
- Ensure there is at least 10-15 cm of clear space around all sides of the cooktop for proper ventilation.
- Do not place the cooktop near water sources, flammable materials, or heat-sensitive surfaces.
Cunnessione di putenza:
- Plug the power cord into a standard, grounded 220-240V AC electrical outlet.
- Ensure the outlet is capable of handling a 2000-watt appliance.
4. Operating Instructions
Cumpatibilità di l'utensili di cucina:
The Crompton Infraserve Infrared Cooktop is compatible with a wide range of cookware materials due to its infrared heating technology. This includes:
- Stoviglie di vetru
- Stoviglie di ceramica
- Utensili di cucina d'aluminiu
- Stainless steel cookware
- Iron utensils
Ensure the bottom of the cookware is flat and covers the heating zone adequately for optimal performance.
Operazione basica:
- Power On: Place suitable cookware on the center of the cooking zone. Press the "On/Off" button on the touch panel. The display will illuminate.
- Selezziunà Funzione: Choose a cooking mode from the preset options (e.g., Boil, Fry, Simmer, Grill) or manually adjust the power/temperature.
- Aghjustate i paràmetri: Use the "+" and "-" buttons or the rotary knob (if present) to adjust the power level or temperature as desired. The cooktop offers multiple power and temperature settings.
- Funzione di mantene u calore: To keep food warm after cooking, select the "Keep Warm" function. This maintains a low temperature to prevent food from cooling.
- Funzione Timer: Use the "Timer" button to set a cooking duration. The cooktop will automatically shut off once the timer expires.
- Spegnimentu: After cooking, press the "On/Off" button to turn off the cooktop. The fan may continue to run for a short period to cool down internal components.
The cooktop provides even heat distribution for consistent cooking results across various styles.
5. Mantenimentu è Pulizia
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Crompton Infraserve Infrared Cooktop.
- Prima di Pulizia: Scollegate sempre u pianu di cottura da a presa di corrente è lasciatelu raffreddà cumpletamente prima di pulisce.
- Superficie di vetru: Wipe the crystal glass surface with a soft, damp pannu è un detergente dolce. Per e macchie ostinate, aduprate un detergente non abrasivu specificamente cuncipitu per i piani di cottura in vetru. Risciacquate cù un pannu pulitu èamp pannu è asciugate bè.
- Pannellu di cuntrollu: Wipe the touch control panel with a soft, dry cloth. Do not use excessive water or abrasive cleaners.
- Esternu: Pulite l'esternu di l'alloghju cù un pannu dolce èamp tela.
- Ùn immerse micca: Ùn immergete mai a piastra di cottura in acqua o in qualsiasi altru liquidu.
- Evita l'abrasivi: Do not use abrasive pads, harsh chemicals, or steel wool, as these can scratch or damage the surface.
- Aperture di ventilazione: Keep the ventilation openings clear of dust and debris to ensure proper airflow. Use a soft brush or vacuum cleaner to gently clean them.
6. Guida di Troubleshooting
Sè avete prublemi cù u vostru pianu di cottura, riferitevi à i seguenti prublemi cumuni è suluzioni:
| Prublemu | Causa Possibile | Soluzione |
|---|---|---|
| A piastra di cottura ùn s'accende micca. | No power supply; power cord not plugged in; faulty outlet. | Verificate s'ellu u cavu di alimentazione hè bè inseritu in una presa funzionale. Verificate l'interruttore automaticu. |
| Cooktop powers on but does not heat. | Incorrect cookware; cookware not centered; overheat protection activated. | Ensure compatible cookware is used and centered on the heating zone. Allow the unit to cool if it has overheated. |
| U display mostra un codice d'errore. | Malfunzionamentu internu; prublema di sensore. | Refer to the specific error code in the full manual (if available) or contact customer support. Try unplugging and re-plugging the unit. |
| Riscaldamentu irregolare. | Cookware not flat; cookware too small/large for heating zone. | Use cookware with a flat bottom that matches the size of the heating zone. |
If the problem persists after trying these solutions, please contact Crompton customer support.
7. Specifications Product
| Feature | Detail |
|---|---|
| Marca | Crompton |
| Mudellu | LYAB2YE200600 |
| Tipu di bruciatore | infrarouge |
| Numaru di elementi riscaldanti | 1 |
| Culore | Neru |
| Tipu di carburante | Elettricu |
| Materiale | Vetru |
| Fonte d'energia | Corded Electric |
| Pesu di l'articulu | 2 kg 300 g |
| Dimensioni di l'articulu (LxWxH) | 43.6 x 9 x 35 centimetri |
| U fabricatore | Crompton Greaves Consumer Electricals Limited |
8. Ciò chì hè in a scatula
Dopu avè apertu u pacchettu, duvete truvà i seguenti elementi:
- 1 x Crompton Infraserve Infrared Cooktop
- 1 x BBQ Grill
- 2 x Spiedini
- 1 x Carta di Garanzia
9. Garanzia è Assistenza Clienti
For warranty information, please refer to the included Warranty Card. Keep your purchase receipt as proof of purchase for any warranty claims.
If you have any questions, require technical assistance, or need to report a problem, please contact Crompton customer support. Contact details can typically be found on the Warranty Card or the official Crompton websitu.
