DEWALT DXL3010-04 4-Foot Type IA Fiberglass Stepladder Instruction Manual

1. Introduzione

This manual provides essential instructions for the safe and effective use, maintenance, and storage of your DEWALT DXL3010-04 4-foot Type IA Fiberglass Stepladder. Please read all instructions carefully before using the ladder to ensure personal safety and product longevity. This stepladder is designed for heavy-duty use with a 300-pound load capacity.

Figure 1: DEWALT DXL3010-04 4-foot Type IA Fiberglass Stepladder.

2. Informazioni di sicurezza

Always prioritize safety when using any ladder. Failure to follow these safety guidelines can result in serious injury or death.

• Ispezione: Before each use, inspect the ladder for any damage, loose rivets, cracks, or missing parts. Do not use a damaged ladder.
• Placement: Ensure the ladder is placed on a firm, level, and non-slippery surface. Fully open the stepladder and lock all spreaders before climbing.
• Stabilità: Never place the ladder on unstable bases such as boxes, barrels, or scaffolding.
• Capacità di carica: Do not exceed the maximum load capacity of 300 pounds, which includes the user, tools, and materials.
• Arrampicata: Always face the ladder when climbing up or down. Maintain three points of contact (two hands and one foot, or two feet and one hand) at all times.
• Altezza di travagliu: Do not stand on the top cap or the step immediately below the top cap. The highest safe standing level is typically the second step from the top.
• Raggiunge: Do not overreach. Keep your belt buckle (navel) between the side rails. Move the ladder closer to your work area as needed.
• Sicurezza elettrica: This fiberglass ladder is non-conductive, but always exercise extreme caution near electrical lines. Avoid contact with live electrical circuits.
• Cundizioni climatichi: Do not use the ladder in strong winds, during storms, or on icy surfaces.
• Calzature: Wear slip-resistant footwear with good ankle support.

3. Features

The DEWALT DXL3010-04 stepladder incorporates several design elements for enhanced performance and durability:

• Mega Step: Designed to provide 25% more standing surface on usable steps, enhancing comfort and stability during use.

Figure 2: Detail of the Mega Step, offering increased standing surface.
• Handy Top: An integrated top cap with multiple features to improve user productivity. It includes a magnet tray for small metal parts, hardware tray, curved ergonomic front, drill and tool slots, a paint bucket holder, and a pipe or 2x4 holder.


Figure 3: The Handy Top with various tool slots and a magnetic tray.



Figure 4: The Handy Top can securely hold pipes or 2x4s.


Figure 5: The Handy Top features a dedicated paint can holder.
• Impact Absorbing Bottom Bracing: Designed to absorb abuse from heavy-duty use, extending the ladder's lifespan.
• Boot Style Shoe: Non-marring, slip-resistant, extra-wide foot pads provide enhanced stability and protect the lower ladder rails.


Figure 6: The slip-resistant boot style shoe for enhanced stability.

• Double Rivet Step Construction: Each step features an angle brace and is secured with six large-headed, semi-tubular steel rivets for maximum strength.
• Nonconductive Full Channel Rails: Fiberglass rails are covered with a polyester veil for durability and resistance to fiber prominence or blooming, even with prolonged exposure to elements.
• Heavy Duty Inside Spreader Braces: Pinch-resistant and extra-thick spreader braces are located inside the fiberglass rails to protect them from damage during transit and use.

4. Setup

Proper setup is crucial for safe ladder operation.

1. Sviluppu: Place the ladder on a flat, stable surface. Grasp the side rails and pull the front and rear sections apart until the spreaders are fully extended and locked into place. Ensure all four feet are firmly on the ground.
2. Ispezione: Before climbing, visually inspect the ladder for any signs of damage, loose components, or obstructions. Confirm that the spreaders are locked.
3. Posizionamentu: Position the ladder directly in front of your work area. Avoid placing it in high-traffic areas or where it could be bumped.

5. Operating Instructions

Follow these guidelines for safe operation of your stepladder:

1. Arrampicata: Always climb and descend facing the ladder. Use both hands to grip the side rails or steps.
2. Three-Point Contact: Maintain three points of contact (two hands and one foot, or two feet and one hand) with the ladder at all times while ascending or descending.
3. Posizione di travagliu: Keep your body centered between the side rails. Do not lean too far to either side. If you cannot reach your work comfortably, descend and reposition the ladder.
4. Utilizazione di l'arnesi: Utilize the Handy Top for organizing tools and materials. Ensure items are securely placed to prevent them from falling.
5. Avoid Top Steps: Never stand or sit on the top cap or the step directly below it. These areas are not designed for standing.
6. Moving the Ladder: Always descend the ladder completely before moving it to a new position. Never attempt to move the ladder while standing on it.

6. Mantenimentu

Regular maintenance ensures the longevity and safe operation of your stepladder.

• Pulizia: Clean the ladder regularly with a mild detergent and water. Avoid abrasive cleaners or solvents that could damage the fiberglass or metal components. Ensure all surfaces are dry before storage.
• Ispezione: Periodically inspect all parts of the ladder, including steps, rails, spreaders, and feet. Look for:
  • Cracks, splinters, or corrosion on fiberglass rails.
  • Loose, bent, or missing rivets and fasteners.
  • Worn or damaged foot pads.
  • Proper functioning of spreader braces.
  Replace any damaged parts immediately or discontinue use if repairs cannot be made.
• Conservazione: Store the ladder in a dry, protected area away from direct sunlight and extreme temperatures. Store it horizontally on racks or vertically against a wall to prevent warping or damage.

7. Risoluzione di prublemi

Addressing common issues to ensure safe and effective use.

• Ladder Feels Unstable:
  Causa Possibile: Ladder not fully opened, placed on uneven ground, or feet are worn.
  Soluzione: Ensure spreaders are fully locked. Move to a level surface. Inspect and replace worn foot pads.
• Difficulty Opening/Closing:
  Causa Possibile: Dirt or debris in hinges, bent spreaders.
  Soluzione: Clean hinges and lubricate with a silicone-based spray. If spreaders are bent, do not force; inspect for damage and consider professional repair or replacement.
• Visible Damage (Cracks, Bends):
  Causa Possibile: Impact, overloading, or improper storage.
  Soluzione: Discontinue use immediately. Damaged ladders should not be used and must be repaired by a qualified professional or replaced.

8. Specificazioni

Key technical specifications for the DEWALT DXL3010-04 stepladder:

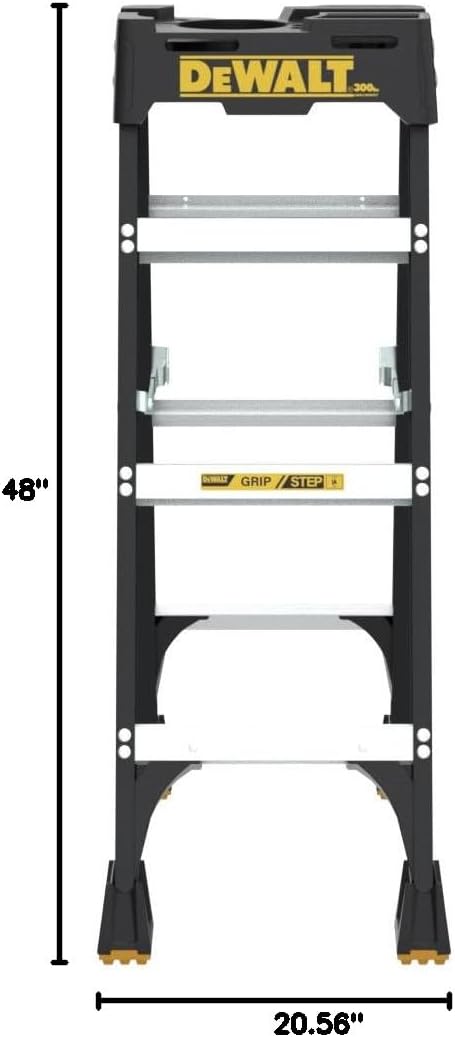

Figura 7: Dimensionale sopraview of the 4-foot stepladder.

9. Garanzia è Support

This DEWALT DXL3010-04 stepladder comes with a Garanzia limitata di 3 anni.

For warranty claims, technical support, or to inquire about replacement parts, please contact DEWALT customer service or visit the official DEWALT websitu. Conservate a vostra ricevuta d'acquistu cum'è prova d'acquistu per scopi di garanzia.
