Eiko 916-BP T-5 Wedge Base Halogen Bulb User Manual

1. Introduzione

This manual provides essential instructions for the safe installation, operation, and maintenance of the Eiko 916-BP T-5 Wedge Base Halogen Bulb. Please read this manual thoroughly before installation and retain it for future reference. This bulb is designed to meet or exceed the performance of original equipment lamps in compatible applications.

2. Informazioni di sicurezza

Osservate sempre e seguenti precauzioni di sicurezza per prevene ferite o danni:

• Disconnect Power: Always ensure the power supply to the fixture or vehicle is disconnected before attempting installation, removal, or maintenance.
• Maneggiate cù cura: Halogen bulbs can become very hot during operation. Allow the bulb to cool completely before handling. Avoid touching the glass portion of the bulb with bare hands, as oils can reduce bulb life. Use a clean cloth or gloves.
• Corretta Voltage: Assicuratevi u vulume di a lampadinatage (13.5V) matches the intended application's requirements. Using an incorrect voltage can lead to premature failure or damage.
• Eliminazione propria: Smaltite e lampadine usate secondu e regulazioni lucali.
• Prutezzione di l'ochji: Wear appropriate eye protection during installation or removal to prevent injury from shattered glass.

3. Produttu Finituview

The Eiko 916-BP is a T-5 wedge base halogen bulb, designed for various automotive and general lighting applications. It features high-performance tungsten filaments that produce a brighter, whiter light compared to standard incandescent bulbs.

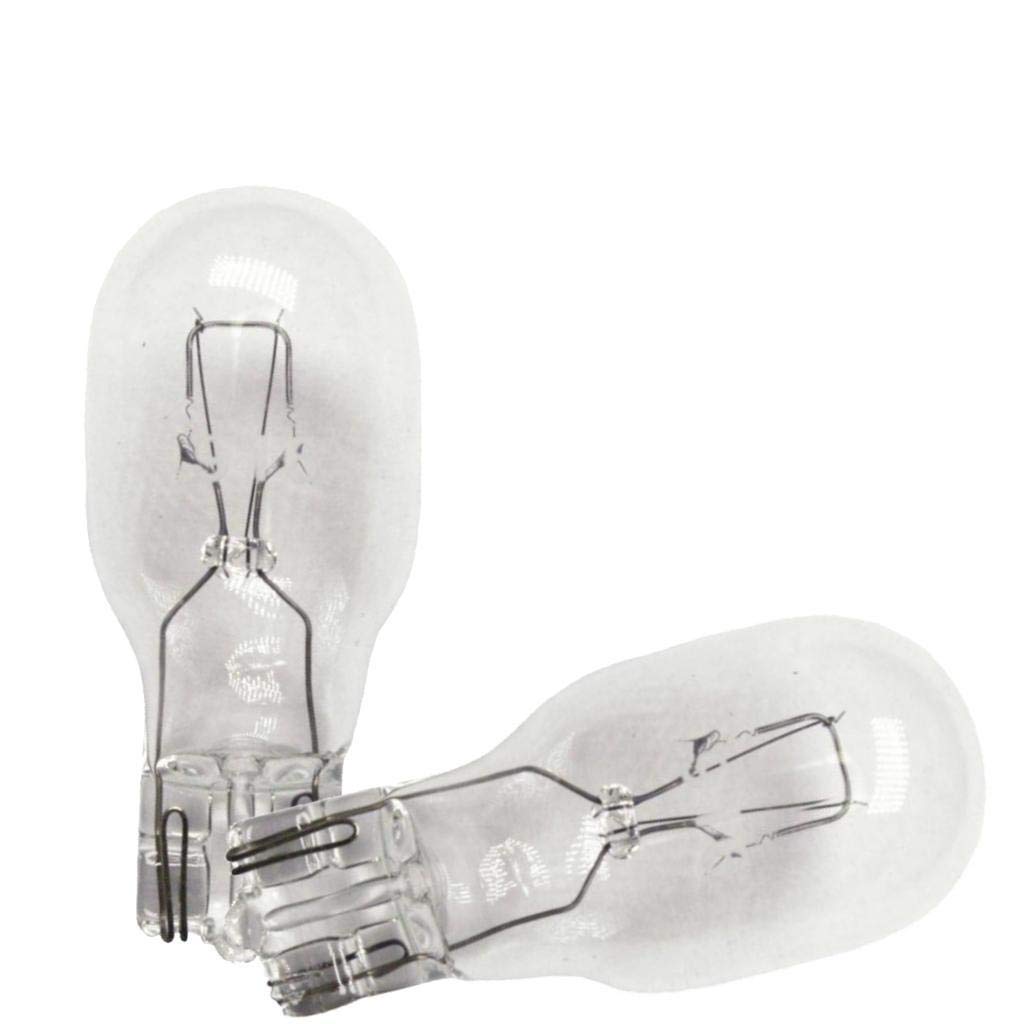

Figure 1: Eiko 916-BP T-5 Wedge Base Halogen Bulb. This image shows the compact design of the halogen bulb with its clear glass envelope and wedge-style base.

Funzioni chjave:

• High Performance Tungsten Filaments: Produces a brighter, whiter light for improved visibility.
• Wedge Base (T-5): Designed for easy plug-and-play installation in compatible sockets.
• Custruzzione durabile: Manufactured to exacting standards for reliable performance.
• Voltage: 13.5V, 0.54 Amp.

4. Installazione

Follow these steps for proper installation of the Eiko 916-BP halogen bulb:

1. Spegne l'alimentazione: Before beginning, ensure the power to the light fixture or vehicle system is completely turned off and disconnected.
2. Access Bulb Socket: Locate and access the bulb socket where the new bulb will be installed. This may involve removing covers or panels depending on the application.
3. Elimina l'antica lampadina: Carefully pull the old wedge base bulb straight out from its socket. If the old bulb is broken, use pliers or tweezers to remove any remaining glass or base fragments.
4. Inserite una nova lampadina: Holding the new Eiko 916-BP bulb by its plastic base (or using a clean cloth/gloves if handling the glass), align the wedge base with the socket and gently push it straight in until it is firmly seated. Do not force the bulb.
5. Accessu sicuru: Reinstall any covers or panels that were removed to access the socket.
6. Funzionalità di prova: Restore power and test the bulb to ensure it illuminates correctly.

Impurtante: Avoid touching the glass envelope of the new bulb with bare hands. Fingerprints can cause hot spots and lead to premature bulb failure. If the glass is touched, clean it with rubbing alcohol and a clean cloth before use.

5. Operazione

The Eiko 916-BP halogen bulb operates immediately upon receiving power. Once installed correctly, simply activate the light switch or vehicle system to turn the bulb on. The bulb will provide a bright, white light output suitable for its intended application.

• Generazione di calore: Halogen bulbs generate significant heat during operation. Ensure adequate ventilation around the bulb and fixture.
• Dimora: Over time, all lamps will dim. For optimal performance, especially in critical applications like vehicle headlamps, it is recommended to replace both bulbs simultaneously.

6. Mantenimentu

The Eiko 916-BP halogen bulb is designed for long-lasting performance with minimal maintenance. However, periodic checks and proper handling can extend its lifespan:

• Pulizia: If the bulb's glass surface becomes dirty, ensure the power is off and the bulb is cool. Gently wipe the glass with a clean, lint-free cloth dampened with rubbing alcohol. Allow to dry completely before restoring power.
• Sustituzione: Replace the bulb when it burns out or when its light output significantly diminishes. Refer to the installation section for replacement procedures.
• Ispezione: Periodically inspect the bulb and its socket for any signs of corrosion, loose connections, or damage. Address any issues promptly.

7. Risoluzione di prublemi

If the Eiko 916-BP bulb does not function as expected, consider the following troubleshooting steps:

• Lampadina chì ùn s'illumina micca:
  • Ensure power is supplied to the fixture/vehicle.
  • Check if the bulb is properly seated in its socket. Remove and reinsert firmly.
  • Inspect the bulb filament for breakage. If broken, the bulb needs replacement.
  • Check the fuse or circuit breaker for the circuit.
  • Test the socket with a known working bulb, if possible, to rule out a faulty socket.
• Sfarfallii di lampadina:
  • Ensure the bulb is securely seated in the socket.
  • Check for loose wiring connections in the fixture or vehicle.
  • Verificate u voltage supply is stable and within the bulb's specifications.
• Vita di a lampadina corta:
  • Assicuratevi u vulume di a lampadinatage matches the application's voltage. Over-voltage significantly reduces bulb life.
  • Avoid touching the glass with bare hands during installation.
  • Check for excessive vibration in the application, which can damage the filament.
  • Assicurà una ventilazione adatta per prevene u surriscaldamentu.

8. Specificazioni

9. Garanzia è Support

Eiko products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the official Eiko websitu o cuntattate u so serviziu clienti. Cunservate a vostra ricevuta d'acquistu cum'è prova d'acquistu.

Per più assistenza, visitate: www.eiko.com
