1. Introduzione
This manual provides essential information for the proper installation, operation, and maintenance of your ACDelco GM Original Equipment 12654815 V-Ribbed Serpentine Belt. Designed and tested to rigorous General Motors standards, this serpentine belt is a critical component for the efficient operation of various engine accessories.
The V-ribbed design ensures a secure point of contact with pulleys, providing optimal traction for reliable performance. For safety and proper function, please read this manual thoroughly before installation or service.
2. Informazioni di sicurezza
Osservate sempre e seguenti precauzioni di sicurezza quandu travagliate cù cumpunenti automobilistici:
- Portate l'equipaggiu di prutezzione individuale (PPE) adattatu, cumpresi occhiali di sicurezza è guanti.
- Ensure the engine is off and cooled down before attempting any work.
- Disconnect the battery to prevent accidental starting or electrical hazards.
- Cunsultate u manuale di serviziu specificu di u vostru veiculu per struzzioni dettagliate è specifiche di coppia.
- Keep hands and clothing clear of moving parts when the engine is running.
- Dispose of old belts and other materials responsibly according to local regulations.
3. Produttu Finituview
The ACDelco GM Original Equipment 12654815 V-Ribbed Serpentine Belt is designed to drive multiple peripheral devices in your vehicle's engine, such as the alternator, power steering pump, air conditioning compressor, and water pump, using a single belt. Its construction ensures durability and efficient power transfer.

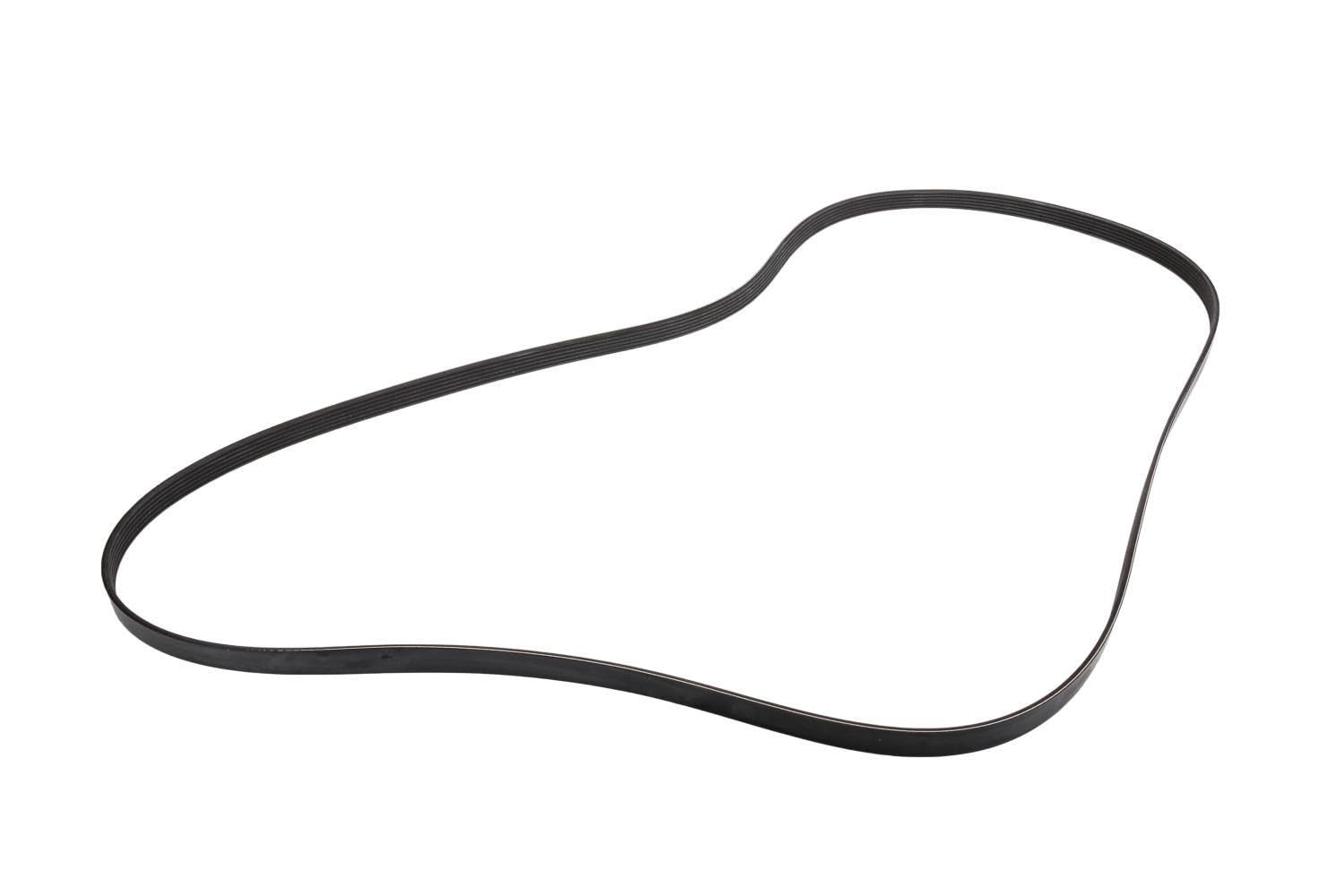

Figure 3.1: ACDelco GM Original Equipment V-Ribbed Serpentine Belt (Model 12654815).
E caratteristiche chjave includenu:
- V-Ribbed Construction: Provides a secure grip on pulleys for efficient power transmission.
- GM Original Equipment: Engineered and validated by General Motors for optimal fit and performance in GM vehicles.
- Durabilità: Constructed from high-quality materials to withstand engine heat and stress.
4. Setup è Installazione
Installation of a serpentine belt requires specific tools and knowledge. If you are not confident in your ability to perform this task, it is recommended to seek assistance from a qualified automotive technician.
4.1 Strumenti necessarii
- Serpentine belt tensioner tool (specific to your vehicle)
- Set di chiavi a presa
- Guanti è occhiali di sicurezza
- Diagram of the belt routing (usually found under the hood or in the vehicle service manual)
4.2 Passi di stallazione
- Preparazione: Ensure the engine is off and cool. Disconnect the negative battery terminal. Locate the belt routing diagram.
- Relieve Tension: Using the serpentine belt tensioner tool, rotate the tensioner pulley to relieve tension on the old belt.
- Eliminate a vechja cintura: Carefully remove the old belt from all pulleys. Note its routing for reference.
- Ispettà e pulegge: Check all pulleys for wear, damage, or excessive play. Replace any faulty pulleys before installing the new belt.
- Installa una nova cintura: Route the new ACDelco 12654815 serpentine belt according to the diagram, ensuring it is correctly seated in all pulley grooves. Start with the smooth pulleys first, then the ribbed ones.
- Applicà a tensione: Once the belt is correctly routed, use the tensioner tool to rotate the tensioner pulley again, allowing the belt to slip over the final pulley (usually the tensioner itself). Slowly release the tensioner.
- Verificate l'installazione: Double-check that the belt is properly seated on all pulleys and that there are no twists or misalignments.
- Passi finali: Reconnect the negative battery terminal. Start the engine and observe the belt for proper operation and any unusual noises.
Figura 4.1: Primu pianu view of the V-ribbed surface of the serpentine belt, showing the grooves that engage with engine pulleys.
5. Cunsiderazioni operative
Once installed, the serpentine belt operates continuously with the engine. Proper operation is indicated by smooth, quiet rotation without slipping or excessive noise. The belt's primary function is to transfer power from the crankshaft to various engine accessories.
- Prima messa in opera: After installation, run the engine for a few minutes and then re-check the belt tension and seating on all pulleys.
- Funzionamentu normale: The belt should run smoothly and quietly. Any squealing, chirping, or grinding noises may indicate a problem with the belt, tensioner, or an accessory pulley.
6. Mantenimentu
Regular inspection and maintenance are crucial for the longevity and reliable performance of your serpentine belt.
6.1 Calendariu d'ispezione
Inspect the serpentine belt at every oil change or at least every 12,000 miles (20,000 km), or as recommended by your vehicle manufacturer.
6.2 What to Look For During Inspection
- Cracks: Small cracks across the ribs are normal with age, but deep or numerous cracks indicate replacement is due.
- Fraying/Shredding: Any signs of material fraying, shredding, or missing chunks require immediate replacement.
- smaltu: A shiny, hardened appearance on the belt ribs indicates glazing, which can lead to slipping.
- Cuntaminazione: Oil, grease, or coolant on the belt can cause degradation and slipping. Identify and fix leaks, then replace the belt.
- Rib Wear: Uneven wear or missing ribs.
- Tensioner Condition: Check the automatic tensioner for proper operation. It should maintain consistent tension. Look for excessive vibration or play.
Figure 6.1: An ACDelco serpentine belt, showing branding and part numbers, useful for identification during maintenance.
6.3 Pulizia
Avoid using belt dressings or cleaners, as these can damage the belt material. If the belt is contaminated, identify and fix the source of the contamination, then replace the belt.
7. Risoluzione di prublemi
Common issues related to serpentine belts and their potential solutions:
| Sintumu | Causa Possibile | Soluzione |
|---|---|---|
| Squealing or Chirping Noise | Loose belt, worn belt, misaligned pulley, worn tensioner, contaminated belt. | Inspect belt for wear and tension. Check pulley alignment and tensioner function. Clean or replace belt if contaminated. |
| Cintura Slipping | Insufficient tension, glazed belt, oil/coolant contamination, worn pulleys. | Check tensioner. Inspect belt for glazing or contamination. Replace worn components. |
| Cracked or Frayed Belt | Normal wear and tear, excessive heat, misaligned pulleys. | Replace the belt. Inspect pulleys for alignment and wear. |
| Loss of Power Steering/AC/Charging | Belt has broken or slipped off pulleys. | Immediately pull over safely. Inspect and replace belt if broken. Re-route if slipped. Address underlying cause (e.g., seized pulley). |
If troubleshooting steps do not resolve the issue, consult a certified automotive technician.
8. Specificazioni
The following specifications apply to the ACDelco GM Original Equipment 12654815 V-Ribbed Serpentine Belt:
- Numero di parte: 12654815
- Marca: ACDelco GM Original Equipment
- Stile di cintura: V-Ribbed
- Materiale: Engineered rubber compounds for durability and flexibility
- Culore: Neru
- Dimensioni (approssimative): 6 x 3.31 x 1 pollici (imballaggio)
- Pesu (apprussimativu): 7.2 once
- Dispositivi cumpatibili: Designed for specific GM vehicle applications (refer to vehicle service manual for exact fitment)
9. Garanzia è Support
ACDelco GM Original Equipment parts are backed by General Motors. For specific warranty information, please refer to the warranty documentation included with your purchase or visit the official ACDelco websitu. I termini è e cundizioni di garanzia ponu varià.
For technical support or further assistance, please contact ACDelco customer service or consult an authorized ACDelco service center. You can find more information and contact details on the ACDelco Store on Amazon or the official ACDelco websitu.
