1. Introduzione è Overview
The Hifonics Brutus BRX3016.1D is a 3000 Watt Mono Block Amplifier designed to deliver powerful audio for car sound systems. It features Super D Class technology with Ultra-Fi MOSFET outputs for maximum power and efficiency, making it suitable for powering subwoofers. This amplifier incorporates advanced audio technology for clear sound reproduction with minimal distortion. It also offers precise audio control through variable electronic crossovers and an onboard equalizer, along with a wired bass remote for convenient adjustments.
Figura 1: Fronte view of the Hifonics Brutus BRX3016.1D Amppiù vivu.
2. Setup è Installazione
Proper installation is crucial for optimal performance and safety. Ensure all connections are secure and correctly polarized. This amplifier is designed for universal fitment and flexible connection options.
2.1 Cunnessione di l'alimentazione è di l'altoparlanti
U amplifier features high-temperature, impact-resistant, nickel-plated connectors with allen head set screws for secure wire termination and an erosion-resistant seal.
- Input di putenza: Connect 0-gauge power and ground terminals.
- Accensione remota: Connect the remote wire to your head unit's remote output.
- Output Speaker: Connect 8-gauge speaker wire terminals to your subwoofers.

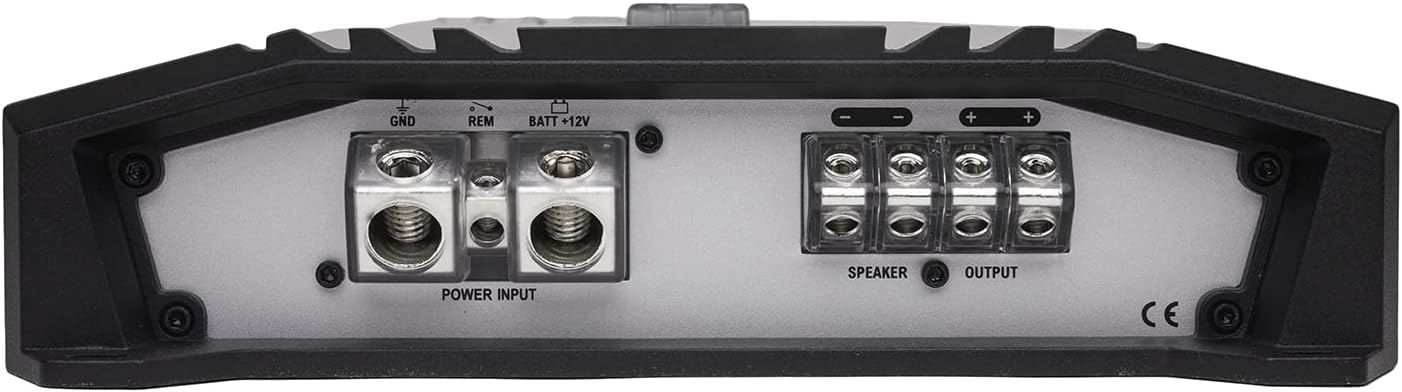

Figure 2: Rear panel showing power, ground, remote, and speaker output terminals.
2.2 Cunnessione d'entrata audio
U amplifier offers both nickel-plated RCA inputs and high-level inputs for integration with factory or aftermarket audio systems.
- Ingressi RCA: Use high-quality RCA cables to connect your head unit's pre-outs to the ampingressi RCA di lifier.
- Ingressi di altu livellu: If your head unit does not have RCA outputs, use the high-level inputs.
- Bridge RCA: Questu amplifier is strappable, allowing for bridging with another compatible amppiù vivu.
Figure 3: Front panel showing RCA inputs and various control adjustments.
3. Operating Instructions
The BRX3016.1D provides comprehensive controls to fine-tune your audio experience.
3.1 Ajustamenti Audio
- Controlle di Guadagnu: Adjust the input sensitivity to match the output of your head unit.
- Variable Electronic Crossovers: Tailor specific frequencies to your subwoofers for optimal performance.
- Onboard Equalizer: Further refine the sound profile.
- Phase Adjustment (0-180°): Align your subwoofer's output with your main speakers for a cohesive sound stage.
- Filtru Subsonicu: Protects subwoofers from extremely low, inaudible frequencies that can cause damage.
3.2 Wired Bass Remote
The included wired bass remote allows you to adjust bass frequencies conveniently from anywhere in your vehicle.
Figure 4: Wired bass remote control for convenient bass adjustment.

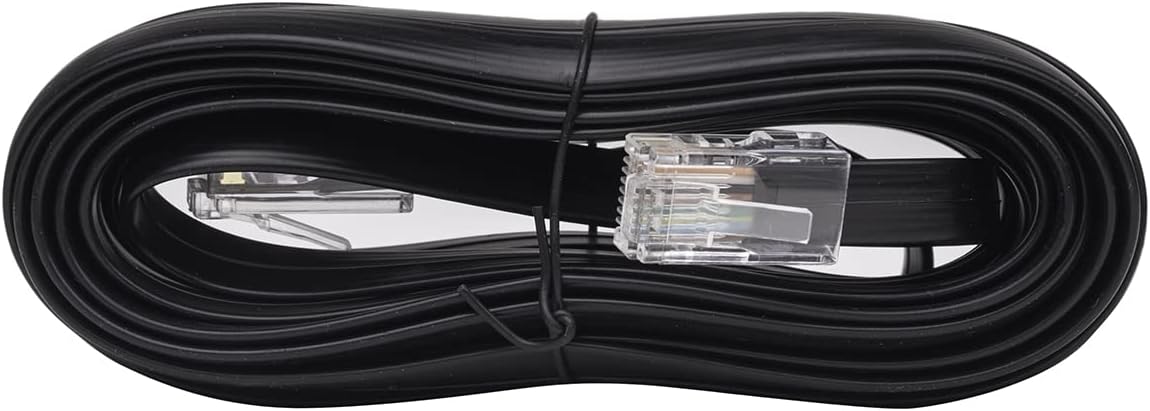

Figure 5: Remote cable for connecting the bass remote to the amppiù vivu.
4. Mantenimentu
To ensure long-lasting performance, the Brutus amplifier features a classic aluminum Hifonics heat sink design to minimize heat buildup on the Ultra-Fi output devices. Regularly inspect the amplifier for dust and debris, and ensure adequate ventilation around the unit.
Figura 6: Side view di u amplifier, highlighting the heat sink design.
5. Risoluzione di prublemi
U amplifier includes LED system protection circuitry diagnostics to monitor overload and speaker short protection. If the protection LED illuminates, check the following:
- Overload: Reduce the gain setting or check for speaker impedance issues.
- Speaker Short Protection: Inspect speaker wiring for any shorts or frayed wires. Ensure correct impedance matching.
- Prutezzione termale: Assicurà u amplifier has adequate ventilation and is not overheating. Allow it to cool down.
- Problemi di putenza: Verify all power and ground connections are secure and that the battery voltage hè abbastanza.
6. Specificazioni
| Feature | Specificazione |
|---|---|
| Forza di output | 3000 Watt |
| Numero di canali | 1 (mono) |
| Numeru di mudellu di l'articulu | BRX3016.1D |
| Dimensioni di l'articulu (L x W x H) | 17.7 x 9.8 x 2.4 inch |
| Pesu di l'articulu | 4.4 liri |
| Materiale | Alluminiu |
| Culore | Verde |
| Tipu di muntatura | Munti superficia |
7. Video ufficiali di u pruduttu
Explore the advanced technology and features of Hifonics amplifiers through these official product videos.
Hifonics Zeus ZXX Amplifiers Overview
Video 1: Un overview of Hifonics Zeus ZXX Amplifiers, showcasing key features and design principles that apply across Hifonics' amplifier lines, including Ultra-Fi MOSFETs and electronic crossovers.
Hifonics Zeus ZRX V2 Amplifiers
Video 2: A look at the Zeus ZRX V2 series, highlighting compact design, high sound quality, nickel-plated RCA inputs, and electronic equalizer features common in Hifonics amplifiers.
8. Garanzia è Support
For warranty information, technical support, or further assistance, please visit the official Hifonics websitu o cuntattate u so serviziu clienti. Cunservate a vostra ricevuta d'acquistu cum'è prova d'acquistu per qualsiasi reclamu di garanzia.
