Manuale d'usu di u cuntrollore PLC Fatek FBs-20MAT2-AC
Model: FBs-20MAT2-AC (FBs-20MAT)
1. Introduzione
The Fatek FBs-20MAT2-AC Programmable Logic Controller (PLC) is an advanced industrial control device designed for automation tasks. It features a user-friendly and readable multi-input/multi-output function structure, allowing for complex functionalities with fewer instructions compared to other PLC brands. This manual provides essential information for the proper installation, operation, and maintenance of your FBs-20MAT2-AC controller.
2. Produttu Finituview

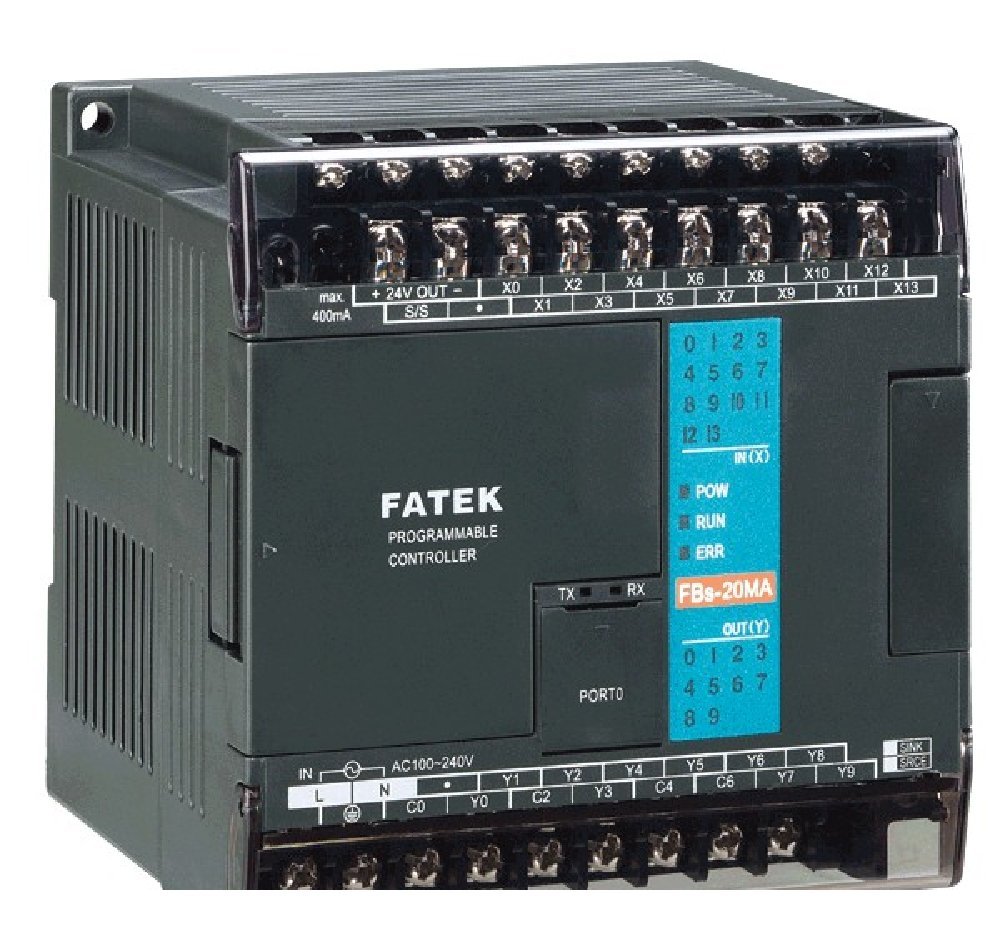

This image displays the Fatek FBs-20MAT2-AC Programmable Logic Controller. It features clearly labeled input (X) and output (Y) terminals, power input (AC100-240V), and status indicator LEDs for Power, Run, and Error. The model number FBs-20MA is visible on the front panel, along with TX/RX indicators for communication.
3. Setup è Installazione
3.1 Cunnessione Power Supply
The FBs-20MAT2-AC controller operates on a 100 ~ 240VAC power supply. Ensure the power source matches these specifications before connecting. Connect the AC power lines to the designated 'L' and 'N' terminals on the controller. Always ensure power is disconnected during wiring to prevent electrical shock.
3.2 Digital Input/Output Wiring
The controller features 12 points of 24VDC digital input (up to 10KHz in 4 points) and 8 points of Sink (NPN) transistor digital output (4 points 10KHz output). Refer to the terminal labels (X0-X13 for inputs, Y0-Y9 for outputs) for correct wiring. Ensure all connections are secure and follow industrial wiring standards.
3.3 Port di cumunicazione
The FBs-20MAT2-AC includes 1 built-in RS-232 port, which can be expanded up to 3 ports. This port is used for programming and communication with other devices. Connect your programming cable or communication device to the RS-232 port (labeled 'PORTO').
3.4 Muntamentu
Mount the PLC in a stable, well-ventilated enclosure, away from excessive heat, moisture, and electromagnetic interference. Ensure adequate space for wiring and heat dissipation.
4. Operating Instructions
4.1 Software di prugrammazione
The PLC is programmed using the WinProladder ladder programming tool. This software can be downloaded from the official Fatek website at no extra charge. Install the software on your computer and connect to the PLC via the RS-232 port to upload or download programs.
4.2 Funzionamentu di basa
- Power On: After connecting the power supply, the 'POW' indicator LED should illuminate.
- Modu Run: Once a program is loaded and the PLC is set to run mode, the 'RUN' indicator LED will illuminate, indicating active program execution.
- Indicazione di errore: If an error occurs, the 'ERR' indicator LED will illuminate. Refer to the troubleshooting section for common error resolutions.
- Comunicazione: The 'TX' and 'RX' LEDs indicate data transmission and reception activity on the communication port.
5. Mantenimentu
Regular maintenance ensures the longevity and reliable operation of your PLC. Always disconnect power before performing any maintenance.
- Pulizia: Keep the PLC and its enclosure clean and free from dust and debris. Use a soft, dry cloth for cleaning. Avoid using liquid cleaners or solvents.
- Cuntrolu ambientale: Ensure the operating environment adheres to the specified temperature and humidity ranges. Protect the unit from excessive vibrations and corrosive gases.
- Cuntrolli di cunnessione: Periodically inspect all wiring connections for tightness and signs of corrosion or damage.
- Actualizazioni di firmware: Check the Fatek website for any available firmware updates that may improve performance or address issues.
6. Risoluzione di prublemi
Questa sezione furnisce una guida per i prublemi cumuni. Per i prublemi cumplessi, cuntattate l'assistenza tecnica.
- No Power (POW LED Off):
- Check the AC power supply connection and ensure it is within the 100~240VAC range.
- Verify the power cable is securely connected to the PLC and the power outlet.
- Check for blown fuses in the power circuit.
- PLC Not Running (RUN LED Off, POW LED On):
- Ensure a valid program is loaded into the PLC.
- Check if the PLC is in 'STOP' mode. Use WinProladder to switch to 'RUN' mode.
- Verify there are no critical errors indicated by the 'ERR' LED.
- Error Indication (ERR LED On):
- Connect to the PLC using WinProladder software to view the error code and description.
- Common errors include program syntax errors, I/O module faults, or memory issues.
- Consult the WinProladder software manual for specific error code interpretations.
- Communication Issues (TX/RX LEDs Inactive):
- Verify the RS-232 cable connection is secure and correct.
- Check the communication settings (baud rate, data bits, parity, stop bits) in WinProladder and ensure they match the PLC's settings.
- Ensure the correct COM port is selected on your computer.
- Input/Output Malfunction:
- Verify wiring for the specific input/output points.
- Check the status of the input devices (sensors, switches) and output devices (relays, indicators).
- Use WinProladder to monitor the real-time status of I/O points to diagnose the issue.
7. Specificazioni
| Feature | Specificazione |
|---|---|
| Numero di mudellu | FBs-20MAT2-AC (FBs-20MAT) |
| Ingressi digitali | 12 points, 24VDC (up to 10KHz in 4 points) |
| Uscite digitali | 8 points, Sink (NPN) transistor (4 points 10KHz output) |
| Porti di cumunicazione | 1 built-in RS-232 (expandable up to 3) |
| Alimentazione elettrica | 100 ~ 240VAC |
| Certificazioni | Certificatu UL |
| Dimensioni di u pacchettu | 4.5 x 4 x 4 inch |
| Pesu di l'articulu | 1.01 liri |
| Paese d'origine | Taiwan |
| Voltage | 240 Volts (AC) |
| Tipu di visualizazione | LCD o LED |
| Temperature di funziunamentu | 20 gradi Celsius |
| UPC | 687965401068 |
8. Garanzia è Support
For information regarding product warranty, technical support, or service, please refer to the documentation provided with your purchase or contact the manufacturer directly. The seller for this product is Fatek USA. You may also visit the official Fatek websitu per risorse supplementari è informazioni di cuntattu.
