TFA 35.1136.02 Digital Wireless Weather Station

1. Introduzione

This manual provides essential information for the setup, operation, and maintenance of your TFA 35.1136.02 Digital Wireless Weather Station. This device offers comprehensive weather monitoring with a color display, showing indoor and outdoor temperature and humidity, and a weather forecast based on animated symbols. It also features a radio-controlled clock, calendar, and alarm with snooze function.

The weather station is designed for both table-top placement and wall mounting. For continuous backlight illumination, the device requires a power adapter (not included). When operating on batteries, the backlight functions temporarily to conserve power.

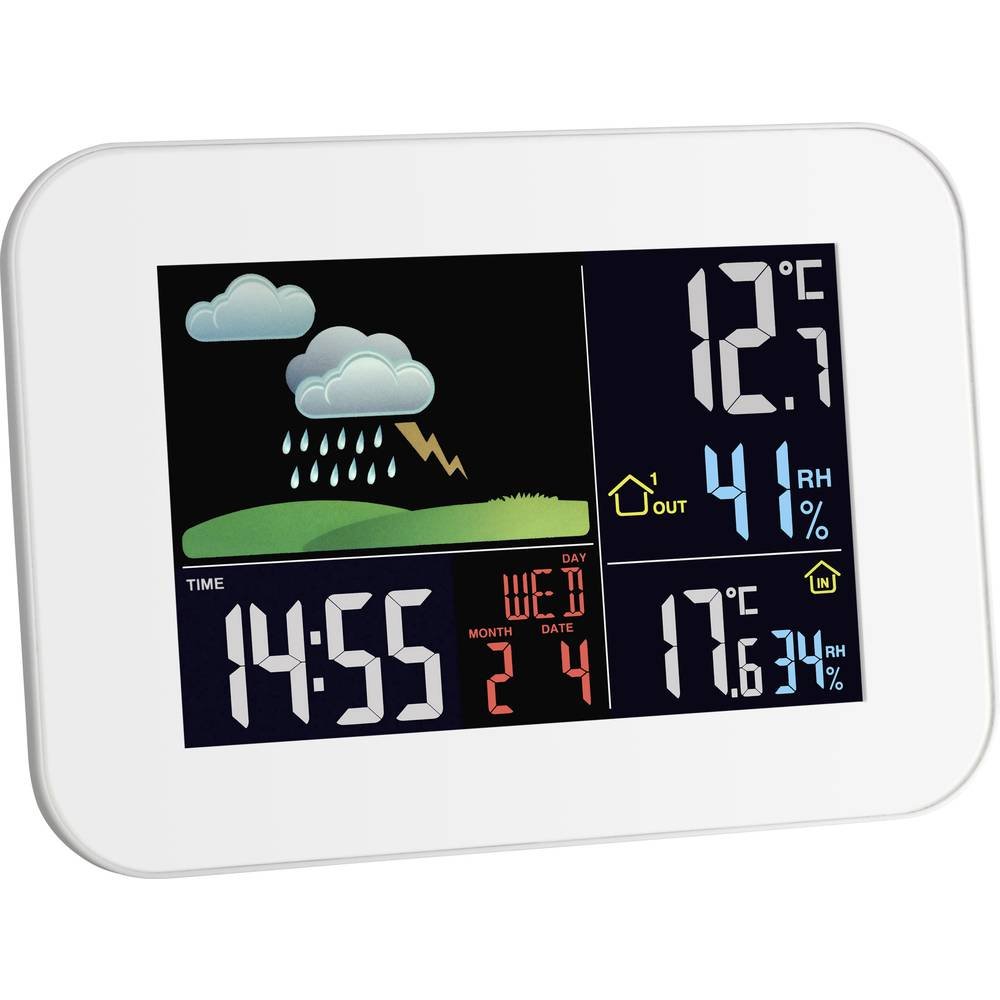

Image 1.1: Main unit of the TFA 35.1136.02 Digital Wireless Weather Station.

2. Setup

2.1. Installazione di batterie

The weather station main unit and the remote sensor both require batteries for operation. Ensure you use fresh batteries of the correct type.

• Unità principale: Requires 2 x 1.5 V AAA batteries (not included). Open the battery compartment cover on the back of the main unit, insert the batteries according to the polarity markings (+/-), and close the cover.
• Sensor remoto: Requires batteries (type not specified in product data, typically AAA or AA). Open the battery compartment, insert batteries, and close the cover.

For continuous backlight, connect the main unit to a power outlet using a compatible AC adapter (not included).

2.2. Remote Sensor Placement

Place the remote sensor in an outdoor location that is protected from direct sunlight and rain to ensure accurate temperature and humidity readings. Avoid placing it near large metal objects, electrical appliances, or other sources of interference that could disrupt the wireless signal. The effective range of the wireless signal can vary depending on environmental factors and obstacles.

2.3. Sincronizazione iniziale

After inserting batteries into both the main unit and the remote sensor, the main unit will automatically attempt to establish a connection with the remote sensor and receive the radio-controlled time signal. This process may take several minutes.

• Ensure the main unit is not placed too close to electronic devices like televisions, which can interfere with signal reception.
• If the radio-controlled time signal is not received, the time can be set manually. Refer to the 'Operating' section for manual time setting instructions. The device will attempt to receive the time signal daily, typically between 2:00 AM and 6:00 AM.

3. Operating Instructions

3.1. Funzioni di visualizazione

U display à culori furnisce una visione chjaraview of various data:

• Ora è Data: Displays the current time, day of the week, month, and date. The time is typically synchronized via a radio signal.
• Temperatura è umidità interna: Shows the current temperature and relative humidity measured by the main unit.
• Temperatura è umidità esterna: Displays the current temperature and relative humidity received from the remote sensor.
• Previsioni Meteo: Animated symbols (e.g., sun, clouds, rain, lightning) indicate the predicted weather conditions.
• Memoria Max/Min: The station records and can display the maximum and minimum temperature and humidity values.
• Dew Point & Comfort Index: Provides additional climate information.

Imagine 3.1: Dettagliata view of the weather station's color display.

3.2. Setting Time and Date

If the radio-controlled time signal is not received or if you need to adjust the time zone, you can manually set the time and date. Consult the specific button layout and instructions provided in the full product manual for precise steps. Generally, a 'SET' button is used to enter the setting mode, and 'UP'/'DOWN' buttons are used to adjust values.

3.3. Funzione Alarm

The weather station includes an alarm clock with a snooze function. To set the alarm, access the alarm settings via the appropriate button (refer to the full product manual). You can also manually adjust time zones.

3.4. Funziunamentu di a retroilluminazione

When powered by an AC adapter, the display backlight will remain continuously illuminated. When operating on batteries, the backlight will enter a power-saving mode (dark display). Pressing the top button will temporarily illuminate the display, which will then dim again after a short period to conserve battery life.

4. Mantenimentu

4.1. Pulizia

To clean the weather station and remote sensor, use a soft, dry cloth. Do not use abrasive cleaners, solvents, or chemical agents, as these can damage the display or casing. Avoid exposing the devices to excessive dust or moisture.

4.2. Sustituzione di batterie

Replace batteries in both the main unit and the remote sensor when the low battery indicator appears on the display, or when the display becomes dim (for the main unit on battery power) or readings become erratic. Always replace all batteries in a device at the same time with new ones of the same type. Dispose of used batteries responsibly according to local regulations.

5. Risoluzione di prublemi

• No Outdoor Sensor Reading:
  Ensure the remote sensor is within range of the main unit and free from obstructions. Avoid placing the main unit near other electronic devices that may cause interference. Check and replace batteries in the remote sensor.
• Visualizzazione di l'ora incorretta:
  Verify that the main unit is in a location where it can receive the radio-controlled time signal. If reception is consistently poor, manually set the time as described in the 'Operating' section.
• Display is Dim or Blank (on battery power):
  This is normal behavior for power saving. Press the top button to temporarily illuminate the display. If the display remains dim or blank even after pressing the button, replace the batteries.
• Display is Dim or Blank (with AC adapter):
  Check if the AC adapter is properly connected and functioning. If the adapter is faulty, the unit will rely on battery power, resulting in a dim display.
• Letture inaccurate:
  Ensure both the main unit and remote sensor are placed in appropriate environments (e.g., remote sensor protected from direct sun/rain). Calibrate if the option is available (refer to full product manual).

6. Specificazioni

Image 6.1: Dimensions of the TFA 35.1136.02 Digital Wireless Weather Station.

7. Garanzia è Support

For specific warranty information, please refer to the documentation provided with your purchase or contact your retailer. The availability of spare parts in the EU is guaranteed for 1 year from the date of purchase. For technical support or further inquiries, please contact TFA customer service or your local distributor.
