Introduzione
Grazie per l'acquistuasing the ipega PG-9087S Wireless Game Controller. This device is designed to enhance your mobile gaming experience on Android and iOS smartphones and tablets. Please read this manual carefully before use to ensure proper operation and to maximize the lifespan of your controller.
Informazioni di sicurezza
- Ùn espone micca u controller à temperature estreme, umidità o luce solare diretta.
- Evitate di lascià cascà o di sottumette u controller à impatti forti.
- Do not attempt to disassemble or modify the controller. This will void the warranty and may cause damage.
- Mantene u controller luntanu da i zitelli è l'animali domestici.
- Aduprate solu u cavu di carica furnitu o cunsigliatu.
Cuntenutu di u pacchettu
- ipega PG-9087S Wireless Game Controller
- Cavu di carica USB
- Manuale d'uso (stu documentu)
Product Overview
Figure 1: Controller Layout. This image displays the ipega PG-9087S controller with its various buttons and components labeled, including the Left 3D joystick, D-Pad, TURBO button, battery/mode indicators, Home Button, R1/R2, ABXY Action buttons, Right 3D joystick, START, and SELECT buttons.
Figura 2: Caratteristiche principali. This image highlights specific design elements: a textured rocker for improved grip, LED red button lights for visibility, scrub and non-slip trigger construction for precise control, and a classic cross key design for the D-Pad.
Funzioni chjave:
- Connettività Bluetooth 4.0: Ensures stable and high-speed transmission.
- Bracciu allungabile: Accommodates devices with a maximum extending size of 6.2 inches (70-158mm) and a thickness of up to 9mm.
- Disegnu ergonomicu: Provides comfort for extended gaming sessions.
- High Sensitivity Buttons: Designed for quick and accurate responses.
- Custom Function/Button Mapping: Allows users to customize button functions according to personal preferences for various games.
- Supportu multipiattaforma: Compatible with Android 6.0 and above, and iOS devices.
Istituisci
1. Caricamentu di u Controller
Before first use, fully charge the controller. Connect the provided USB charging cable to the controller's charging port and to a USB power source (e.g., computer, USB wall adapter). The battery charging indicators (1, 2, 3, 4) will illuminate to show charging status and battery level.
2. Powering On / Off
Figure 3: Power Switch and Connection Methods. This image shows the physical on/off switch located at the bottom of the controller and provides visual instructions for Android and iOS direct connection methods.
- Per accende: Locate the power switch (labeled 'switch:on/off' in Figure 3) on the bottom of the controller and slide it to the 'ON' position.
- Per spegne: Slide the power switch to the 'OFF' position.
3. Abbinamentu Bluetooth
The PG-9087S supports direct connection without needing to download a separate application.
- Per Dispositivi iOS: Cù u controller spento, appughjà è tene premutu u buttone Y button + HOME button simultaneously for 2 seconds until the indicator light flashes rapidly.
- Per i dispositi Android: Cù u controller spento, appughjà è tene premutu u buttone A button + HOME button simultaneously for 2 seconds until the indicator light flashes rapidly.
Once the indicator light flashes, enable Bluetooth on your mobile device and search for "PG-9087S". Select it to pair. The indicator light will become solid once successfully connected.
4. Installazione di u dispusitivu
Figure 4: Extendable Arm. This image illustrates the extendable arm feature of the controller, showing its maximum extension size of 6.2 inches (70-158mm) and a maximum device thickness of 9mm.
Gently extend the arms of the controller to fit your smartphone or tablet. Ensure your device is securely seated within the extendable arm. The arm supports devices up to 6.2 inches (158mm) in length and 9mm in thickness.
Istruzzioni di funziunamentu
1. Controlli di basa
Refer to Figure 1 for the layout of the buttons and joysticks. The controller features:
- Left/Right 3D Joysticks: Per un muvimentu precisu è u cuntrollu di a camera.
- D-Pad (Pad Direzionale): Per input direzionale.
- ABXY Action Buttons: Buttoni d'azzione di ghjocu standard.
- L1/L2/R1/R2 Triggers: Shoulder buttons and triggers for various in-game actions.
- Buttoni START/SELECT: For in-game menu navigation and selections.
- Pulsante HOME: Returns to the device's home screen or controller menu.
- Pulsante TURBO: Activates rapid-fire functionality for assigned buttons.
2. Button Mapping and Customization

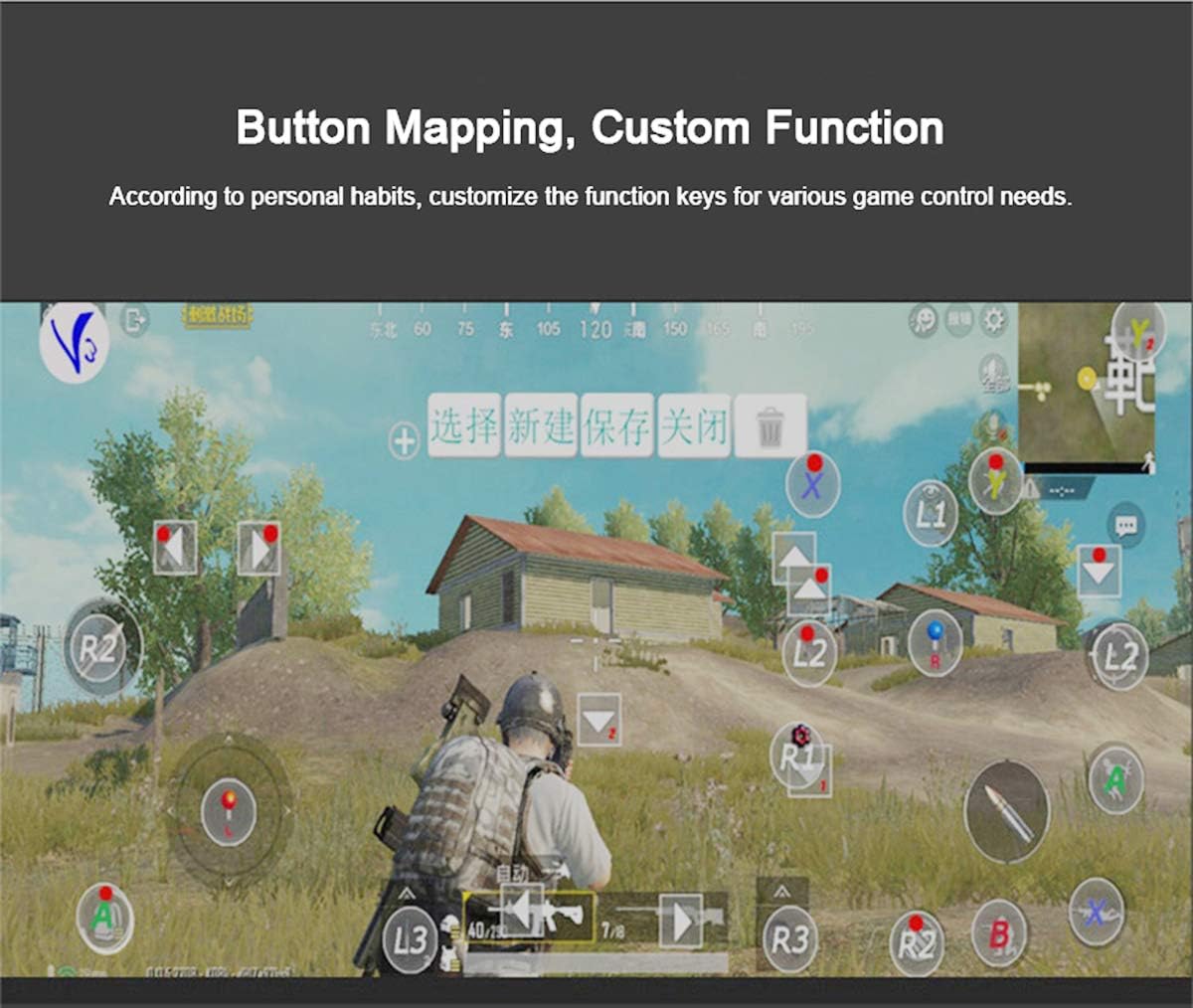

Figure 5: Button Mapping Interface. This image demonstrates the concept of button mapping within a game, allowing users to customize the function keys to suit their individual gaming preferences and needs.
The PG-9087S supports custom function key mapping. This feature allows you to assign specific in-game actions to the controller's buttons according to your personal habits. The method for customizing button functions typically depends on the game or emulator you are using. Refer to the specific game's settings or the emulator's configuration options for detailed instructions on how to remap controls.
3. Screen Orientation Support

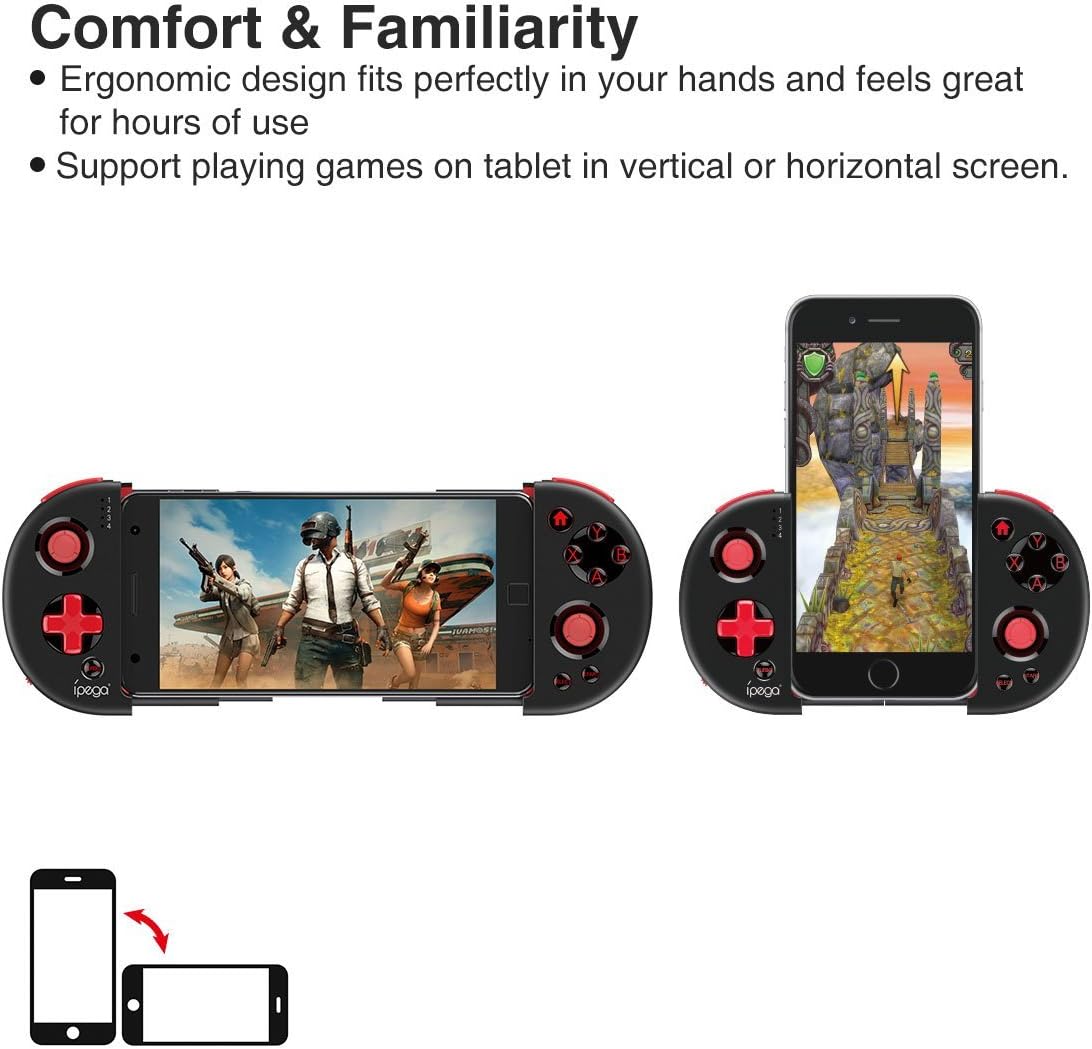

Figure 6: Orientation Support. This image illustrates the controller's ability to support gaming on tablets or smartphones in both vertical (portrait) and horizontal (landscape) screen orientations.
The controller supports playing games on your tablet or smartphone in both vertical (portrait) and horizontal (landscape) screen orientations, providing flexibility for various game types.
Mantenimentu
- Pulizia: Use a soft, dry cloth to clean the controller. Do not use harsh chemicals or abrasive cleaners.
- Conservazione: Store the controller in a cool, dry place away from direct sunlight when not in use.
- Cura di a batteria: Per prulungà a durata di a batteria, evitate di scaricà cumpletamente a batteria spessu. Caricate u controller regularmente, ancu s'ellu ùn hè micca in usu custante.
Risoluzione di prublemi
- U controller ùn s'accende micca: Ensure the battery is charged. Connect the controller to a power source using the USB cable.
- Controller does not pair with device:
- Ensure the controller is in pairing mode (indicator light flashing rapidly).
- Attivate è disattivate u Bluetooth di u vostru dispositivu.
- Dimenticate u dispusitivu in i vostri paràmetri Bluetooth è pruvate à accoppià di novu.
- Ensure you are using the correct pairing combination (Y+HOME for iOS, A+HOME for Android).
- Buttons are unresponsive or laggy:
- Assicuratevi chì u controller sia cumpletamente caricatu. Una batteria bassa pò influenzà e prestazioni.
- Avvicinatevi à u vostru dispositivu per assicurà una cunnessione Bluetooth forte.
- Restart both the controller and your mobile device.
- Check the game's settings to ensure controller input is enabled and correctly configured.
- Device does not fit in the extendable arm: Check the dimensions of your device. The arm supports devices up to 6.2 inches (158mm) in length and 9mm in thickness. Remove any bulky cases from your device.
Specificazioni
| Mudellu | PG-9087S |
| Marca | ipega |
| Tecnulugia di cunnessione | Bluetooth 4.0, USB (per a carica) |
| Tipu di cuntrollu | Gamepad, Joystick |
| Dispositivi compatibles | Android (6.0 and above), iOS |
| Batteria | 1 batteria à ioni di litiu (necessaria) |
| Extendable Arm Max Size | 6.2 inches (158 mm) |
| Extendable Arm Max Thickness | 9 mm |
| Pesu di l'articulu | 6.9 once |
| Culore | Neru |
| Dimensioni di u pacchettu | 6.8 x 5.15 x 1.6 inch |
Garanzia è Supportu
Warranty information for the ipega PG-9087S Wireless Game Controller is typically provided with your purchase or can be found on the manufacturer's official websitu. Per piacè cunservate a vostra prova d'acquistu per e richieste di garanzia.
For technical support or further assistance, please refer to the contact information provided by your retailer or visit the official ipega support channels.
