Qaba 2-in-1 Convertible Baby Tricycle Stroller

Introduzione

Thank you for choosing the Qaba 2-in-1 Convertible Baby Tricycle Stroller. This product is designed to provide a versatile and comfortable experience for your child, transitioning between a parent-controlled stroller and a child-powered tricycle. Please read this manual thoroughly before assembly and use to ensure proper operation and safety.

Avvertimenti di Sicurezza impurtanti

• Always supervise children when using the tricycle stroller.
• Assicuratevi chì tutti i meccanismi di bloccu sianu attivati ​​prima di ogni usu.
• Ùn superate micca a raccomandazione di pesu massimu di 66 libbre (30 kg).
• Mantene e mani è i pedi luntanu da e parti in muvimentu.
• Do not use on uneven terrain, near stairs, or on public roads.
• Regularly inspect the product for loose parts, damage, or wear. Discontinue use if any issues are found.
• Always use the safety harness when the child is seated.

Cuntenutu di u pacchettu

Verificate chì tutti i cumpunenti sò presenti prima di principià u montaggio:

• Frame principale
• Assemblaggio di a rota anteriore (cù pedali)
• Roti posteriori (2)
• Seat Unit (with backrest and harness)
• Bar di sicurezza
• Maniglia di spinta regulabile
• Detachable Canopy
• Cesta di magazzini
• Saccu di Mamma
• Ferramenta di montaggio (viti, rondelle, dadi)
• Basic Tools (small wrench, screwdriver)

Setup è Assemblea

Assembly typically requires a Phillips head screwdriver and a socket wrench (a small wrench is provided, but a standard socket wrench may be more efficient). Follow these general steps, referring to the provided diagrams for visual guidance:

1. Attaccà e rote posteriori: Securely attach the two rear wheels to the main frame. Ensure they click into place or are fastened with the provided hardware.
2. Installa a rota di fronte: Insert the front wheel assembly into the designated slot on the main frame. Ensure it is firmly secured and can rotate freely.
3. Mount Seat Unit: Attach the seat unit to the frame. Some parts may snap together, while others require screws.
4. Connect Push Handle: Slide the adjustable push handle into its receiver on the rear of the frame until it locks.
5. Attaccà u canopy: Secure the detachable canopy to the seat unit or frame, ensuring it can be adjusted or removed as needed.
6. Install Safety Bar: Attach the padded safety bar in front of the seat.
7. Add Storage: Attach the storage basket to the rear of the tricycle and the mommy bag to the push handle.
8. Verificazione finale: Before first use, verify that all connections are secure, all screws are tightened, and all moving parts operate smoothly.

Figura 1: Latu view of the assembled tricycle stroller, showing the canopy, push handle, and storage basket.

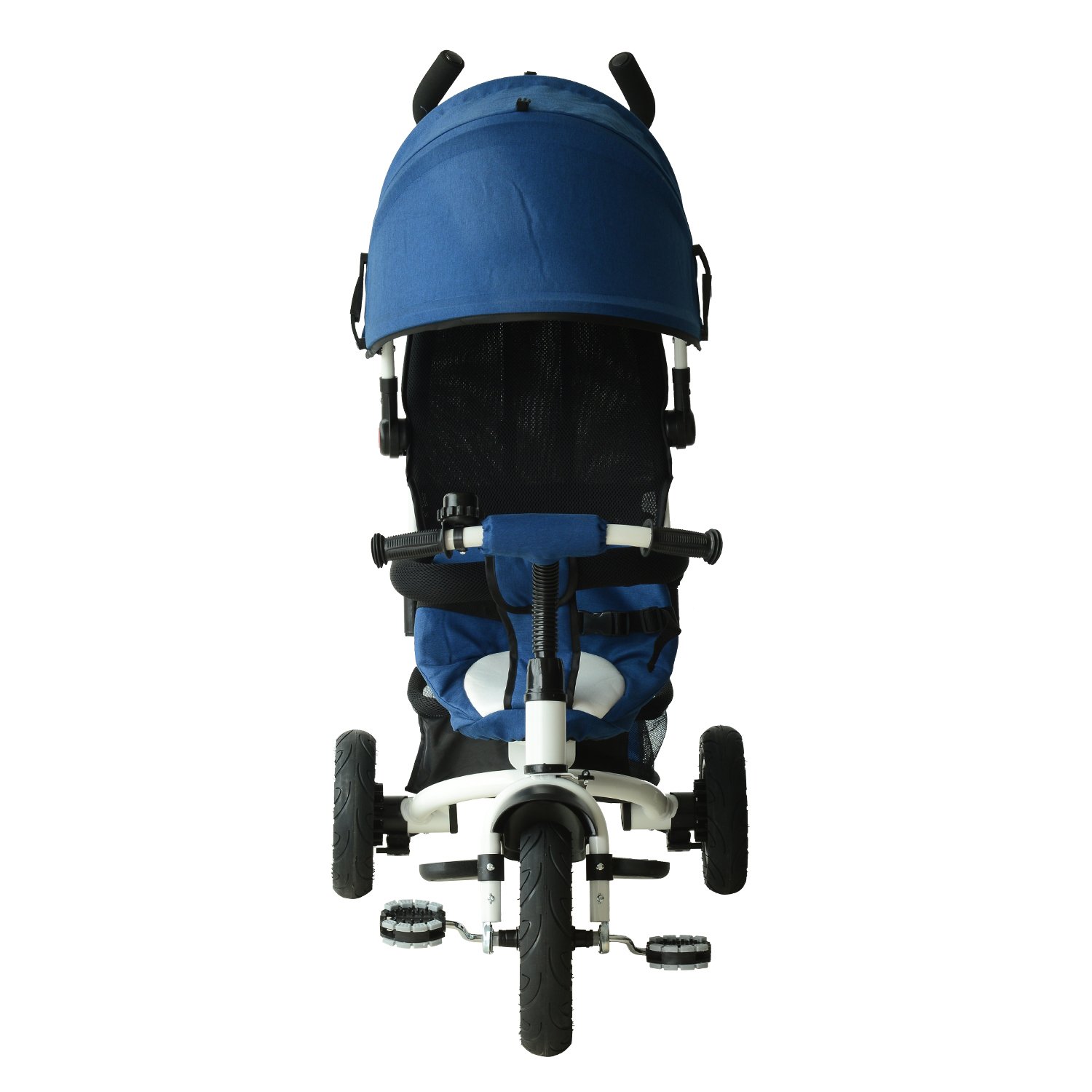

Figura 2: Fronte view of the tricycle stroller, highlighting the handlebars and front wheel assembly.

Istruzzioni di funziunamentu

Funzionalità 2-in-1

This product can be used as a parent-controlled stroller or converted into a child-powered tricycle as your child grows.

• Stroller Mode: For younger children, use the adjustable push handle to steer and control the tricycle. Ensure the child's feet are on the footrests and the safety harness and bar are secured. The pedals can be disengaged or locked to prevent the child from pedaling prematurely.
• Tricycle Mode: As your child develops, the push handle, canopy, and safety bar can be removed. Engage the pedals so the child can steer and propel the tricycle independently.

Figura 3: Tricycle stroller in use with a child and parent, demonstrating stroller mode.

Figura 4: The tricycle stroller configured for independent child use, without the canopy or push handle.

Features and Adjustments

• Maniglia di spinta regulabile: The height of the push handle can be adjusted for comfortable parent control.
• Detachable Canopy: The canopy provides UV and rain protection and can be removed when not needed.
• Safety Harness and Bar: Secure your child with the 2-point harness and the padded wrap-around safety bar.
• Opzioni di almacenamiento: Utilize the mommy bag on the push handle for small essentials and the rear storage basket for larger items.

Figura 5: Detail of the mommy bag, providing convenient storage for personal items.

Figura 6: Detail of the spacious rear storage basket.

Mantenimentu

• Pulizia: Pulite u quadru è e parti di plastica cù publicitàamp cloth and mild soap. The padded seat cover can be removed and washed according to its care label. Do not use abrasive cleaners.
• Ispezione: Periodically check all screws, bolts, and fasteners to ensure they are tight. Inspect the wheels, tires, and frame for any signs of wear, damage, or cracks.
• Conservazione: Store the tricycle stroller in a dry, cool place away from direct sunlight and extreme temperatures to prevent material degradation.

Risoluzione di prublemi

Problemi cumuni è suluzione:

• Difficultà di assemblea: Review the assembly instructions and diagrams carefully. Ensure all parts are oriented correctly. If a part does not fit easily, do not force it. Contact customer support if you encounter persistent issues.
• Wobbly Front Wheel: Check that the front wheel assembly is fully inserted and secured according to the assembly instructions. Ensure all fasteners related to the front wheel are tightened.
• Stroller Not Moving Smoothly: Inspect wheels for debris or damage. Ensure wheel axles are clean and free of obstructions.

If you experience any issues not listed here or if problems persist after attempting these solutions, please contact Qaba customer support.

Specificazioni

Figura 7: Dimensional diagram of the tricycle stroller.

Infurmazioni di Garanzia

Qaba products are covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of your warranty may vary. Please refer to the warranty card included with your purchase or visit the official Qaba websitu per infurmazioni dettagliate nantu à a garanzia è a registrazione.

Assistenza Clienti

For technical assistance, replacement parts, or any questions regarding your Qaba 2-in-1 Convertible Baby Tricycle Stroller, please contact Qaba customer service. Contact information can typically be found on the product packaging or the official Qaba websitu.

Supportu in ligna: Visit the Qaba official websitu per FAQ è risorse di supportu.

Produttore: Aosom LLC
