1. Introduzione
Congratulations on your purchase of the Invicta S1 Rally Model 25282 Chronograph Watch. This manual provides detailed instructions for the proper setup, operation, and maintenance of your timepiece. Please read this manual thoroughly to ensure optimal performance and longevity of your watch.
2. Produttu Finituview
The Invicta S1 Rally Model 25282 is a men's chronograph watch featuring a black carbon fiber dial, yellow gold-tone stainless steel case, and a matching steel bracelet. It is powered by a precise quartz movement.

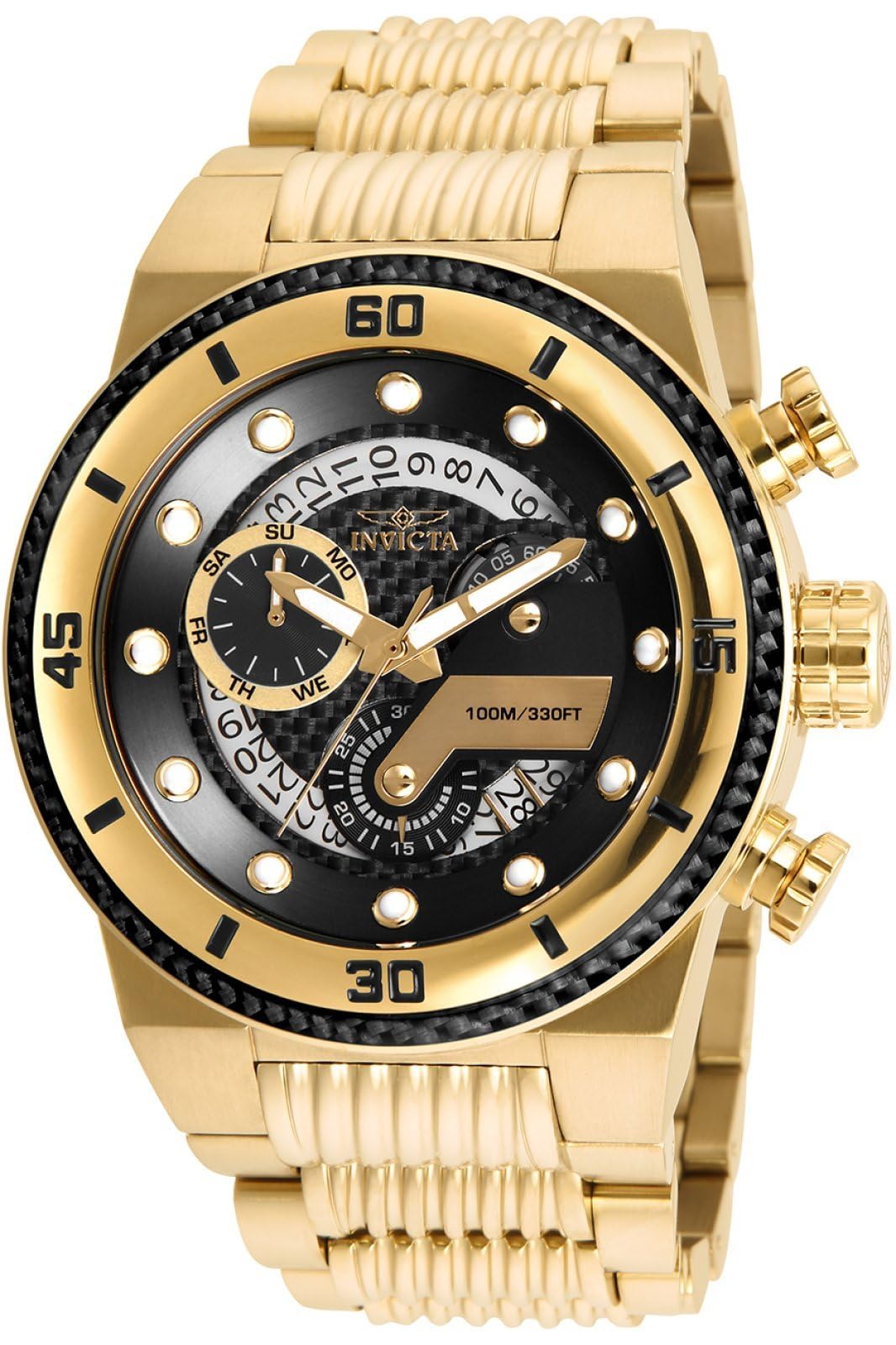

Figura 2.1: The Invicta S1 Rally Model 25282 watch displayed on a wrist, showcasing its gold-tone stainless steel bracelet and black dial.
Cumpunenti chjave:
- Casu: 51mm gold-tone stainless steel.
- Dial: Black carbon fiber with chronograph sub-dials.
- lunette: Stationary stainless steel.
- Corona: Push crown for time and date adjustment.
- spingi: For chronograph operation.
- Cristalli: Flame Fusion dial window material.
- Bracciale: Gold-tone stainless steel, 185mm L x 30mm W.
- Fermatura : Fold over safety clasp.
Figura 2.2: Un detallatu view of the Invicta S1 Rally 25282 watch face, highlighting the chronograph sub-dials, hands, and push crown.
3. Setup
3.1 Impostazione di u Tempu
- Pull the crown out to position 2 (the outermost position).
- Rotate the crown to move the hour and minute hands to the desired time. Ensure AM/PM is correctly set if your watch has a 24-hour indicator or date changes at midnight.
- Spinghje a corona torna in pusizione 0 (posizione di funziunamentu nurmale).
3.2 Stabbilimentu di a Data
- Pull the crown out to position 1 (the middle position).
- Girate a corona per aghjustà a data.
- Una volta chì a data curretta hè visualizata, spinghje a corona in a pusizione 0.
- Note: Avoid setting the date between 9 PM and 3 AM, as this can damage the movement. If you need to set the date during this period, first set the time outside this window, adjust the date, then reset the time.
4. Operating Instructions
4.1 Using the Chronograph Function
Your Invicta S1 Rally watch features a chronograph (stopwatch) function. The pushers on the side of the case control this feature.
- Start/Stop: Press the top pusher to start the chronograph. Press it again to stop.
- Resettate: With the chronograph stopped, press the bottom pusher to reset all chronograph hands to their zero positions.
4.2 Resistenza à l'acqua
This watch is water resistant to 100 meters (330 feet). This makes it suitable for swimming and snorkeling, but not for diving.
- Ùn azionate micca a corona o i pulsanti mentre l'orologio hè bagnatu o immersu.
- Ensure the crown is fully pushed in before exposing the watch to water.
- Dopu l'esposizione à l'acqua salata, sciacquate l'orologio cù acqua fresca è asciugatelu accuratamente.
5. Mantenimentu
5.1 Pulizia di u vostru orologio
To maintain the appearance of your watch, regularly wipe the case and bracelet with a soft, dry cloth. For more thorough cleaning, a slightly damp si pò aduprà un pannu, seguitatu da un'asciugatura immediata. Evitate l'usu di prudutti chimichi aggressivi o materiali abrasivi.
5.2 Sustituzione di batterie
Your quartz watch is powered by a lithium metal battery. When the battery runs low, the watch may stop or the second hand may jump in irregular intervals. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and water resistance.
5.3 Storage
When not wearing your watch, store it in a cool, dry place away from direct sunlight and extreme temperatures. The original Invicta box (Figure 5.1) provides excellent protection.
Figura 5.1: The Invicta watch box, ideal for safe storage of your timepiece.
6. Risoluzione di prublemi
- L'orologio ùn funziona micca:
- Verificate s'è a curona hè cumpletamente spinta in entrata.
- The battery may need replacement. Consult a professional watch technician.
- A data ùn cambia micca currettamente:
- Ensure the time is set correctly, especially AM/PM.
- Avoid setting the date between 9 PM and 3 AM.
- E lancette di u cronografu ùn si resettanu micca à zero:
- This may indicate a need for calibration or service. Consult a professional watch technician.
7. Specificazioni
| Feature | Detail |
|---|---|
| Numero di mudellu | 25282 |
| Muvimentu | Quartz |
| Materiale di casu | Inossidabile |
| Diametru di casu | 5.1 centimetri (51 mm) |
| Spessore di casu | 15.5 mm |
| Materiale di banda | Inossidabile |
| Larghezza di banda | 30 mm |
| Colore di banda | Oru |
| Dial Color | Neru |
| Dial Window Material Type | Flame Fusion |
| Tipu di visualizazione | Analogicu |
| Tipu di chiusura | Fold over safety |
| Prufundità di Resistenza à l'Acqua | 100 metri (330 piedi) |
| Funzioni spiciali | Chronograph, Date, Second Hand |
| Pesu di l'articulu | 499 g |
| Batterie | 1 Batteria Lithium Metal (inclusa) |
8. Garanzia è Support
For warranty information, please refer to the manufacturer's website. If this product was sold by Amazon, warranty details may be available on their site. If purchased from another seller, please contact that seller directly for warranty information.
For further assistance or technical support, please contact Invicta customer service through their official channels.
