Mobiclinic Maestranza Foldable Wheelchair User Manual

1. Introduzione

Thank you for choosing the Mobiclinic Maestranza Foldable Wheelchair. This manual provides essential information for the safe and effective use, assembly, maintenance, and troubleshooting of your wheelchair. Please read this manual thoroughly before using the product and retain it for future reference.

2. Informazioni di sicurezza

A vostra sicurità hè di primura. Rispettate sempre e seguenti linee guida di sicurità:

Capacità di pesu: Ùn superate micca u pesu massimu di l'utilizatore di 100 kg (220 lbs).
Freni: Always engage the parking brakes when transferring in or out of the wheelchair, or when stationary.
Stabilità: Avoid leaning excessively to the side or front, as this may cause the wheelchair to tip.
Superfici irregolari: Exercise caution on uneven terrain, ramps, or inclines. Always have an assistant when navigating steep slopes or obstacles.
Poggiapiedi: Ensure footrests are properly positioned and secured before use. Do not stand on the footrests.
Mantenimentu: Regularly inspect all components for wear, damage, or loose parts. Do not use the wheelchair if any part is damaged.
I zitelli: Keep children away from the wheelchair during assembly and ensure they do not play with it unsupervised.

3. Setup è Assemblea

The Mobiclinic Maestranza wheelchair is designed for easy setup and folding. Follow these steps for initial assembly and unfolding:

3.1 Spiegamentu di a sedia à rotelle

Pone a sedia à rotelle piegata nantu à una superficia piana è stabile.
Tirate delicatamente i braccioli versu l'esternu per cumincià à spiegà a struttura.
Press down firmly on the seat rails until the wheelchair is fully open and the seat fabric is taut. Ensure all locking mechanisms are engaged.

3.2 Attaching/Adjusting Footrests

The footrests are removable and rotatable for user comfort and easier transfers.

To attach: Align the footrest posts with the receivers on the wheelchair frame. Push down until they click into place.
To remove: Press the release lever (if present) and pull the footrest upwards.
To adjust: Rotate the footrests to the desired position for comfortable leg support.

Image showing how to remove and adjust the wheelchair footrests. — **Figura 3.2:** Illustration of removable and adjustable footrests. The image shows a sequence of three steps to detach the footrests, highlighting the rotating wheels for maneuverability.

3.3 Removable Armrests

The padded armrests can be removed to facilitate transfers from the wheelchair to other surfaces, such as a bed or sofa.

To remove: Locate the release button or lever near the armrest attachment point and press it while lifting the armrest.
To reattach: Align the armrest with its slot and push down until it locks securely.

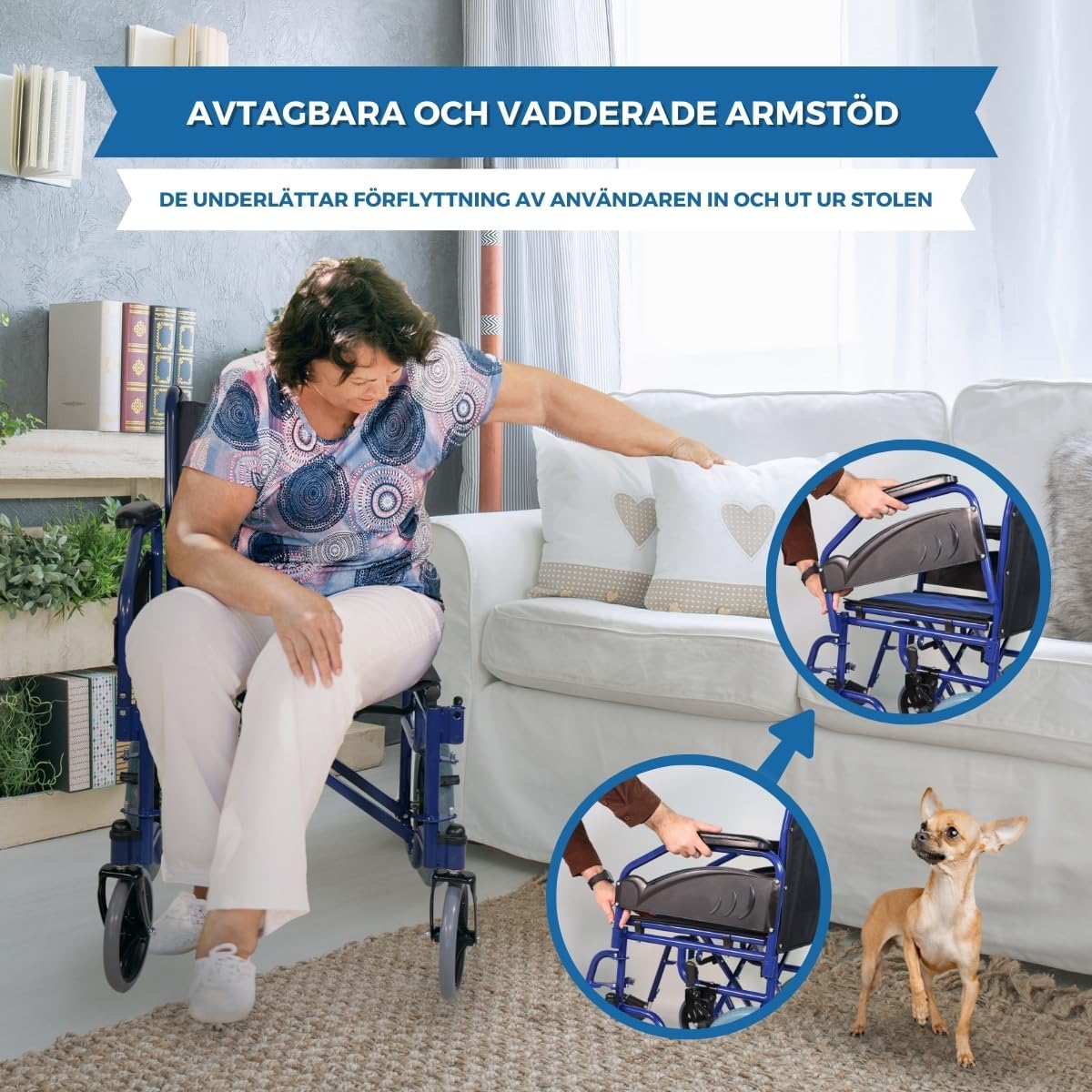

Image demonstrating the removal of wheelchair armrests for easier user transfer. — **Figura 3.3:** A user transferring from the wheelchair, with insets showing the mechanism for removing the padded armrests. This feature aids in easier side transfers.

3.4 Removable Rear Wheels

The rear wheels can be removed for more compact storage or transport.

To remove: Locate the quick-release pin on the center of the wheel axle. Press the button on the pin and pull the wheel outwards from the frame.
To reattach: Insert the axle into the hub, ensuring the quick-release pin engages securely. Pull on the wheel to confirm it is locked in place.

Diagram highlighting key features of the Mobiclinic Maestranza wheelchair, including removable footrests and rear wheel brakes. — **Figura 3.4:** Un sopraview of the wheelchair's features, including ergonomic handles, durable fabric, rear wheel brakes, and removable footrests. The rear wheels are designed for easy removal.

Image showing the Mobiclinic Maestranza wheelchair folded and stored in a narrow space, highlighting its compact design. — **Figura 3.5:** The wheelchair folded and stored in a cabinet, demonstrating its compact size for storage. Small wheels are visible, contributing to easier storage.

4. Operazione di a sedia a rotula

This section provides instructions for safe and effective operation.

4.1 Engaging and Disengaging Brakes

The wheelchair is equipped with reliable brakes for safety.

To engage: Push the brake levers located near the rear wheels downwards until they lock.
To disengage: Pull the brake levers upwards.

Close-up image of the wheelchair's brake mechanism, emphasizing safety. — **Figura 4.1:** Detail of the brake lever on the rear wheel. Engaging this lever ensures the wheelchair remains stationary when needed.

4.2 Navigating Obstacles with the Curb Climber

The integrated curb climber assists in navigating small obstacles or curbs with ease, reducing the need to lift the entire wheelchair.

To use: Position the wheelchair facing the curb. The assistant should place their foot on the curb climber lever (located near the rear axle) and gently tilt the wheelchair backward, lifting the front wheels over the obstacle.
Always ensure the user is secure and communicate clearly with the assistant.

Image showing a person using the built-in curb climber to navigate a small step with the wheelchair. — **Figura 4.2:** An assistant demonstrating the use of the built-in curb climber to easily overcome uneven terrain without lifting the full weight of the chair. The solid and resistant wheels are also visible.

4.3 Doorway and Transport Considerations

The wheelchair's design allows for convenient passage through standard doorways and transport in vehicles.

Doorways: With a total width of 60.5 cm, the wheelchair can pass through standard 62.5 cm wide doorways.
Trasportu: When folded, the chair measures only 28.5 cm, making it suitable for transport in a car trunk. Always verify your doorway and vehicle dimensions for compatibility.

Image comparing the dimensions of the Mobiclinic Maestranza wheelchair when unfolded and folded, showing its compact size. — **Figura 4.3:** Visual comparison of the wheelchair's dimensions when unfolded (85 cm length, 60.5 cm width, 88.7 cm height) and folded (85 cm length, 22.5 cm width, 88.7 cm height). Product weight is 15.4 kg, and support weight is 100 kg.

5. Mantenimentu è Cura

Proper maintenance ensures the longevity and safe operation of your wheelchair.

Pulizia: Pulite u quadru cù l'annunziuamp cloth and mild soap. Avoid abrasive cleaners. The seat and backrest fabric can be wiped clean.
Ispezione di a rota: Regularly check wheels for wear, damage, and proper inflation (if pneumatic). Ensure all wheel fasteners are tight.
Verificazione di i freni: Test brakes regularly to ensure they engage and hold securely. Adjust if necessary (refer to a qualified technician).
Parti in muvimentu: Periodically check all bolts, nuts, and moving parts for tightness. Lubricate moving parts as needed with a silicone-based lubricant.
Conservazione: Store the wheelchair in a dry, clean place away from direct sunlight and extreme temperatures.

6. Risoluzione di prublemi

Questa sezione tratta di prublemi cumuni chì pudete scuntrà.

Wheelchair pulls to one side: Check tire pressure (if applicable) and ensure wheels are properly aligned and free of debris. Inspect for bent axles.
I freni ùn tenenu micca: Ensure brake levers are fully engaged. Check brake pads for wear and adjust tension if possible. If issues persist, consult a technician.
Rumori di scricchiolii: Lubricate moving parts and joints with a suitable lubricant. Check for loose components.
Difficultà à piegà/spiegà: Ensure no obstructions are present. Check for bent frame components. Do not force the mechanism.

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact Mobiclinic customer support or a qualified service technician.

7. Specificazioni

Detailed technical specifications for the Mobiclinic Maestranza Wheelchair.

Feature	Specificazione
Marca	Mobiclinica
Nome di mudellu	Maestranza (plegable)
Numeru di l'articulu	QA-00462/03-NG/AZ
Materiale	Alloy Steel
Culore	Turchinu
Pesu di l'articulu	15.4 chilògrammi
Dimensioni di u produttu (spiegatu)	85P x 60.5L x 88.7A Centimetri
Dimensioni di u Produttu (Piegatu)	73.5 x 25 x 90 cm (approx. 28.5 cm width)
Larghezza di u sediu	45.5 cm
Altezza di u sediu	45 centimetri
Profundità di u sediu	45 centimetri
Capacità di pesu	100 kg
Front Wheel Dimensions	19.4 cm
Rear Wheel Dimensions	29.7 cm
Paese d'origine	Spagna

8. Garanzia è Support

For information regarding product warranty, returns, or technical support, please refer to the official Mobiclinic website or contact your retailer directly. Keep your purchase receipt as proof of purchase.
