1. Introduzione
This user manual provides comprehensive instructions for the installation, operation, and maintenance of your GoHawk AS5-X Gen.3 All-in-One Motorcycle Stereo Speaker System. Designed for motorcycle, ATV, and UTV use, this waterproof system features a built-in amplifier, Bluetooth connectivity, and multiple input options for an enhanced audio experience on the go. Please read this manual thoroughly before use to ensure proper setup and optimal performance.
2. Caratteristiche di u produttu
- 600W Full Range Speakers: Output audio putente per un sonu chjaru.
- Custruitu Amppiù vivu: All-in-one design for simplified installation.
- Disegnu Impermeabile (IP56): Engineered for outdoor use and resistance to water splashes.
- Bluetooth 5.0 Wireless: Seamless audio streaming from compatible devices up to 15 meters.
- Opzioni di input multiple: Includes 3.5mm AUX input and USB input (supports USB drive only for music playback).
- Wired Control: Full-function wired control for easy operation.
- Aria Universale: Designed for 1" to 1-1/4" handlebars, suitable for various motorcycles, ATVs, and UTVs.
- Custruzzione durabile: Chrome housing with heavy-duty clamps and aluminum alloy for zero rattling.
- Muntamentu regulabile: 360° adjustable mounting brackets for flexible positioning.
Figure 2.1: Key features of the GoHawk AS5-X Gen.3 system.
3. Ciò chì hè in a scatula
Verificate chì tutti i cumpunenti sò presenti prima di principià l'installazione:
- 1 x Master Speaker
- 1 x Speaker Slave
- 1 x Control Wired
- 1 x cordone d'alimentazione SAE
- 1 x Handlebar Clamp for (1 to 1-1/4 in.)
- 1 x Manuale d'utilizatore
Figure 3.1: Included components and wiring diagram.
4. Setup è Installazione
Before installation, ensure you have sufficient free space for the speakers (approximately 5" x 6.5").
4.1 Muntaggio di l'altoparlanti
- Identify suitable mounting locations on your 1" to 1-1/4" handlebar or crash bar.
- Attach the handlebar clamps to the desired positions.
- Securely mount the Master and Slave speakers to the clamps. Ensure they are firmly tightened to prevent movement during operation. The mounting brackets are 360° adjustable for optimal positioning.
Figure 4.1: Speakers mounted on a motorcycle handlebar.

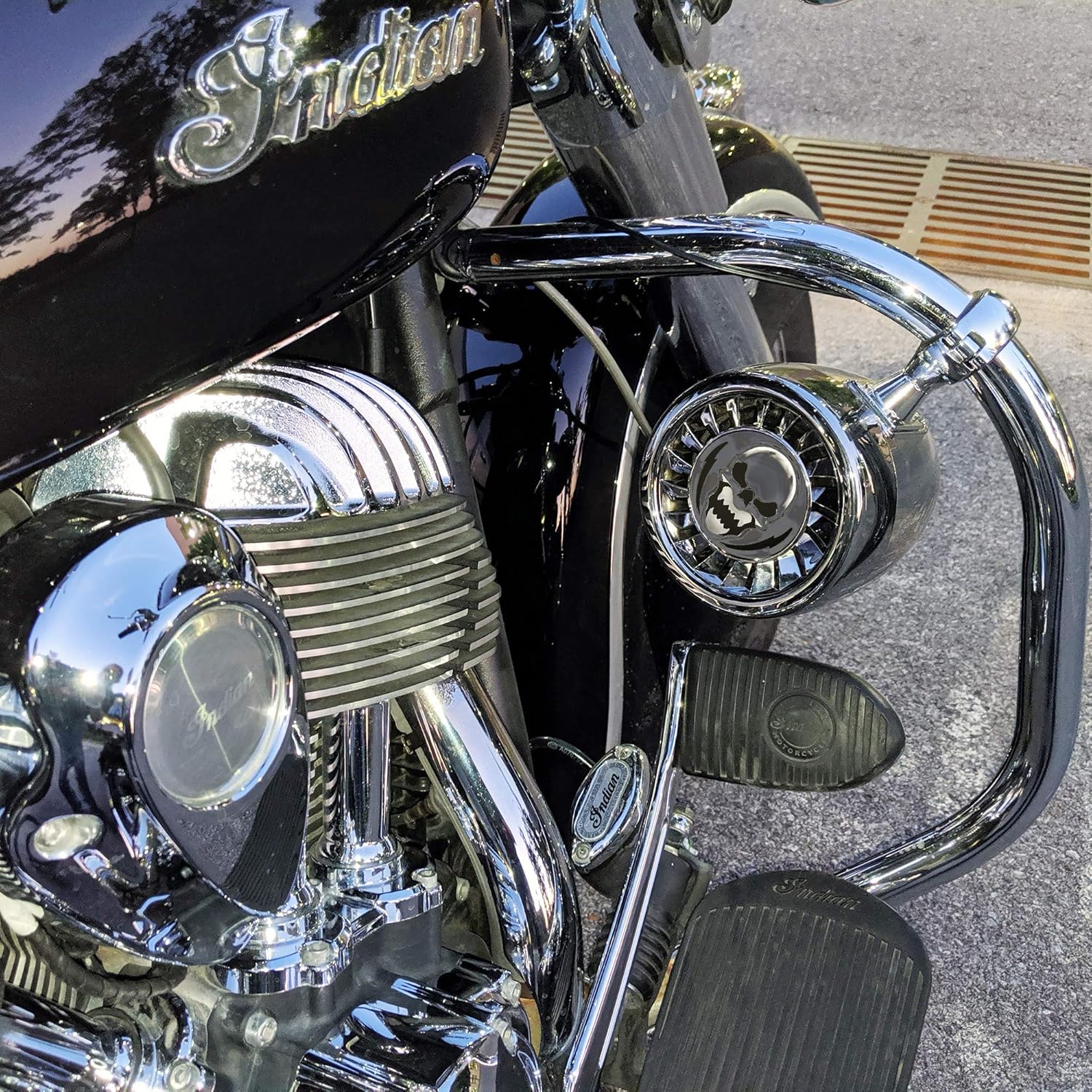

Figure 4.2: Speakers mounted on a motorcycle crash bar.

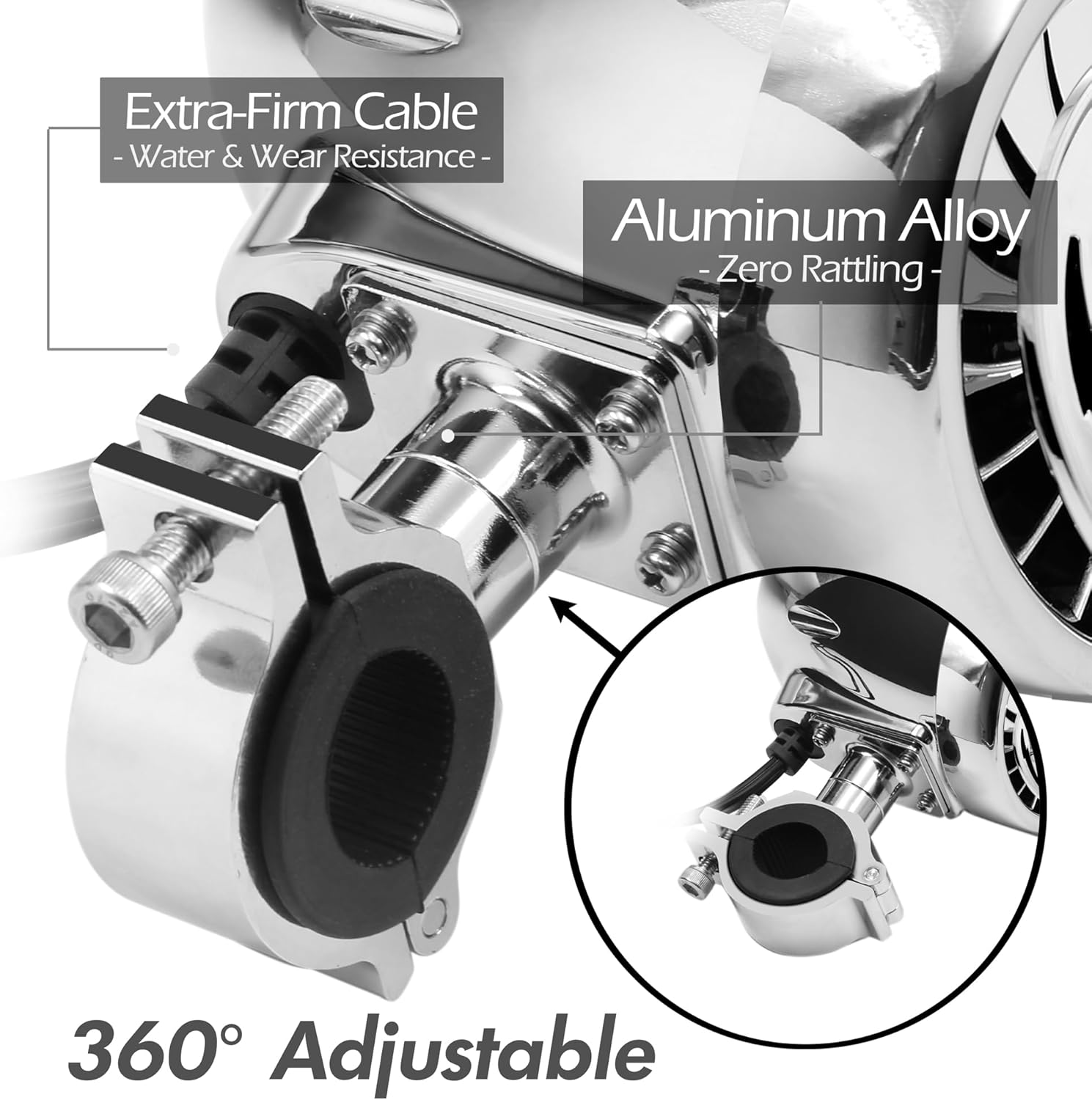

Figure 4.3: Detail of the 360° adjustable mounting bracket.
4.2 Connessioni Wiring
The system uses a standard 12V power connection. All necessary hardware and wiring are included for a plug-and-play installation.
- Connect the SAE Power Cord to your motorcycle's 12V power source. Ensure proper polarity (red to positive, black to negative). The power cord includes a 7.5A inline fuse for protection.
- Connect the Master Speaker to the Slave Speaker using the provided RCA cable.
- Connect the Wired Control to the designated port on the Master Speaker.
- Route all cables neatly and securely, away from hot or moving parts, using zip ties if necessary.
Figure 4.4: Detailed wiring diagram.
5. Operating Instructions
5.1 Power On/Off
Use the wired control unit to power the system on or off. Press and hold the power button until the unit activates/deactivates.
Figure 5.1: Wired control unit.
5.2 Cunnessione Bluetooth
- Ensure the GoHawk system is powered on.
- Nant'à u vostru smartphone o dispusitivu cumpatibile cù Bluetooth, cercate i dispusitivi Bluetooth dispunibili.
- Select "GOHAWK" from the list to pair. A confirmation tone will sound upon successful connection.
- Avà pudete trasmette l'audio in streaming senza filu da u vostru dispositivu.
Figure 5.2: Bluetooth pairing.
5.3 Ingressu AUX
For devices without Bluetooth, use the 3.5mm AUX input:
- Connect your audio device (e.g., MP3 player) to the 3.5mm AUX port on the system using a standard audio cable.
- The system will automatically switch to AUX mode.
Figure 5.3: AUX input connection.
5.4 Input USB
The USB port supports music playback from a USB drive (flash drive) only. It does not support USB to phone connections for music or charging.
- Inserite una chiavetta USB chì cuntene l'audio files in u portu USB.
- The system will automatically detect and begin playing music from the drive.
Figure 5.4: USB input for music playback.
5.5 Cuntrollu di u vulume è di a pista
Use the buttons on the wired control unit to adjust volume and navigate tracks:
- Volume Up (+): Aumentà u voluminu audio.
- Volume giù (-) : Diminuisce u vulume di l'audio.
- Pista dopu (>|): Passa à a prossima canzone.
- Traccia precedente (|<): Vultate à a canzone precedente.
- Play/Pause (||): Play or pause the current audio.
6. Mantenimentu
- Pulizia: Wipe the speakers and control unit with a soft, damp tela. Evite l'usu di sustanzi chimichi duri o detergenti abrasivi.
- Esposizione à l'acqua: While waterproof (IP56), avoid submerging the unit. Ensure all port covers are securely closed when not in use, especially in wet conditions.
- Ispezione di u cable: Periodically check all cables and connections for wear, fraying, or loose contacts. Replace any damaged cables immediately.
- Conservazione: When not in use for extended periods, store the system in a cool, dry place.
7. Risoluzione di prublemi
| Prublemu | Causa Possibile | Soluzione |
|---|---|---|
| Nisun putere | Loose power connection; Blown fuse; Incorrect wiring. | Check SAE power cord connection; Inspect and replace fuse if blown; Verify wiring polarity. |
| Nisun sonu | Volume too low; Incorrect input mode; Loose speaker connection; Device not paired (Bluetooth). | Increase volume; Switch to correct input (Bluetooth/AUX/USB); Check RCA cable connection between speakers; Re-pair Bluetooth device. |
| Bluetooth ùn hè micca cunnessu | Device too far; Interference; System not in pairing mode. | Move device closer (within 15m); Reduce interference; Power cycle the GoHawk system and try pairing again. |
| Sonu distortu | Volume troppu altu; Scarsa qualità di a fonte audio; Cunnessione allentate. | Lower volume; Try a different audio source; Check all cable connections. |
| Unità USB micca ricunnisciuta | Senza supportu file format; USB drive not formatted correctly; USB drive not compatible. | Assicurà l'audio files are standard formats (e.g., MP3); Format USB drive to FAT32; Try a different USB drive. |
8. Specificazioni
| Feature | Detail |
|---|---|
| Nome di mudellu | AS5-X Chrome |
| Input Voltage | 12 Volts |
| Tipu di parlante | Sistemi di parlante |
| Size Speaker | 5 inch |
| Potenza massima di output di Speaker | 600 Watt |
| Impedenza | 4 Ohm |
| Risposta di Frequency | 20 kHz |
| Rapportu Signal-to-Noise | 80 dB |
| Tecnulugia di cumunicazione wireless | Bluetooth 5.0 |
| Gamma Bluetooth | 15 metri |
| Protocolu di cunnessione | Bluetooth, Auxiliar, USB |
| Livellu di resistenza à l'acqua | IP56 (impermeable) |
| Tipu di muntatura | Handlebar Mount (1" to 1-1/4") |
| Materiale | Aluminum, Plastic, Metal |
| Dimensioni di u produttu | 6.5 "D x 5" W x 8 "H |
| Pesu di l'articulu | 7.92 liri (3.6 chilògrammi) |
| UPC | 733074172921 |
Figura 8.1: Dimensioni di u pruduttu.
9. Garanzia è Supportu
GoHawk products come with a limited warranty. For specific warranty details, please refer to the warranty card included in your product packaging or visit the official GoHawk websitu.
For technical support, troubleshooting assistance, or replacement parts, please contact GoHawk customer service through their official channels. You can often find support information on the GoHawk store page on Amazon or their dedicated support websitu.
GoHawk Store Link: Visit the GoHawk Store on Amazon
