Product Overview
The VINGLI 80 Quart Rolling Ice Chest is a versatile and portable cooler designed for outdoor and indoor events. It features a large capacity, multi-directional rolling wheels, and convenient accessories for an enhanced user experience.
- Capacità 80 Quart: Holds up to 80 quarts (20 gallons) or 96 aluminum cans.
- Multi-Directional Rolling Wheels: Equipped with 2 lockable and 2 non-lockable casters for easy mobility and stability.
- Apribottiglie integratu: Includes a side-mounted bottle opener with a cap catcher.
- Ritenzione di a temperatura: Keeps contents cool for up to 48 hours and warm for up to 8 hours.
- Bottom Storage Tray: Provides additional space for beverages or other items.
- Easy Drainage: Features a drain plug for convenient water removal.
Setup è Assemblea
Follow these steps to assemble your VINGLI Rolling Ice Chest. No special tools are required for most steps, but a screwdriver or drill may be helpful for securing certain components.
Unboxing è Identificazione di cumpunenti
Carefully remove all components from the packaging. Verify that all parts are present before beginning assembly.
Image: All components of the VINGLI 80 Quart Rolling Ice Chest laid out for assembly, including the main cooler body, legs, wheels, and accessories.
Passi di Assemblea
- Attaccà i Gambe: Secure the four legs to the bottom of the cooler body using the provided hardware. Ensure they are firmly attached.
- Installa a Scaffale Inferiore: Place the bottom storage tray onto the lower part of the legs and secure it. This shelf provides additional storage space.
- Attaccà i roti: Install the multi-directional wheels to the bottom of the legs. Ensure that the two lockable casters are placed on one side for easy access to the locking mechanism.
- Mount Handles: Attach the side handles to the cooler body.
- Install Bottle Opener and Cap Catcher: Secure the bottle opener and its accompanying cap catcher to the designated side of the cooler.
- Place Lids: Position the two split lids on top of the cooler. These lids provide dual access to the cooler's interior.
Video: A demonstration of the assembly process for the VINGLI 80 Quart Rolling Ice Chest, showing how to attach the legs, wheels, and accessories.
Istruzzioni di funziunamentu
Filling and Temperature Retention
The 80-quart capacity allows for a large volume of beverages and ice. For optimal cooling, pre-chill the cooler before adding ice and drinks. The insulated design keeps contents cool for up to 48 hours and warm for up to 8 hours.

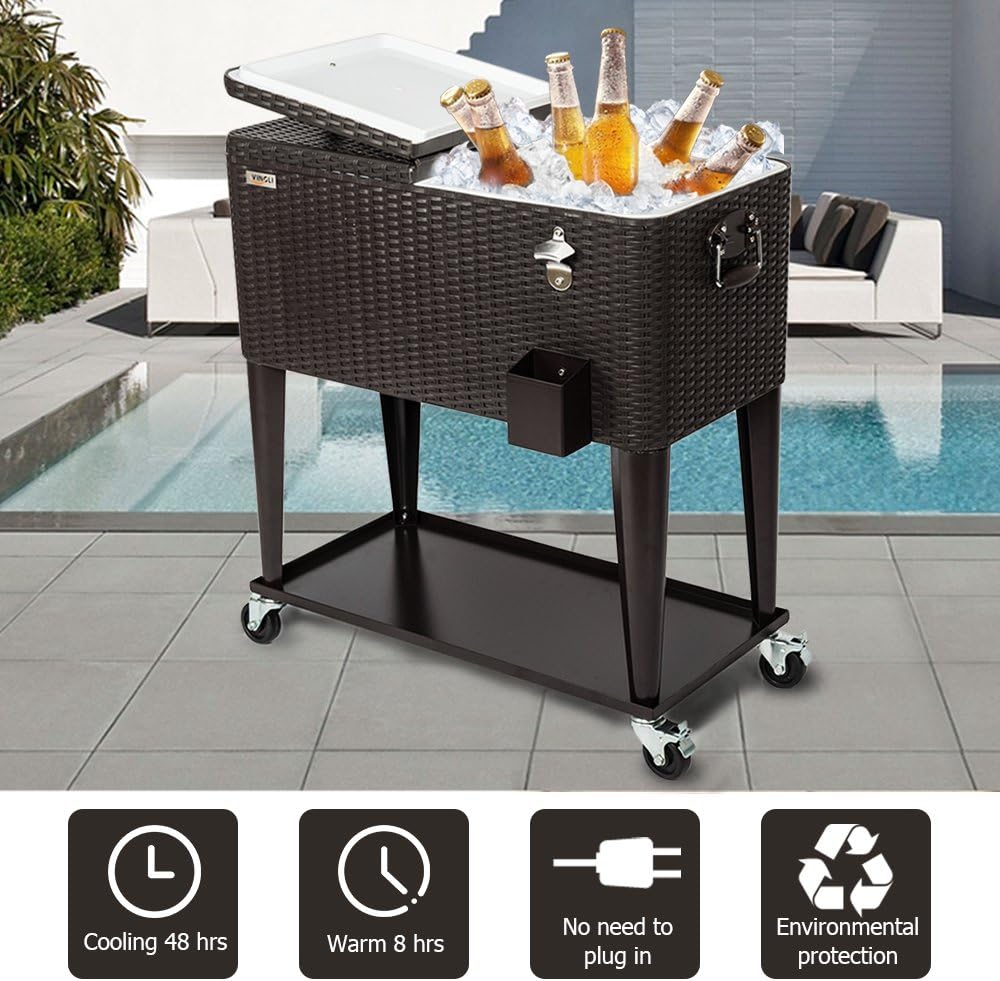

Image: The VINGLI 80 Quart Rolling Ice Chest filled with ice and various bottled beverages, demonstrating its large capacity.
Image: A graphic illustrating the cooler's ability to maintain cold temperatures for 48 hours and warm temperatures for 8 hours.
Dual-Access Lids
The cooler features two separate lids, allowing access to one side without fully exposing the other, helping to maintain internal temperature. The lids also have handles for easy opening and closing.
Imagine: Un primu pianu view of the dual-access lids and the sturdy handles on the VINGLI 80 Quart Rolling Ice Chest.
Bottle Opener and Cap Catcher
Utilize the built-in bottle opener for convenience. Bottle caps will fall into the attached catcher for easy disposal.
Imagine: Un dettagliu view of the integrated bottle opener, showing its placement on the side of the cooler.
Mobilità è Stabilità
The cooler is equipped with multi-directional wheels, including two with locking mechanisms. Engage the locks when you want the cooler to remain stationary, and disengage them for easy movement.

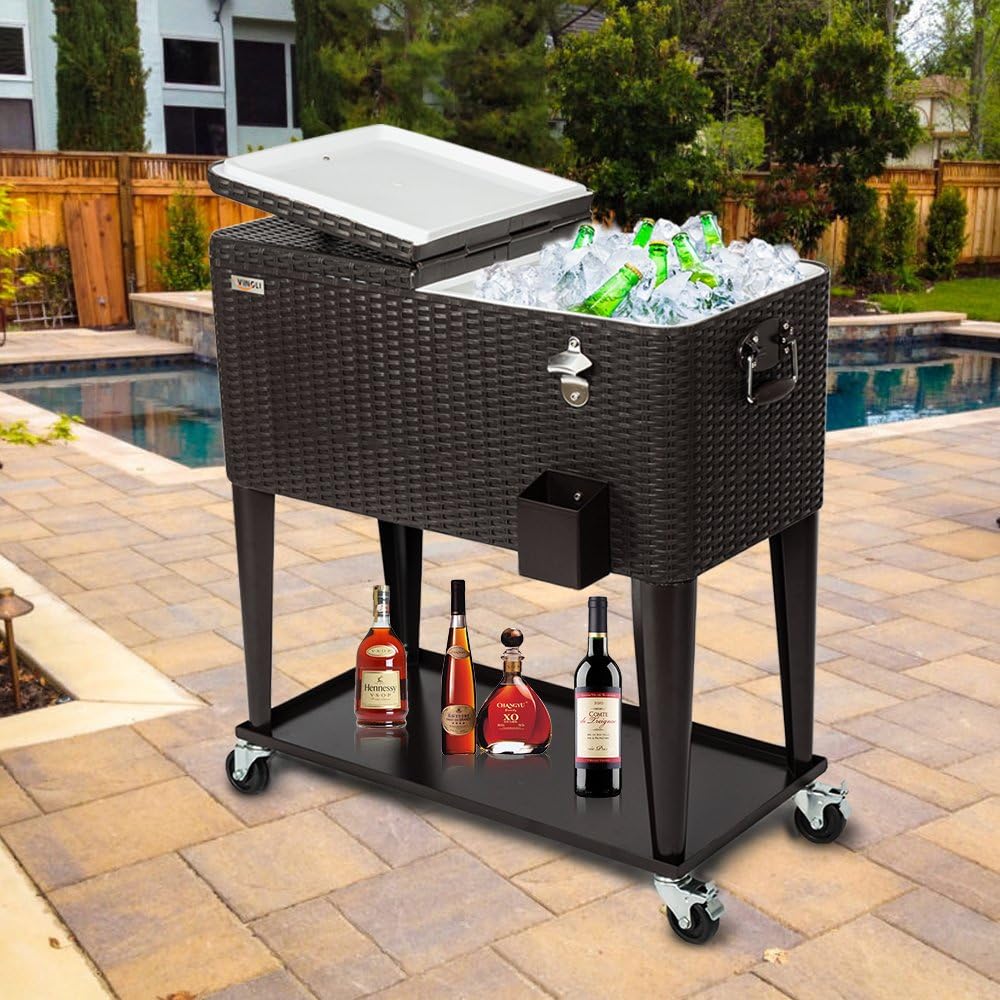

Image: A diagram pointing out key features including the lid handles, bottle cap catcher, bottom tray, and the multi-directional locking casters.
Mantenimentu
Cleaning and Drainage
After use, remove any remaining ice and beverages. The cooler features a drain plug for easy removal of excess water. Simply unscrew the plug to drain the water. A detachable pipe is included to direct the water away from the cooler.
Image: A close-up of the drain plug with a chain and a detachable pipe for convenient water drainage.
Asciugà i superfici interni è esterni cù un damp cloth and mild soap. Rinse thoroughly and allow to air dry before storing.
Cura di Wheel
To ensure smooth operation and prevent rust, especially if stored outdoors, periodically apply a lubricant like WD-40 to the wheel mechanisms.
Risoluzione di prublemi
- Issue: Cooler not retaining temperature effectively.
Soluzione: Ensure lids are fully closed and sealed. Pre-chill the cooler before adding contents. Avoid frequent opening of the lids.
- Issue: Wheels are difficult to move or squeak.
Soluzione: Check if the wheel locks are engaged. Clean any debris from the wheels. Apply a lubricant to the wheel axles and swiveling parts.
- Issue: Water leakage from the drain plug.
Soluzione: Ensure the drain plug is securely tightened. Check the rubber gasket on the drain plug for any damage or misalignment.
Specificazioni
| Feature | Detail |
|---|---|
| Marca | VINGLI |
| Nome di mudellu | PatioCooler01 |
| Capacità | 80 Quarts (20 Gallons / 96 Cans) |
| Culore | Marrone |
| Materiale | 430 Stainless Steel, Iron |
| Dimensioni di u produttu (LxWxH) | 31 x 15.8 x 31.2 inch |
| Pesu di l'articulu | 30.86 liri |
| Funzioni spiciali | Built-In Cup Holder, Wheeled, Bottle Opener, Cap Catcher, Bottom Shelf |
| Cumpunenti inclusi | Frozen Trolley (Cooler Cart) |
| Usi cunsigliati | Outdoor and Indoor Occasions, Barbecues, Backyard Parties, Patio Parties |
Image: A diagram illustrating the key dimensions of the VINGLI 80 Quart Rolling Ice Chest.
Garanzia è Supportu
The VINGLI 80 Quart Rolling Ice Chest comes with a 1 Anni di Garanzia from the manufacturer. For any product inquiries, technical assistance, or warranty claims, please contact VINGLI customer support directly.
You can find contact information and additional resources on the official VINGLI websitu web o per mezu di u vostru rivenditore.
