1. Introduzione
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your FOTILE JQG7501.G 30-inch Side-Draft Range Hood. Please read these instructions thoroughly before installation and use, and retain them for future reference.
Funzioni chjave:

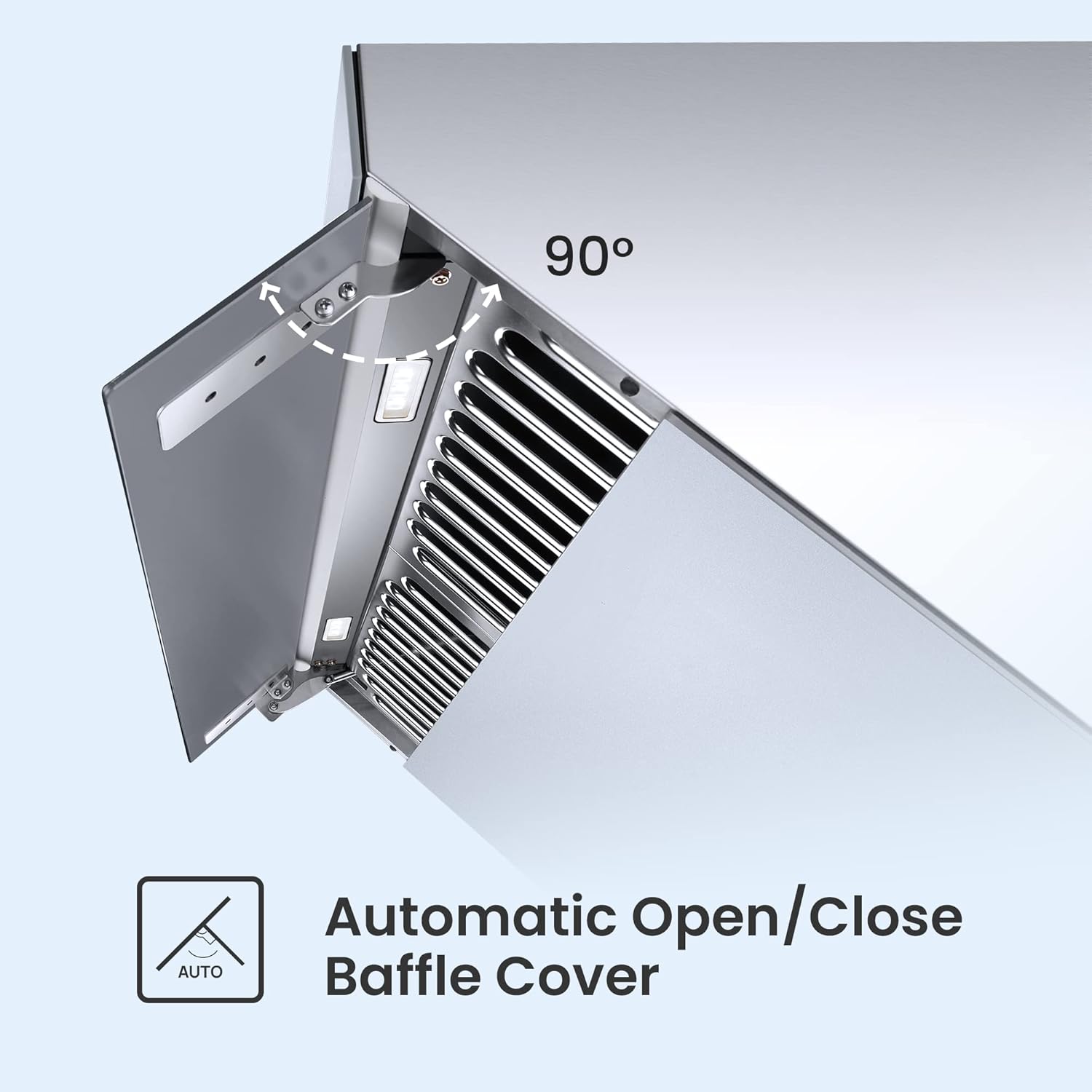

- Side-Draft Design: Unique 90° automatic open baffle plate effectively captures cooking fumes, covering a 6 ft² range space.
- Motori doppi putenti: Achieves 380 Pa velocity with a low 58dB noise level for efficient fume and odor removal.

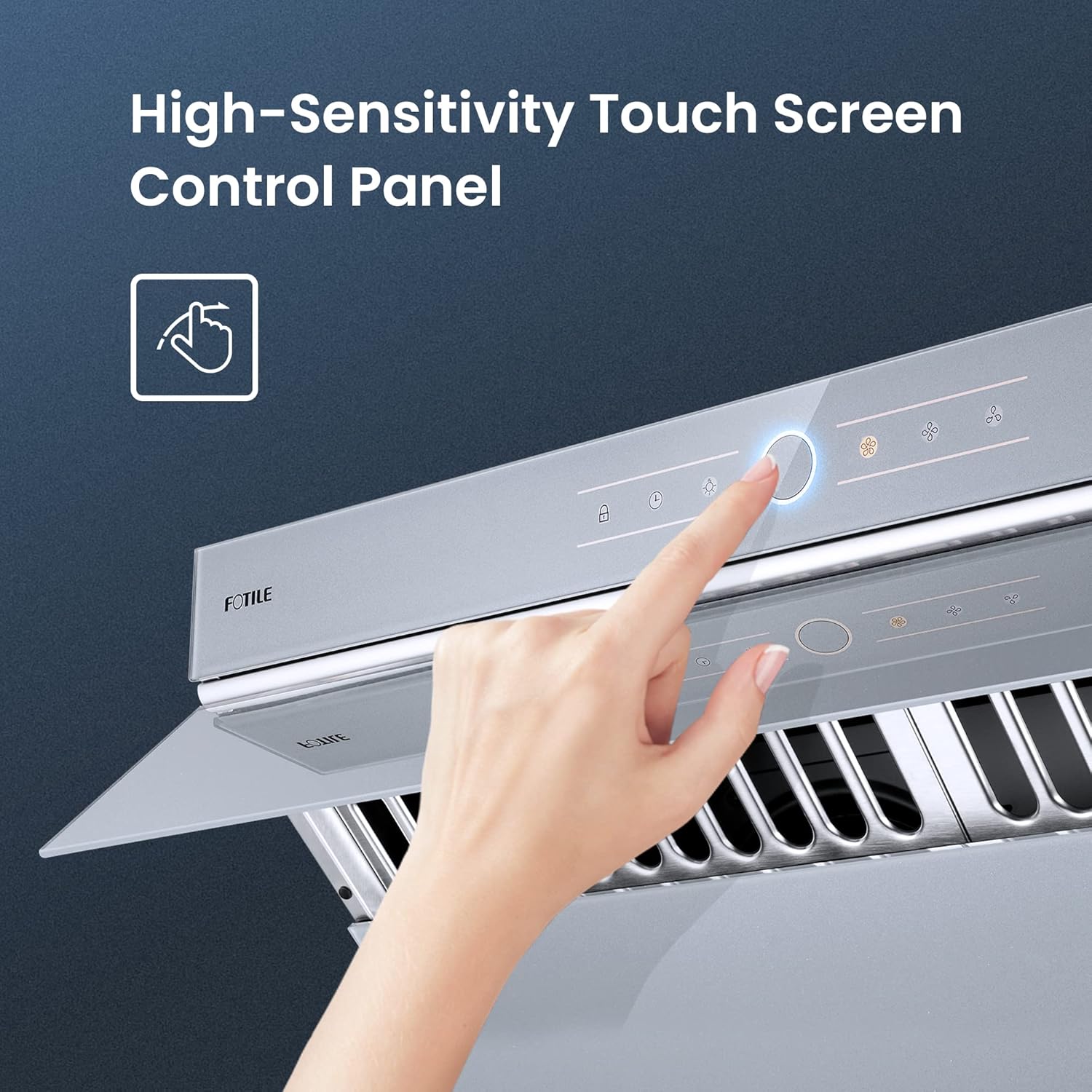

- Cuntrolla Touch Screen: Features 3 speed settings, a delay function to clear lingering odors, and a screen lock for easy cleaning.
- Manutenzione faciule: Special impeller design ensures 92% separation of grease and fumes. Includes a large, easy-to-remove grease tray and oil filter.
- Innovative LED Lighting: Soft and bright LED lights illuminate the cooking area with 500 LUX lighting.
2. Ciò chì hè in a scatula
Verificate chì tutti i cumpunenti sò presenti prima di principià l'installazione:
- JQG7501G Range Hood
- Manuale d'usu
- Carta di garanzia
3. Specificazioni
| Feature | Detail |
|---|---|
| Numero di mudellu | JQG7501.G |
| Dimensioni (P x L x A) | 18.3 x 29.9 x 17.4 inch |
| Pesu di l'articulu | 64 liri |
| Capacità di Flussu d'Aria | 850 Piedi Cubi Per Minute (CFM) |
| Livellu di rumore | 2.64 Sones (58dB) |
| Materiale | Vetru temperatu |
| Tipu di muntatura | Under Cabinet or Wall Mount |
| Cuntrolli Type | Tocca |
| Numeru di Velocità | 3 |
| Tipu di fonte di luce | LED |
| Tipu di filtru | Mesh |
| Voltage | 120 Volts |
| Cunsumu energeticu annu | 200 kilowatt-ora |
4. Informazioni di sicurezza
Segui sempre e precauzioni di sicurezza basiche quandu aduprate apparecchi elettrichi per riduce u risicu d'incendiu, scossa elettrica o ferite à e persone.
- Leghjite tutte l'istruzzioni prima di utilizà a cappa.
- Ensure the installation is performed by a qualified installer in accordance with all local codes and standards.
- Scollegate sempre l'alimentazione di a cappa aspirante prima di fà a manutenzione o a pulizia.
- Ùn operate micca un ventilatore cù un cordone o un plug dannatu. Scartate u ventilatore o vultate à un serviziu di serviziu autorizatu per esaminazione è / o riparazione.
- Do not use the range hood for purposes other than its intended use.
- Ùn lasciate mai l'unità di superficia senza surveglianza à alta temperatura. I trabocchi causanu fumu è schizzi di grassu chì ponu incendiassi.
- Pulite i ventilatori di ventilazione spessu. U grassu ùn deve esse permessu di accumulà nantu à u fan o filtru.
5. Installazione
The FOTILE JQG7501.G range hood can be installed as an under-cabinet or wall-mount unit. Professional installation services are available in select areas. Refer to the detailed installation video for guidance.
Video d'installazione:
This video provides a step-by-step guide for installing the FOTILE Slant Vent JQG7501 range hood, covering preparation, mounting, and ducting connections.
Installazione finitaview:
- Preparazione: Ensure the installation area is clear and all necessary tools are available. Locate wall studs for secure mounting.
- Staffa di Montaggio: Mark the location for the duct bracket on the wall, ensuring it is level and centered above the cooking surface. Drill pilot holes and secure the bracket.
- Cabinet Cutout (for Under-Cabinet): If installing under a cabinet, use the provided paper template to mark and cut the necessary opening for the ductwork and wiring.
- Cunnessione di u canali: Install the duct cover and gasket, ensuring the fluted side is downward. Connect the ductwork to the range hood and vent system.
- Assicurà u cappucciu: Carefully lift and attach the range hood to the wall bracket. Secure it with screws, ensuring it is flush and stable.
- Cunnessione elettrica: Cunnette l'alimentatore secondu i codici elettrici lucali.
6. Operating Instructions
Your FOTILE JQG7501.G range hood features intuitive touch controls for ease of use.
Pannellu di cuntrollu:
- Accensione / spegnimentu: Press the main power button (usually a circular icon) to turn the unit on or off.
- Impostazioni di velocità: Select from 3 fan speeds to match your cooking needs. Higher speeds are for heavy cooking, lower speeds for simmering.
- Funzione di ritardu: Activate the delay function to allow the fan to continue operating for a set period after cooking, ensuring all odors are removed.
- Lock Screen: Use the screen lock function to prevent accidental activation or changes to settings, especially useful during cleaning.
- Luci LED: Press the light button to turn the integrated LED lights on or off, illuminating your cooking surface.
Video di Dimustrazione:
This video demonstrates the FOTILE Slant Vent JQG7501 in action, showcasing its fume extraction capabilities and automatic features.
7. Mantenimentu
Regular cleaning and maintenance will ensure optimal performance and longevity of your range hood.
Cleaning the Grease Tray and Oil Filter:
- Vaschetta di grassu: The large grease tray collects oil and can be easily removed for cleaning. Wash with warm, soapy water or place in a dishwasher.
- Filtru à l'oliu: The special impeller design separates grease effectively. The oil filter is detachable and dishwasher safe for convenient daily cleaning.
- Superficie esterna: Clean the tempered glass surface with a soft cloth and mild detergent. Avoid abrasive cleaners that may scratch the surface.
8. Risoluzione di prublemi
Sè avete prublemi cù a vostra cappa aspirante, cunsultate i seguenti prublemi è suluzioni cumuni:
- Ventilatore micca funzionante: Check if the power cord is securely plugged in and if the circuit breaker is tripped. Ensure the screen lock is not activated.
- Scarsa aspirazione: Verify that the baffle plate is fully open. Clean the grease tray and oil filter, as accumulated grease can reduce airflow. Check for obstructions in the ductwork.
- Rumore inusual: Ensure the range hood is securely mounted. Check for loose parts or foreign objects in the fan area.
- Luci chì ùn funzionanu micca: Check if the light button has been pressed. If individual lights are out, they may need replacement by a qualified technician.
Per prublemi persistenti, cuntattate l'assistenza clienti.
9. Garanzia è Support
Your FOTILE JQG7501.G Range Hood comes with a Garanzia limitata di 5 anni. Please refer to the included Warranty Card for full terms and conditions.
For technical assistance, service requests, or to inquire about professional installation services in your area, please visit the official FOTILE websitu o cuntattate u so supportu à i clienti.
FOTILE maintains a network of over 3,500 independent service providers covering 50 states to ensure comprehensive support.
