Focal 100 OD8 8-inch Outdoor Loudspeaker User Manual

Introduzione

Thank you for choosing the Focal 100 OD8 8-inch Outdoor Loudspeaker. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your loudspeaker. Please read this manual thoroughly before using the product and retain it for future reference.

Informazioni di sicurezza

• Ensure all electrical connections are made by a qualified professional to prevent electric shock.
• Do not expose the loudspeaker to extreme temperatures or direct sunlight for prolonged periods beyond its IP66 rating.
• Use appropriate mounting hardware and techniques to secure the loudspeaker firmly, preventing accidental falls.
• Keep the loudspeaker away from sources of heat, open flames, and water (beyond its waterproof rating).
• Do not attempt to disassemble or repair the loudspeaker yourself. Refer all servicing to qualified personnel.

Cuntenutu di u pacchettu

Verificate chì tutti l'articuli sò presenti in u pacchettu:

• 1 x Focal 100 OD8 Outdoor Loudspeaker
• Mounting Bracket (reinforced, anti-rust Aluminium)
• Manuale d'istruzzioni (stu documentu)

Installazione è installazione

The Focal 100 OD8 loudspeaker is designed for outdoor use and features an IP66 rating for water and dust resistance. Its reinforced, notched assembly bracket made from solid, anti-rust Aluminum allows for flexible installation.

1. Mounting the Loudspeaker

The loudspeaker can be mounted either vertically or horizontally, depending on your preference and the layout of your outdoor space. The bracket allows for 180-degree rotation for optimal sound diffusion.

1. Choose a suitable mounting location that provides clear sound projection and is structurally sound to support the speaker's weight (9 pounds).
2. Attach the mounting bracket securely to the chosen surface using appropriate fasteners (not included).
3. Position the loudspeaker onto the bracket and secure it. Adjust the angle for desired sound coverage.

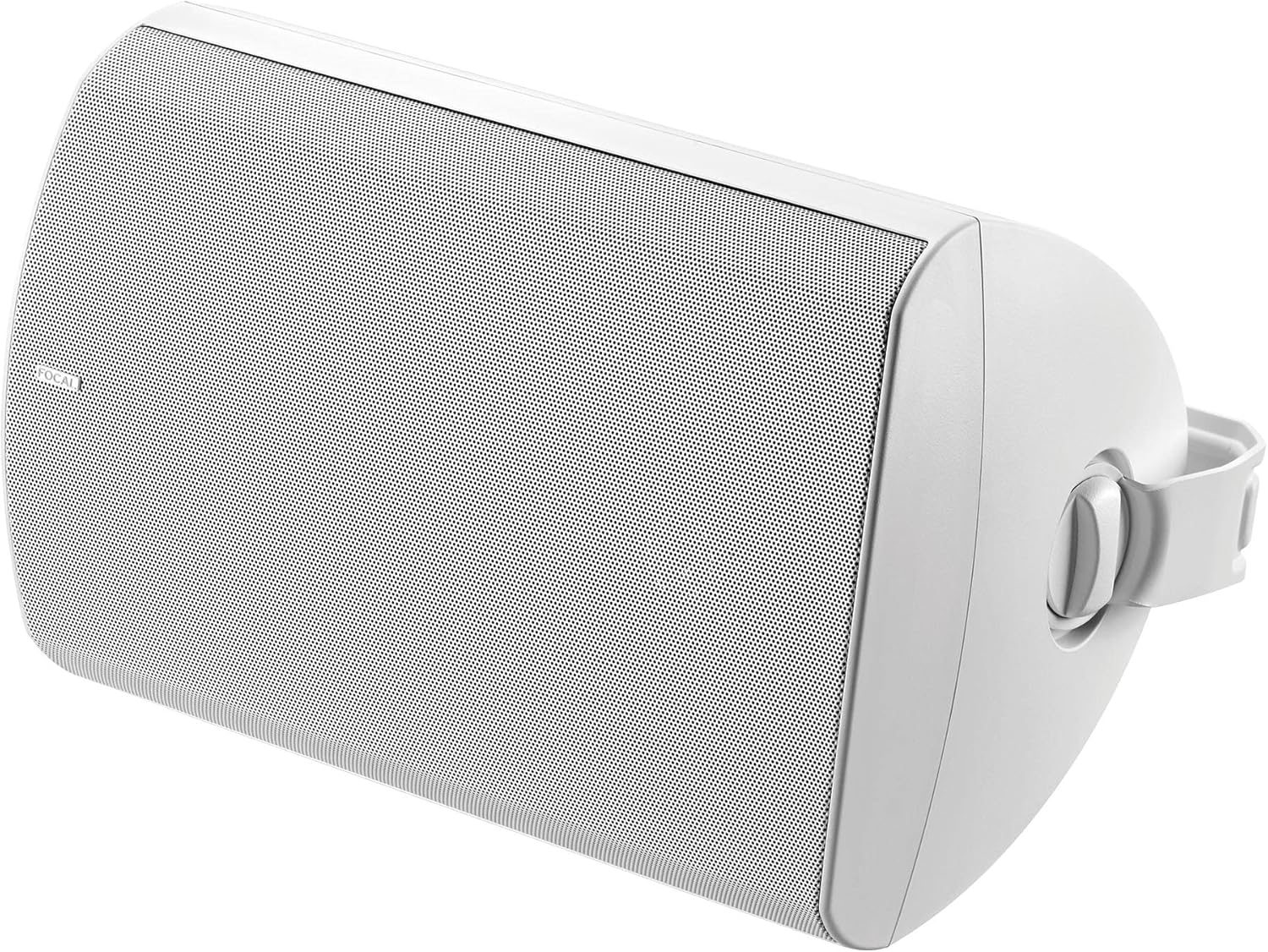

Imagine: Latu view of the Focal 100 OD8 Outdoor Loudspeaker, showing the integrated mounting bracket.

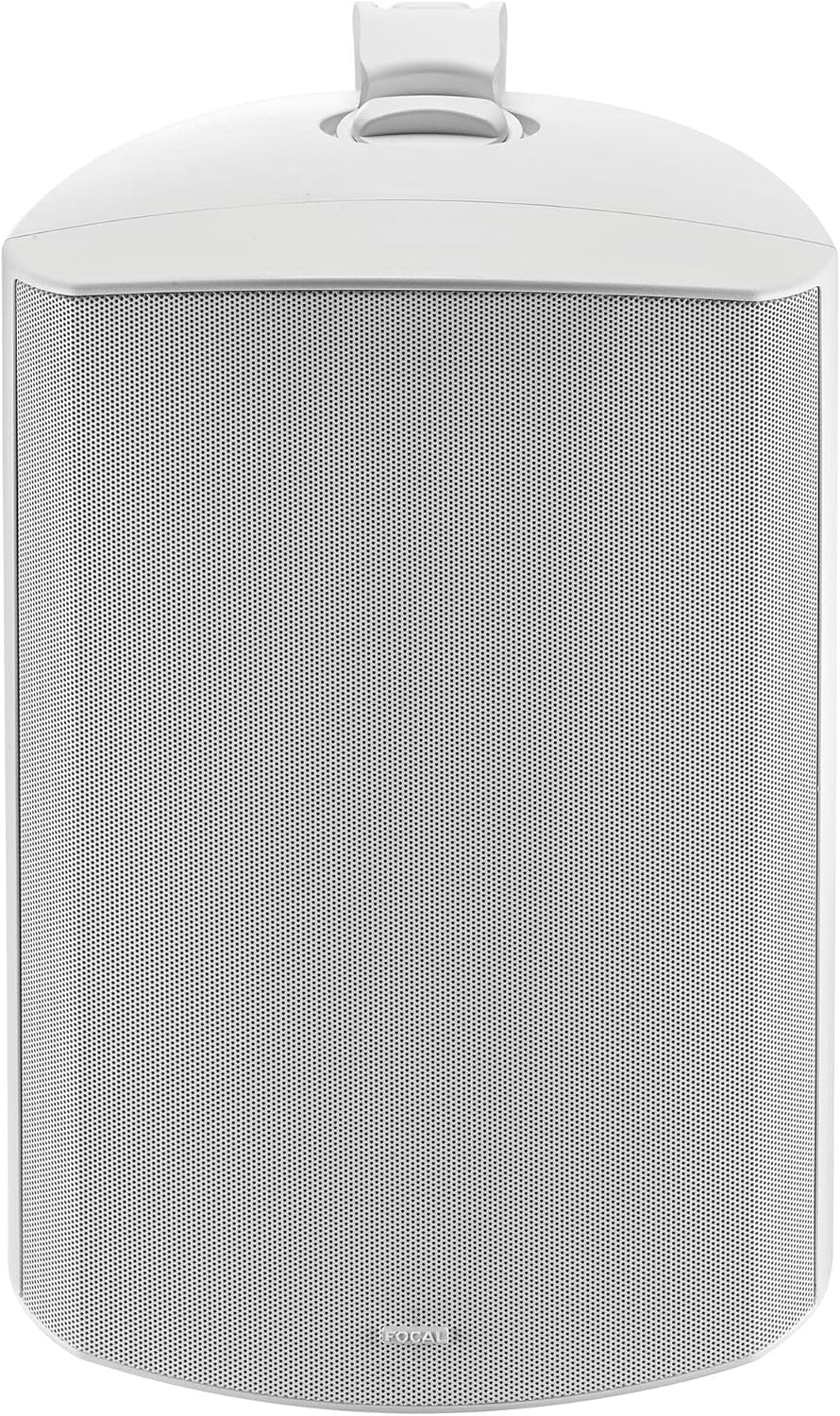

Image: Front view of the Focal 100 OD8 Outdoor Loudspeaker, highlighting the grille and overall design.

2. Cablaggio è cunnessione

The 100 OD8 loudspeaker has an impedance of 8 ohms and connects via spring post terminals. It offers the possibility of connecting two loudspeakers in parallel on the same amppruduzzione più vita.

1. Connect appropriate speaker wire from your amplifier to the spring post terminals on the back of the loudspeaker. Ensure correct polarity (positive to positive, negative to negative).
2. For parallel connection of two speakers, consult your amplifier's manual to ensure it can handle the resulting impedance load.

Imagine: Daretu view of the Focal 100 OD8 Outdoor Loudspeaker, showing the spring post terminals for audio connections.

Istruzzioni di funziunamentu

Once installed and connected, the Focal 100 OD8 loudspeaker operates as part of your audio system. It is powered via a corded electric connection from your amppiù vivu.

• Accensione / spegnimentu: The loudspeaker receives power from your amplifier. Turn on your amplifier to activate the speakers.
• Fonte audio: Select your desired audio source (e.g., smartphone, tablet, MP3 player, desktop, television, projector, laptop) through your connected amplifier or marine stereo system.
• Controlu di u voluminu: Ajustate u vulume cù u vostru ampi cuntrolli di u lifier.
• Metudu di cuntrollu: The speaker itself does not have direct controls; operation is managed through the connected audio source and amppiù vivu.

Mantenimentu

To ensure the longevity and optimal performance of your Focal 100 OD8 outdoor loudspeaker, follow these maintenance guidelines:

• Pulizia: Regularly wipe the exterior of the loudspeaker with a soft, damp tela. Evite l'usu di sustanzi chimichi duri o detergenti abrasivi.
• Ispezione: Periodically check the mounting bracket and connections for any signs of wear, corrosion, or loosening. Tighten as necessary.
• Prutezzione di u clima: While IP66 rated, extreme weather conditions (e.g., heavy snow, ice, prolonged direct sun in very hot climates) can still affect performance over time. Consider additional protective covers if exposed to severe elements.

Risoluzione di prublemi

If you encounter issues with your Focal 100 OD8 loudspeaker, refer to the following common troubleshooting steps:

• Nisun sonu:
  • Assicurà u ampL'amplificatore hè acceso è a fonte d'entrata curretta hè selezziunata.
  • Verificate tutte e cunnessione di i fili di l'altoparlanti à i dui amplifier and the loudspeaker for secure contact and correct polarity.
  • Verificate chì u vulume nantu à u vostru amplifier and audio source is turned up.
• Sonu distortu:
  • Riduce u vulume di u vostru amplifier and audio source. Overdriving the speakers can cause distortion.
  • Verificate e cunnessione di i fili di l'altoparlante per eventuali fili sfilacciati o cortocircuiti.
  • Assicurà u amplifier's power output matches the speaker's requirements (Max power: 150 Watts).
• Sonu intermittente:
  • Ispettate tutti i cavi per cunnessione allentate o danni.
  • If using a wireless audio source (e.g., Bluetooth to a marine stereo), check the connection stability.

Specificazioni

Garanzia

The Focal 100 OD8 Outdoor Loudspeaker comes with a Full Warranty. For specific terms and conditions, please refer to the warranty card included with your product or visit the official Focal websitu.

Supportu

Per più assistenza, supportu tecnicu, o per view additional products, please visit the official Focal store or contact customer service.
