KOAMTAC KDC280 Barcode Data Collector User Manual

1. Introduzione

This manual provides essential instructions for the safe and efficient use of your KOAMTAC KDC280 Barcode Data Collector. The KDC280 is a compact and versatile device designed for collecting 1D and 2D barcode data, offering flexible connectivity options via Bluetooth and USB. Please read this manual thoroughly before operating the device and retain it for future reference.

2. Informazioni di sicurezza

• Ùn espone micca u dispusitivu à temperature estreme, umidità o sustanzi currusivi.
• Evitate di lascià cascà o di sottumette u dispusitivu à impatti severi.
• Ùn pruvate micca di smuntà o mudificà l'apparechju. Questu annullerà a garanzia è pò causà danni.
• Use only the charging cradle and accessories provided or approved by KOAMTAC.
• Mantene u dispusitivu luntanu da campi magnetichi forti.
• Eliminate e batterie secondu a regulazione lucali.

3. Cuntenutu di u pacchettu

Verify that all items are present in your KDC280 package:

• KOAMTAC KDC280 Barcode Data Collector
• Dongle Bluetooth USB
• Culla di carica
• Cavu USB
• Cordino
• Manuale rapidu

Image: The KOAMTAC KDC280 data collector shown with its charging cradle, USB Bluetooth dongle, and lanyard.

4. Produttu Finituview

The KDC280 is a miniature barcode data collector capable of reading both 1D and 2D barcodes. It features a small display for user feedback and navigation buttons. Its primary function is to scan and store barcode data or transmit it in real-time to a host device via Bluetooth or USB.

Imagine: Un primu pianu view of the KDC280 device, its charging cradle, and the USB Bluetooth dongle.

5. Setup

5.1. Charging the KDC280

Before initial use, fully charge the KDC280 battery. Place the KDC280 into the charging cradle. Connect the USB cable to the charging cradle and then to a power source (e.g., computer USB port or USB wall adapter). The device's display will indicate charging status.

5.2. Connecting via USB Bluetooth Dongle

For quick and automatic pairing with a host device, use the included USB Bluetooth dongle.

1. Insert the USB Bluetooth dongle into an available USB port on your computer or host device.
2. Power on the KDC280.
3. The KDC280 will automatically detect and pair with the dongle. A confirmation message will appear on the KDC280's display once pairing is successful. The device is then ready for immediate use.

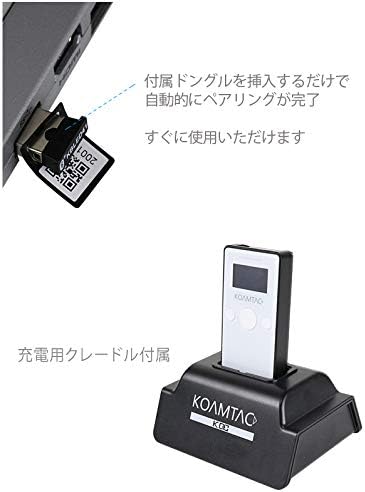

Image: Illustration showing the USB Bluetooth dongle being inserted into a port, enabling automatic pairing with the KDC280. The charging cradle is also visible.

5.3. Connecting via Standard Bluetooth

To connect to a host device without the dongle, follow the standard Bluetooth pairing procedure:

1. Ensure Bluetooth is enabled on your host device (e.g., smartphone, tablet, computer).
2. On the KDC280, navigate to the Bluetooth menu and select 'Pairing Mode'.
3. On your host device, search for available Bluetooth devices. Select 'KDC280' from the list.
4. Segui tutti i suggerimenti nantu à u screnu per compie u prucessu di accoppiamentu.

6. Operating the KDC280

6.1. Powering On / Off

• To power on: Press and hold the power button until the display illuminates.
• To power off: Press and hold the power button until the 'Power Off' option appears on the display, then confirm.

6.2. Scanning Barcodes

1. Point the KDC280's scanner window at the barcode.
2. Press the scan button. A successful scan will typically be indicated by a beep and/or a green LED light.
3. The scanned data will appear on the KDC280's display and/or be transmitted to the connected host device.

6.3. Trasferimentu Dati

When connected via Bluetooth, scanned data is typically transmitted in real-time to the host application. If operating in batch mode (data stored internally), connect the KDC280 via USB to a computer and use the provided utility software to download the stored data.

7. Mantenimentu

7.1. Pulizia

• Asciugà u dispusitivu cù un soft, damp tela. Ùn aduprate micca chimichi duri o detergenti abrasivi.
• Ensure the scanner window is clean and free of dust or smudges for optimal scanning performance.

7.2. Cura di batterie

• Evitate di scaricà cumpletamente a batteria spessu.
• Conservate l'apparechju in un locu frescu è asciuttu s'ellu ùn hè micca adupratu per periodi prolungati.
• If the battery performance significantly degrades, contact support for replacement options.

8. Risoluzione di prublemi

8.1. U dispusitivu ùn s'accende micca

• Ensure the battery is charged. Connect the device to the charging cradle and a power source.
• Verificate chì u buttone di accensione sia premutu è tenutu premutu currettamente.

8.2. Unable to Scan Barcodes

• Check if the scanner window is clean and unobstructed.
• Assicuratevi chì u codice à barre ùn sia micca dannighjatu o stampatu male.
• Verify the device is in the correct scanning mode.

8.3. Connection Issues (Bluetooth/USB)

• Bluetooth: Ensure the KDC280 is in pairing mode or already paired. Check Bluetooth settings on the host device. Restart both devices.
• Dongle USB: Ensure the dongle is fully inserted and recognized by the host device. Restart the KDC280 and reinsert the dongle.
• Cavu USB: Try a different USB port or cable. Ensure drivers are correctly installed if required by your operating system.

9. Specificazioni

10. Garanzia è Support

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official KOAMTAC websitu. I dettagli di cuntattu per l'assistenza clienti sò generalmente dispunibili nantu à u situ di u fabricatore websitu.
