Introduzione
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Goodman 3.5 Ton 14.3 SEER2 R-32 AC Condenser, Model GLXS4BA4210. Please read this manual thoroughly before installation or use and retain it for future reference.
The Goodman GLXS4BA4210 is an energy-efficient air conditioning condenser designed for optimal cooling performance. Key features include:
- Energy-efficient compressor for reduced power consumption.
- Single-speed PSC condenser fan motor for reliable air circulation.
- Factory-installed filter drier to protect the refrigerant system from moisture and contaminants.
- Fully charged for 15 ft. of tubing length, simplifying initial setup.

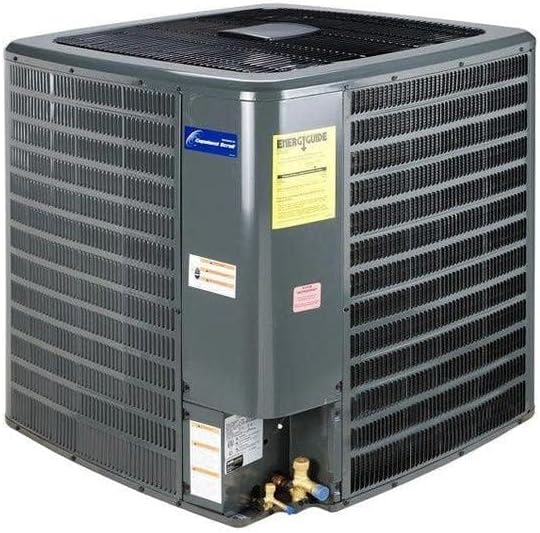

Image: Goodman GLXS4BA4210 AC Condenser with key specifications.
Installazione è installazione
Installation of this AC condenser requires specialized knowledge and tools. It is strongly recommended that installation be performed by a licensed HVAC professional to ensure proper function, safety, and compliance with local codes and warranty requirements.
Considerazioni di piazzamentu
- Locu: Position the outdoor unit on a level, stable surface, ideally in a shaded area to enhance efficiency.
- Liquidazione: Ensure adequate clearance around all four sides of the unit for proper airflow and maintenance access. Avoid placing it near obstructions like dense shrubbery or walls that could impede air circulation.
- Drainage : Verify that the area around the unit allows for proper water drainage away from the foundation.
Image: AC Condenser dimensions (W, D, H).
The unit's dimensions are approximately 37 x 37 x 38.5 inches (W x D x H), with a weight of 5 pounds (shipping weight may vary). These measurements are crucial for planning the installation space.
Istruzzioni di funziunamentu
Once installed by a qualified professional, your Goodman AC Condenser operates in conjunction with your indoor coil and thermostat to provide cooling. Set your desired temperature on the thermostat, and the system will automatically engage to maintain comfort.
Efficienza energetica
This unit features a Seasonal Energy Efficiency Ratio 2 (SEER2) of 14.3, indicating its energy performance. Higher SEER2 ratings generally mean greater energy savings. Refer to the EnergyGuide label for specific efficiency details and estimated annual operating costs.
Image: EnergyGuide label for Model GLXS4BA4210.
Mantenimentu
Regular maintenance is crucial for the longevity and efficient operation of your AC condenser. While some tasks can be performed by the homeowner, annual professional inspections are highly recommended.
Mantenimentu di a casa
- Clean the Outdoor Unit: Periodically clear away leaves, grass clippings, and other debris from around the condenser unit. Gently rinse the outdoor coils with a garden hose to remove dirt and dust, ensuring the power is off before cleaning.
- Verificà u filtru di l'aria: Regularly inspect and replace or clean the air filter in your indoor unit according to the manufacturer's recommendations. A dirty filter restricts airflow and reduces efficiency.
Mantenimentu prufessiunale
Schedule annual maintenance with a licensed HVAC technician. They can perform comprehensive checks, including refrigerant levels, electrical connections, and overall system performance, to prevent potential issues and ensure peak efficiency.
Video: R-32 Fact vs Fiction. This video provides information about R-32 refrigerant, which is used in this unit.
Risoluzione di prublemi
If your AC condenser is not operating as expected, consider the following basic troubleshooting steps before contacting a professional:
- No Cooling: Check if the thermostat is set to 'Cool' mode and the desired temperature is below the current room temperature. Ensure the circuit breaker for the outdoor unit is not tripped.
- Flussu d'aria ridutta: Inspect the indoor air filter for excessive dirt and replace or clean it if necessary.
- Rumori inusuali: Listen for any abnormal sounds. If you hear grinding, squealing, or banging, turn off the unit immediately and contact an HVAC professional.
- L'unità ùn si accende micca: Verify that the power switch near the outdoor unit is in the 'On' position and check the circuit breaker.
For any issues beyond these basic checks, or if you are uncomfortable performing them, contact a licensed HVAC technician for diagnosis and repair.
Specificazioni
| Feature | Specificazione |
|---|---|
| U fabricatore | Goodman |
| Numero di mudellu | GLXS4BA4210 |
| Capacità | 3.5 Tons (42K BTU Cooling) |
| Rapportu di Efficienza Energetica Stagionale (SEER2) | 14.3 |
| Refrigerante | R-32 |
| Voltage | 230 Volts |
| Livellu di sonu | 72 Decibel |
| Dimensioni di u produttu (L x W x H) | 37 x 37 x 38.5 inch |
| Pesu di l'articulu | 5 liri |
| Metudu di stallazione | Sistema Split |
| Fonte d'energia | Corded Electric |
| Culore | Neru |
Garanzia è Supportu
Goodman brand equipment is known for its robust warranty coverage, providing peace of mind for homeowners.
Dettagli di Garanzia
All Goodman brand equipment, including this 3.5 Ton 14.3 SEER2 R-32 AC Condenser, are covered by:
- Garanzia limitata di 10 anni nantu à i pezzi: Covers replacement parts for a period of ten years from the date of installation.
- 10-Year Unit Replacement Warranty: Provides for the replacement of the entire unit if the compressor fails within the first ten years.
- Lifetime Compressor Warranty: Offers lifetime coverage for the compressor component.
- Garanzia à vita di u scambiatore di calore: (Applicable to heating components, if part of a combined system).
Please refer to the official Goodman warranty documentation provided with your unit for complete terms, conditions, and registration requirements. Proper installation and regular maintenance by a licensed professional are typically required to maintain warranty validity.
Image: 10 Year Limited Warranty shield.
Assistenza Clienti
For technical assistance, warranty claims, or to locate a licensed Goodman HVAC professional, please visit the official Goodman website or contact their customer service department. Always provide your model number (GLXS4BA4210) and serial number when seeking support.
