1. Introduzione
This manual provides instructions for the safe and effective operation of the SMART SENSOR AS8906 Handheld NO2 Gas Leak Detector. This device is designed for detecting Nitrogen Dioxide (NO2) gas concentrations in various environments. Please read this manual thoroughly before using the product.
1.1 Informazioni di sicurezza
- Always operate the device in accordance with the instructions provided.
- Do not attempt to modify or repair the device yourself. Refer to qualified personnel for service.
- Ensure the device is charged using the provided charging adapter and USB cable.
- Avoid exposing the device to extreme temperatures or humidity outside the specified operating conditions.
- This device is intended for professional use and should be handled with care.
2. Produttu Finituview
2.1 Cuntenuti di u pacchettu
U pacchettu standard include i seguenti elementi:
- 1 x Nitrogen Dioxide Gas Monitor (AS8906)
- 1 x Manuale d'utilizatore
- 1 x adattatore di carica
- 1 x Cavu USB
- 1 x Custodia per u trasportu manuale
- 1 x Certificatu di calibrazione
- 1 x Certificatu CNEX
- 1 x Gift Paper Box
Figura 2.1: Cuntenutu standard di u pacchettu.
2.2 Cumpunenti di u dispusitivu
Familiarize yourself with the main components of the AS8906 detector:
Figura 2.2: Fronte view and labeled components of the AS8906 detector.
- High Sensitive Sensor: Detects NO2 gas concentration.
- Sampling Pump Connecting Port: For attaching the optional sampling pump.
- Pantalla LCD: Displays gas concentration, battery status, and other information.
- Buttone falà: Used for navigation and decreasing values.
- Pulsante Up: Used for navigation and increasing values.
- Alarma sonora: Emits an audible alert when gas concentration exceeds set limits.
- Portu di carica: Per cunnette u cavu di carica USB.
- Alarma luminosa: Visual alert (LED) when gas concentration exceeds set limits.
- Pulsante di accensione / spegnimentu: Cuntrolla a putenza di u dispusitivu.
- Enter Button: Conferma selezzione è paràmetri.
2.3 Dimensioni
The AS8906 detector features a compact design for portability.

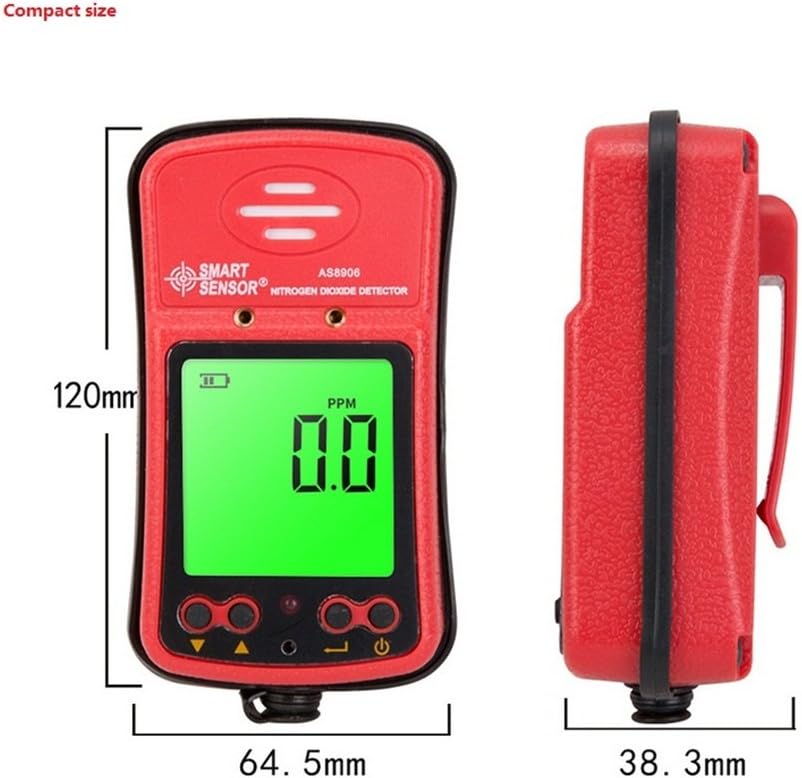

Figura 2.3: Dimensioni di u dispusitivu.
Dimensions: 120.2mm (Height) x 64.5mm (Width) x 38.3mm (Depth).
Figure 2.4: The compact size allows for easy portability.
3. Setup
3.1 Caricà u dispusitivu
The AS8906 detector is powered by a built-in 3.7V Li-battery. Before first use, ensure the device is fully charged.
- Truvate u portu di carica in fondu à u dispusitivu.
- Cunnette u cable USB furnitu à u portu di carica.
- Connect the other end of the USB cable to the charging adapter.
- Plug the charging adapter into a standard power outlet.
- The battery indicator on the LCD screen will show charging status. A full charge typically provides up to 12 hours of continuous operation.
Figura 3.1: Posizione di u portu di carica.
Figure 3.2: Gas detector with recharge adapter.
3.2 Cunnettendu u Sampling Pump (Optional)
The optional sampling pump (AS8930) is designed to assist the gas detector in environments with limited access or poor air circulation. It does not operate independently and requires power from the gas detector.
- Allinea u sampling pump with the gas detector's sampling pump connecting port.
- Securely attach the sampling pump to the gas detector using the two closed-type screws. Ensure a tight connection to avoid poor contact.
- Connect the soft rubber tube (500mm long) to the nozzle of the sampling pump.
- Impurtante: Do not connect any other voltage power supply to the sampling pump to prevent damage.
Figura 3.3 : Sampling pump and accessories.
4. Operazione
4.1 Accensione / spegnimentu
- Per accende: Appughjà è tene premutu Pulsante Power On/Off until the LCD screen illuminates. The device will perform a self-test.
- Per spegne: Appughjà è tene premutu Pulsante Power On/Off finu à chì u screnu si spegne.
4.2 Capisce u Display
The high-density digital LCD screen displays real-time gas concentration values, battery status, and other operational indicators. The backlight function allows for use in dark areas.
- PPM: Indicates parts per million, the unit for gas concentration.
- Icona di a batteria: Mostra u livellu attuale di carica di a batteria.
- Indicatori d'alarme: Visual cues for alarm status.
4.3 Funzioni di alarme
The device features high and low alarm functions with three alert methods: sound, light, and vibration. Alarm values are adjustable.
- When the gas concentration reaches a preset high or low alarm value, the device will activate its sound, light, and vibration alarms.
- The alarm sound can reach up to 80dB.
4.4 Adjusting Alarm Values
Refer to the on-screen menu for adjusting high and low alarm thresholds. Use the Up è Giù buttons to navigate and change values, and the Entre buttone per cunfirmà.
4.5 Using the Sampling Pump
Quandu u sampling pump is connected, it will draw air into the detector, allowing for gas concentration measurement in remote or confined spaces. The air flow velocity is approximately 0.5 cubic inches per hour, with a maximum gas sample collecting distance of about 50 feet.
5. Mantenimentu
5.1 Cura di a batteria
- Recharge the device when the battery indicator shows low power to ensure continuous operation.
- Evitate di svuotà cumpletamente a batteria spessu per prolungà a so durata di vita.
- Sè vo conservate u dispusitivu per un periodu prolongatu, caricatelu à circa 50% è ricaricatelu ogni pochi mesi.
5.2 Pulizia
- Asciugà l'esternu di u dispusitivu cù un soffiu, damp tela.
- Ùn aduprate micca detergenti abrasivi o solventi, postu chì questi ponu dannà u casing o schermu.
- Ensure no liquids enter the sensor area or charging port.
5.3 Calibrazione
The device comes with a calibration certificate. For optimal accuracy and compliance, periodic professional calibration is recommended. Refer to the manufacturer or authorized service centers for calibration services.
6. Risoluzione di prublemi
If you encounter issues with your AS8906 detector, refer to the following common problems and solutions:
| Prublemu | Causa Possibile | Soluzione |
|---|---|---|
| U dispusitivu ùn accende micca. | Batteria bassa o scarica. | Charge the device using the provided adapter and USB cable. |
| Letture imprecise. | Sensor contamination or need for calibration. | Ensure the sensor area is clean. Consider professional calibration if readings remain inconsistent. |
| Alarm not sounding/lighting/vibrating. | Alarm settings configured incorrectly or disabled. | Check alarm settings in the device menu. Ensure volume and vibration are enabled. |
| Sampling pump not working. | Poor connection to the detector or pump malfunction. | Assicurà u sampling pump is securely attached with screws. Verify the detector is powered on. |
If the problem persists after attempting these solutions, contact customer support for further assistance.
7. Specificazioni
7.1 Specificazioni di u Detector
| Feature | Detail |
|---|---|
| Marca | SENSORE INTELLIGENTE |
| Mudellu | AS8906 |
| Tipu di gas | Diossidu di azotu (NO2) |
| Gamma di misurazione | 0 ~ 20 ppm |
| Risoluzione | 0.1 ppm |
| Principiu di travagliu | Sensore elettrochimicu |
| Tipu di alarme | Sound, Light, Vibration (adjustable values) |
| Livellu di Sonu di Alarma | Finu à 80 dB |
| Temperature di funziunamentu | -10 ~ 50 ° C |
| Umidità operativa | 15~95% RH (standard) |
| Fonte d'energia | 3.7V Li-battery (Built-in) |
| Corrente di travagliu | 16 mA |
| Funzionamentu Cuntinuu | Circa 12 ore (carica cumpleta) |
| Materiale | Plastica ABS |
| Pesu Net | 200 g (7.1 unces) |
| Dimensioni | 120.2 x 64.5 x 38.3 mm |
| Certificazioni | JJG693; JJG695: JJG915 and GB3836 series anti-explosion standard, CNEX |
7.2 Sampling Pump Specifications (Optional Accessory)
| Feature | Detail |
|---|---|
| Voltage Gamma | DC 2.2V-3.2V |
| Corrente di travagliu | <280 mA |
| Diametru di l'ugello | 2.5 mm |
| Rumore | <75 dB |
| Dimensioni | 100.8 x 62.3 x 50 mm |
| Max Sample Distance | Circa. 50 pedi |
| Air Flow Velocity | Approx. 0.5 cubic inches per hour |
8. Garanzia è Support
8.1 Garanzia infurmazione
Your SMART SENSOR AS8906 Handheld NO2 Gas Leak Detector comes with a warranty. Please refer to the included Warranty Card in your package for specific terms and conditions, including warranty period and coverage details.
8.2 Assistenza Clienti
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact SMART SENSOR customer support. Contact information can typically be found on the product packaging, the warranty card, or the official SMART SENSOR websitu.
