RCA RT2781HB 1000-Watt Audio Receiver Home Theater System User Manual

1. Introduzione

This manual provides essential information for the proper setup, operation, and maintenance of your RCA RT2781HB 1000-Watt Audio Receiver Home Theater System. Please read this manual thoroughly before using the product to ensure optimal performance and safety. This system delivers Dolby Digital 5.1 surround sound, an AM/FM tuner, Bluetooth connectivity, and USB playback capabilities.

2. Informazioni di sicurezza

• Fonte di energia: Connect the unit only to the specified power supply as indicated on the product label.
• Ventilazione: Assicurà una ventilazione adatta. Ùn bluccà micca l'aperture di ventilazione.
• L'acqua è l'umidità: Do not expose the unit to rain, moisture, or dripping/splashing liquids.
• Calore: Mantene l'unità luntanu da fonti di calore cum'è radiatori, registri di calore, stufe o altri apparecchi chì producenu calore.
• Service : Ùn circate micca di serviziu stu pruduttu voi stessu. Cunsultate tutti i servizii à u persunale di serviziu qualificatu.
• Pulizia: Scollegate l'unità da a presa murale prima di pulisce. Aduprate un pannu asciuttu per a pulizia.

3. Cuntenutu di u pacchettu

Verificate chì tutti l'articuli elencati quì sottu sò inclusi in u vostru pacchettu:

• 1 x RCA RT2781HB Audio Receiver
• 5 x Satellite Surround Sound Speakers
• 1 x Subwoofer
• 1 x Control remoto (batterie incluse)
• 1 x antenna FM

4. Produttu Finituview

The RCA RT2781HB system is designed to provide an immersive audio experience. It includes a central receiver unit, five satellite speakers, and a subwoofer.

Figure 4.1: Complete RCA RT2781HB Home Theater System

4.1. Componenti

• Ricevitore: The central unit for audio processing, amplification, and input management.
• Altoparlanti satellitari (5): Four compact speakers for front left/right and rear left/right channels, and one center channel speaker for dialogue clarity.
• Subwoofer (1): Provides deep bass frequencies for a rich audio experience.
• Control remoto: For convenient operation of all system functions.

4.2. Front Panel Overview

The front panel of the receiver features controls for power, volume, input selection, and sound adjustments, along with a display and front-facing input ports.

4.3. Panel posteriore Overview

The rear panel provides various connection ports for speakers, audio/video sources, and the power supply.

Figure 4.2: Rear Panel Digital and Analog Audio Inputs

This image illustrates the digital audio inputs (Coaxial, Optical 1, Optical 2) and analog audio inputs (AUX 1 R/L) on the rear panel of the receiver. These ports are used to connect external audio sources such as Blu-ray/DVD players, game systems, and cable boxes.

Figure 4.3: Rear Panel HDMI Inputs and Output

This image shows the HDMI IN ports (HDMI IN 1, HDMI IN 2, HDMI IN 3) and the HDMI OUT (to TV) port on the rear panel. These are used for connecting HDMI-enabled devices and outputting video to your television.

5. Setup

5.1. Cunnessione di parlante

Connect the included speakers to the corresponding terminals on the rear of the receiver. Ensure correct polarity (+ to + and - to -) for each speaker.

• Fronte Sinistra/Destra: Connect the two satellite speakers to the FRONT L/R terminals.
• Centru: Connect the center speaker to the CENTER terminal.
• Posteriore Sinistra/Destra: Connect the remaining two satellite speakers to the SURROUND L/R terminals.
• Subwoofers: Connect the subwoofer to the SUBWOOFER output.

Figure 5.1: Subwoofer Unit

This image displays the subwoofer unit, which connects to the receiver to provide low-frequency audio.

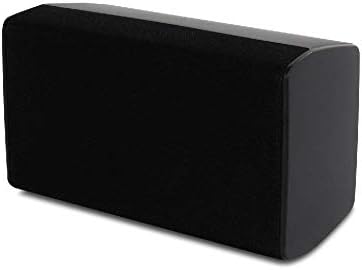

Figure 5.2: Center Speaker Unit

This image shows the center channel speaker, crucial for clear dialogue in your home theater setup.

Figure 5.3: Satellite Speaker Unit

This image illustrates one of the satellite speakers, used for front and surround sound channels.

5.2. Audio/Video Connections

Connect your audio and video sources to the receiver using the appropriate cables.

• Cunnessione HDMI: Use HDMI cables to connect devices like Blu-ray players, game consoles, or cable boxes to the HDMI IN ports. Connect your TV to the HDMI OUT (to TV) port.
• Cunnessioni Audio Digitale: For devices with optical or coaxial digital audio outputs, use the OPTICAL or COAXIAL inputs on the receiver.
• Cunnessioni Audio Analogicu: Use RCA stereo cables for devices with analog audio outputs (e.g., CD players, VCRs) to the AUX IN ports.

5.3. Connection Power

Once all speakers and audio/video sources are connected, plug the receiver's power cord into a standard AC outlet.

6. Operating Instructions

6.1. Funzionamentu Basic

• Accensione / spegnimentu: Press u POWER buttone nantu à u pannellu frontale o u telecomandu per accende o spegne u sistema.
• Ajuste di u voluminu: Aduprà u VOLUME +/- buttons on the remote or the main volume knob on the receiver to adjust the master volume.

6.2. Selezzione Input

Press u SOURCE button on the front panel or the corresponding input buttons (e.g., HDMI 1, OPTICAL, AUX, BT) on the remote control to select your desired audio/video source.

6.3. Abbinamentu Bluetooth

1. Selezziunà u BT input source on the receiver. The display will show "BT PAIRING".
2. Nant'à u vostru dispusitivu cumpatibile cù Bluetooth (smartphone, tablet, ecc.), attivate Bluetooth è cercate i dispusitivi dispunibili.
3. Select "RCA RT2781HB" from the list of devices.
4. Once paired, the receiver will indicate a successful connection, and you can stream audio wirelessly.

6.4. Riproduzione USB

Inserite una unità flash USB chì cuntene audio files into the USB port on the front panel. The system will automatically switch to USB mode and begin playback. Use the remote control to navigate tracks and control playback.

6.5. Sintonizzatore AM/FM

Selezziunà u TUNER input source. Use the TUNE +/- buttons on the remote to scan for radio stations. Use the MEMORIA buttons to save and recall your favorite stations.

6.6. Ajustamenti di u sonu

Use the dedicated controls on the front panel or remote for fine-tuning your audio:

• Bass/Treble: Adjust these to enhance low or high frequencies.
• Balance: Adjust the left/right speaker output balance.
• Volume subwoofer: Control the output level of the subwoofer independently.

6.7. Control Remote

The included remote control provides full functionality for your home theater system.

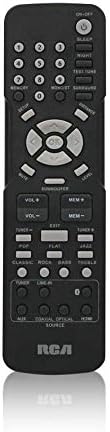

Figura 6.1: Disposizione di u telecomandu

This image displays the remote control for the RCA RT2781HB system, featuring buttons for power, volume, input selection, tuner controls, and sound adjustments.

7. Mantenimentu

• Pulizia: Wipe the unit with a soft, dry cloth. Do not use liquid or aerosol cleaners.
• Ventilazione: Periodically check that the ventilation openings on the receiver are clear of dust and debris.
• Conservazione: Sè vo almacenate l'unità per un periodu prolongatu, scollegatela da a presa di corrente è almacenatela in un locu frescu è asciuttu.

8. Risoluzione di prublemi

9. Specificazioni

10. Garanzia è Support

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official RCA websitu. Conservate a vostra prova d'acquistu per qualsiasi reclamazione di garanzia.
