1. Introduzione
Thank you for choosing the LONEDRUID Dusk to Dawn Sensor Outdoor Wall Light Fixture. This fixture is designed to provide reliable and energy-efficient outdoor lighting for your home, featuring an automatic dusk-to-dawn sensor and durable, waterproof construction. Please read this manual thoroughly before installation and operation to ensure proper use and safety.
Image 1.1: LONEDRUID outdoor wall light fixture installed on a house, illuminating the exterior.
2. Informazioni di sicurezza
- ATTENZIONE: Rischiu di scossa elettrica. Disconnect l'alimentazione à u fusible o circuit breaker prima di stallà o di serviziu.
- Tutte e cunnessione elettriche devenu esse in cunfurmità cù i codici lucali, l'ordinanze, o u Codice Elettricu Naziunale (NEC). Cuntattate un elettricista qualificatu sè ùn cunniscite micca e cunnessione elettriche adatte.
- Assicuratevi chì l'attrezzatura hè ben messa à terra.
- Do not install this fixture on surfaces that are not structurally sound.
- Aduprate solu lampadine di u tipu è di l'acqua specificati.tage.
- Do not touch the bulb when the fixture is operating or immediately after turning it off.
- Mantene i materiali inflammabili luntanu da l'apparecchiu di luce.
3. Cuntenutu di u pacchettu
Verificate chì tutti i cumpunenti sò presenti è intatti prima di inizià l'installazione.
- Outdoor Wall Light Fixture (pre-assembled glass shade)
- Ferramenta di muntatura (viti, dadi per fili, piastra di muntatura)
- Manuale d'istruzzioni
Note: Bulb is not included. This fixture is compatible with E26 base bulbs (Incandescent, LED, CFL, Halogen) up to 100W.
4. Specificazioni
| Feature | Specificazione |
|---|---|
| Marca | LONEDRUID |
| Numero di mudellu | 07b85e1f-165e-46d5-aadd-12a1cce63232 |
| Dimensioni | 5.9"L x 10.04"L x 17.71"A |
| Materiale | Die-cast Aluminum, Glass |
| Culore | Black & Gold Trim |
| Fonte d'energia | Corded Electric |
| Voltage | 120 Volts |
| Max Wattage | 100 Watt |
| Base di bulbe | E26 Medium |
| Tipu di fonte di luce | LED / CFL / Incandescent / Halogen |
| Funzioni spiciali | Dusk to Dawn Sensor, Energy Efficient, Waterproof (IP65) |
| Tipu di stallazione | Muntu à u muru |
| Certificazioni | ETL Listatu |

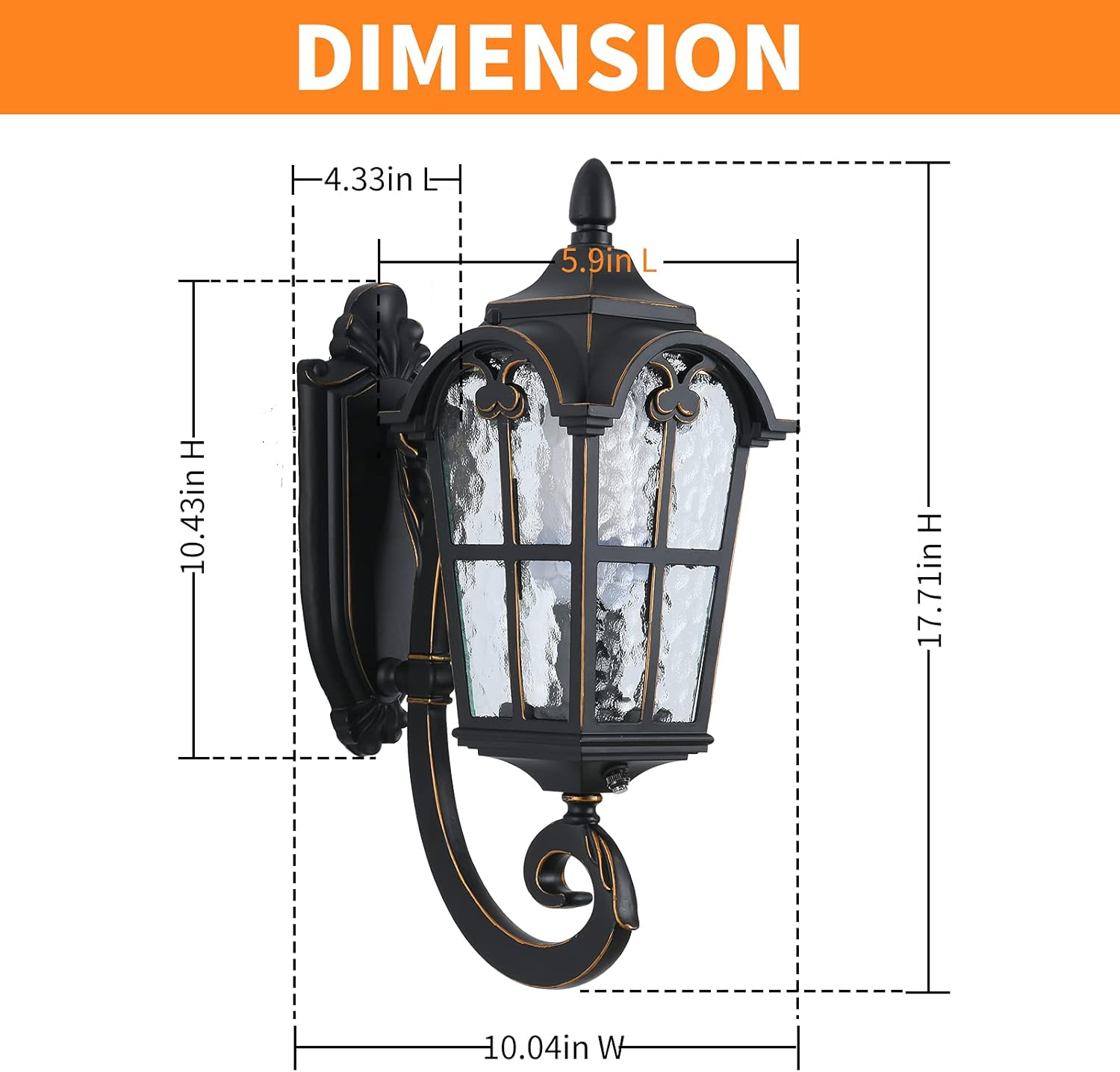

Image 4.1: Dimensional drawing of the wall light fixture, indicating height, width, and depth.
5. Setup è Installazione
For safety, it is recommended to have this fixture installed by a qualified electrician. Always ensure power is disconnected before installation.
Passi di stallazione:
- Spegne l'alimentazione: Truvate l'interruttore automaticu o a scatula di fusibili è spegnete l'alimentazione à a scatula di giunzione induve serà installata l'apparecchiatura.
- Preparà a piastra di muntatura: Attaccate a piastra di muntatura à a scatula di derivazione elettrica cù e viti furnite. Assicuratevi ch'ella sia fissata bè.
- Fate cunnessi elettrici: Connect the fixture's wires to your house's electrical wires.
- Connect the black wire (live) from the fixture to the black wire from the junction box.
- Connect the white wire (neutral) from the fixture to the white wire from the junction box.
- Connect the green or bare copper wire (ground) from the fixture to the ground wire from the junction box.
- Muntà l'attrezzatura: Carefully align the fixture with the mounting plate and secure it using the provided nuts or screws. Ensure the fixture is flush against the wall and stable.
- Installa Bulb: Screw an E26 base bulb (max 100W) into the socket. Do not overtighten.
- Ripristina l'energia: Riattivate a corrente à l'interruttore automaticu o à a scatula di fusibili.
Image 5.1: Key features of the fixture, including the advanced photocell sensor, durable aluminum, water ripple glass, and UL Listed E26 base.
6. Operating Instructions
This LONEDRUID outdoor wall light fixture is equipped with an advanced dusk-to-dawn sensor, providing automatic operation for convenience and energy saving.
Funzionalità Dusk to Dawn:
- The built-in photocell sensor on the top of the fixture detects ambient light levels.
- When the surroundings become dark (at dusk), the sensor will automatically turn the light on.
- When the surroundings become bright again (at dawn), the sensor will automatically turn the light off.
- Ensure the sensor is not obstructed by objects or direct artificial light sources (e.g., other bright lights, streetlights) as this may interfere with its proper operation.
Image 6.1: The light fixture demonstrating its automatic turn-off at dawn and turn-on at dusk functionality.
Video 6.1: Demonstration of the dusk-to-dawn sensor functionality, showing the lights activating as evening approaches.
7. Mantenimentu
Regular maintenance helps ensure the longevity and optimal performance of your light fixture.
Pulizia:
- Before cleaning, ensure the power to the fixture is turned off at the circuit breaker.
- Asciugate l'apparecchiatura cù un pannu dolce èamp pannu. Ùn aduprate micca detergenti abrasivi o solventi, postu chì puderanu dannighjà a finitura o u vetru.
- Clean the photocell sensor periodically to ensure it is free from dirt or debris that could obstruct its function.
Sostituzione di bulbe:
- Spegne l'alimentazione di l'apparecchiatura à l'interruttore automaticu.
- Allow the bulb to cool completely before attempting to remove it.
- Carefully unscrew the old bulb and replace it with a new E26 base bulb (max 100W).
- Ripristina u putere à l'attrezzatura.
Image 7.1: The fixture's IP65 waterproof rating, indicating resistance to various weather conditions.
8. Risoluzione di prublemi
Sè avete prublemi cù u vostru apparecchiu di luce, riferitevi à i seguenti prublemi è suluzioni cumuni:
| Prublemu | Causa Possibile | Soluzione |
|---|---|---|
| A luce ùn s'accende micca à u tramontu. | 1. U putere hè off. 2. Bulb is faulty or loose. 3. Sensor is obstructed or receiving too much light. | 1. Check circuit breaker/fuse. 2. Replace or tighten bulb. 3. Clear any obstructions from the sensor. Ensure no other light sources are directly illuminating the sensor. |
| A luce ùn si spegne micca à l'alba. | 1. Sensor is obstructed or faulty. 2. Sensor is not receiving enough ambient light. | 1. Clear any obstructions from the sensor. Ensure the sensor is exposed to natural daylight. 2. If the problem persists, contact customer support. |
| Luce lampeggia. | 1. Loose wiring connection. 2. Bulbo difettu. 3. Incompatible dimmer switch (if applicable). | 1. Turn off power and check all wiring connections. 2. Sustituite a lampadina. 3. Ensure no dimmer switch is used, or use a compatible one if necessary. |
If these solutions do not resolve the issue, please contact LONEDRUID customer support for further assistance.
9. Garanzia è Support
The LONEDRUID Dusk to Dawn Sensor Outdoor Wall Light Fixture comes with a full warranty. For specific warranty details, please refer to the product packaging or contact LONEDRUID customer service.
Assistenza Clienti:
If you have any questions, require technical assistance, or need to report a problem with your product, please contact us via the retailer's messaging system or visit the official LONEDRUID store page for contact information.
We are committed to providing professional troubleshooting and support to ensure your satisfaction.
