1. Produttu Finituview
This manual provides instructions for the installation, operation, and maintenance of the WANATOP 12V Fuel Shut Off Solenoid, model U85206452. This solenoid is designed to control the fuel supply to Perkins engines, ensuring proper engine shutdown.
The fuel shut-off solenoid is an electromagnetic device that, when energized, allows fuel to flow to the engine, and when de-energized, stops the fuel flow, thereby shutting down the engine. It is a critical component for engine safety and control.

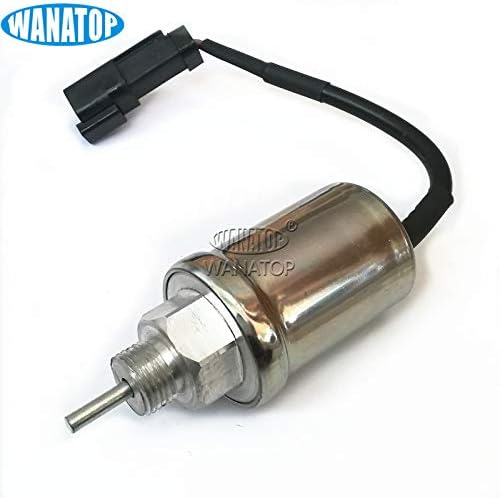

Image 1.1: Front view of the WANATOP 12V Fuel Shut Off Solenoid U85206452. This image shows the main body of the solenoid, the electrical connector, and the plunger mechanism.
2. Informazioni di sicurezza
Read all safety warnings and instructions carefully before installing or operating this product. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.
- Always disconnect the vehicle's battery before performing any electrical work to prevent accidental short circuits or electrical shock.
- Ensure the engine is completely cool before working on fuel system components to avoid burns.
- Portate l'equipaggiu di prutezzione individuale (PPE) adattatu, cum'è l'occhiali di sicurezza è i guanti.
- Handle fuel with extreme care. Fuel is highly flammable. Work in a well-ventilated area and keep ignition sources away.
- Ensure all connections are secure and free from leaks after installation.
- Sè vo avete qualchì dubbitu nantu à qualchì parte di u prucessu d'installazione, cunsultate un tecnicu qualificatu.
3. Cuntenutu di u pacchettu
Verificate chì tutti i cumpunenti sianu presenti è intatti prima di cuntinuà cù l'installazione.
- 1 x WANATOP 12V Fuel Shut Off Solenoid (Model: U85206452)
Imagine 3.1: Latu view of the solenoid, highlighting the electrical connector and mounting bracket.
4. Installazione è Setup
Follow these general steps for installing the fuel shut-off solenoid. Specific engine configurations may vary.
- Preparazione: Ensure the engine is off and the battery is disconnected. Locate the existing fuel shut-off solenoid or the designated mounting location on the fuel injection pump.
- Removal of Old Solenoid (if applicable): Carefully disconnect any electrical wiring from the old solenoid. Use appropriate tools to unthread or unmount the old solenoid from the fuel injection pump. Be prepared for minor fuel leakage and have rags ready.
- Installazione di u novu solenoide: Thread the new WANATOP U85206452 solenoid into the fuel injection pump. Ensure it is hand-tightened first, then use a wrench to secure it firmly, but do not overtighten.
- Cunnessione elettrica: Connect the electrical harness of the new solenoid to the vehicle's wiring. Ensure the polarity is correct (typically, one wire is for power, the other for ground, or a multi-pin connector for more complex systems). The solenoid operates on a 12V DC supply.
- Cablaggio sicuru: Ensure all wiring is routed away from hot or moving engine parts and secured to prevent chafing or damage.
- Verifiche finali: Reconnect the battery. Before starting the engine, check for any fuel leaks around the solenoid.
Imagine 4.1: Un'altra view of the solenoid, showing the wiring and connector in more detail, crucial for correct electrical installation.
5. Operating Instructions
The WANATOP 12V Fuel Shut Off Solenoid operates in conjunction with the engine's electrical system to control fuel flow.
- Partenza di u mutore: When the ignition key is turned to the "ON" or "START" position, 12V power is supplied to the solenoid. This energizes the coil, causing the plunger to retract and open the fuel passage, allowing fuel to flow to the engine.
- Engine Running: The solenoid remains energized as long as the engine is running, maintaining an open fuel path.
- Spegnimentu di u mutore: When the ignition key is turned to the "OFF" position, power to the solenoid is cut. The solenoid de-energizes, and a spring mechanism pushes the plunger forward, closing the fuel passage and shutting down the engine.
Ensure your engine's electrical system provides a stable 12V supply to the solenoid for proper operation.
Video 5.1: Un overview of the WANATOP 12V Fuel Shut Off Solenoid U85206452, demonstrating its physical characteristics and components. This video provides a visual aid for understanding the product.
6. Mantenimentu
The WANATOP Fuel Shut Off Solenoid is designed for durability and requires minimal maintenance. However, periodic inspection can help ensure its longevity and reliable operation.
- Ispezione visuale: Regularly check the solenoid for any signs of physical damage, corrosion, or loose connections.
- Integrità di cablaggio: Inspect the electrical wiring and connector for fraying, cracks, or signs of heat damage. Ensure the connector is securely seated.
- Pulizia: Keep the solenoid and surrounding area clean from dirt, debris, and fuel spills.
- Verificazione di funziunalità: Periodically test the engine shutdown function to ensure the solenoid is operating correctly.
7. Risoluzione di prublemi
If you experience issues with your fuel shut-off solenoid, refer to the following common problems and solutions:
| Prublemu | Causa Possibile | Soluzione |
|---|---|---|
| Engine does not start (no fuel flow) | No power to solenoid; faulty wiring; seized solenoid plunger. | Check 12V power supply to solenoid; inspect wiring for damage; test solenoid for proper operation (it should click and retract when 12V is applied). Replace if faulty. |
| Engine does not shut off (continues to run) | Solenoid stuck open; continuous power to solenoid after ignition off; faulty solenoid. | Check if power to solenoid cuts off when ignition is turned off; inspect solenoid for mechanical binding; replace solenoid if it fails to close the fuel path. |
| Intermittent engine operation | Loose electrical connection; intermittent power supply; internal solenoid fault. | Secure all electrical connections; check for stable 12V power; replace solenoid if internal fault is suspected. |
8. Specificazioni
| Feature | Detail |
|---|---|
| Numero di mudellu | U85206452 |
| Numeri di parte | U85206452, 185206452, U185206450, 185206420 |
| Voltage | 12V DC |
| Applicazione | Perkins Engines |
| Materiale | Inossidabile |
| Tipu di cunnessione di ingressu | Filatu |
| Numero di Porti | 2 |
| Certificazione | TS16949 |
| Pesu di l'articulu | 12.9 once |
| Dimensioni di u pacchettu | 4.41 x 3.35 x 2.56 inch |
9. Garanzia è Support
For specific warranty information and customer support, please refer to the product packaging or contact WANATOP directly through their official channels. Keep your purchase receipt as proof of purchase.
