1. Produttu Finituview
U Purline WS015 is a versatile weather station designed to provide detailed and current information regarding indoor and outdoor environmental conditions. This device monitors temperature, humidity, and offers a weather forecast. It also includes a digital clock with an alarm function and a calendar display.
Equipped for both indoor and outdoor use, the WS015 features a clear digital LCD display with animated symbols for weather forecasting. It stores maximum and minimum readings and tracks temperature trends over the past 12 hours. The main unit can also function as a USB charging hub for other devices.

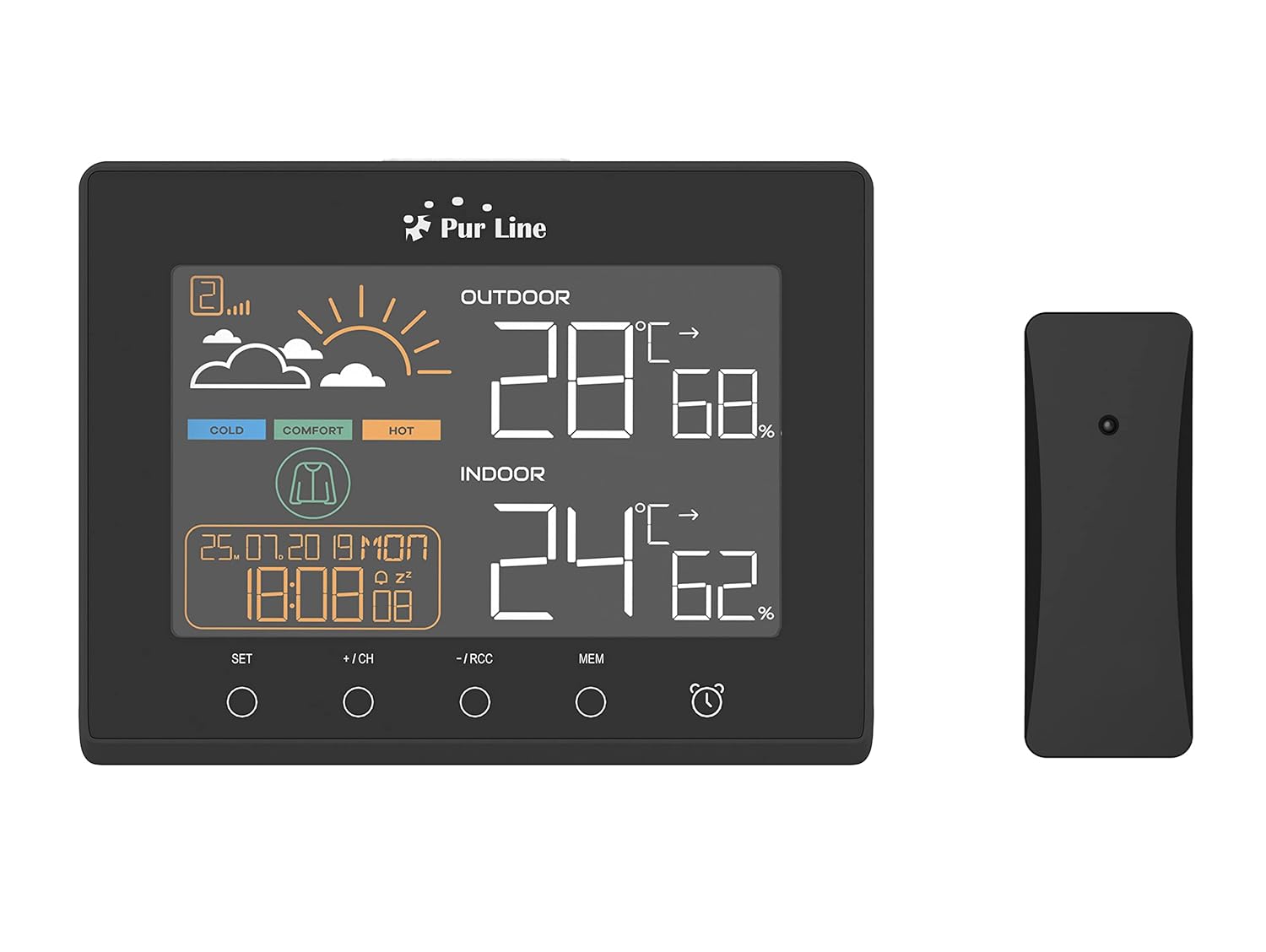

Fronte view of the PUR LINE WS015 Weather Station display unit and its wireless outdoor sensor.
2. Setup Instructions
2.1. Disimballaggio è cumpunenti
Carefully remove all components from the packaging. Ensure you have the main display unit and the wireless outdoor sensor.
2.2. Powering the Main Unit
The main unit requires 3 AAA batteries (not included) or can be powered via a USB connection. To install batteries:
- Aprite u coperchiu di u compartimentu di a batteria situatu in u spinu di l'unità principale.
- Inserite 3 batterie AAA, rispettendu a polarità curretta (+/-).
- Chiudere a tappa di u compartimentu di a batteria.
Alternatively, connect the main unit to a USB power source using a compatible USB cable (not included).
2.3. Piazzamentu di u Sensore Esternu
The outdoor sensor is splash-proof (IP rated) but should be placed in a sheltered location to protect it from direct rain and prolonged sunlight, which can affect temperature readings. Ensure the sensor is within effective transmission range of the main unit (typically up to 30 meters in open air).
2.4. Sincronizazione iniziale
Once both the main unit and the outdoor sensor are powered, they should automatically synchronize. If synchronization does not occur, press the 'CH' button on the main unit to initiate a search for the sensor. Ensure the sensor is close to the main unit during initial setup.
daretu view of the PUR LINE WS015 Weather Station, showing the battery compartment and stand.
3. Operating Instructions
3.1. Display Overview
U display LCD mostra l'infurmazioni seguenti:
- Temperatura è umidità esterna: Letture da u sensore senza filu.
- Temperatura è umidità interna: Letture da i sensori interni di l'unità principale.
- Previsioni Meteo: Animated symbols indicating predicted weather conditions.
- Ora è Data: Ora, ghjornu è data attuali.
- Indicatore di livellu di cunfortu: Based on indoor temperature and humidity.
- Tendenza di a temperatura: Arrows indicating rising, falling, or stable temperature over the last 12 hours.
Primu pianu view of the PUR LINE WS015 Weather Station display, showing outdoor and indoor temperature, humidity, time, date, and weather forecast symbols.
3.2. Funzioni di u buttone
The main unit features several control buttons:
- SET: Enters setting mode for time, date, and alarm. Confirms settings.
- +/CH: Increases values during setting. In normal mode, cycles through outdoor sensor channels or initiates sensor search.
- -/RCC: Decreases values during setting. In normal mode, manually initiates RCC (Radio Controlled Clock) signal reception.
- MEM: Displays maximum and minimum temperature/humidity records. Press again to clear records.
- Icona d'alarme: Attiva o disattiva a funzione di alarme.
3.3. Setting Time and Date
- Appughjà è tene premutu SET buttone finu à chì l'indicazione di u tempu lampeggi.
- Aduprà u + or - i buttoni per aghjustà l'ora, dopu appughjà SET per cunfirmà è passà à i minuti.
- Ripetite per minuti, annu, mese è ghjornu.
- Press SET per sorte da a modalità di impostazione.
3.4. Piazzà l'alarma
- Press u Icona di sveglia buttone una volta per visualizà l'ora di a sveglia.
- Appughjà è tene premutu Icona di sveglia buttone finu à chì l'ora di a sveglia lampeggi.
- Aduprà u + or - buttons to adjust the alarm hour, then press the Icona di sveglia button to confirm and move to minutes.
- Ripetite per minuti.
- Press u Icona di sveglia button to exit setting mode. Press it again in normal mode to toggle the alarm on/off.
3.5. USB Charging Outputs
The main unit is equipped with USB outputs that allow you to charge compatible electronic devices. Simply connect your device's USB charging cable to the USB port on the side of the weather station.
The PUR LINE WS015 Weather Station with two smartphones connected to its USB charging outputs.
4. Mantenimentu
4.1. Pulizia
To clean the weather station and sensor, use a soft, damp pannu. Ùn aduprate micca detergenti abrasivi o solventi, postu chì questi ponu dannà u display o casing. Ensure no liquid enters the device openings.
4.2. Sustituzione di batterie
When the display becomes dim or readings are inconsistent, it may be time to replace the batteries in the main unit and/or the outdoor sensor. Follow the battery installation steps outlined in Section 2.2 for the main unit. For the outdoor sensor, open its battery compartment, replace the old batteries with new ones of the correct type, and close the compartment securely.
5. Risoluzione di prublemi
Problemi cumuni è Soluzioni
- Nisuna visualizazione nant'à l'unità principale:
- Check if batteries are inserted correctly and are not depleted.
- Ensure the USB power cable (if used) is securely connected.
- Outdoor Readings Not Displaying or Incorrect:
- Verificate e batterie in u sensore esterno.
- Ensure the outdoor sensor is within range of the main unit and free from major obstructions.
- Press u +/CH button on the main unit to re-initiate sensor search.
- Relocate the outdoor sensor to a more suitable position, away from direct sunlight or heat sources.
- Time Not Synchronizing (RCC):
- Ensure the unit is placed away from electronic interference.
- Manually initiate RCC signal reception by pressing the -/RCC buttone.
- L'alarma ùn sona micca:
- Verify that the alarm function is activated (alarm icon visible on display).
- Check that the alarm time is set correctly.
6. Specifiche tecniche
- Mudellu: WS015
- Produttore: Purline
- Dimensioni (L x P x A): 17 x 3 x 13 cm (circa)
- Fonte d'alimentazione (unità principale): 3 x AAA batteries (not included) or USB
- Fonte d'alimentazione (sensore esterno): Batteries (type not specified, typically AAA or AA)
- Materiale: Plastica
- Connettività: Wireless (sensor), USB (charging outputs)
- Funzioni speciali: Programmable alarm, Max/Min memory, Temperature trend, Weather forecast, USB charging outputs
- Tipu di visualizazione: LCD digitale
7. Garanzia è Support
Information regarding product warranty and specific support contacts is not available in this document. For warranty claims or technical assistance, please refer to the documentation provided at the time of purchase or contact your retailer or the manufacturer directly.
