PUR LINE Airtester Co2 Air Quality Monitor User Manual

1. Introduzione

This manual provides essential instructions for the safe and effective use of your PUR LINE Airtester Co2 Air Quality Monitor. This device is designed to accurately measure carbon dioxide (CO2) levels, ambient temperature, and relative humidity, helping you maintain a healthy and comfortable indoor environment.

Key features include a clear LCD display for easy data interpretation, a wide measurement range for CO2, temperature, and humidity, and a convenient USB rechargeable battery for portability.

2. Cuntenutu di u pacchettu

• PUR LINE Airtester Co2 Air Quality Monitor
• Cavu di carica USB
• Manuale d'uso (stu documentu)

3. Dispositivu Finituview

Figura 1: Fronte view of the PUR LINE Airtester Co2 Air Quality Monitor. The display shows CO2 levels in ppm, temperature in degrees Celsius, and humidity in percentage. A single button is located below the screen.

Figura 2: Angulu view di u monitor, mostraasing its sleek and compact form factor suitable for various environments.

Figura 3: Un angulu differente view of the PUR LINE Airtester Co2, emphasizing its modern design.

4. Setup

4.1 Carica iniziale

Before first use, fully charge the device. Connect the provided USB charging cable to the monitor's charging port and to a standard USB power adapter (not included) or a computer USB port. The battery indicator on the display will show charging status. A full charge typically takes several hours.

4.2 Placement

Place the Airtester Co2 on a flat, stable surface in the area where you wish to monitor air quality. Ensure it is not obstructed by objects that could block airflow to the sensors. Avoid placing it near heat sources, direct sunlight, or in areas with high humidity or strong drafts, as these can affect measurement accuracy.

Figura 4: Example of the Airtester Co2 placed on a desk, illustrating a suitable monitoring location.

5. Operating Instructions

5.1 Power On/Off

• Per accende: Press and hold the button located below the display for approximately 3 seconds until the screen illuminates.
• Per spegne: Press and hold the button again for approximately 3 seconds until the display turns off.

5.2 Capisce u Display

The LCD display provides real-time readings for three key air quality parameters:

• CO2 Level: Displayed in parts per million (ppm) at the top of the screen.
• Temperature : Displayed in degrees Celsius (°C) on the lower left.
• umidità: Mostratu cum'è per centutage (% RH) on the lower right.

A battery icon is also visible on the display, indicating the current charge level.

5.3 Interpreting CO2 Levels

CO2 levels are an indicator of indoor air ventilation. General guidelines for CO2 levels are:

• Below 800 ppm: Good air quality, well-ventilated.
• 800 - 1200 ppm: Moderate air quality, consider increasing ventilation.
• Above 1200 ppm: Poor air quality, immediate ventilation recommended.

6. Mantenimentu

6.1 Pulizia

Wipe the device with a soft, dry cloth. Do not use abrasive cleaners, solvents, or immerse the device in water. Ensure the sensor openings are free from dust and debris.

6.2 Cura di a batteria

Recharge the device when the battery indicator shows a low charge. Use only the provided USB cable or a compatible cable. Avoid overcharging or completely draining the battery frequently to prolong its lifespan.

6.3 Storage

When not in use for extended periods, store the device in a cool, dry place away from direct sunlight and extreme temperatures. It is recommended to charge the battery periodically (e.g., every 3 months) to maintain battery health.

7. Risoluzione di prublemi

• L'apparechju ùn s'accende micca: Ensure the battery is charged. Connect the device to a USB power source and try again. If the issue persists, contact support.
• Letture imprecise: Ensure the device is placed in an appropriate location, away from direct drafts, heat sources, or high humidity. Allow the device to stabilize for a few minutes after powering on. If readings seem consistently off, a factory reset might be necessary (refer to specific device instructions if available, or contact support).
• Batteria senza ricarica: Check the USB cable and power source. Try a different USB port or adapter. Ensure the charging port on the device is clean and free of debris.

8. Specificazioni

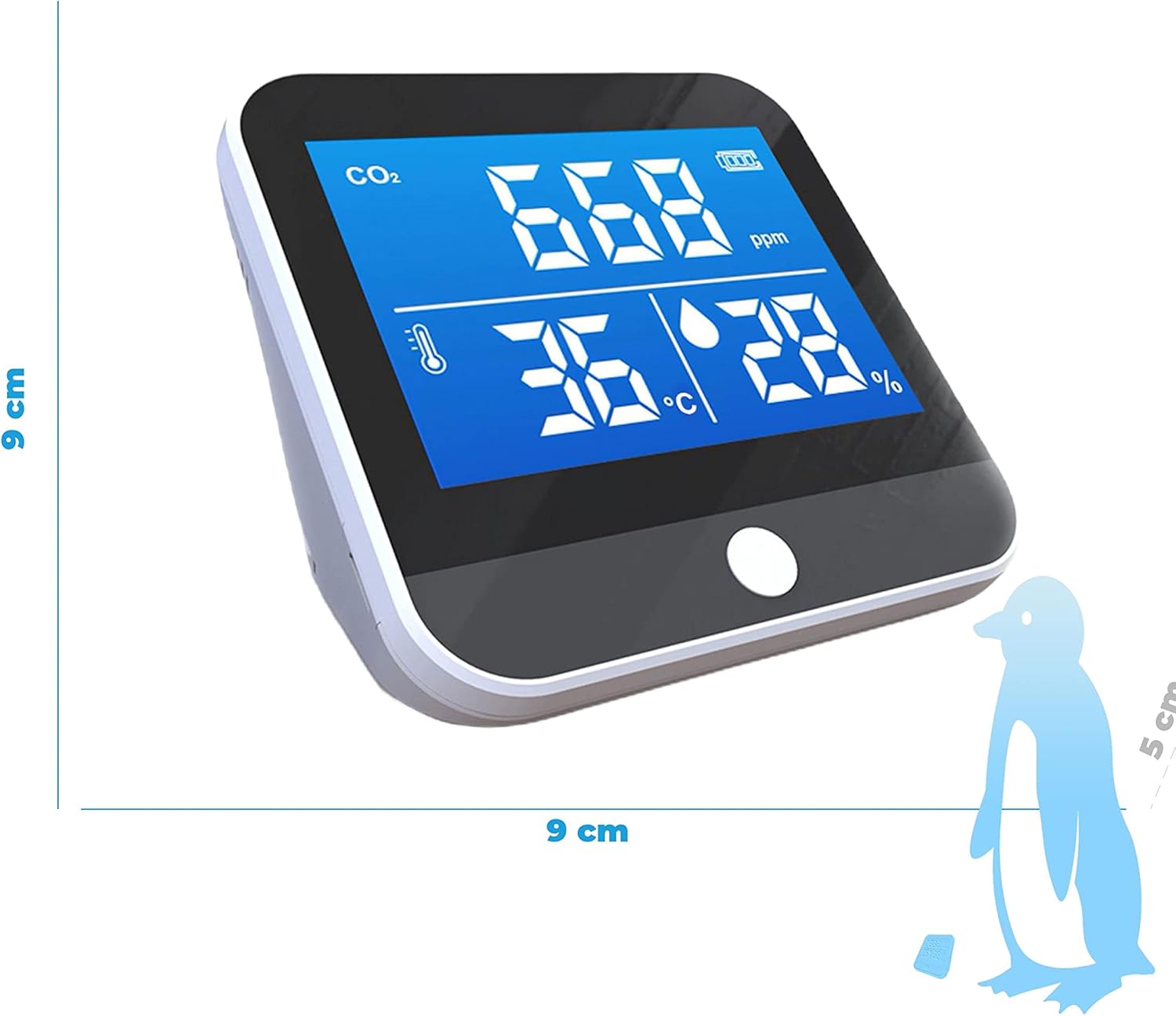

Figura 5: Dimensions of the Airtester Co2 monitor.

9. Garanzia è Support

For warranty information, technical assistance, or customer support, please refer to the documentation included with your purchase or visit the official PUR LINE websitu. Conservate a vostra prova d'acquistu per e richieste di garanzia.
