Giantex Portable Washing Machine GT24898PI-PE User Manual

1. Importanti Instructions Safety

Leghjite attentamente tutte l'istruzzioni prima di utilizà questu apparecchiu per assicurà un funziunamentu sicuru è efficiente. Cunservate stu manuale per riferimenti futuri.

• Sicurezza elettrica: Ensure the washing machine is connected to a properly grounded 120V power outlet. Do not use extension cords.
• Cunnessione d'acqua: Connect the water inlet hose securely to a faucet. Ensure there are no leaks before starting operation.
• Drainage : Position the drain hose correctly to prevent water leakage and ensure proper drainage.
• Sicurezza di u zitellu: This appliance features a child lock function. Activate it to prevent accidental operation by children. Do not allow children to play with or in the washing machine.
• Sicurezza di coperchio: The washing machine programs will automatically pause if the lid is opened during operation. Close the lid securely to resume.
• Placement: Place the washing machine on a stable, level surface. Adjust the feet as needed to ensure stability.
• Sovraccaricu: Do not overload the machine beyond its 8 lbs capacity. Overloading can affect washing performance and damage the appliance.

2. Produttu Finituview

The Giantex Portable Washing Machine is a compact, full-automatic appliance designed for small living spaces such as apartments, dorms, and RVs. It combines washing and spinning functions in one unit.

Funzioni chjave:

• Capacità: 8 libbre (1.0 piedi cubi)
• Programmi: 6 wash programs (Normal, Heavy, Gentle, Rapid, Soak, Spin)
• Livelli d'acqua: 6 livelli d'acqua regulabili
• Pannellu di cuntrollu: Multifunctional touch control panel with LED display
• Sicurezza: Child lock and automatic pause when lid is open
• Drainage : Built-in drain pump and drain hose
• Internu: Stainless steel inner tub with honeycomb hole design
• Funzioni supplementari: Washboard design for deep cleaning, lint filter, damped slow drop cover.

Cumpunenti:

•

  Figura 2.1: Fronte view of the Giantex Portable Washing Machine.

•

  Figura 2.2: Posteriore view showing adjustable feet for stability and a rat guard to protect internal cables.
•

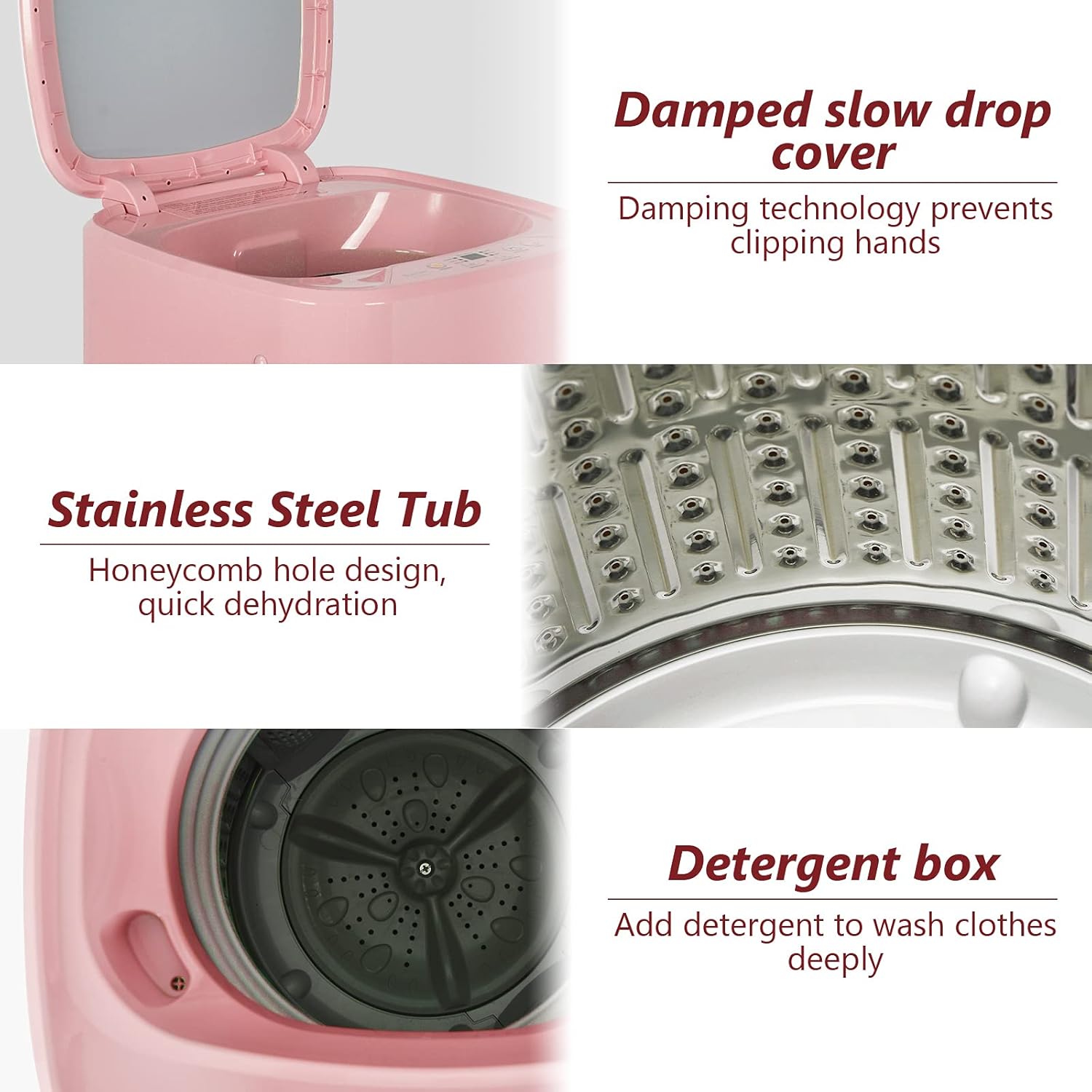

  Figure 2.3: Details of the damped slow drop cover, stainless steel tub with honeycomb design, and detergent box.

•

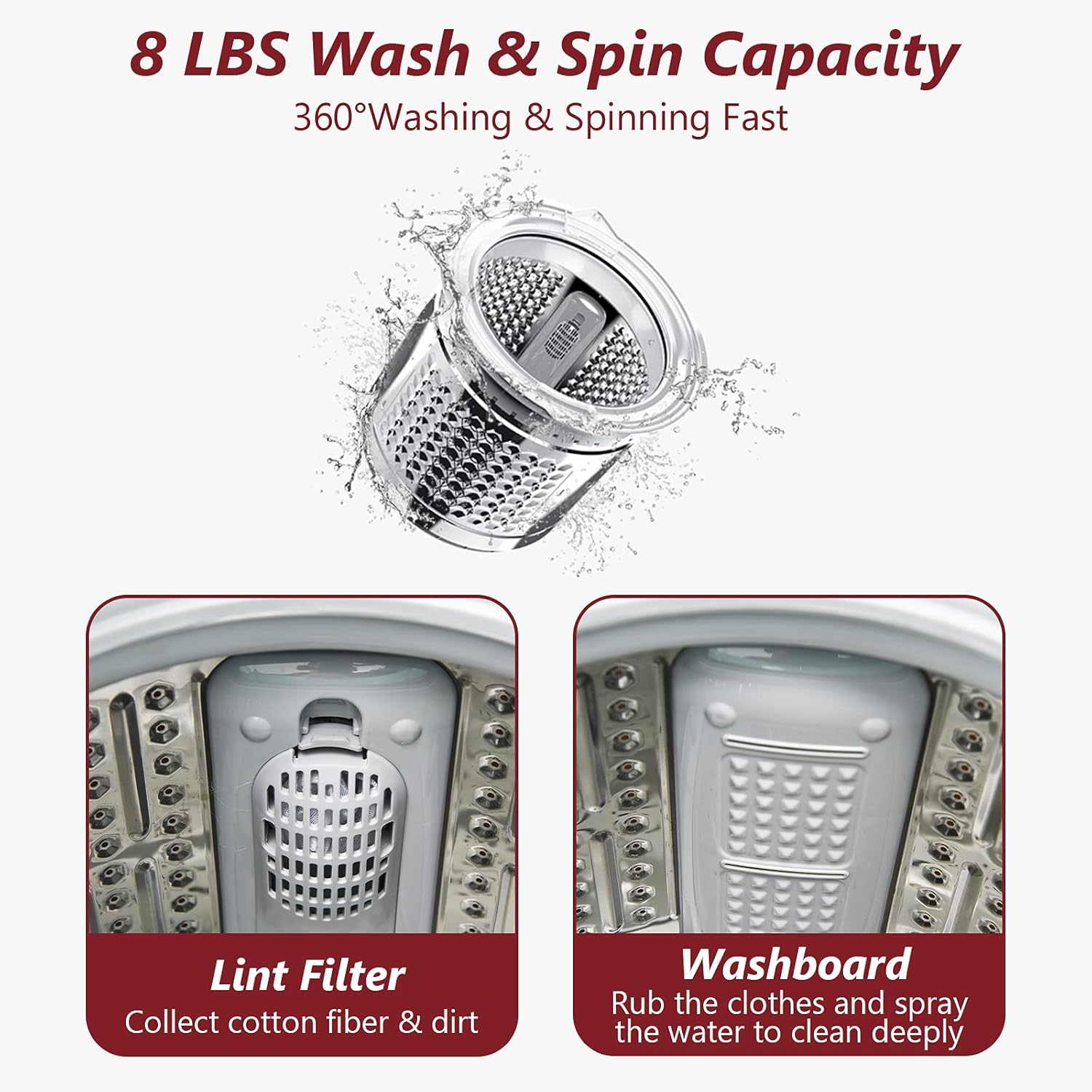

  Figure 2.4: Illustration of the 8 lbs wash and spin capacity, along with the lint filter and washboard for effective cleaning.

•

  Figure 2.5: Close-up of the control panel displaying the 6 wash programs and 6 water level options.

3. Setup è Installazione

Follow these steps to properly set up your Giantex Portable Washing Machine.

3.1 Unpacking

Carefully remove the washing machine from its packaging. Inspect for any damage during transit. Retain packaging materials for potential future transport or service.

3.2 Placement

Place the washing machine on a firm, level surface. Ensure there is adequate space around the unit for ventilation and hose connections. Adjust the adjustable feet at the bottom of the machine to ensure it is perfectly level and stable, preventing excessive vibration during operation.

3.3 Water Inlet Connection

Connect the provided water inlet hose to a suitable faucet. The machine comes with a faucet adapter to fit various faucet types. Ensure the connection is tight to prevent leaks.

•

  Figure 3.1: Guide for connecting the faucet adapter to different faucet types.

3.4 Drain Hose Setup

Attach the drain hose to the designated outlet on the back of the machine. Secure the hose to prevent it from dislodging during drainage. The drain hose can be directed into a sink, bathtub, or other suitable drainage point.

3.5 Cunnessione di putenza

Plug the power cord into a grounded 120V electrical outlet. Ensure the power cord is not pinched or damaged.

4. Operating Instructions

Operating your Giantex Portable Washing Machine is straightforward. Follow these steps for optimal washing results.

4.1 Caricamentu di a lavanderia

Open the top lid. Place your clothes loosely into the stainless steel inner tub. Do not pack clothes tightly, as this can hinder proper washing and spinning. The maximum load capacity is 8 lbs.

•

  Figura 4.1: Esample of clothes loaded into the 1.0 Cu.Ft capacity tub.

4.2 Adding Detergent

Add the appropriate amount of laundry detergent directly into the detergent box or directly into the tub with the clothes. Refer to your detergent's instructions for recommended amounts.

4.3 Selecting Program and Water Level

Close the lid securely. Press the 'Power' button to turn on the machine. Use the 'Program' button to cycle through the 6 available wash programs: Normal, Heavy, Gentle, Rapid, Soak, Spin. Use the 'Water Level' button to select one of the 6 water levels (1-6) suitable for your load size.

4.4 Avvio di u ciclu di lavaggio

Once your desired program and water level are selected, press the 'Start/Pause' button to begin the wash cycle. The LED display will show the remaining time.

4.5 Funzione di serratura per i zitelli

To activate the child lock, press and hold the 'Child Lock' button (if available, or refer to specific model instructions for activation). This will disable the control panel to prevent accidental changes. To deactivate, press and hold the button again.

4.6 Video Guide: How to Use The Washing Machine

For a visual guide on operating the washing machine, please watch the official video below:

5. Mantenimentu

Una manutenzione regulare assicura a longevità è e prestazioni ottimali di a vostra lavatrice.

5.1 Pulizia di u filtru di lanugine

The lint filter collects cotton fiber and dirt during the wash cycle. It should be cleaned regularly, ideally after every few washes, to maintain efficiency. Locate the lint filter inside the tub, remove it, clean it under running water, and reinsert it.

5.2 Pulizia di l'esterno

Asciugà l'esterno di a macchina cun un soffiu, damp pannu. Evitate l'usu di detergenti abrasivi o solventi chì puderanu dannà a finitura.

5.3 Pulizia di a vasca

Periodically run a self-clean cycle (if available) or a normal wash cycle with hot water and a washing machine cleaner to remove detergent residue and prevent odors.

5.4 Preparazione per l'inguernu (s'ellu hè applicabile)

If storing the machine in a cold environment, ensure all water is drained from the hoses and tub to prevent freezing and damage.

6. Risoluzione di prublemi

Sè avete prublemi cù a vostra lavatrice, cunsultate i seguenti prublemi cumuni è suluzioni:

If the problem persists after trying these solutions, please contact Giantex customer support.

7. Specificazioni

8. Garanzia è Support

For warranty information, please refer to the documentation included with your purchase or visit the official Giantex website. For technical support or service inquiries, please contact Giantex customer service.
