PARKSIDE PERFORMANCE PDSSAP 20-Li B2 Cordless Impact Driver User Manual

1. Introduzione

Thank you for choosing the PARKSIDE PERFORMANCE PDSSAP 20-Li B2 Cordless Impact Driver. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new tool. Please read these instructions carefully before first use and keep them for future reference.

1.1 Usu destinatu

The PARKSIDE PERFORMANCE PDSSAP 20-Li B2 is designed for driving and loosening screws and bolts. It is suitable for use with various materials, including wood, metal, and plastic, depending on the fastener type. This tool is intended for domestic and light commercial use. Any other use not explicitly approved in this manual may lead to damage to the tool or personal injury.

2. Istruzzioni di sicurità

Always observe basic safety precautions when using power tools to reduce the risk of fire, electric shock, and personal injury. Keep this manual accessible for all users.

• Sicurezza di l'area di travagliu: Mantene a zona di travagliu pulita è ben illuminata. E zone ingombre o scure invitanu l'accidenti. Ùn aduprate micca l'utensili elettrici in atmosfere esplosive, cum'è in presenza di liquidi, gas o polveri inflammabili.
• Sicurezza elettrica: Evite u cuntattu di u corpu cù superfici messe à terra o messe à terra, cum'è tubi, radiatori, cucine è frigoriferi. Ci hè un risicu aumentatu di scossa elettrica se u vostru corpu hè in terra o in terra.
• Sicurezza persunale: Always wear eye protection. Use hearing protection when operating the tool for extended periods. Wear appropriate clothing; avoid loose clothing or jewelry. Secure long hair.
• Uso è cura di l'arnesi: Ùn furzate micca l'utensile elettricu. Aduprate l'utensile elettricu currettu per a vostra applicazione. Scollegate a batteria da l'utensile elettricu prima di fà qualsiasi aghjustamentu, cambià accessori o almacenà l'utensili elettrichi.
• Uso è cura di l'uttellu di batterie: Ricaricate solu cù u caricatore specificatu da u fabricatore. Aduprate l'utensili elettrici solu cù batterie specificamente designate.

3. Cuntenutu di u pacchettu

Carefully unpack the tool and check for completeness. The standard package includes:

• 1 x PARKSIDE PERFORMANCE PDSSAP 20-Li B2 Cordless Impact Driver
• 1 x Clip per cintura
• 1 x Manuale d'utilizatore

Note: Battery and charger are not included and must be purchased separately. This tool is compatible with all batteries from the Parkside X 20 V Team series.

4. Caratteristiche è cumpunenti di u pruduttu

Familiarize yourself with the key components and features of your impact driver.

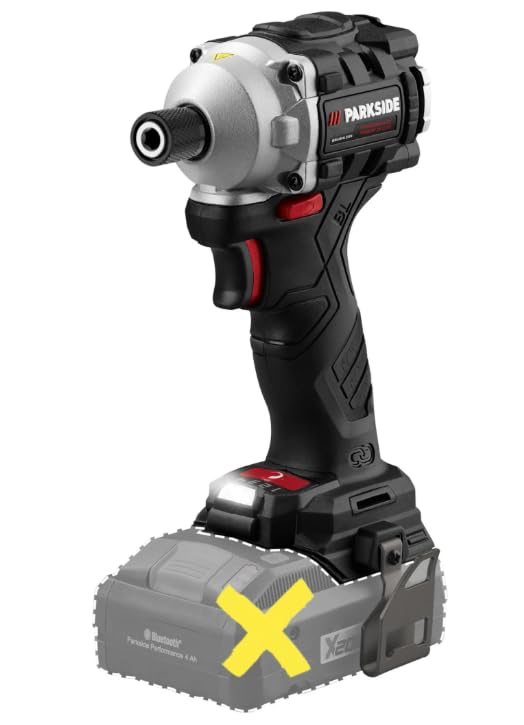

Figura 1: Fronte view of the impact driver with a faded battery outline, showing the main body and chuck.

Figura 2: Fronte dettagliata view of the impact driver, highlighting the chuck and LED light.

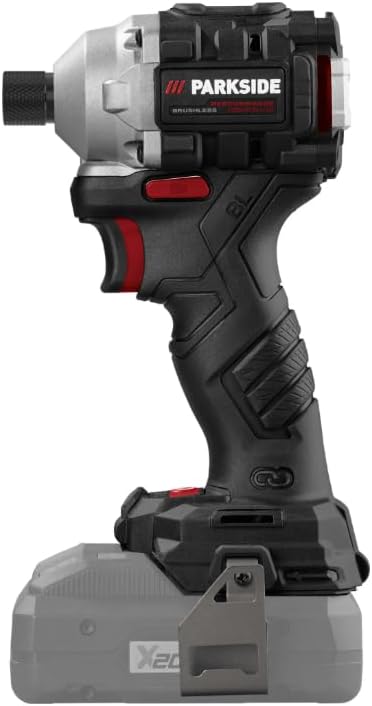

Figura 3: Side view of the impact driver, showing the ergonomic grip and battery slot.

Figura 4: Torna view of the impact driver, illustrating the motor housing and ventilation.

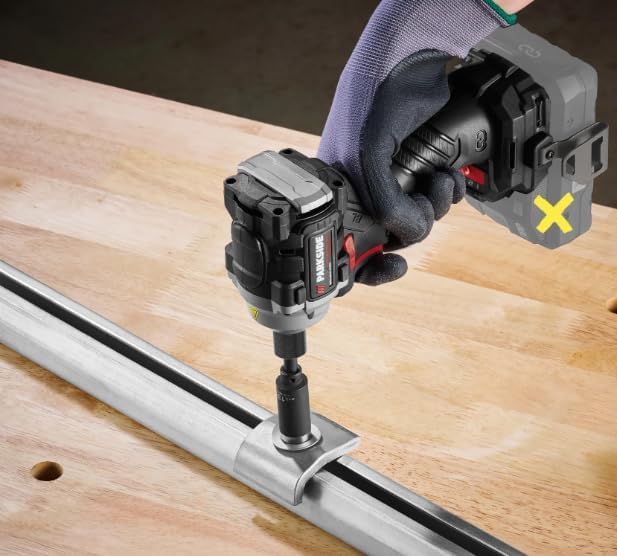

Figure 5: The impact driver being used to fasten a screw into a metal component, demonstrating its application.

4.1 Funzioni chjave

• Motor Brushless: Reduces wear and extends tool life.
• Impostazioni di coppia regolabili: Four settings (120/150/190/226 Nm) for versatile applications.
• Infinitely Adjustable Speed: Allows precise control over impact frequency and rotation speed.
• Luce di travagliu LED integrata: Illumina a zona di travagliu per una migliore visibilità.
• Disegnu ergonomicu: Features a non-slip soft grip for comfortable and secure handling.
• Cumpatibilità: Works with all Parkside X 20 V Team series batteries.

5. Setup

5.1 Installazione è Rimozione di a Batteria

1. Installazione: Align the battery pack with the guide rails in the tool's handle. Slide the battery pack into the handle until it clicks into place. Ensure it is securely latched.
2. Eliminazione: Press the battery release button (usually located on the battery pack itself) and slide the battery pack out of the tool's handle.

Always ensure the battery is fully charged before use. Refer to your battery charger's manual for charging instructions.

Installazione è rimozione di 5.2 bit

1. Installazione: Pull the quick-release chuck collar forward. Insert the desired 1/4" hex shank bit into the chuck. Release the collar to lock the bit in place. Gently pull on the bit to ensure it is securely fastened.
2. Eliminazione: Pull the quick-release chuck collar forward and pull the bit out of the chuck. Release the collar.

6. Operating Instructions

6.1 Accensione / spegnimentu

• Per accende: Press the trigger switch. The LED work light will illuminate when the trigger is pressed.
• Per spegne: Rilascia l'interruttore di trigger.

6.2 Adjusting Rotation Direction

The forward/reverse switch is located above the trigger. Push the switch to the left for forward rotation (tightening) and to the right for reverse rotation (loosening). Position the switch in the center to lock the trigger and prevent accidental starting.

6.3 Aghjustà i paràmetri di coppia

The impact driver features four adjustable torque settings: 120 Nm, 150 Nm, 190 Nm, and 226 Nm. These settings allow you to match the torque to the specific application and material. Consult the tool's interface for selecting the desired torque level. Start with a lower torque setting and increase as needed to prevent overtightening or damaging fasteners.

6.4 Cuntrollu di Velocità

The tool features an infinitely adjustable speed control via the trigger switch. Pressing the trigger further increases the rotation speed and impact frequency. This allows for precise control during operation.

7. Mantenimentu è Cura

Una manutenzione regulare assicura a longevità è e prestazioni ottimali di u vostru avvitatore à impattu.

• Pulizia: Keep the ventilation slots clean to prevent overheating. Use a soft, damp cloth to clean the tool's exterior. Do not use harsh chemicals or abrasive cleaners.
• Conservazione: Conservate l'arnese in un locu asciuttu è sicuru, fora di a portata di i zitelli. Eliminate a batteria prima di almacenallu per periodi prolungati.
• Ispezione: Regularly inspect the tool for any signs of damage, loose screws, or worn parts. Do not use a damaged tool.

8. Risoluzione di prublemi

9. Specifiche tecniche

10. Garanzia è Support

This product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official Parkside websitu per i termini è e cundizioni di garanzia dettagliate.

For technical support, spare parts, or service inquiries, please contact Parkside customer service through their official channels. Ensure you have your model number (PDSSAP 20-Li B2) and manufacturer ID (IAN-100382607-3) available when contacting support.
