Introduzione
Thank you for choosing the HMF 65709-02 9U 19-inch Rack Cabinet. This manual provides detailed instructions for the safe and efficient assembly, installation, and operation of your new rack cabinet. Please read this manual thoroughly before beginning assembly and retain it for future reference.
Informazioni di sicurezza
Osservate sempre e seguenti precauzioni di sicurezza per prevene ferite o danni à u pruduttu:
- Assicuratevi chì tutti i cumpunenti sianu presenti è intatti prima di u montaggio.
- Aduprate strumenti adattati per l'assemblea.
- Ùn supere micca a capacità di carica massima di 60 kg.
- When mounting to a wall, ensure the wall structure can support the weight of the cabinet and its contents.
- Mantene i zitelli è l'animali alluntanati da l'area di assemblea.
- Handle the glass door with care to avoid breakage.
Cuntenutu di u pacchettu
Verificate chì tutti i cumpunenti seguenti sò inclusi in u vostru pacchettu:
- Rack cabinet panels (top, bottom, sides, rear)
- 19-inch mounting rails
- Tempered glass door with cylinder lock
- 2 keys for the lock
- Assembly hardware (screws, nuts, washers)
- Manuale di istruzioni (questu documentu)
If any parts are missing or damaged, please contact HMF customer support.
Setup è Assemblea
The HMF 65709-02 rack cabinet is supplied unassembled for efficient shipping. Follow these steps carefully for proper assembly.
Passi di Assemblea
- Preparà i cumpunenti: Unpack all components and lay them out on a clean, flat surface. Identify the top, bottom, side panels, and mounting rails.
- Attach Mounting Rails: Secure the 19-inch mounting rails to the side panels using the provided screws. Ensure they are oriented correctly for equipment installation.
- Assemblà u quadru di u cabinet: Connect the side panels to the top and bottom panels. Use the provided hardware to firmly secure all connections.
- Installa u pannellu posteriore: Attach the rear panel to the assembled frame.
- Mount Glass Door: Carefully attach the tempered glass door to the front of the cabinet using the hinges. Ensure the door swings freely.
- Installà a serratura: Insert the cylinder lock into the designated opening on the door and secure it. Test the lock with the provided keys.

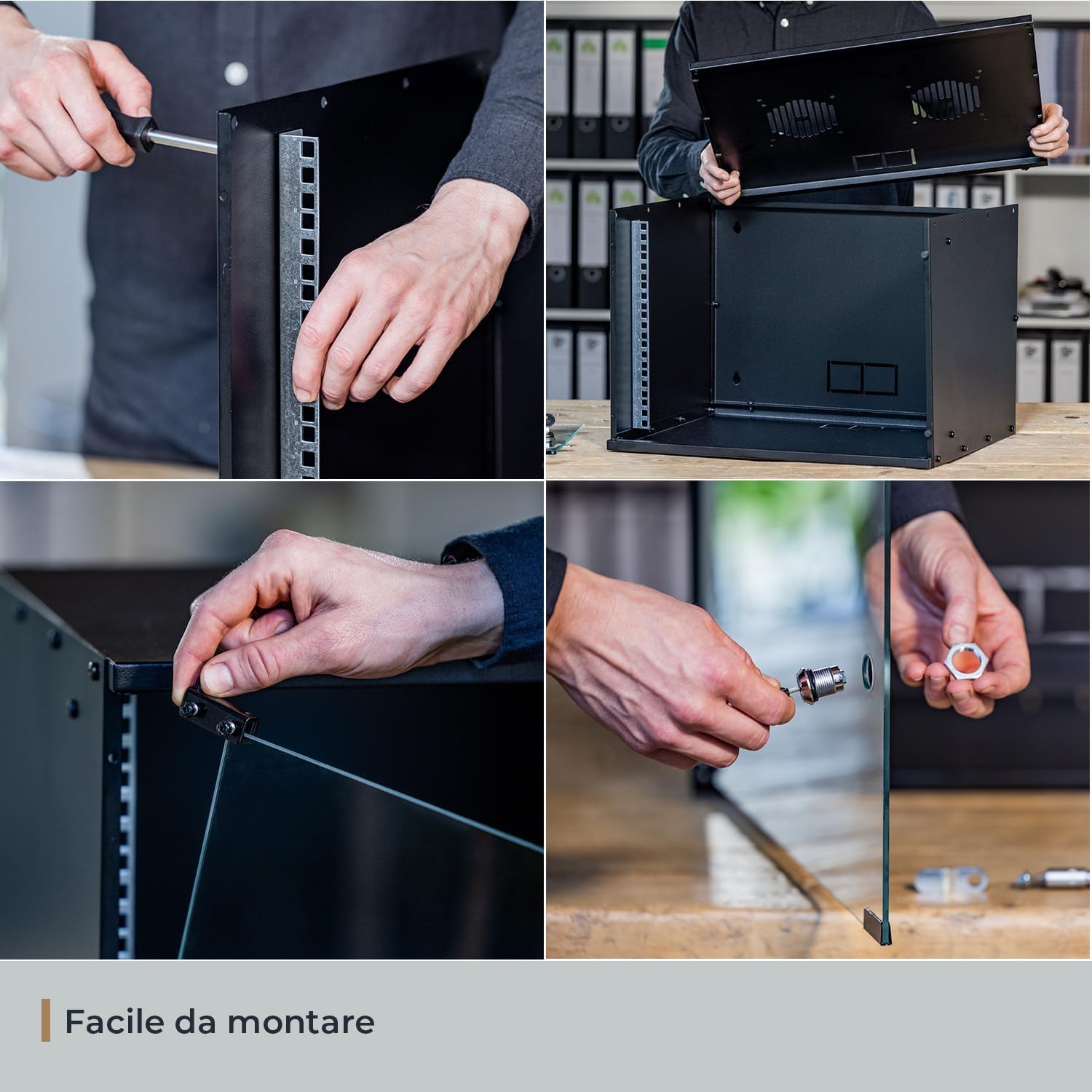

Image: Step-by-step visual guide for assembling the HMF 65709-02 rack cabinet, including securing mounting rails, connecting panels, and installing the glass door and lock mechanism.
Guida Video di Assemblaggio
Video: Official HMF assembly guide for the 19-inch rack cabinet, demonstrating the complete setup process from unpacking to final lock installation.
Montaggio à u muru (opcional)
If wall mounting, ensure the wall material is suitable and use appropriate wall anchors (not included). Mark the drilling points using the cabinet's rear mounting holes as a template. Secure the cabinet firmly to the wall, ensuring it is level and stable before loading equipment.
Istruzzioni di funziunamentu
Installazione di l'equipaggiu
Install your 19-inch rack-mountable equipment into the cabinet using appropriate rack screws (not included). Ensure even weight distribution to maintain stability.

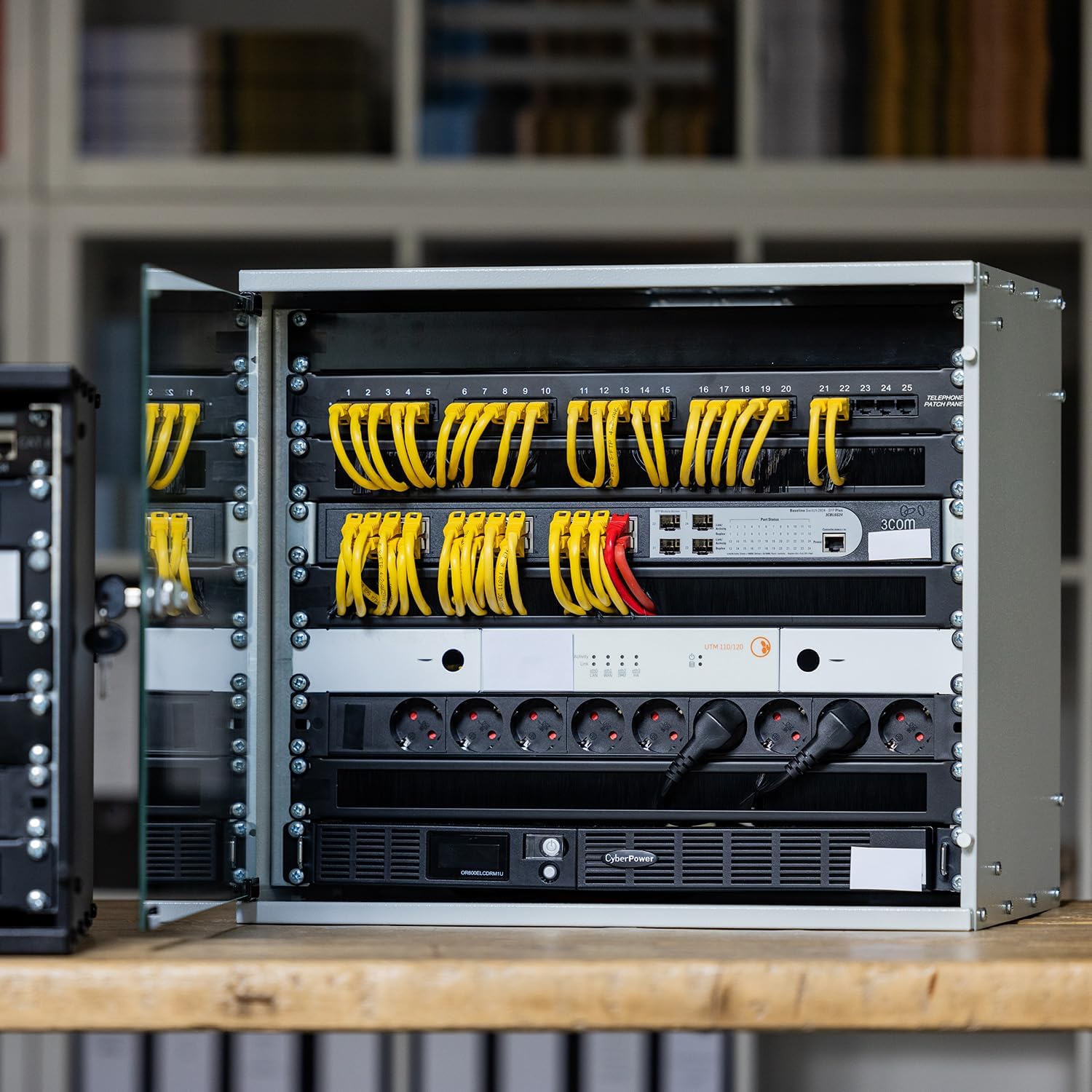

Image: An HMF rack cabinet with various network devices, patch panels, and power distribution units neatly installed, demonstrating proper equipment placement.
Gestione di cavi
Utilize the three cable pass-throughs located on the rear panel for organized cable routing. This helps maintain airflow and prevents cable damage.
Imagine: Dettagliata view of the cabinet's internal features, highlighting the ventilation slots on the top panel, the three cable pass-throughs at the rear, and the robust 19-inch mounting rails.
Ventilazione
The cabinet features two ventilation slots on the top panel, designed for mounting 120mm fans (fans not included). Ensure adequate airflow to prevent overheating of installed equipment.
Mantenimentu
- Pulizia: Pulite e superfici esterne cù un pannu dolce èamp cloth. For the glass door, use a glass cleaner. Avoid abrasive cleaners.
- Ispezione: Periodically check all screws and connections to ensure they remain tight. Inspect the door hinges and lock for smooth operation.
- Ventilazione: Ensure ventilation slots are free from dust and obstructions to maintain proper airflow.
Risoluzione di prublemi
| Prublemu | Causa Possibile | Soluzione |
|---|---|---|
| Cabinet feels unstable after assembly. | Viti allentate o superficia irregulare. | Tighten all assembly screws. Ensure the cabinet is placed on a level surface or securely wall-mounted. |
| A porta ùn si chjude o ùn si blocca micca currettamente. | Hinges misaligned or lock mechanism obstructed. | Check hinge alignment and adjust if necessary. Ensure no cables or equipment obstruct the door's closing path. Inspect the lock for any debris. |
| Equipment overheating inside the cabinet. | Ventilazione insufficiente. | Ensure ventilation slots are clear. Consider installing 120mm cooling fans in the designated slots. Optimize cable routing to improve airflow. |
Specificazioni
| Feature | Detail |
|---|---|
| Marca | HMF |
| Mudellu | 65709-02 |
| Taglia | 9 U (Rack Units) |
| Dimensioni di u produttu (L x W x H) | 51 cm x 40 cm x 45 cm (circa 20.1 x 15.8 x 17.7 pollici) |
| Prufundità massima d'installazione | 30.5 cm (circa 12 pollici) |
| Materiale | Sheet steel (1 - 1.5 mm thickness) |
| Tipu di porta | Vetru di sicurezza temperatu di 4 mm |
| Lock | Cylinder lock with 2 keys |
| Culore | Neru |
| Pesu | 10 kg (circa 22 lbs) |
| Capacità di carica | 60 kg (circa 132 lbs) |
| Ventilazione | 2 slots for 120mm fans (fans not included) |
| Gestione di cavi | 3 cable pass-throughs |

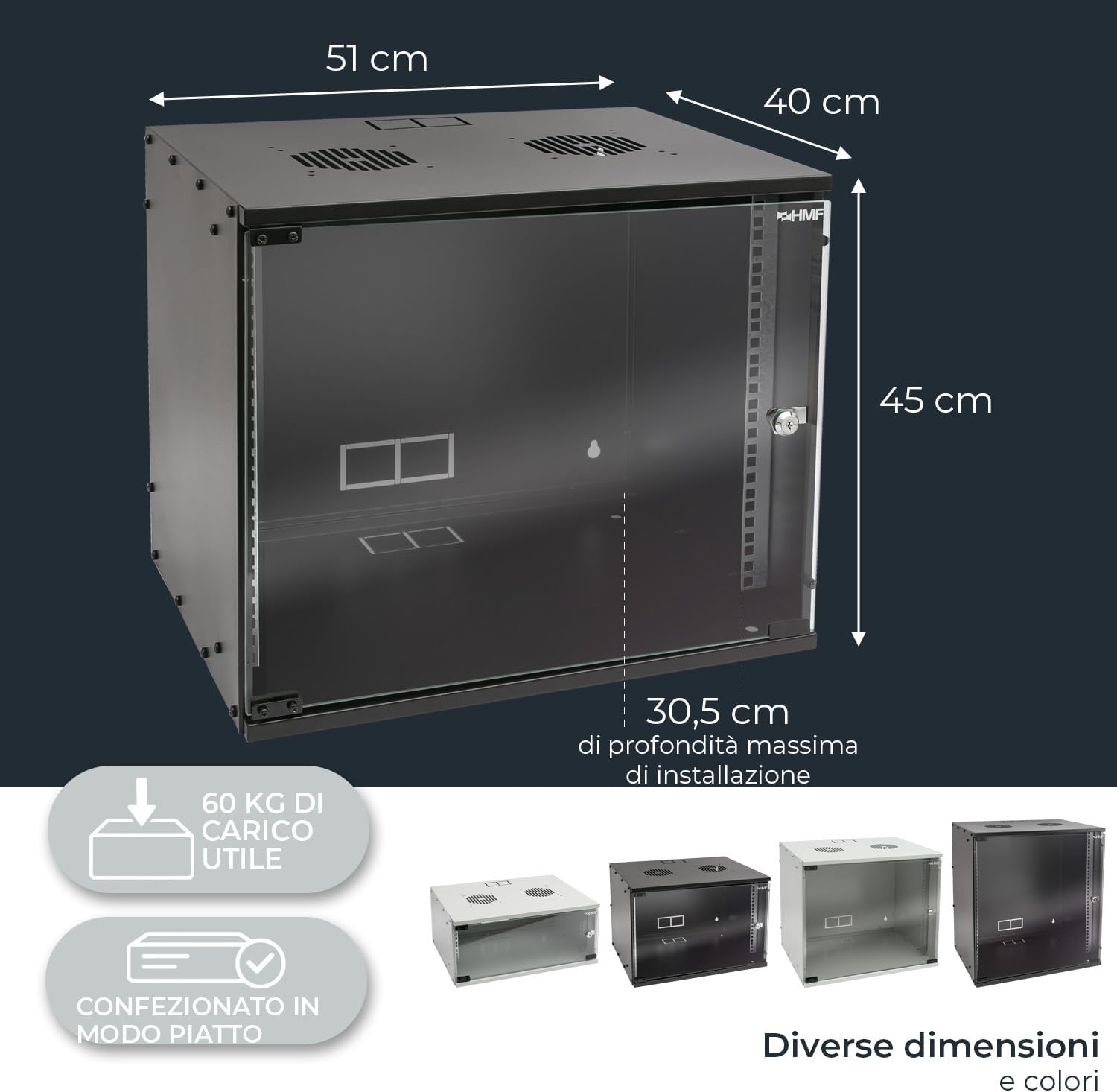

Imagine: Dimensionale sopraview of the HMF 65709-02 rack cabinet, indicating its external measurements and the maximum internal depth available for equipment installation.
Garanzia è Supportu
HMF products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official HMF websitu.
Websitu: HMF Official Store
