EMOS ZM4328 TORI LED Ceiling Light 15W with MW Sensor Instruction Manual

1. Introduzione

This manual provides detailed instructions for the installation, operation, and maintenance of your EMOS ZM4328 TORI LED Ceiling Light. This 15W LED light features a microwave motion sensor, providing 1500 lumens of 4000K neutral white light. It is designed for both indoor and outdoor use, including damp environments, thanks to its IP54 rating. Please read these instructions carefully before installation and retain them for future reference.

Figure 1: EMOS ZM4328 TORI LED Ceiling Light with 3 Years Warranty indication.

2. Istruzzioni di sicurità

• Sicurezza elettrica: Installation must be performed by a qualified electrician in accordance with local wiring regulations. Ensure the power supply is disconnected before installation or maintenance.
• Voltage: This product operates on a 230V AC power supply.
• Classificazione IP54: The light is protected against dust ingress and splashing water from any direction. This makes it suitable for damp locations and outdoor sheltered areas, but not for submersion.
• Fonte di luce: The LED light source is integrated and not user-replaceable. Do not attempt to disassemble the light source.
• Température de fonctionnement : Ensure the operating environment is within the specified temperature range to prevent damage.

3. Cuntenutu di u pacchettu

Verificate chì tutti i cumpunenti sò presenti prima di principià l'installazione:

• 1x EMOS ZM4328 TORI LED Ceiling Light with MW Sensor
• Mounting accessories (screws, wall plugs, foam pads)

Figure 2: Included mounting accessories.

4. Setup è Installazione

Segui questi passi per una stallazione curretta:

1. Disconnect Power: Before starting, ensure the main power supply to the installation area is switched off at the circuit breaker.
2. Preparate a superficia di muntatura: Choose a suitable location on a ceiling or wall. The light is suitable for indoor and outdoor use, including bathrooms, hallways, kitchens, balconies, and terraces.
3. Attaccà a staffa di muntatura: Remove the mounting bracket from the back of the light fixture. Use the bracket as a template to mark drilling points on the surface. Drill holes and insert wall plugs if necessary. Secure the mounting bracket to the surface using the provided screws.

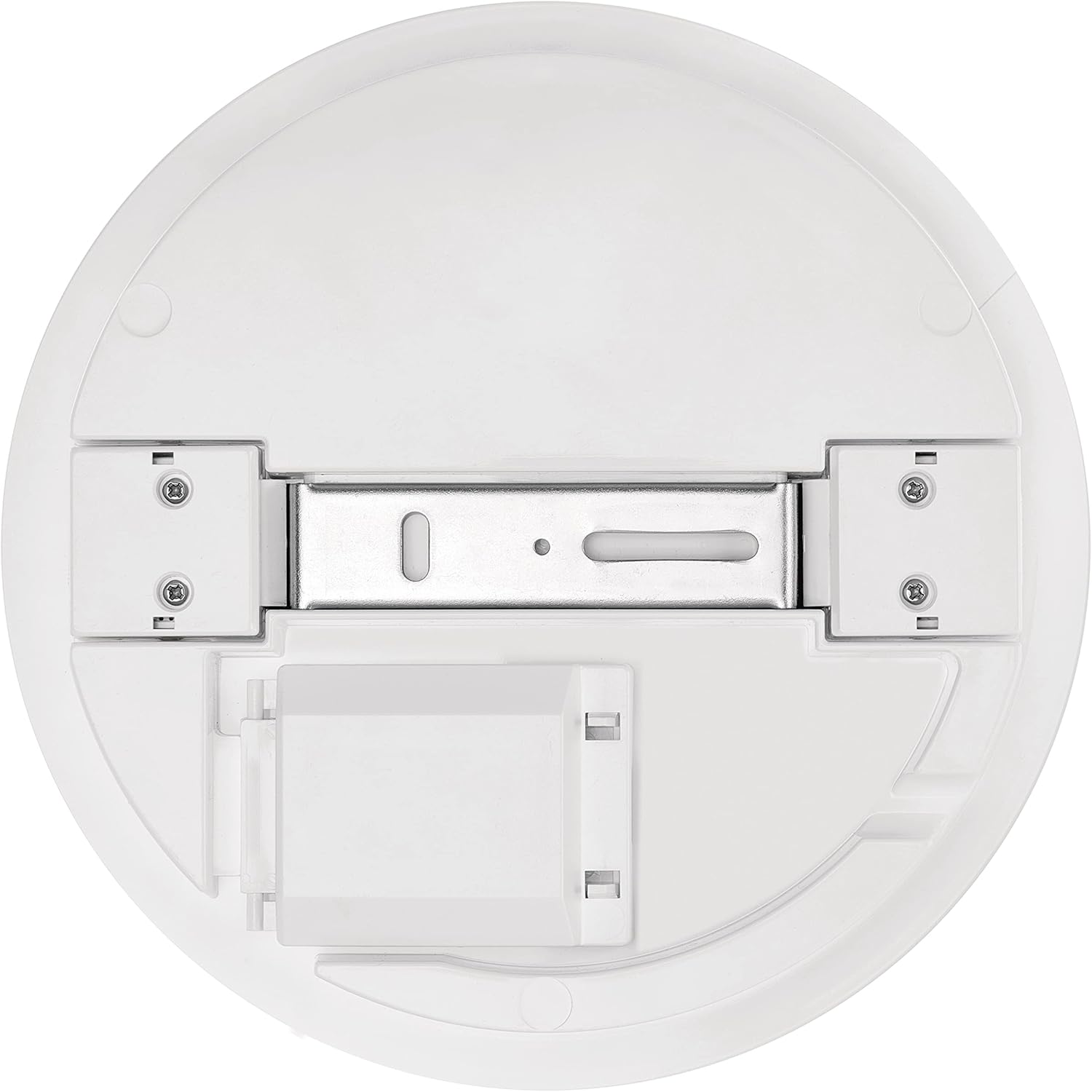

Figura 3: Posteriore view cù staffa di muntatura.

4. cablaggio: Connect the main power supply cables to the terminal block inside the light fixture. Ensure correct polarity (Live, Neutral). The terminal block is designed for secure connections.

Figure 4: Wiring terminal connection points.

5. Secure Light Fixture: Once wiring is complete, carefully attach the light fixture to the mounting bracket, ensuring it is securely fastened.
6. Ripristina l'energia: Switch the main power supply back on.

5. Operating Instructions

The EMOS ZM4328 TORI LED Ceiling Light features an integrated microwave motion sensor for automatic operation.

Funzionalità di u Sensore di Muvimentu

• The microwave motion detector reacts to movement within a range of up to 6 meters.
• Unlike traditional PIR sensors, microwave sensors can detect movement even through thin doors, window glass, or thin walls, offering broader coverage.
• The light will automatically turn on when motion is detected and turn off after a set delay if no further motion is detected.

Adjusting Sensor Settings (DIP Switches)

The light features DIP switches to adjust sensitivity, detection range, and hold time. These switches are typically located on the side of the fixture, accessible by opening a small cover.

Figure 5: DIP switches for sensor configuration.

Refer to the markings next to the DIP switches for specific settings related to:

• Gamma di rilevazione: Adjusts the maximum distance at which motion is detected.
• Tempu di mantene: Sets the duration the light remains on after the last detected motion.
• Daylight Sensor (Lux Level): Determines the ambient light level at which the sensor becomes active. For example, you can set it to only activate when it's dark.

Nota: Always disconnect power before adjusting DIP switches to avoid electrical hazards.

6. Mantenimentu

• Pulizia: To clean the light fixture, ensure the power is off. Use a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or diffuser.
• Prutezzione da l'insetti: The high IP54 protection class prevents mosquitoes or flies from entering the lamp, reducing the need for internal cleaning.
• Nisuna Parti Serviceable d'Usuariu: The LED light source is integrated and not designed for user replacement. Do not attempt to open the sealed unit beyond accessing the wiring and DIP switches.

7. Risoluzione di prublemi

If you encounter issues with your EMOS ZM4328 TORI LED Ceiling Light, refer to the following common problems and solutions:

8. Specificazioni

Figura 6: Dimensioni di u pruduttu.

Figure 7: Energy Efficiency Label (Class E).

9. Garanzia è Support

Garanzia

This EMOS ZM4328 TORI LED Ceiling Light comes with a 3 anni di garanzia da a data di compra. Per piacè cunservate a vostra prova di compra per e richieste di garanzia. A garanzia copre i difetti di materiali è di fabbricazione in cundizioni d'usu nurmale.

Assistenza Clienti

For technical assistance, warranty claims, or any questions regarding your product, please contact your retailer or the EMOS customer service department. Contact information can typically be found on the product packaging or the official EMOS websitu.
