1. Introduzione
This manual provides essential information for the safe installation, operation, and maintenance of your SOLLA LED Flood Light. Please read these instructions thoroughly before installation and retain them for future reference. The SOLLA LED Flood Light is designed for outdoor use, providing high-brightness illumination for various applications such as gardens, yards, parking lots, and streets.
2. Impurtante Information Safety
- Sicurezza elettrica: Installation must be performed by a qualified electrician in accordance with all local electrical codes and regulations. Ensure power is disconnected at the circuit breaker before installation or servicing.
- Messa a terra: The fixture must be properly grounded to prevent potential electrical shock.
- Voltage: Verificate chì u supply voltage hè cumpatibile cù i requisiti di l'apparecchiatura.
- Calore: Do not touch the fixture when it is operating or immediately after turning it off, as it may be hot.
- Valutazione impermeabile: The fixture is IP66 rated for outdoor use, protecting against dust and powerful water jets. Do not submerge the fixture in water.
- Prutezzione di l'ochji: Avoid looking directly into the LED light source when illuminated, as it can cause eye strain or damage.
3. Cuntenutu di u pacchettu
Verificate chì tutti i cumpunenti sianu presenti è intatti à l'apertura di l'imballu:
- SOLLA LED Flood Light Unit (1x 600W and/or 1x 400W)
- Adjustable Mounting Bracket (pre-attached)
- Manuale d'istruzzioni
4. Specifications Product
| Feature | Modellu 400W | Modellu 600W |
|---|---|---|
| Cunsumu d'energia | 400 W | 600 W |
| Flussu luminoso | 32000 lm | 48000 lm |
| Temperature di culore | 6000K Daylight White | |
| Angulu di fasciu | 140° | |
| Classificazione IP | IP66 (Impermeabile è Antipolvere) | |
| Prutezzione di Surge | 10KV | |
| A vita | > 50,000 ore | |
| Materiale | Die-casting Aluminum, Tempered Glass | |
| Lunghezza di u cable | 1.1 m (43.3 in) | |
| Dimensioni (L x H x P) | 51 cm x 37 cm x 7.6 cm (20 x 14.6 x 3 cm) | 56.59 cm x 44.47 cm x 10.38 cm (22.28 x 17.51 x 4.09 cm) |
| Opzioni di muntatura | Wall, Ground, Ceiling | |
Nota: This light might be larger than anticipated. Please check the measurements carefully before installation.
5. Istruzzioni di stallazione
The SOLLA LED Flood Light is designed for hardwired installation. Professional installation is recommended.
5.1 Cumpunente Overview
Figure 1: Key components of the SOLLA LED Flood Light, highlighting the robust construction and electrical connections.
5.2 Opzioni di muntatura
The adjustable metal bracket allows for versatile mounting:
- Montatura à u muru: Secure the bracket to a vertical surface.
- Ground-mount: Attach the bracket to a horizontal surface or stake.
- Ceiling-mount: Fasten the bracket to an overhead structure.

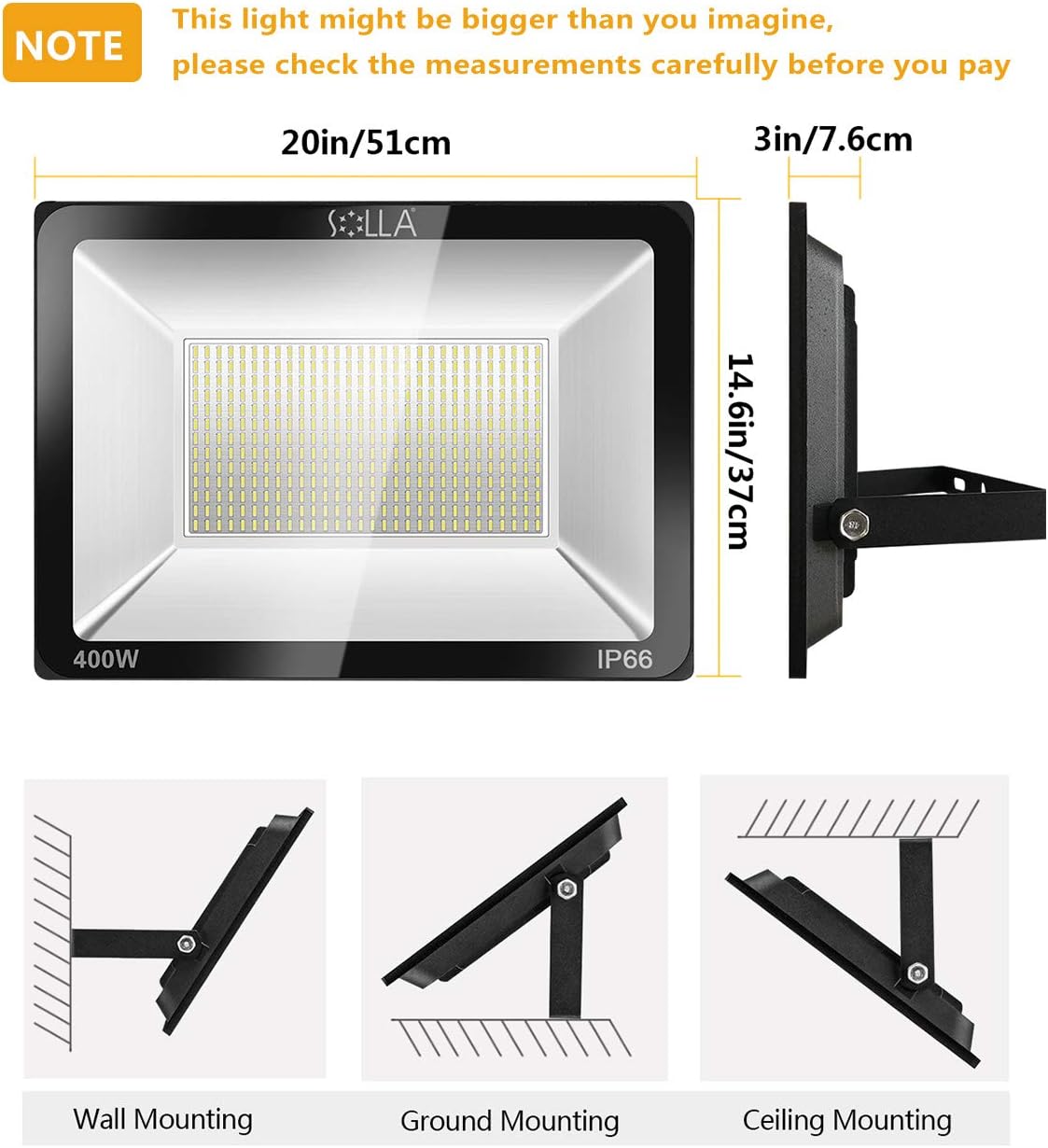

Figure 2: 400W Model dimensions and various mounting configurations.
Figure 3: 600W Model dimensions and various mounting configurations.
5.3 Istruzzioni di cablaggio
The flood light is hardwired and does not include a plug. Follow these steps for electrical connection:
- Disconnect Power: Assicuratevi chì l'alimentazione principale di a zona d'installazione sia spenta à l'interruttore automaticu.
- Identificà i fili: The fixture cable contains three wires: Live (black), Neutral (white), and Earth/Ground (green/yellow).
- Cunnette i fili: Connect the fixture's wires to the corresponding wires from your power supply using appropriate wire connectors (not included).
- Black (Live) to Live
- White (Neutral) to Neutral
- Green/Yellow (Earth) to Earth/Ground
- Cunnessioni sicure: Assicuratevi chì tutte e cunnessione sò sicure è insulate.
- Ripristina l'energia: Una volta chì l'installazione hè cumpleta è verificata, ristabilisce a putenza à l'interruttore automaticu.
Figure 4: Wiring diagram for the SOLLA LED Flood Light.
6. Operating Instructions
Once properly installed and wired, the SOLLA LED Flood Light operates by simply turning on the power supply to which it is connected. The light is designed for immediate full brightness.
- Accensione / spegnimentu: Control the light using the wall switch or circuit breaker connected to the fixture.
- Non-dimmable: This flood light is NOT Dimmable. Do not connect it to a dimmer switch, as this may damage the unit.
- Wide Illumination: The 140° wide beam angle ensures broad and even light distribution.
Figure 5: Lighting distance and area reference for 400W model, confirming non-dimmable feature.
7. Mantenimentu
The SOLLA LED Flood Light requires minimal maintenance due to its durable design and long-lasting LED technology.
- Pulizia: Periodically clean the tempered glass surface with a soft, damp pannu per caccià a terra è i detriti. Ùn aduprate micca detergenti abrasivi o solventi. Assicuratevi chì l'alimentazione sia spenta prima di pulisce.
- Ispezione: Regularly inspect the fixture for any signs of damage to the housing, cable, or mounting bracket. Address any issues promptly.
- Nisuna parte riparabile da l'utilizatori: There are no user-serviceable parts inside the fixture. Do not attempt to open or repair the unit, as this will void the warranty and may pose a safety risk.
8. Risoluzione di prublemi
If you encounter issues with your SOLLA LED Flood Light, refer to the following common problems and solutions:
| Prublemu | Causa Possibile | Soluzione |
|---|---|---|
| A luce ùn si accende | Nisuna alimentazione elettrica Cablaggio incorrettu Faulty switch/breaker | Check power supply to the fixture. Verify wiring connections (Live, Neutral, Earth). Test the switch or circuit breaker. |
| Luce lampeggia | Cunnessione cablata libera Interruttore dimmer incompatibile | Verificate è assicurate tutte e cunnessione di cablaggio. Ensure the light is not connected to a dimmer switch. |
| Luminosità ridutta | Sporcizia o detriti nantu à a lente | Clean the tempered glass lens with a soft, damp tela. |
Sè u prublema persiste dopu avè pruvatu ste suluzioni, cuntattate l'assistenza clienti.
9. Garanzia è Support
SOLLA LED Flood Lights are built for durability and a long operational lifespan of over 50,000 hours. For any questions regarding your product, installation, or troubleshooting, please do not hesitate to contact our customer support team. We are committed to providing assistance and will respond to your inquiries within 24 hours.
For support, please refer to the contact information provided with your purchase or visit the official SOLLA websitu.
