TaoHFE SC002 White Bathroom Storage Cabinet Instruction Manual

Introduzione

Thank you for choosing the TaoHFE SC002 White Bathroom Storage Cabinet. This manual provides detailed instructions for assembly, usage, care, and maintenance to ensure safe and optimal performance of your new cabinet. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Informazioni di sicurezza

WARNING: To prevent serious injury, this cabinet must be securely attached to the wall using the anti-tipping device provided. Children can be seriously injured by furniture tipping over.

• Always follow assembly instructions carefully to ensure stability.
• Ùn lasciate micca i zitelli arrampicassi o ghjucà cù u cabinet.
• Place heavier items on lower shelves to reduce the risk of tipping.
• Ensure all connections are tightened securely before use. Periodically check and re-tighten as necessary.
• Tenite e piccule parti è i materiali d'imballaggio luntanu da i zitelli.

Cuntenutu di u pacchettu

Before assembly, verify that all parts and hardware are present. Refer to the assembly video for visual identification of each component.

Componenti principali:

• Top Panel (#1)
• Side Panels (#2, #3)
• Back Panels (#4)
• Bottom Panel (#6)
• Adjustable Shelf (#5)
• Crossbar (#9)
• Doors (#8)

Hardware:

• Screws (A, B, C, E, F)
• Wooden Dowels (C)
• Hinges (G)
• Magnetic Catches (H)
• Door Handles (K)
• H Channel Fit (#7)
• Shelf Pins (J)
• Anti-Tipping Device (I)

Istruzzioni di Assemblea

For a comprehensive visual guide, please watch the official assembly video provided below. Follow the steps sequentially for proper construction.

Guida passo-passo:

1. Preparate i pannelli laterali: Attach the small metal pieces (Ax4) to the bottom of side panels #2 and #3 using a screwdriver.
2. Assembla a basa: Connect crossbar #9 to side panel #3 using wooden dowels (Cx2) and screws (Bx4). Then, attach bottom panel #6 to the assembled side panel and crossbar using screws (Cx2).
3. Attaccate u secondu pannellu laterale: Connect side panel #2 to the bottom panel and crossbar using wooden dowels (Cx2) and screws (Bx2). Ensure all connections are firm.
4. Installa i pannelli posteriori: Slide the two back panels (#4) into the grooves on the side panels. Secure them together in the middle using the H channel fit (#7).
5. Attaccate u pannellu superiore: Secure the top panel (#1) to the assembled frame using screws (Ax4) and magnetic catches (H Fx2).
6. Pannellu superiore sicuru: Further secure the top panel by inserting screws (Bx4) into the pre-drilled holes on the side panels, connecting them to the top panel.
7. Insert Shelf Pins and Adjustable Shelf: Place the shelf pins (Jx8) into the desired height holes on the inner sides of the cabinet. Carefully slide the adjustable shelf (#5) onto the pins.
8. Installa e porte: Attach hinges (G x4) to doors (#8) using screws (Ex14). Then, attach the door handles (K x2) to the doors. Finally, mount the doors to the cabinet frame using screws (Ex2) for each hinge. Ensure the magnetic catches align for proper door closure.

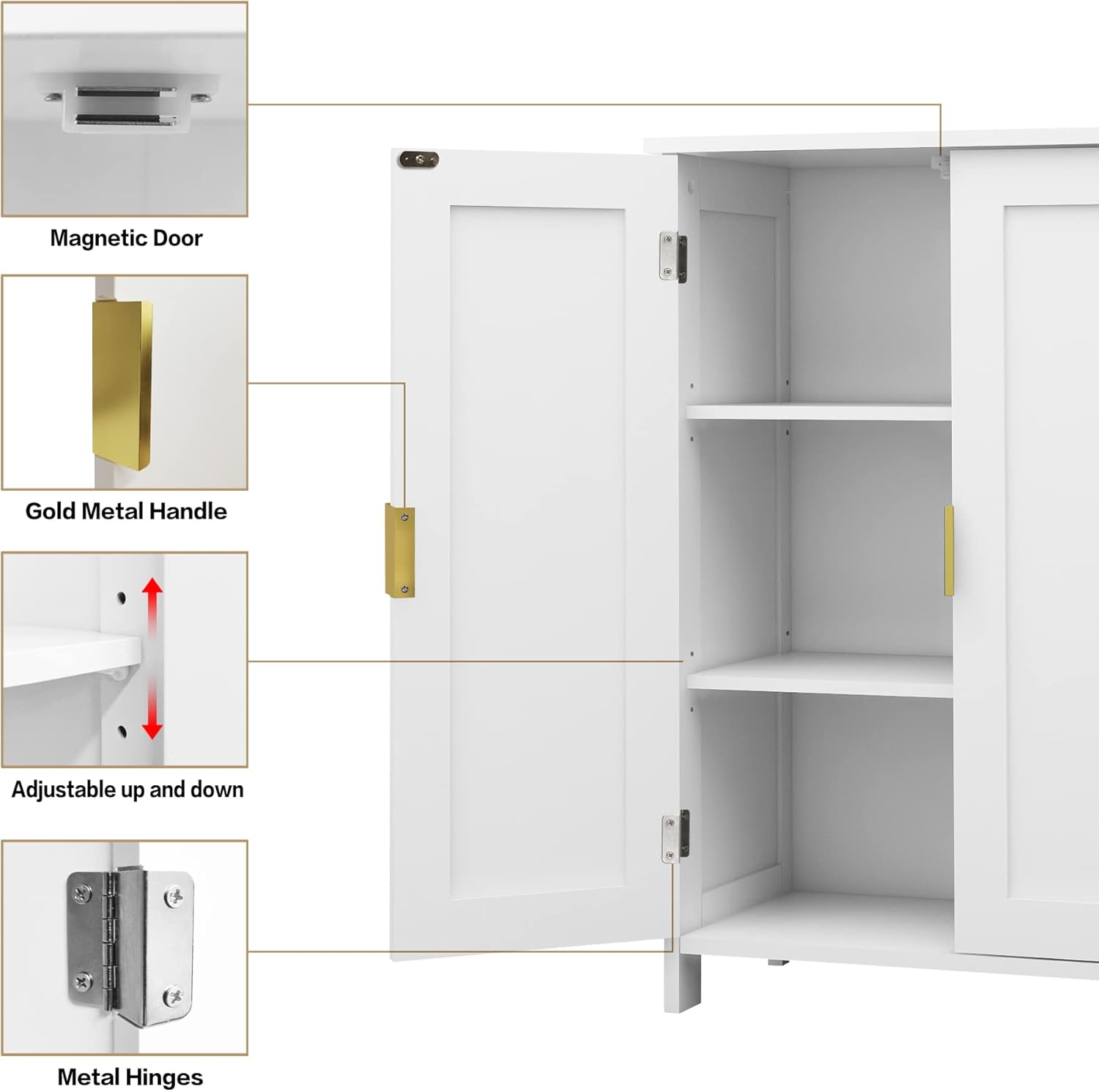

Funzioni di u produttu

• Custruzzione durabile: Made from waterproof MDF with a solid wood structure for stability and durability.
• Scaffali regolabili: Features 2 adjustable shelves with 3 height options to accommodate various item sizes.
• Chiusura magnetica di a porta: Cabinet doors are equipped with magnetic devices for easy and secure opening and closing.
• Cuncepimentu anti-ribaltamentu: Includes an anti-tipping mechanism for enhanced safety and stability.
• Estetica Moderna: Clean white finish with gold metal handles offers a modern and stylish look.

Istruzzioni d'usu

The TaoHFE SC002 cabinet is designed for versatile storage in various settings:

• Bagnu: Ideal for storing bath towels, toilet paper, toiletries, and other bathroom essentials.
• Lavanderia: Organize detergents, cleaning supplies, and folded laundry.
• Living Room/Office: Use for books, decorative items, or office supplies.
• Corridoiu/Ingressu: Perfect for shoes, bags, or other items you need to grab on the go.

Utilize the adjustable shelves to customize storage space according to your needs. Ensure items are distributed evenly to maintain stability.

Cura è Mantenimentu

• Pulizia: The smooth and waterproof surface of the cabinet is easy to clean. Simply wipe it with a damp pannu. Evitate l'usu di prudutti chimichi aggressivi o di detergenti abrasivi chì puderanu dannà a finitura.
• Spolverazione: Spolverate regularmente u cabinet cù un pannu dolce è asciuttu.
• Sversamenti: Wipe up spills immediately to prevent moisture damage.
• Ispezione: Verificate periodicamente tutte e viti è e cunnessione per assicurassi ch'elle restinu strette. Stringhjite di novu se necessariu.

Risoluzione di prublemi

Sè avete qualchì prublema durante u montaggio o l'usu, per piacè ricunnosce.view the assembly instructions and ensure all steps were followed correctly. For persistent problems or missing parts, refer to the customer service information below.

Specificazioni

Garanzia è Supportu

TaoHFE is committed to ensuring a perfect shopping experience for our customers. If you have any questions regarding this storage cabinet, including missing parts or defects, please contact our customer service team. We will assist you promptly with free replacement parts or a new item if necessary.
