Introduzione
Thank you for choosing the GEARSTONE Foldable Magnetic Exercise Bike. This manual provides essential information for the safe assembly, operation, and maintenance of your exercise bike. Please read this manual thoroughly before use and keep it for future reference.
Importante infurmazione di sicurezza
- Cunsultate u vostru duttore prima di inizià ogni prugramma di eserciziu.
- Riscaldatevi sempre prima di fà eserciziu è rinfrescatevi dopu.
- Assicuratevi chì tutti i bulloni è i dadi sianu ben stretti prima di ogni usu.
- Pone a bicicletta d'eserciziu nantu à una superficia piana è stabile.
- Mantene i zitelli è l'animali alluntanati da l'equipaggiu durante l'usu.
- A capacità massima di pesu di l'utente per sta bicicletta hè di 120 kg (264 lbs).
- Smette subitu di fà eserciziu s'è vo vi sentite svenimentu, vertigini o avete dolore.
- Portate vestiti è scarpe adatti per l'eserciziu.
Cuntenutu di u pacchettu
Carefully unpack the box and ensure all parts are present. Refer to the diagram below for a visual representation of the components.
Figura 1: Package Contents. This image displays the various components and tools included with your exercise bike, such as the main frame, pedals, seat, backrest, and assembly tools.
U pacchettu deve include:
- Assemblea di Frame principale
- Pedali a manca è a diritta
- Sedile è schienale
- Handlebar with LCD Monitor
- Barre stabilizzatrici (anteriori è posteriori)
- Kit di ferramenta (bulloni, dadi, rondelle)
- Assembly Tools (wrench, Allen key)
- Manuale d'usu
Setup è Assemblea
Follow these steps to assemble your GEARSTONE Foldable Magnetic Exercise Bike. It is recommended to have two people for assembly.
- Attaccà e barre stabilizzatrici: Secure the front and rear stabilizer bars to the main frame using the provided bolts and nuts. Ensure they are firmly tightened for stability.
- Installa i Pedali: Identify the left (L) and right (R) pedals. The left pedal screws counter-clockwise, and the right pedal screws clockwise. Thread them into the crank arms and tighten securely.
- Muntà u sedile è u schienale: Insert the seat post into the main frame and adjust to your desired height. Secure it with the locking pin. Attach the backrest to the seat support.
- Attach Handlebar and Monitor: Connect the handlebar assembly to the main frame. Ensure all cables for the LCD monitor and pulse sensors are properly connected. Secure the handlebar with the designated bolts.
- Verificazione finale: Before first use, double-check all connections and ensure all bolts and nuts are tightened.
Figura 2: Assembly Steps. This diagram illustrates the key stages of assembling the exercise bike, from attaching the base supports to installing the seat and pedals.

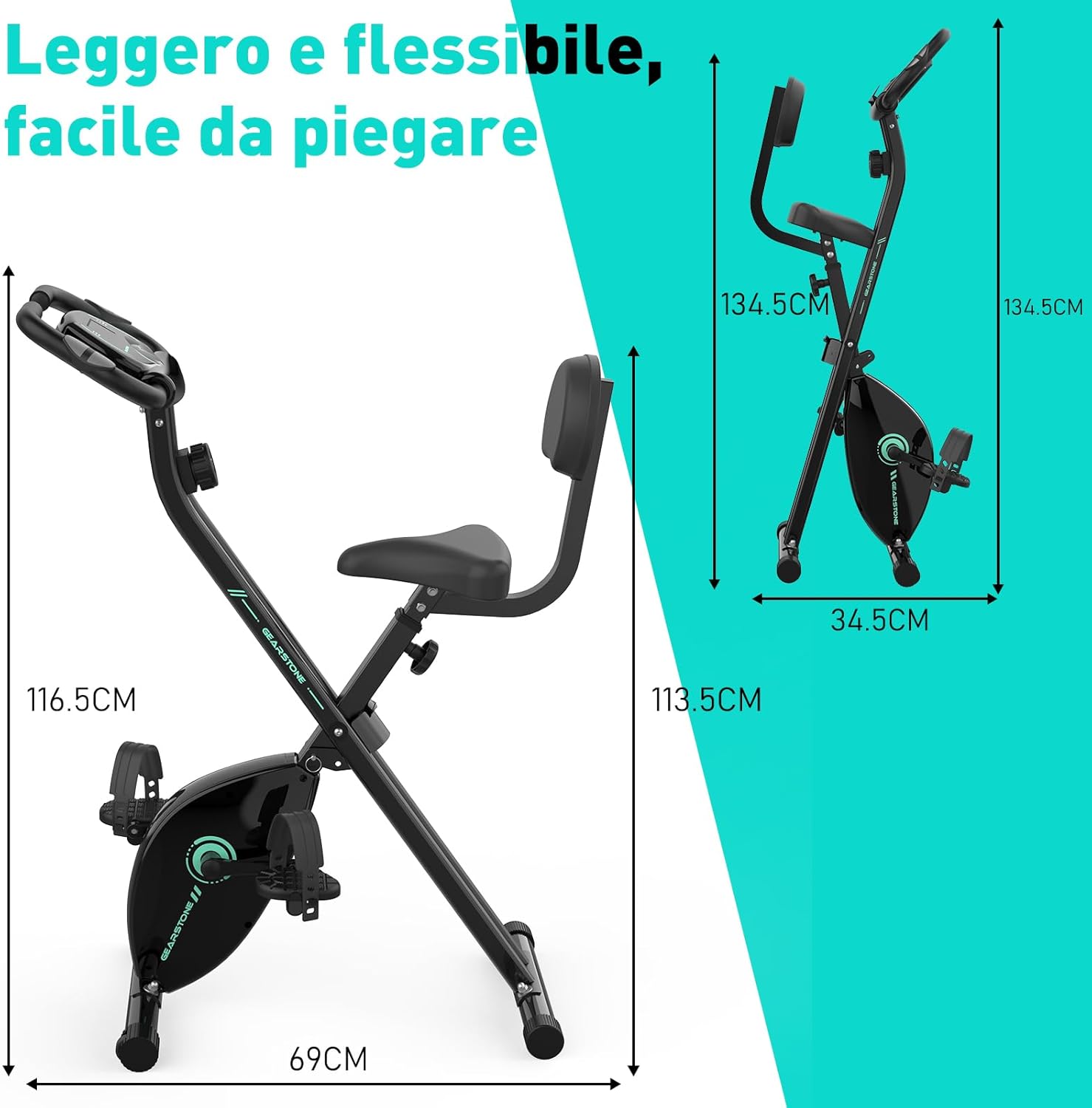

Figura 3: Assembled Bike Dimensions. This image shows the fully assembled exercise bike with its dimensions, highlighting its compact and foldable nature.
Istruzzioni di funziunamentu
Ajustamentu di l'altezza di u sediu
The seat height can be adjusted to five different levels to accommodate various user heights. Loosen the adjustment knob located on the seat post, slide the seat to the desired height, and then tighten the knob securely. Ensure your knees have a slight bend at the bottom of the pedal stroke.
Figura 4: Seat and Resistance Adjustment. This image highlights the knob for adjusting magnetic resistance and the mechanism for adjusting seat height.
Aghjustà a Resistenza
The bike features 8 levels of magnetic resistance. Turn the resistance knob, located below the LCD monitor, clockwise to increase resistance and counter-clockwise to decrease it. Start with a lower resistance and gradually increase as your fitness improves.
Utilizà u monitor LCD
The LCD monitor displays key workout data. It is battery-powered. The monitor automatically turns on when you start pedaling or press a button.
- SCAN: Automatically cycles through all display functions every few seconds.
- TIME: Mostra a durata di u vostru allenamentu.
- VELOCITÀ: Mostra a vostra velocità attuale di ciclismu.
- DISTANZA: Mostra a distanza percorsa durante u vostru allenamentu attuale.
- CALORIE: Stima e calorie brusgiate durante u vostru allenamentu.
- ODOMETER (ODO): Mostra a distanza tutale accumulata.
- IMPULSU: Mostra a vostra frequenza cardiaca quandu tenete i sensori di pulsazioni nantu à u manubriu.
To reset the monitor, press and hold the button for a few seconds, or remove and reinsert the batteries.
Figura 5: LCD Monitor Display. This image provides a detailed view of the LCD monitor and its various data display functions.
Figura 6: Resistance Control and Monitor Interaction. This image illustrates how to adjust the resistance level and interact with the LCD monitor's buttons.
Utilizà u Phone Holder
A phone holder is integrated into the LCD monitor panel. Place your smartphone or tablet securely in the holder to enjoy videos or music during your workout.
Folding the Bike for Storage
To fold the bike, loosen the main folding knob (usually located near the base of the frame). Carefully fold the frame inwards until it locks into its compact position. This design allows for easy storage and space-saving.
Mantenimentu
- Pulizia: Asciugà a bicicletta cù l'annunziuamp pannu dopu ogni usu per caccià u sudore è a polvera. Ùn aduprate micca detergenti abrasivi.
- Ispezione: Regularly inspect all bolts, nuts, and moving parts for tightness and wear. Tighten any loose fasteners.
- Lubrificazione: The magnetic resistance system and belt drive are generally maintenance-free. Do not lubricate internal components unless specifically instructed by customer support.
- Conservazione: Conservate a bicicletta in un locu frescu è asciuttu, luntanu da a luce diretta di u sole è da temperature estreme.
- Sustituzione di batterie: Replace the LCD monitor batteries when the display becomes dim or unresponsive.
Risoluzione di prublemi
| Prublemu | Causa Possibile | Soluzione |
|---|---|---|
| No display on LCD monitor | E batterie sò morte o installate incorrectamente. | Replace batteries or ensure they are installed with correct polarity. |
| Inaccurate pulse reading | Hands not firmly on sensors; sensors are dirty. | Ensure firm contact with both pulse sensors. Clean sensors with a dry cloth. |
| A bicicletta hè instabile o vacilla | Bulloni allentati; superficia irregulare. | Check and tighten all assembly bolts. Move the bike to a flat, level surface. |
| A resistenza ùn cambia micca | Cavu di resistenza scollegatu o dannighjatu. | Inspect the resistance cable connection. If damaged, contact customer support. |
| Rumore inusual durante l'operazione | Loose parts; friction from moving components. | Check all bolts and nuts for tightness. Ensure no foreign objects are caught in moving parts. If noise persists, contact customer support. |
Specificazioni
| Feature | Detail |
|---|---|
| Nome di mudellu | cyclette pieghevole |
| Marca | GEARSTONE |
| Meccanismu di resistenza | Magneticu |
| Livelli di resistenza | 8 livelli regolabili |
| Sistema di Drive | Cintura |
| Material principale | Steel, Metal, Foam/Leather |
| Capacità massima di pesu | 120 chilògrammi (264 lbs) |
| Dimensioni di u produttu (L x W x H) | 69 x 39 x 116.5 cm (27.2 x 15.4 x 45.9 inch) |
| Pesu di l'articulu | 15.6 chilògrammi (34.4 lbs) |
| Fonte d'alimentazione (Monitor) | Alimentatu da batterie (batterie micca incluse) |
| Funzioni spiciali | Foldable design, LCD monitor, Pulse sensors, Phone holder, Adjustable seat (5 levels) |
Garanzia è Supportu
GEARSTONE provides a garanzia di un annu for this product from the date of purchase. This warranty covers manufacturing defects and material faults under normal use.
If you encounter any issues with your exercise bike or have questions regarding its operation or maintenance, please do not hesitate to contact our customer support team. Provide your purchase details and a description of the issue for prompt assistance.
Cuntattate l'assistenza: Per piacè riferitevi à a vostra ducumentazione d'acquistu o à quella di u rivenditore. website for the most up-to-date contact information (e.g., email address or support portal).
Informazioni supplementari
For more information about GEARSTONE products and fitness tips, visit our official websitu o canali di media suciale.
