Manuale d'istruzzioni di u proiettore LED SOLLA 500W

1. Introduzione

Thank you for choosing the SOLLA 500W LED Flood Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new flood light. Please read these instructions thoroughly before installation and retain them for future reference.

Image 1.1: SOLLA 500W LED Flood Light. This image displays the front view of the black rectangular flood light with its integrated bracket and exposed wiring.

Image 1.2: Application examples of the SOLLA 500W LED Flood Light. This collage shows the flood light illuminating a baseball field, a large outdoor court, an indoor warehouse, and the exterior of a building at night.

2. Istruzzioni di sicurità

Per assicurà un funziunamentu sicuru è prevene danni, osservate e seguenti precauzioni di sicurezza:

• Sicurezza elettrica: Installation must be performed by a qualified electrician or competent person in accordance with local electrical codes and regulations. Ensure power is disconnected before installation or maintenance.
• Messa a terra: L'apparecchiatura deve esse cunnessa currettamente à terra per impedisce scosse elettriche.
• Voltage: Verificate chì u supply voltage (110-265V AC) matches the requirements of the flood light.
• cablaggio: Ensure all wire connections are secure and properly insulated. This flood light requires hard-wiring; it does not come with a plug.
• Muntamentu: Mount the fixture securely to a stable surface capable of supporting its weight.
• Température de fonctionnement : Do not operate the light in environments exceeding its specified operating temperature range.
• Fonte di luce: Ùn fighjate micca direttamente in a fonte di luce LED quandu hè accesa, postu chì questu pò causà affaticamentu o danni à l'ochji.
• Mudazzioni: Do not attempt to modify or disassemble the fixture. This will void the warranty and may pose a safety hazard.

3. Caratteristiche di u produttu

The SOLLA 500W LED Flood Light is designed for high-performance outdoor illumination, offering:

• Alta luminosità: Equipped with 678 high-quality LED beads, delivering 50,000 lumens of 3000K warm white light. This is equivalent to a 2250W metal halide lamp, providing significant energy savings.
• Extended Lifetime: Features an aluminum alloy housing with high thermal conductivity, ensuring efficient heat dissipation and a lifespan exceeding 50,000 hours.
• Resistenza à u clima: IP66 rated for protection against dust and powerful water jets. Includes 4KV surge protection to safeguard against lightning and power surges during thunderstorms.
• Custruzzione durabile: The metal bracket is designed for high-temperature resistance (up to 120°C) and anti-aging performance, allowing for easy adjustment and secure installation.
• Installazione versatile: Can be easily mounted on walls, floors, or ceilings with simple wiring steps.

Image 3.1: Illumination range of the SOLLA 500W LED Flood Light. This image highlights the light's ability to cover an area of 5000 sq. ft. and its features: AC 110-265V input, efficient driver, no flickering, and over 50,000 hours lifespan.

Image 3.2: Weather resistance features. This image illustrates the 4KV surge protection and IP66 waterproof rating of the flood light, showing it with raindrops and a lightning bolt graphic.

4. Setup è Installazione

Before beginning installation, ensure the power supply is turned off at the circuit breaker.

4.1 Cuntenuti di u pacchettu

Verificate chì tutti i cumpunenti sò presenti:

• SOLLA 500W LED Flood Light Unit
• Supportu di Muntamentu Integratu
• Manuale d'istruzzioni

4.2 Opzioni di muntatura

The flood light can be installed in various configurations:

• Montatura à u muru: Secure the bracket to a vertical surface.
• Montatura à u pavimentu: Secure the bracket to a horizontal surface.
• Montaggio à u tettu: Secure the bracket to an overhead surface.

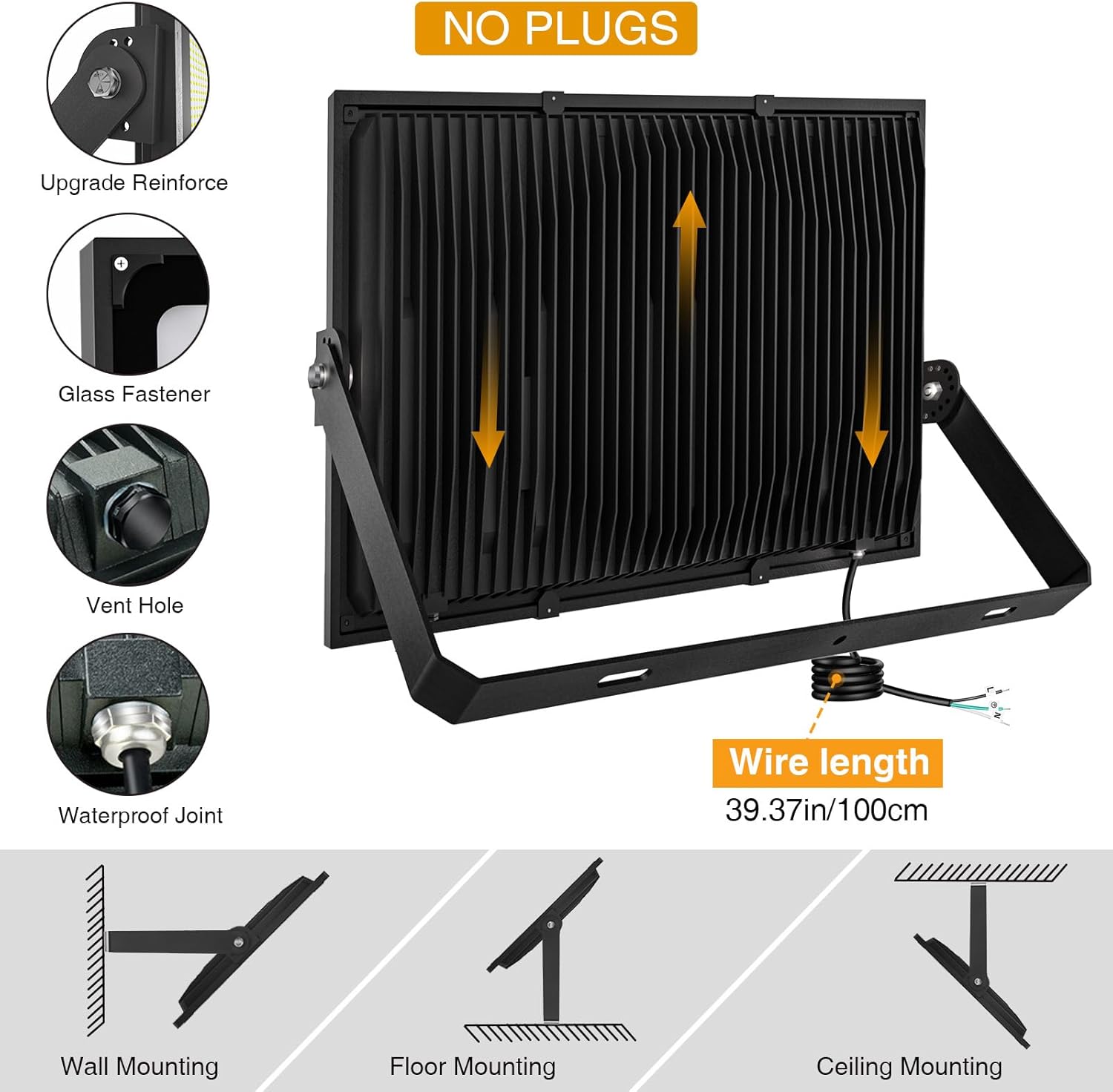

Image 4.1: Product components and mounting types. This image details features like reinforced glass fasteners, a vent hole, and a waterproof joint. It also illustrates the three mounting options: wall, floor, and ceiling mounting, along with the wiring length.

4.3 Istruzzioni di cablaggio

The flood light requires hard-wiring. Follow these steps:

1. Assicuratevi chì l'alimentazione sia spenta.
2. Connect the wires from the flood light to your main power supply:
   • Filu Verde / Giallu: Cunnette à a Terra.
   • Filu marrone: Connect to Live (L).
   • Filu blu: Connect to Neutral (N).
3. Secure all connections with appropriate wire connectors and ensure they are properly insulated.

4.4 Dimensioni

Refer to the diagram below for the physical dimensions of the flood light.

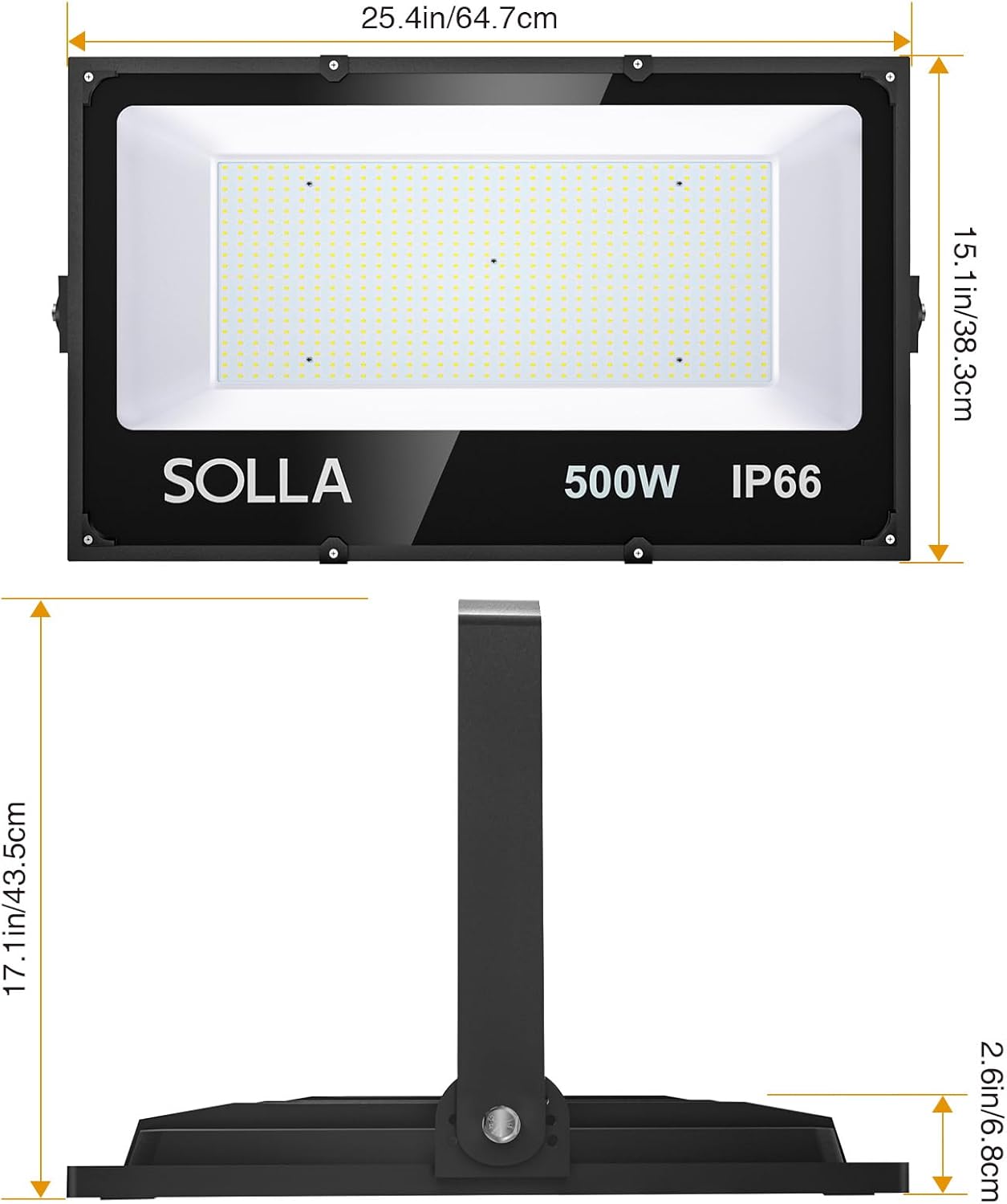

Image 4.2: Dimensions of the SOLLA 500W LED Flood Light. The image shows the length (25.4in/64.7cm), width (15.1in/38.3cm), and height (17.1in/43.5cm with bracket, 2.6in/6.8cm without bracket) of the fixture.

4.5 Recommended Lighting Distance and Area

The following table provides guidance on suggested mounting heights and illumination areas for optimal performance.

Image 4.3: LED flood light irradiation distance table. This table provides suggested mounting heights, best irradiation distances, acceptable irradiation distances, and total irradiation areas for various wattages, including 500W.

5. Operating Instructions

Once properly installed and wired, the SOLLA 500W LED Flood Light operates simply:

• Accensione / spegnimentu: Control the light using an external wall switch or circuit breaker connected to the fixture's power supply.
• Non-dimmable: This flood light is not dimmable. Do not connect it to a dimmer switch.

6. Mantenimentu

Regular maintenance ensures optimal performance and longevity of your flood light:

• Pulizia: Periodically clean the surface of the light and lens with a soft, damp pannu. Ùn aduprate micca detergenti abrasivi o solventi. Assicuratevi chì l'alimentazione sia spenta prima di pulisce.
• Ispezione: Ispettate regularmente l'apparecchiatura per ogni segnu di danni, cunnessione allentate o usura. Affrontate subitu qualsiasi prublema.
• Ventilazione: Ensure the heat sink fins on the back of the fixture are free from obstructions to allow for proper heat dissipation.

7. Risoluzione di prublemi

If you encounter issues with your SOLLA 500W LED Flood Light, refer to the following table:

If problems persist after attempting these solutions, please contact SOLLA customer support.

8. Specificazioni

Detailed technical specifications for the SOLLA 500W LED Flood Light:

9. Garanzia è Support

SOLLA offers a 30-day return policy and a warranty for this product. For specific warranty terms, technical assistance, or customer support, please refer to the official SOLLA websitu o cuntattate u vostru rivenditore.

You can visit the SOLLA store for more information: Negoziu ufficiale SOLLA
