Introduzione
Welcome to your new Candy Smart CSTG 28TMV5/1-S Top Load Washing Machine. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read this manual thoroughly before using the washing machine and keep it for future reference.
Image: Front view of the Candy Smart CSTG 28TMV5/1-S Top Load Washing Machine.
Informazioni di sicurezza
Per impedisce ferite persunale o danni à l'apparecchiu, osservate sempre e seguenti precauzioni di sicurezza:
- Leghjite tutte e struzzioni prima di l'usu.
- Mantene i zitelli è l'animali alluntanati da l'apparechju durante u funziunamentu.
- Do not operate the washing machine if the power cord is damaged. Contact qualified service personnel.
- Ensure the appliance is properly grounded to prevent electric shock.
- Ùn lavate micca l'articuli chì sò stati puliti, lavati, imbevuti o macchiati di sustanzi combustibili o esplosivi.
- Scollegate sempre l'apparecchiu prima di pulisce o di fà qualsiasi manutenzione.
- Do not attempt to repair or replace any part of your washing machine unless specifically recommended in this manual.
Installazione è installazione
Proper installation is crucial for the performance and longevity of your washing machine. The following items are included in the box:
- Lavatrice a carica superiore
- Tubu di Scola
- Cavu di putenza
- Manuale d'istruzzioni
1. Unpacking
Eliminate cù cura tutti i materiali di imballaggio. Impurtante: Locate and remove the four transit bolts (shipping bolts) from the rear of the machine. These bolts secure the drum during transport and must be removed before operation to prevent severe vibration and damage.
Image: Illustration of transit bolts on the rear of a washing machine, which must be removed before use.
2. Piazzamentu
Place the washing machine on a firm, level surface. Ensure there is adequate space around the machine for ventilation and access. Adjust the leveling feet until the machine is stable and does not wobble.
Image: Dimensions of the Candy Smart Top Load Washing Machine (41cm width, 60cm depth, 86cm height).
3. Cunnessione acqua
Connect the water inlet hose to a cold water tap. Ensure all connections are tight to prevent leaks. Position the drain hose into a standpipe or laundry tub, ensuring it is securely fastened and allows for proper drainage.
4. Cunnessione Elettrica
Plug the power cable into a grounded electrical outlet. Do not use extension cords or adapters.
5. Initial Wash Cycle
Before washing clothes, run an empty wash cycle (e.g., a quick wash program) without detergent to clean the drum and internal components.
Istruzzioni di funziunamentu
Your Candy Smart washing machine is designed for ease of use. Familiarize yourself with the control panel and its functions.

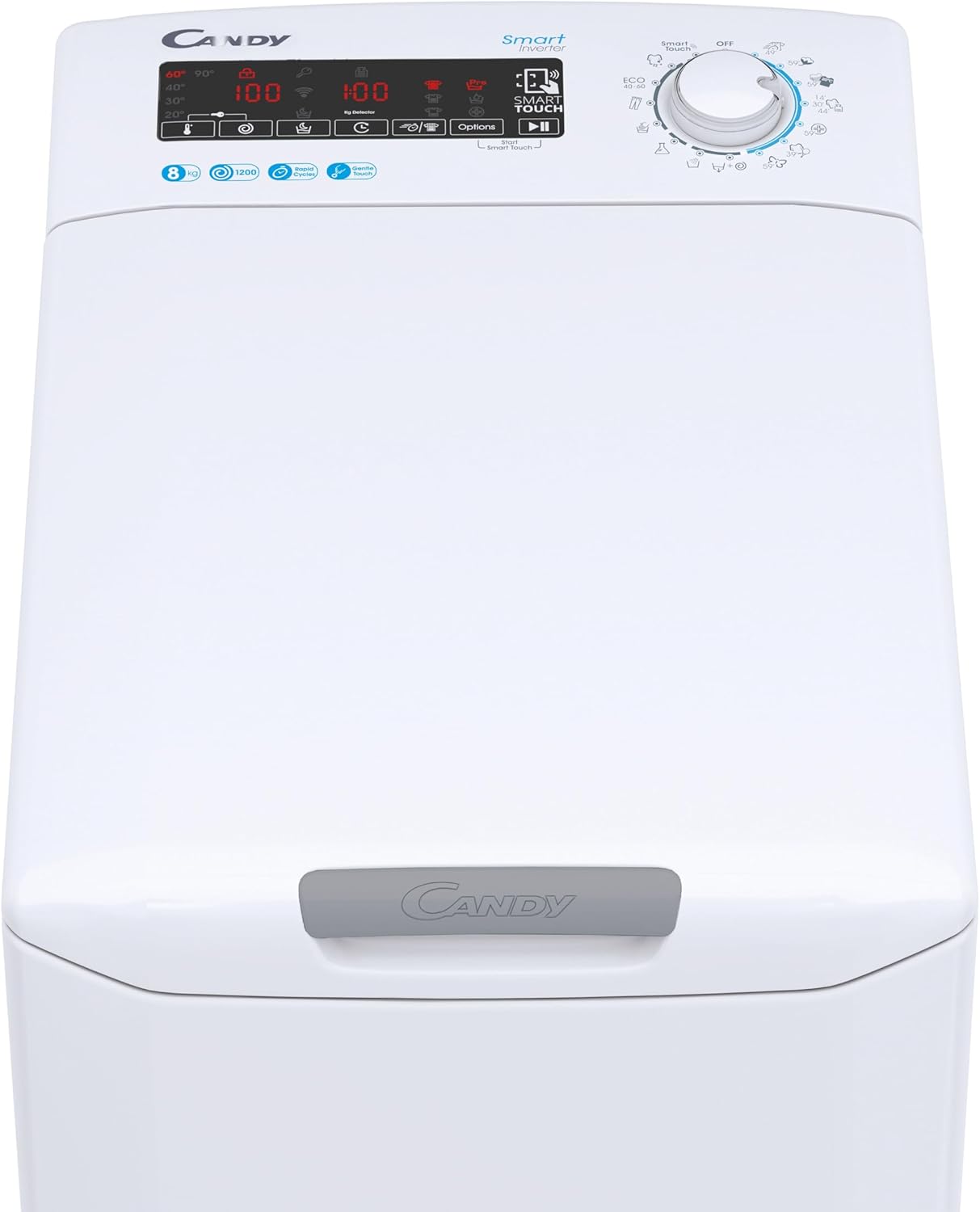

Imagine: Dettagliata view di u pannellu di cuntrollu, chì mostra u display digitale è u selezziunatore di prugramma.
1. Loading Lavanderia
Open the top lid using the Gentle Opening mechanism. Load laundry into the drum, ensuring not to exceed the 8 kg capacity. Overloading can affect wash performance and damage the machine.
2. Adding Detergent
Add the appropriate amount of detergent and fabric softener to their respective compartments in the dispenser drawer. Refer to your detergent packaging for recommended dosages.
3. Selezziunà un prugramma
Turn the program selector dial to choose one of the 17 available wash cycles. The digital display will show the default settings for the selected program. Available programs include:
- Perfect Cotton 59'
- Colors and Mixed 59'
- Delicates 59'
- Sport Plus 39'
- Rapid cycles (14', 30', 44')
- Hygienic Cycle
Additional cycles can be accessed via the Candy Simply-Fi App using NFC technology.
4. Opzioni di aghjustamentu
Use the tactile buttons on the digital display to adjust options such as spin speed (up to 1200 RPM), temperature, or to activate the 24-hour delayed start function. The KG Detector automatically adjusts water and energy consumption based on the load size.
5. Starting the Cycle
Press the Start/Pause button to begin the wash cycle. The machine will lock the lid and start filling with water.
6. Smart Features (NFC & Voice Assistant)
Your washing machine is equipped with NFC technology and voice assistant compatibility. Download the Candy Simply-Fi App to your smartphone. Follow the in-app instructions to connect your device and access additional programs, diagnostics, and remote control features.
Image: Icons illustrating NFC connectivity and smart control via a smartphone app.
Mantenimentu
Una manutenzione regulare assicura prestazioni ottimali è allunga a durata di vita di a vostra lavatrice.
1. Pulizia di l'esterno
Asciugà e superfici esterne cun un soffiu, damp tela. Ùn aduprate micca detergenti abrasivi o solventi.
2. Pulizia di u Dispenser di Detergente
Periodicamente, cacciate è pulite u cassettu di u dispenser di detergente per impedisce l'accumulazione di residui. Sciacquatelu sottu à l'acqua corrente è inseritelu di novu.
3. Pulizia di u filtru di a pompa di scaricu
The drain pump filter should be cleaned regularly to prevent blockages. Refer to the detailed instructions in the full manual for safe access and cleaning procedures. Always drain residual water before opening the filter cover.
4. Pulizia di u tamburu
Run a maintenance wash cycle (e.g., a hot wash with a specialized washing machine cleaner) periodically to prevent odors and mold buildup in the drum.
Risoluzione di prublemi
If you encounter issues with your washing machine, consult the following common troubleshooting tips:
| Prublemu | Causa Possibile | Soluzione |
|---|---|---|
| A macchina ùn principia micca | Power cord unplugged, door not closed properly, program not selected, delayed start active. | Check power connection, ensure lid is fully closed, select a program, check for delayed start setting. |
| Nisun riempimentu d'acqua | Rubinettu d'acqua chjusu, tubu d'entrata piegatu, pressione di l'acqua troppu bassa. | Aprite u rubinettu di l'acqua, raddrizzate u tubu, verificate l'approvvigionamentu d'acqua. |
| L'acqua ùn scorri micca | U tubu di scaricu hè piegatu o bluccatu, u filtru di a pompa di scaricu hè intasatu. | Verificate è svuotate u tubu di scaricu, pulite u filtru di a pompa di scaricu. |
| Vibrazione / rumore eccessivu | Bulloni di trasportu micca rimossi, macchina micca livellata, carica irregulare. | Ensure transit bolts are removed. Level the machine using adjustable feet. Redistribute laundry inside the drum. |
| Poveri risultati di lavatu | Overloading, incorrect detergent dosage, wrong program selected. | Reduce load size, adjust detergent amount, select appropriate wash program. |
For error codes displayed on the digital screen or more complex issues, refer to the full user manual available via the Candy Simply-Fi App or the manufacturer's websitu.
Specificazioni
Key technical specifications for the Candy Smart CSTG 28TMV5/1-S Washing Machine:
| Feature | Specificazione |
|---|---|
| Numero di mudellu | 31019930 |
| Marca | Candy |
| Capacità | 8 chilògrammi |
| Velocità massima di spin | 1200 RPM |
| Tipu di carica | Top Load |
| Dimensioni (P x L x A) | 60 cm x 41 cm x 86 cm |
| Pesu | 58 chilògrammi |
| Culore | Biancu |
| Tipu di cuntrollu | Tactile Digital Display |
| Funzioni spiciali | 17 Programs, Gentle Touch Opening, Inverter Motor, Mix Power System+, NFC Technology, Voice Assistant, KG Detector, 24H Delayed Start |
| Materiale | Plastica |
| Livellu di rumore (Spin) | 77 dB |
Garanzia è Supportu
Your Candy Smart CSTG 28TMV5/1-S Washing Machine comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase or visit the official Candy websitu per i termini è e cundizioni detallati.
Per assistenza tecnica, pezzi di ricambio o richieste di assistenza, cuntattate l'assistenza clienti Candy. L'infurmazioni di cuntattu si trovanu generalmente nantu à u situ web di u fabricatore. website or in the full product documentation.
Risorse in linea: For the most up-to-date information, FAQs, and digital copies of manuals, visit the official Candy Brand Store or the main Candy websitu.
