VGR V-209 Professional Pet Clipper User Manual

1. Produttu Finituview

The VGR V-209 Professional Pet Clipper is designed for efficient and comfortable pet grooming. It features a durable ceramic blade, a digital display for battery and RPM, and is fully waterproof (IPX7) for easy cleaning. The clipper is equipped with a powerful lithium battery for cordless operation and offers adjustable trim lengths and speed settings to suit various pet coat types.

Image 1: The VGR V-209 Professional Pet Clipper, showcasincù u so design elegante è u so display digitale.

2. Importanti Instructions Safety

• Leghjite tutte e struzzioni prima di utilizà stu apparecchiu.
• Keep the appliance dry. Do not immerse the charging adapter in water or other liquids.
• This appliance is waterproof (IPX7) and can be rinsed under running water. However, ensure the charging port is dry before connecting the charging cable.
• Do not use the appliance if the blade is damaged, as this may cause injury.
• Mantene fora di a portata di i zitelli è di l'animali.
• Aduprate solu u cavu di ricarica USB furnitu.
• Do not disassemble or attempt to repair the appliance yourself. Contact customer support for assistance.
• Avoid extreme temperatures. Do not expose to direct sunlight or store in hot environments.

3. Cuntenutu di u pacchettu

Verificate chì tutti l'articuli sò presenti in u pacchettu:

• 1x VGR V-209 Pet Clipper
• 4x Guide Combs (3mm, 6mm, 9mm, 12mm)
• 1x Cavu di Carica USB
• 1x Lubricating Oil
• 1x spazzola di pulizia
• 1x User Manual Book
• 1x Carta di Garanzia

Image 2: Contents of the VGR V-209 Pet Clipper package, including the clipper, guide combs, and charging cable.

4. Primi passi (Configurazione)

4.1 Carica iniziale

Before first use, fully charge the clipper. Connect the USB Type-C charging cable to the clipper and plug the other end into a power bank, adapter, or computer. The LED display will show battery percentage. A full charge takes approximately 3 hours and provides up to 200 minutes of continuous runtime.

4.2 Attaccà i pettini guida

Select the desired guide comb (3mm, 6mm, 9mm, or 12mm). Align the comb with the clipper blade and push it firmly until it clicks into place. To remove, gently pull the comb away from the blade.

Image 3: The VGR V-209 Pet Clipper demonstrating the attachment of guide combs for various trim lengths.

5. Operating Instructions

5.1 Power On/Off

Press the power button to turn the clipper on. Press it again to turn it off.

5.2 Adjusting Trim Depth (Zoom Wheel)

The zoom wheel allows for fine adjustment of the blade's trim depth from 0.8mm to 1.8mm. Rotate the wheel to select the desired depth. This adjustment works in conjunction with or without guide combs.

5.3 Adjusting RPM Speed

The clipper offers five RPM speed settings: 5000, 5500, 6000, 6500, and 7000. Press the dedicated button to cycle through the speeds. The current RPM will be displayed on the LED screen. Choose a lower speed for sensitive areas or finer hair, and a higher speed for thicker coats.

5.4 Funzione di serratura di sicurezza

To prevent accidental activation, the clipper includes a safety lock. Long-press the power button to lock or unlock the device. The lock indicator will appear on the LED display when activated.

5.5 Waterproof Use (IPX7)

The VGR V-209 is IPX7 waterproof, meaning it can withstand immersion in water up to 1 meter for 30 minutes. This allows for easy cleaning under running water. Ensure the charging port is sealed and dry before and after use in wet conditions.

Image 4: The VGR V-209 Pet Clipper shown in a wet environment, highlighting its IPX7 waterproof capability.

6. Carica

The clipper is powered by a 2000mAh internal rechargeable Lithium battery. A full charge provides approximately 200 minutes of runtime. Charging time is about 3 hours. The LED display shows the battery power in percentage. When the battery is below 5%, a red indicator will flash, reminding you to recharge.

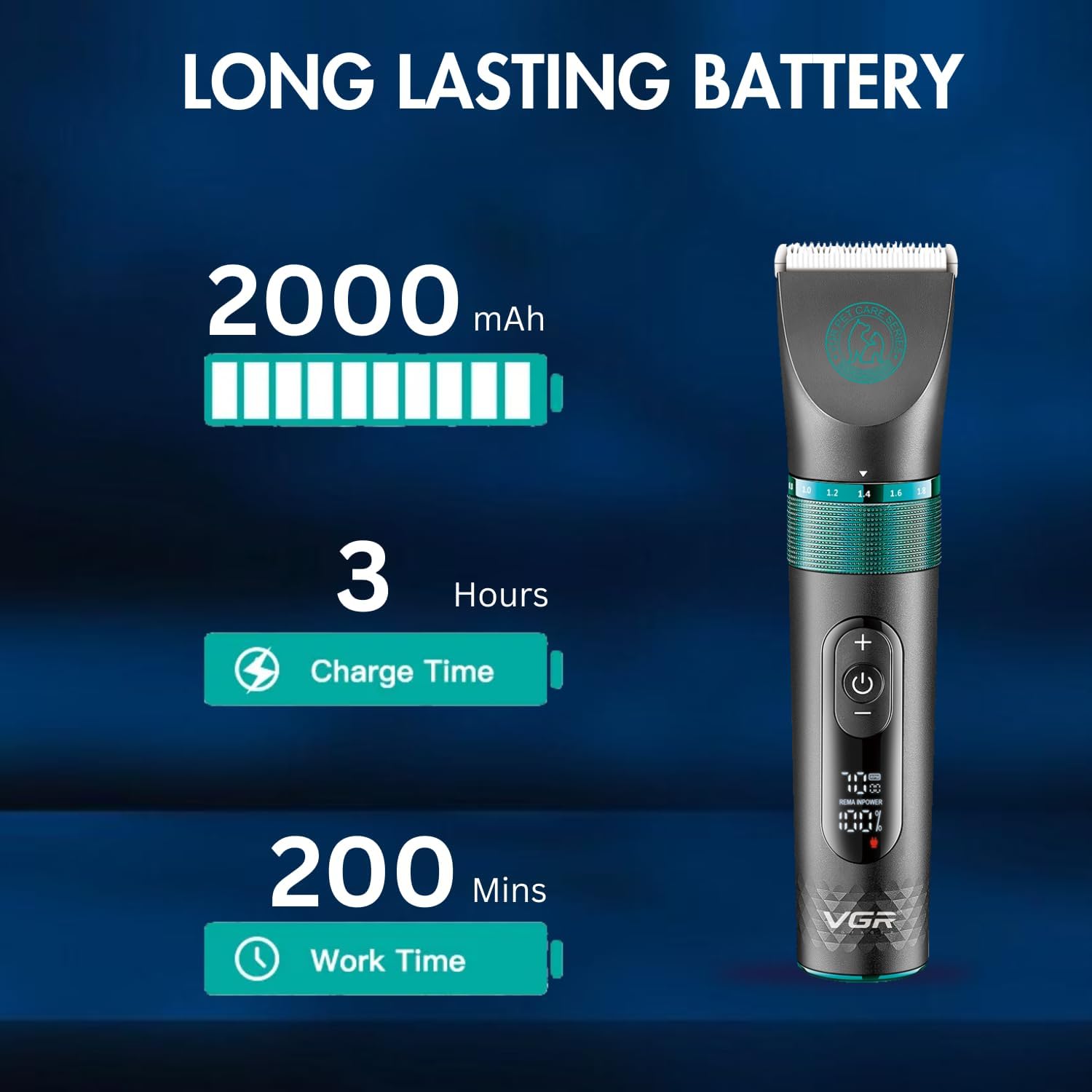

Image 5: Visual representation of the VGR V-209 Pet Clipper's long-lasting battery, showing 2000mAh capacity, 3-hour charge time, and 200 minutes work time.

7. Mantenimentu

7.1 Pulizia di u Clipper

After each use, turn off the clipper and remove any attached guide comb. Use the provided cleaning brush to remove hair from the blade and the clipper body. Since the clipper is IPX7 waterproof, you can rinse the blade head and clipper body under running water. Ensure the clipper is completely dry before storage or recharging.

7.2 Lubricating the Blade

For optimal performance and longevity, apply a few drops of the provided lubricating oil to the blade after every few uses, or when the clipper feels sluggish. Turn the clipper on for a few seconds to distribute the oil evenly, then wipe off any excess.

7.3 Storage

Store the clipper in a cool, dry place, away from direct sunlight and moisture. Ensure it is clean and dry before storing. Keep guide combs and accessories together with the clipper.

Imagine 6: Primu pianu view of the VGR V-209 Pet Clipper's ceramic blade and a guide comb, illustrating components for cleaning and maintenance.

8. Risoluzione di prublemi

9. Specificazioni

• Mudellu: V-209
• Materiale di lama: Lama di ceramica
• Valutazione impermeabile: IPX7
• Batteria: 2000 mAh Lithium-Ion
• Runtime: Finu à 200 minuti
• Tempu di carica: Circa 3 ore
• Trim Depth Adjustment: 0.8mm - 1.8mm (Zoom Wheel)
• RPM Speed Settings: 5000, 5500, 6000, 6500, 7000
• Included Guide Combs: 3 mm, 6 mm, 9 mm, 12 mm
• Fonte di energia: Alimentatu à batteria
• Pesu di l'articulu: 254 g
• Dimensioni di u pruduttu: 18 x 5 x 4 cm

10. Garanzia è Support

The VGR V-209 Professional Pet Clipper comes with a 1-Annu di Garanzia da a data di compra. Questa garanzia copre i difetti di fabricazione. Per piacè cunservate a vostra prova di compra per e richieste di garanzia.

For customer support, warranty claims, or any inquiries, please contact:

• E-mail: customercare@vgrofficial.in
• Telefonu: 18002578939 (From 10:00 AM to 6:00 PM, Monday to Saturday)
• Websitu: www.vgrofficial.in

Manufacturer: Ningbo VGR Electric Appliances Co., Ltd. China
