Introduzione
Thank you for choosing the Jansite 5-inch AHD 1080P Backup Camera System. This system is designed to provide enhanced rear visibility for safer driving and parking. It features a 5-inch monitor, a 1080P AHD camera with night vision, and flexible installation options. Please read this manual thoroughly before installation and operation to ensure proper use and longevity of the product.
Imagine: Più diview of the Jansite 5-inch AHD 1080P Backup Camera System components.
1. Setup è Installazione
The Jansite backup camera system offers two primary power supply methods for flexible installation. Ensure all connections are secure before use.
1.1 Cumponenti Sopraview
Image: Displaying the monitor, camera, and connecting cables included in the package.

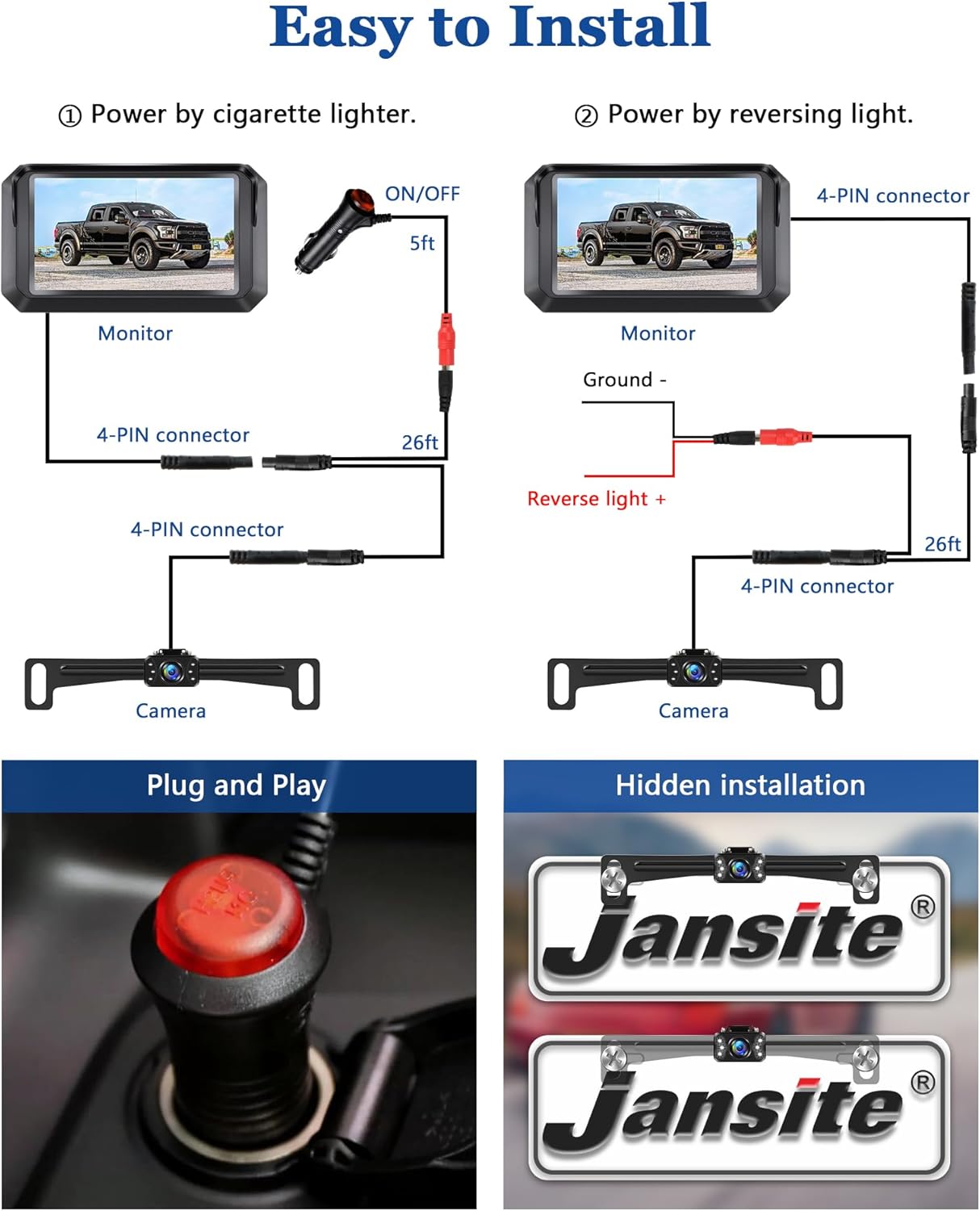

1.2 Power Supply Method 1: Cigarette Lighter Connection
This method provides a quick and easy installation, ideal for users who prefer not to modify vehicle wiring.
- Mount the 5-inch monitor on your dashboard or windshield using the provided bracket.
- Install the backup camera at the rear of your vehicle, typically near the license plate.
- Connect the camera to the monitor using the provided 4-PIN extension cable.
- Plug the monitor's power cable into your vehicle's cigarette lighter socket. The monitor will power on when the vehicle's ignition is on or when the cigarette lighter is active.
Image: Illustrates connecting the monitor power to the cigarette lighter socket.
1.3 Power Supply Method 2: Reverse Light Connection
This method allows the monitor to automatically display the rear view quandu u veiculu hè messu in retromarcia.
- Mount the 5-inch monitor on your dashboard or windshield.
- Install the backup camera at the rear of your vehicle.
- Connect the camera to the monitor using the provided 4-PIN extension cable.
- Connect the camera's power cable (red wire) to the positive wire of your vehicle's reverse lights. Connect the black wire to a ground point. This ensures the camera receives power only when the vehicle is in reverse.
Image: Detailed wiring diagram for connecting the camera to the reverse light circuit.
1.4 Camera Mounting Options
The camera can be mounted in various locations for optimal viewing.
- Supporto di targa: The camera comes with a bracket designed to be hidden behind your vehicle's license plate for a discreet installation.
- Rear Window Mount: For a higher viewpoint, the camera can be installed on your rear window using the included 2-sided tape.
Image: Example of the camera mounted discreetly on a license plate bracket.
Image: Example of the camera mounted on the rear trunk of a car.
2. Operating Instructions
Once installed, the system is designed for straightforward operation. The monitor provides various settings to customize your viewsperienza.
2.1 Funzioni di Monitor
The 5-inch monitor features controls for image adjustment and display options.

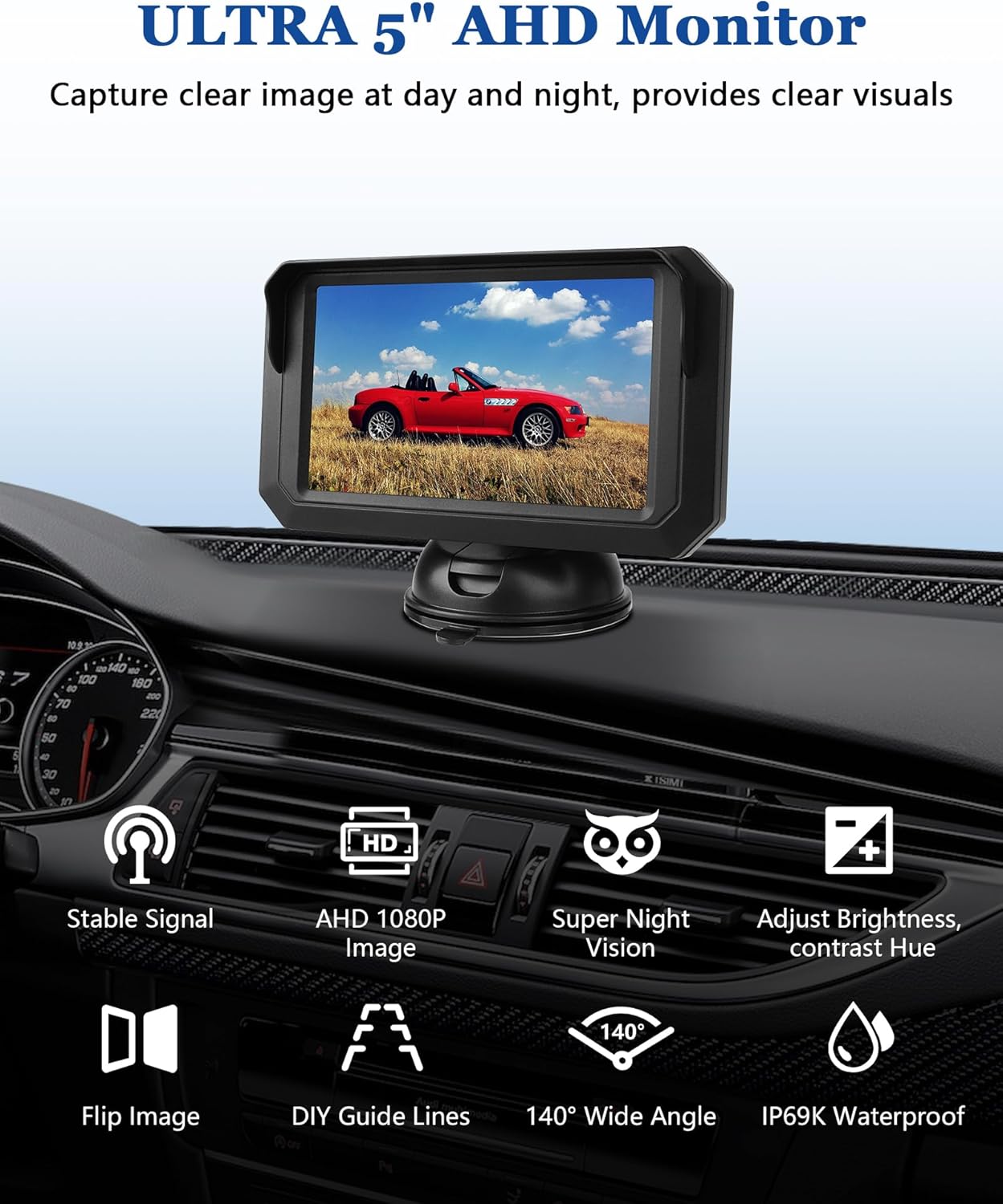

Image: The monitor displaying various adjustable features such as brightness, contrast, hue, image flip, and DIY guide lines.
- Brightness, Contrast, Hue: Adjust these settings to optimize image quality based on lighting conditions.
- Flip Image: Switch between original and mirror image views cum'ellu ci vole.
- Linee guida fai da te: Customize the parking guide lines for width, vertical position, and horizontal shift to match your vehicle and preference.
Image: Examples of adjustable parking guide lines on the monitor, showing width, vertical, and horizontal adjustments.
2.2 A parte posteriore View Mostra
When the system is active, the monitor will display a clear 1080P AHD image from the rear camera, providing a 140° wide-angle view.
Imagine: Un chjaru view from the backup camera on the monitor, showing parking guide lines.
2.3 Visione notturna
The camera is equipped with 6 bright LED lights and light-sensitive night vision technology, ensuring clear visibility even in low-light conditions.
Image: Close-up of the camera highlighting the 6 LED lights for enhanced night vision.
Image: Demonstrating the clear night vision capability of the camera in dark conditions.
3. Mantenimentu
The Jansite backup camera system is designed for durability and minimal maintenance.
- Disegnu Impermeabile: The camera boasts an IP68/IP69K waterproof rating, ensuring reliable operation in various weather conditions, including rain and car washes.
- Resistenza à a temperatura: The system is built to withstand extreme temperatures, from -4°F (-20°C) to 158°F (70°C).
- Pulizia: Pulite regularmente l'obiettivo di a camera è u schermu di u monitor cù un pannu dolce è detergente.amp pannu per assicurà una chiarezza d'immagine ottimale. Evitate i detergenti abrasivi.
- Ispezione di u cable: Periodically check all cable connections for any signs of wear or damage. Ensure they remain securely connected.
Image: Illustrates the camera's IP69K waterproof capability, showing it functioning under water splashes.
4. Risoluzione di prublemi
If you encounter issues with your Jansite backup camera system, refer to the following common solutions:
- Nisuna imagine nant'à u monitor:
- Ensure the monitor is receiving power (check cigarette lighter connection or reverse light wiring).
- Verify that the 4-PIN cable connecting the camera to the monitor is securely attached at both ends.
- If using the reverse light connection, confirm the vehicle is in reverse.
- Unclear or Distorted Image:
- Pulite l'obiettivo di a camera è u schermu di u monitor.
- Check for any obstructions blocking the camera's view.
- Adjust the brightness, contrast, and hue settings on the monitor.
- Signal Instability (Wired System):
- This wired system is designed for stable signal transmission with almost zero video lag. If experiencing issues, re-check all cable connections for looseness or damage.
- Parking Lines Not Visible/Incorrect:
- Access the monitor's menu to enable or adjust the DIY guide lines.
If problems persist, please contact Jansite customer support for further assistance.
5. Specificazioni
| Feature | Detail |
|---|---|
| Dimensioni di u produttu | 4.8 x 4 x 3 inch |
| Pesu di l'articulu | 1.17 liri |
| Tecnulugia di visualizazione | LCD |
| Size Screen | 5 Inches (4.8 Inch variant) |
| Dispositivi compatibles | Car |
| Tipu di stallazione | Munti superficia |
| Voltage | 12 Volts |
| Tecnulugia di u sensoru otticu | CMOS |
| Tipu di lente | Wide Angle |
| Angulu reale di View | 140 gradi |
| Tipu di cunnessu | Wired |
| Valutazione impermeabile | IP68/IP69K |
| Visione notturna | 6 LED Lights, Light-sensitive technology |
| Risoluzione Video | AHD 1080P |
| Chì ci hè in a scatula | 4.8 Inch Monitor, Backup Camera |
6. Garanzia infurmazione
Jansite products are typically covered by a limited warranty against manufacturing defects. For specific warranty terms and conditions, including duration and coverage details, please refer to the product packaging or contact Jansite customer support directly. Keep your purchase receipt as proof of purchase for warranty claims.
7. Assistenza Clienti
For technical assistance, troubleshooting, or any questions regarding your Jansite 5-inch AHD 1080P Backup Camera System, please contact Jansite customer support. You can typically find contact information on the product packaging, the official Jansite websitu, o per mezu di u vostru rivenditore.
Jansite is committed to providing quality products and customer satisfaction. When contacting support, please have your product model number (B0CYLHCY3R) and purchase details ready.
