1. Introduzione
This manual provides detailed instructions for the installation, operation, and maintenance of your GoHawk TL54-Titan Bluetooth UTV Stereo Audio Amplifier System. This system is designed to deliver high-quality audio in challenging outdoor environments, making it ideal for UTVs, ATVs, marine boats, and motorcycles. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
2. Informazioni di sicurezza
Osservate sempre e seguenti precauzioni di sicurezza per prevene ferite o danni à u sistema:
- Fonte di energia: Connect the system only to a 12-volt DC power source with a negative ground. Ensure proper polarity to avoid damage.
- cablaggio: Before making any electrical connections, disconnect the vehicle's battery to prevent short circuits. Use appropriate gauge wiring and fuses as specified.
- Muntamentu: Muntate bè tutti i cumpunenti per impedisce ch'elli si stacchinu durante u funziunamentu di u veiculu, ciò chì puderia causà ferite o danni.
- Resistenza à l'acqua: While the system is IP56 waterproof, avoid submerging the amplifier or speakers. Ensure all connections are properly sealed.
- Température de fonctionnement : Do not operate the system outside its recommended temperature range.
- Livelli di volumi: L'esposizione prulungata à livelli di vulume elevati pò causà danni à l'audizione. Ajustate u vulume à un livellu sicuru.
3. Cuntenutu di u pacchettu
Verificate chì tutti l'articuli elencati quì sottu sò inclusi in u vostru pacchettu:
- 1 x Amppiù vivu
- 4 x LED Speakers
- 1 x Control Wired
- 1 x Controller LED
- 1 x Cordone d'energia
- 1 x Kit di Hardware di Montaggio
- 2 x Antenna Esterna
- 4 x Skull Cover
- 4 x Eagle Cover
- 1 x Cavu AUX
- 1 x Manuale d'utilizatore
4. Produttu Finituview
The GoHawk TL54-Titan is a robust 4.1-channel UTV audio system designed for off-road adventures. It features a powerful amplifier, four LED speakers, and multiple connectivity options.
Funzioni chjave:
- Disegnu impermeabile IP56: Built to withstand harsh outdoor conditions, including dust and water splashes.
- 4.1-Canali Amppiù vivu: Supports four full-range speakers and allows for an optional subwoofer connection (subwoofer not included).
- Premium LED Speakers: Four 5-inch speakers, each with a 4-inch full-range core and a 1-inch silk dome tweeter for clear audio. Integrated LEDs offer customizable lighting.
- Connettività Bluetooth 5.3: Wireless audio streaming from your smartphone or other Bluetooth-enabled devices up to 15 meters.
- Ingressi audio multipli: Includes FM radio, USB playback, and a 3.5mm AUX input for versatile audio sources.
- Wired Control & LED Rocker Switch: Convenient wired remote for basic audio control and a dedicated rocker switch for LED color and brightness adjustments.
Image: The GoHawk TL54-Titan UTV Stereo System, showcasing its four speakers with vibrant red and blue LED illumination, highlighting the customizable lighting options.

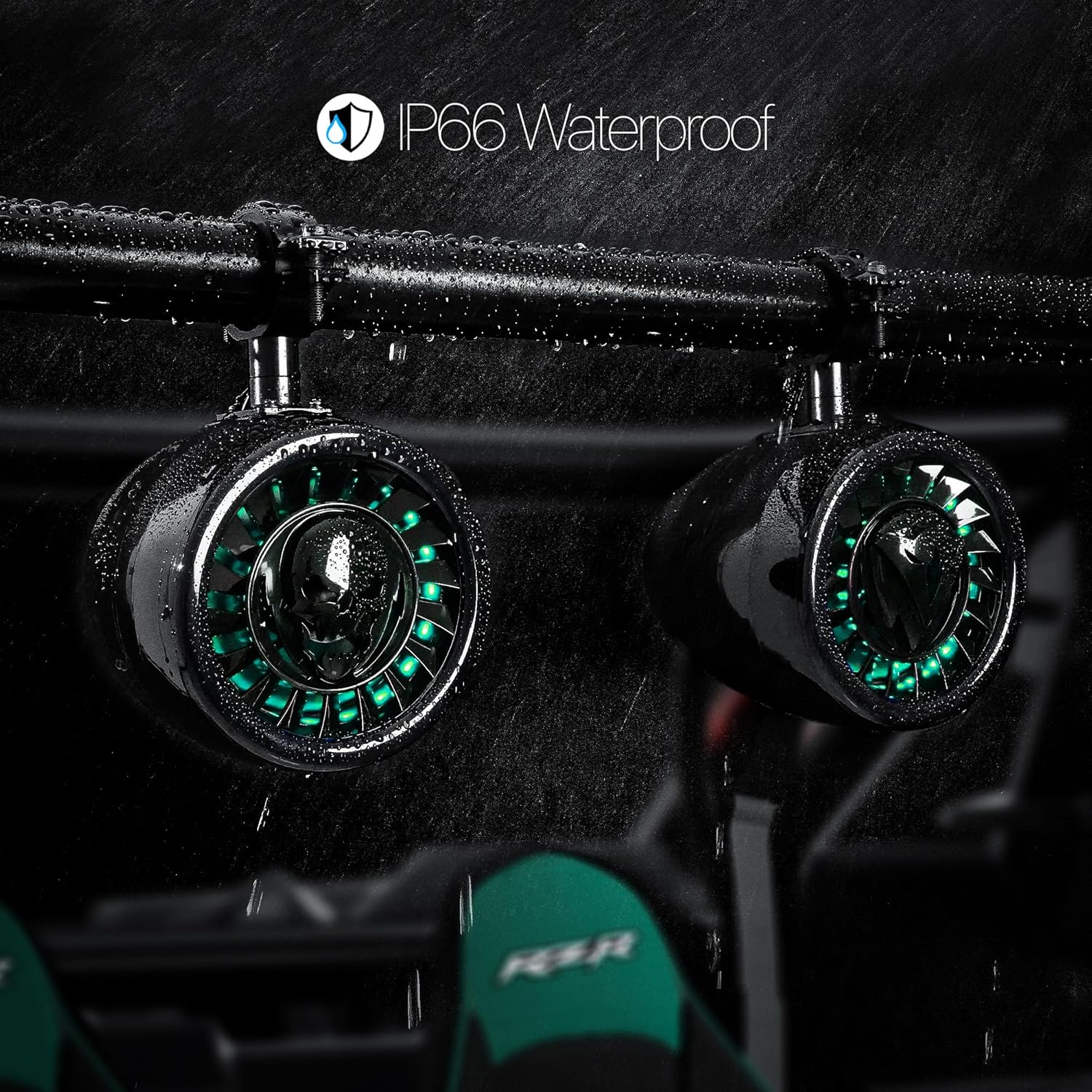

Image: Close-up of the GoHawk TL54-Titan speakers with water droplets, demonstrating their IP66 waterproof rating and durability in wet conditions.
Image: The GoHawk TITAN 1600 amplifier, featuring a sleek brushed aluminum finish and a low-profile blue LED indicator, signifying its power and readiness.
Image: An illustrative diagram highlighting the internal components of the speaker, specifically detailing the 4-inch full-range woofer and the 1-inch silk dome tweeter for optimal sound reproduction.
5. Cunfigurazione è installazione
5.1 Mounting Speakers
The speakers are designed for roll cage bar mounting and fit 1.5-inch to 2-inch bars. Use the provided aluminum roll cage clamps to securely attach the speakers. Ensure the speakers are positioned to provide optimal sound dispersion and do not obstruct visibility or vehicle controls.
Image: A detailed diagram illustrating the dimensions of the GoHawk TL54-Titan speakers, amplifier, and wired control, crucial for planning installation and ensuring proper fit.
5.2 Schema di cablaggio
Follow the wiring diagram carefully to connect the amplifier, speakers, power, and control units. Ensure all connections are tight and insulated to prevent short circuits and water ingress.
- Connect the main power cable (red) to the positive terminal of the vehicle's 12V battery and the ground cable (black) to a suitable chassis ground point.
- Cunnette i fili di parlante da u amplifier to the corresponding speakers.
- Connect the wired control unit to the amppiù vivu.
- Connect the LED controller and rocker switch to the amplifier's LED output.
- Sè aduprate un subwoofer, cunnette lu à l'output subwoofer in u amplifier (subwoofer not included).
Image: A comprehensive layout of all GoHawk TL54-Titan package contents, accompanied by a detailed wiring diagram illustrating how to connect the amplifier, speakers, and control units.
6. Operating Instructions
6.1 Power On/Off
The system powers on automatically when the vehicle's ignition is turned on, or via a dedicated power switch if wired accordingly. The amplifier's blue LED indicator will illuminate when powered.
6.2 Accoppiamentu Bluetooth
- Assicuratevi chì u sistema hè alimentatu.
- In u vostru dispositivu mobile, attivate u Bluetooth è cercate i dispositi dispunibili.
- Select "GoHawk" from the list of devices.
- Once paired, the system will confirm the connection, and you can begin streaming audio.
6.3 Funziunamentu di a Radio FM
Use the wired control to switch to FM mode. Press the play/pause button to auto-scan and save available stations. Use the track forward/backward buttons to navigate between saved stations.
Riproduzione USB 6.4
Inserite una chiavetta USB chì cuntene l'audio files into the USB port. The system will automatically switch to USB mode and begin playback. Use the wired control for track navigation and volume adjustment.
6.5 Ingressu AUX
Connect an external audio device (e.g., MP3 player) to the 3.5mm AUX input using the provided AUX cable. The system will automatically switch to AUX mode. Control playback from your connected device.

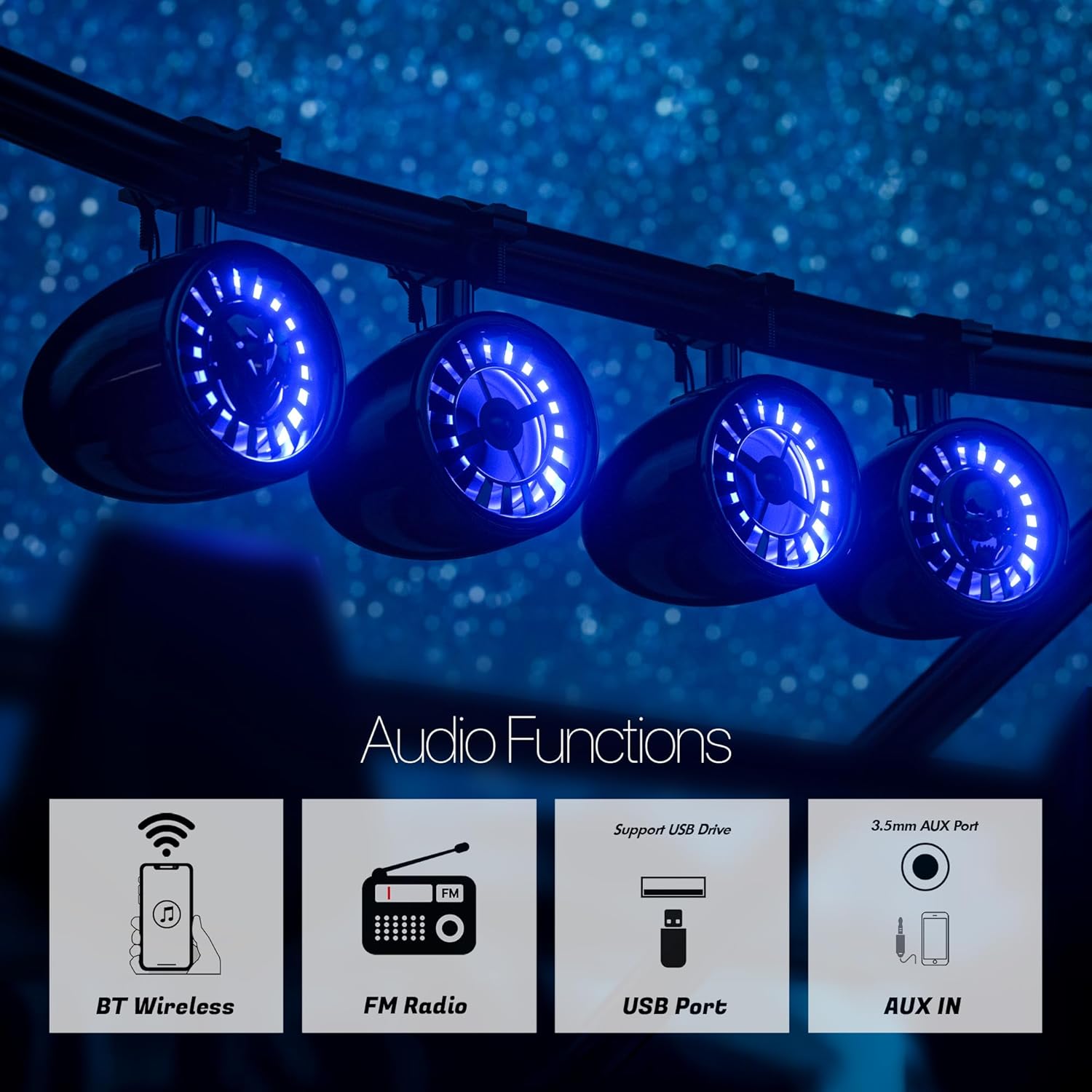

Image: A visual representation of the GoHawk TL54-Titan's versatile audio functions, including Bluetooth wireless streaming, FM Radio, USB Port support, and a 3.5mm AUX input.
6.6 LED Control
Use the standalone rocker switch to control the LED lights on the speakers. This switch allows you to cycle through 10 customizable LED colors and adjust their brightness levels.
Image: The full-function wired control unit for audio management and the dedicated LED controller rocker switch, allowing users to customize speaker lighting with over 10 different colors.
7. Mantenimentu
To ensure the longevity and optimal performance of your GoHawk TL54-Titan system, follow these maintenance guidelines:
- Pulizia: Aduprà un soft, damp cloth to clean the speakers and ampEvitate l'usu di prudutti chimichi aggressivi o di detergenti abrasivi.
- Cunnessioni: Verificate periodicamente tutti i cunnessione di i fili per assicurassi ch'elli sianu sicuri è senza corrosione.
- Conservazione: If storing the vehicle for an extended period, ensure the system is powered off and, if possible, disconnect the main power cable from the battery.
- Ispezione: Regularly inspect the speaker grilles and housing for any signs of damage.
8. Risoluzione di prublemi
If you encounter issues with your GoHawk TL54-Titan system, refer to the following common problems and solutions:
| Prublemu | Causa Possibile | Soluzione |
|---|---|---|
| Nisun putere | Cunnessione elettrica allentata, fusibile bruciatu, batteria di u veiculu bassa. | Check power and ground connections. Inspect and replace fuse if necessary. Charge or check vehicle battery. |
| Nisun sonu | Volume too low, incorrect input source, loose speaker wires, ampprublema di lifier. | Increase volume. Select correct input mode (BT, FM, USB, AUX). Check all speaker connections. Ensure amplifier hè alimentatu. |
| Bluetooth ùn hè micca cunnessu | U sistema ùn hè micca in modu d'accoppiamentu, dispusitivu troppu luntanu, interferenza, dispusitivu accoppiatu prima cunnessu. | Ensure system is discoverable. Move device closer. Turn off Bluetooth on other nearby devices. Forget device on your phone and re-pair. |
| Sonu distortu | Volume too high, poor connection, damaged speaker. | Reduce volume. Check all wiring connections. Inspect speakers for physical damage. |
| Luci LED ùn funziona micca | Loose LED connection, faulty LED controller, power issue. | Check LED wiring to amplifier and controller. Ensure controller is properly connected and powered. |
9. Specificazioni
| Nome di mudellu | TL54-Titan |
| Input Voltage | 12 Volts DC |
| Tipu di parlante | 4x Woofers (4-inch) and 4x Tweeters (1-inch) |
| Size Speaker | 5 inch |
| Potenza massima di output di Speaker | 1000 Watt |
| Cunfigurazione di u Canale Sonu Surround | 4.1 |
| Tecnulugia di cumunicazione wireless | Bluetooth 5.3 |
| Gamma Bluetooth | Finu à 15 metri |
| Livellu di resistenza à l'acqua | IP56 Impermeabile |
| Materiale | Aluminiu, Metallu, Plastica |
| Tipu di muntatura | Roll Cage Bar Mount (fits 1.5"-2" bars) |
| Dimensioni di u produttu | 5"D x 5"W x 6.5"H (Speakers) |
| Pesu di l'articulu | 15 libbre (Sistema tutale) |
| Funzioni spiciali | FM Radio, LED Light, USB Port, Waterproof |
10. Garanzia è Supportu
The GoHawk TL54-Titan UTV Stereo Audio Amplifier System comes with a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included in your package or contact GoHawk customer support.
For technical assistance, troubleshooting, or any inquiries regarding your product, please visit the official GoHawk websitu o cuntattate u so serviziu clienti. Cunservate a vostra ricevuta d'acquistu cum'è prova d'acquistu per e richieste di garanzia.
