Milex 2 Burner Gas Braai

Introduzione

Thank you for choosing the Milex 2 Burner Gas Braai. This manual provides essential information for the safe assembly, operation, and maintenance of your new gas braai. Please read these instructions thoroughly before use and retain them for future reference.

The Milex 2 Burner Gas Braai features powerful burners for precise heat control, a sleek design, and high-quality materials for durability. It includes convenient features such as a warming rack, automatic ignition, and a gas bottle hook.

Importante infurmazione di sicurezza

• Solu usu à l'esterno: Questu apparecchiu hè cuncipitu solu per usu esterno. Ùn aduprà micca in interni.
• Ventilazione: Ensure adequate ventilation. Do not operate in an enclosed area.
• Cilindru di gasu: Store gas cylinders in a well-ventilated area, away from heat sources.
• Materiali infiammabili: Keep flammable materials, liquids, or aerosols away from the appliance.
• Test di fuga: Always perform a leak test on all gas connections before first use and after any gas cylinder change.
• I zitelli è l'animali: Keep children and pets away from the hot appliance.
• Supervisione: Ùn lasciate mai l'apparechju senza vigilanza mentre hè in usu.
• Leghjite l'Istruzzioni: Always read and follow all instructions in this booklet before operating the appliance.

Setup è Assemblea

Carefully unpack all components and ensure all parts are present before beginning assembly. Refer to the included assembly diagram for detailed steps.

1. Assemblà u corpu principale: Follow the instructions to connect the base and main grill housing.
2. Attaccà i ripiani laterali: Secure the side shelves to the main body using the provided hardware. These shelves offer convenient space for utensils and platters.
3. Installa Wheels: Attach the wheels to the designated locations on the base for easy mobility.
4. Place Cooking Grills and Warming Rack: Position the black matte enamel cast iron cooking grill and the iron wire warming rack inside the braai.
5. Connect Gas Regulator and Hose: The braai comes with a ZA regulator and 60cm PVC hose. Connect the hose to the braai's gas inlet and the regulator to your gas bottle. Ensure all connections are tight.
6. Eseguite una prova di tenuta: Before first use, apply a soapy water solution to all gas connections. Bubbles indicate a leak. Tighten connections or replace parts as necessary. Do not use the braai if a leak is detected.

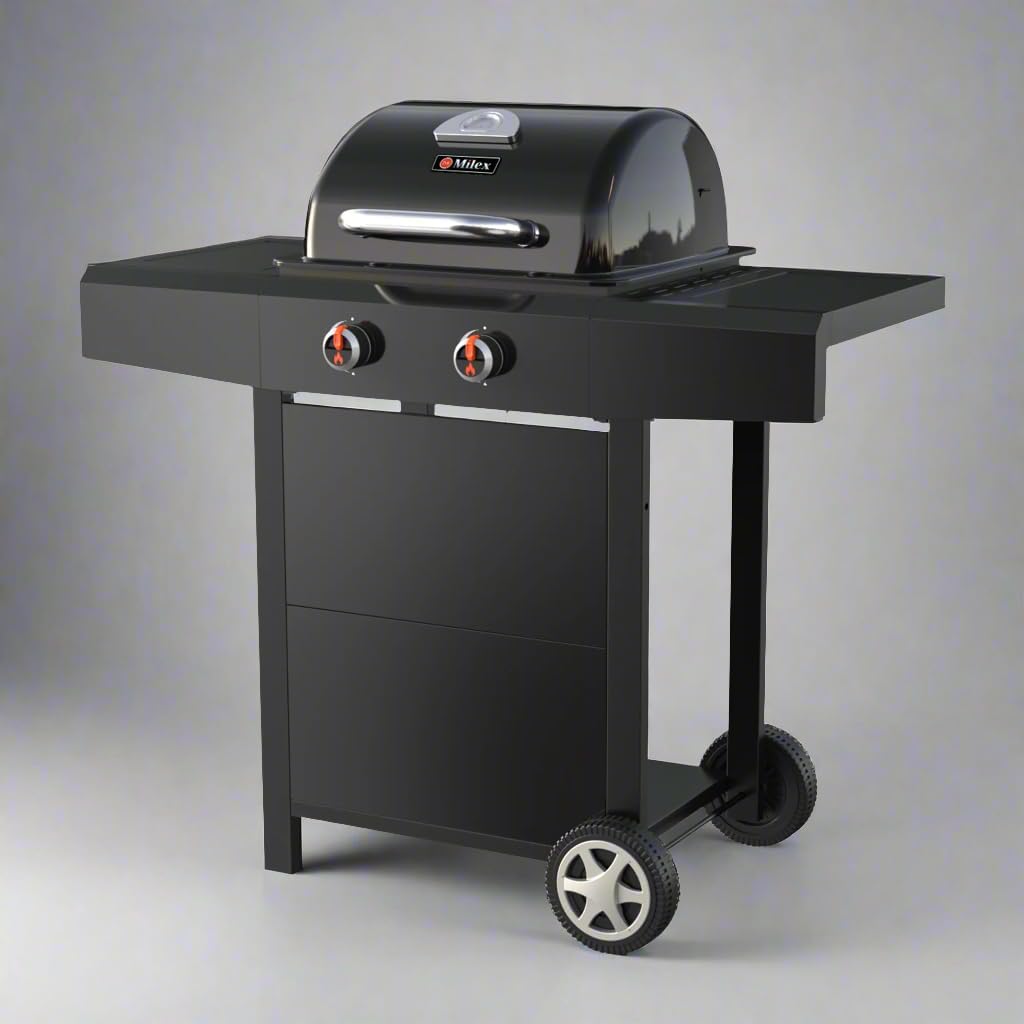

Figura 1: Fronte view of the Milex 2 Burner Gas Braai, illustrating its compact design and side shelves.

Istruzzioni di funziunamentu

Accendi i bruciatori:

1. Open Lid: Always open the braai lid before lighting.
2. Accende l'alimentazione di gas: Ensure the gas bottle valve is fully open.
3. Ignite First Burner: Push and turn the control knob for the left burner to the "HIGH" position. Immediately push and hold the ignitor button for 3-5 seconds. You should hear a click and see the burner ignite.
4. Ignite Second Burner: Once the left burner is lit, turn its control knob to "HIGH". The right burner will automatically ignite from the flame of the left burner.
5. Aghjustate u calore: Once both burners are lit, adjust the control knobs to your desired heat level (LOW to HIGH).
6. Troubleshooting Ignition: If a burner does not light within 5 seconds, turn off the gas supply, wait 5 minutes, and repeat the lighting procedure. If ignition issues persist, refer to the Troubleshooting section.

Cooking with Your Braai:

• Preriscaldamentu: Close the lid and allow the braai to preheat for 10-15 minutes on medium heat before placing food on the grill.
• Controlu di a temperatura: Use the control knobs to adjust the flame intensity for different cooking requirements. The integrated thermometer in the hood allows for accurate temperature monitoring.
• Riscaldatore: Utilize the warming rack to keep cooked food warm or to gently toast buns.
• Ancu a cucina: The black matte enamel cast iron cooking grill ensures even heat distribution for consistent results.

Figure 2: The Milex 2 Burner Gas Braai in use, demonstrating the cooking surface and side shelves.

Mantenimentu è Cura

• Pulizia di i griglie di grill: After each use, once the braai has cooled, clean the black matte enamel cast iron cooking grill. The product care instructions specify "Hand Wash Only" for these components. Use a grill brush to remove food residue.
• Pulizia esterna: Wipe down the steel hood and front panel with a damp pannu è detergente dolce. Evitate i detergenti abrasivi chì puderanu dannà a finitura.
• Mantenimentu di u bruciatore: Periodically check burner ports for blockages (e.g., from food debris or insects). Clean with a wire brush if necessary.
• Conservazione: When not in use for extended periods, store the braai in a dry, protected area. Disconnect the gas bottle.

Risoluzione di prublemi

Specificazioni di u produttu

• Marca: Milex
• Mudellu: 2 Burner Gas Braai
• Culore: Neru
• Materiale: Stainless Steel (Burner, Thermometer, Handle), Steel (Hood & Front Panel), Cast Iron (Cooking Grill), Iron Wire (Warming Rack)
• Dimensioni di u pacchettu: 79 x 58 x 44 cm
• Pesu di l'articulu: 13 kg
• Bruciatori: 2, #409 Stainless Steel
• accensione: Ignizione automatica
• Cumpunenti inclusi: Gas Braai, ZA Regulator, 60cm PVC Hose
• Usu cunsigliatu: Outdoor Home Use

Garanzia è Supportu

For warranty information or technical support, please contact Milex customer service. Spare part information is not available or provided directly in this manual. Please refer to the official Milex website or your retailer for further assistance.

You can visit the official Milex store for more products and information: Milex Store on Amazon.co.za
