KIDILO 6530pro Baby Stroller User Manual

1. Introduzione

Thank you for choosing the KIDILO 6530pro Baby Stroller. This manual provides essential information for the safe and proper use, assembly, and maintenance of your stroller. Please read all instructions carefully before assembly and use, and keep this manual for future reference.

2. Informazioni di sicurezza

A sicurità di u vostru zitellu hè di primura. Seguitate sempre ste linee guida di sicurità:

• Ùn lasciate mai u vostru zitellu senza vigilazione in u stroller.
• Always use the 5-point safety harness to secure your child. Ensure shoulder pads and buckle covers are correctly positioned.
• Assicuratevi chì tutti i dispositi di serratura sò impegnati prima di l'usu.
• Do not overload the stroller. The maximum recommended weight is 30 kg.
• Do not place more than one child in the stroller. This stroller is designed for a single child.
• Ùn appiccicate micca sacchetti o altri oggetti à a maniglia, postu chì questu pò fà chì u passegginu si ribalti.
• Frenate sempre quandu u passegginu hè fermu.
• Mantene i zitelli luntanu da e parti in muvimentu quandu fate aghjustamenti.
• Stu pruduttu ùn hè micca adattatu per correre o pattinare.
• Regularly check the stroller for loose parts, damaged components, or worn fabric. Discontinue use if any damage is found.

3. Cuntenutu di u pacchettu

Before assembly, please ensure all parts are present:

• KIDILO 6530pro Stroller Frame with Seat Unit
• Canopy
• Roti davanti (2)
• Roti posteriori (2)
• Manuale d'usu

4. Setup è Assemblea

Follow these steps to assemble your KIDILO 6530pro Stroller:

1. Apertura di u Carrughju:

   Place the folded stroller on a flat surface. Release the folding latch (if engaged). Lift the handle upwards until the frame locks into place. Ensure both sides of the frame are securely locked. You may hear a click.



   Image: Stroller in its compact, folded state, illustrating its portability.

2. Attaccà e rote:

   Insert the front wheels into the designated slots on the front legs of the stroller until they click securely. Repeat for the rear wheels. Ensure all wheels rotate freely.



   Imagine: Latu view of the assembled stroller, showing the front and rear wheels.

3. Attaccà u canopy:

   Attach the canopy to the designated points on the stroller frame. Ensure it is securely fastened and can be adjusted smoothly.

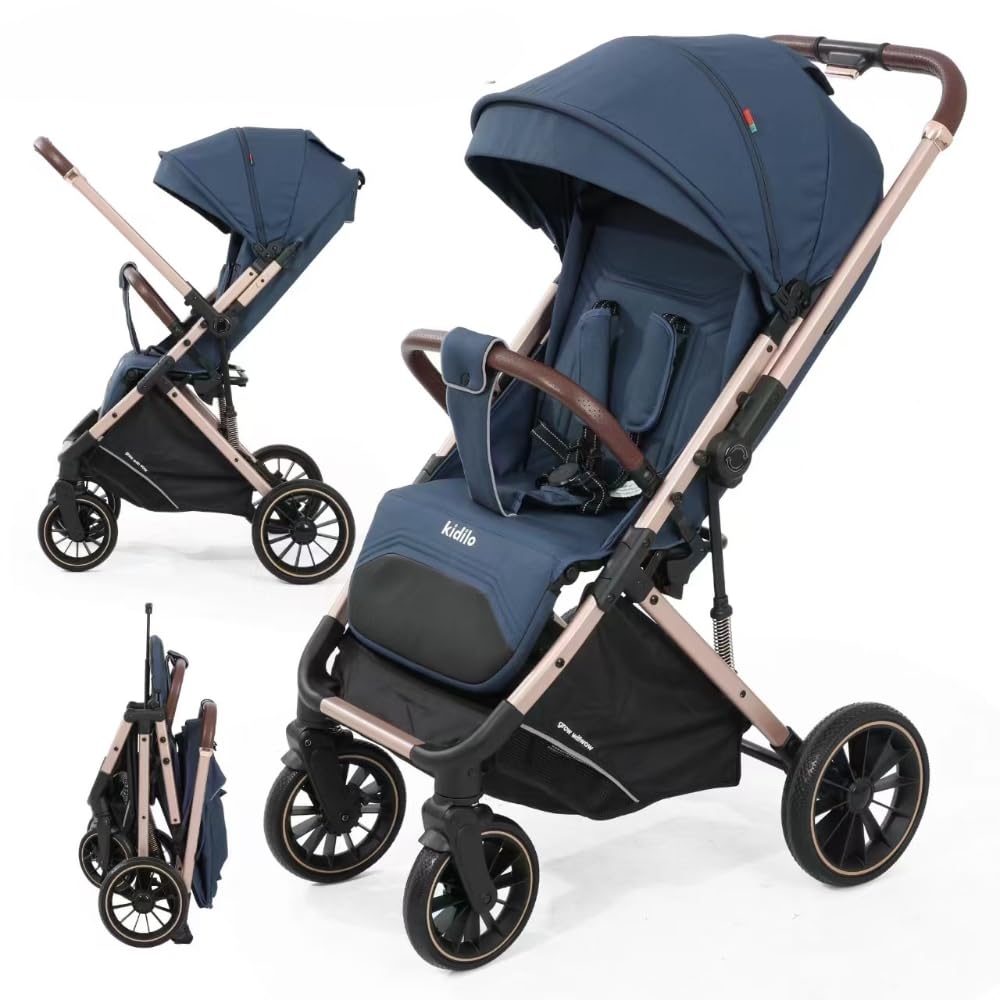

   Image: Fully assembled KIDILO 6530pro stroller with the canopy extended, ready for use.

5. Operating Instructions

Learn how to use the various features of your KIDILO 6530pro Stroller:

1. Ajustamentu di u Backrest:

   To recline the backrest, locate the adjustment mechanism behind the seat. Squeeze the lever or press the button and gently lower the backrest to the desired position. To raise it, push the backrest upwards until it locks into place. The backrest can be adjusted to a full recline position for infants.
2. Using the Safety Harness:

   Place your child in the seat. Bring the shoulder straps over your child's shoulders and the waist straps around their waist. Insert the buckles into the central buckle until they click. Adjust the straps for a snug fit, ensuring shoulder pads are comfortable. To release, press the button on the central buckle.



   Imagine: Dettagliata view of the 5-point safety harness system, highlighting the buckle and padded straps.

3. Aghjustà a cupola:

   The large canopy can be adjusted in 3 positions. Simply push or pull the canopy to extend or retract it. It also features a zippered extension for additional coverage.
4. Impulsendu i freni:

   To engage the rear brakes, press down firmly on the brake pedal located near the rear wheels until the stroller is stationary. To release, lift the pedal upwards.

5. Locking the Front Wheels:

   The front wheels have a 360-degree rotation feature for maneuverability. For stability on uneven terrain or when pushing straight, you can lock the front wheels by engaging the locking mechanism above each front wheel.

6. Pieghendu u Carrughju:

   Ensure the backrest is in an upright position and the canopy is retracted. Locate the one-hand folding mechanism (usually on the handle or side of the frame). Activate the mechanism and push the stroller downwards until it folds compactly. Secure with the folding latch. An additional handle is provided for carrying the folded stroller like a travel bag.



   Image: The stroller fully folded, demonstrating its compact size for storage or transport.

6. Mantenimentu

Proper maintenance ensures the longevity and safety of your stroller:

• Pulizia: Clean the fabric parts with a damp cloth and mild soap. Do not use harsh detergents or abrasive cleaners. The frame can be wiped clean with a soft, damp tela.
• Lubrificazione: Periodically lubricate moving parts such as wheels and folding mechanisms with a silicone-based lubricant to ensure smooth operation.
• Conservazione: Store the stroller in a dry, cool place away from direct sunlight and extreme temperatures.
• Ispezione: Regularly inspect all parts for wear, damage, or loose fasteners. Tighten any loose screws. If any part is damaged, contact customer support for replacement parts.

7. Risoluzione di prublemi

Eccu sò e soluzioni à i prublemi cumuni chì pudete scuntrà:

8. Specificazioni

9. Garanzia è Support

Per infurmazioni nantu à a garanzia o l'assistenza tecnica, vi pregu di cunsultà a pulitica di u rivenditore o cuntattate direttamente u fabricatore. Cunservate a vostra prova d'acquistu per qualsiasi reclamazione di garanzia.
