Introduzione
This manual provides detailed instructions for the assembly, operation, and maintenance of your new FLEXISPOT L-Shaped Electric Height Adjustable Standing Desk. Please read this manual thoroughly before assembly and use to ensure proper function and safety.
- Desktop spaziosu: The expansive L-shaped work surface is seamlessly crafted with environmentally sourced splice board, measuring 70.9" x 63.0". It provides ample space for ongoing projects and office supplies.
- Orientazione Versatile: This height-adjustable desk features a wider desktop section that can be positioned on either the left or right side, allowing you to customize the layout to best fit your space.
- Custruzzione solida: The industrial-grade steel frame and solid desktop (1") combine to support a maximum weight capacity of up to 220 lbs, effortlessly handling your ideal work setup.
- Pannellu di cuntrollu LED persunalizabile: The LED control pad allows you to customize the desk height with 4 different memory settings, enabling easy switching between your preferred standing and sitting positions.
Informazioni di sicurezza
Always ensure the desk is properly assembled and anchored to the floor to prevent tipping. Do not exceed the maximum weight capacity of 220 lbs (100 kg) to maintain stability. Follow the assembly instructions carefully to avoid injury.
The product ships in two separate packages which may arrive separately. Ensure all packages are received before beginning assembly.
Setup è Assemblea
Assembly requires two people. Tools recommended for assembly include a drill. Please refer to the detailed video instructions for visual guidance.
Passi di l'assembleaview:
- Install Middle Column Connecting Joining Plate: Attach the joining plate to the middle column using the provided screws.
- Install Desk Feet: Secure the long and short side desk feet to the columns.
- Install Crossbeams: Attach the long and short crossbeams between the desk legs.
- Extend Crossbeam: Loosen the screws on the crossbeam and extend it to the desired length.
- Install Drive Rods: Loosen the drive rod, insert it into the mechanism, spin, and tighten.
- Install Support Plate: Attach the support plate to the frame.
- Installà u desktop: Insert dowels and connect the desktop sections. Secure them with the provided plates and screws.
- Attaccà a cornice à u desktop: Carefully place the assembled frame, adapter holder, and support tube onto the desktop. Adjust the frame to align with pilot holes and attach it securely.
- Secure Crossbeams and Drive Rods: Ensure all crossbeams and drive rods are firmly secured.
- Install Controller and Wiring: Mount the control panel and power adapter. Connect all necessary wiring for the motors and control panel.
- Install Baffle: Attach the baffle to cover the wiring.
- Turn Over the Desk: With assistance, carefully turn the desk upright.
Visual Guides:
Video: Installation of Right L-Shaped Desk. This video demonstrates the step-by-step assembly process for the right-hand L-shaped configuration of the desk.
Video: Installation of Left L-Shaped Desk. This video guides you through the assembly process for the left-hand L-shaped configuration of the desk.

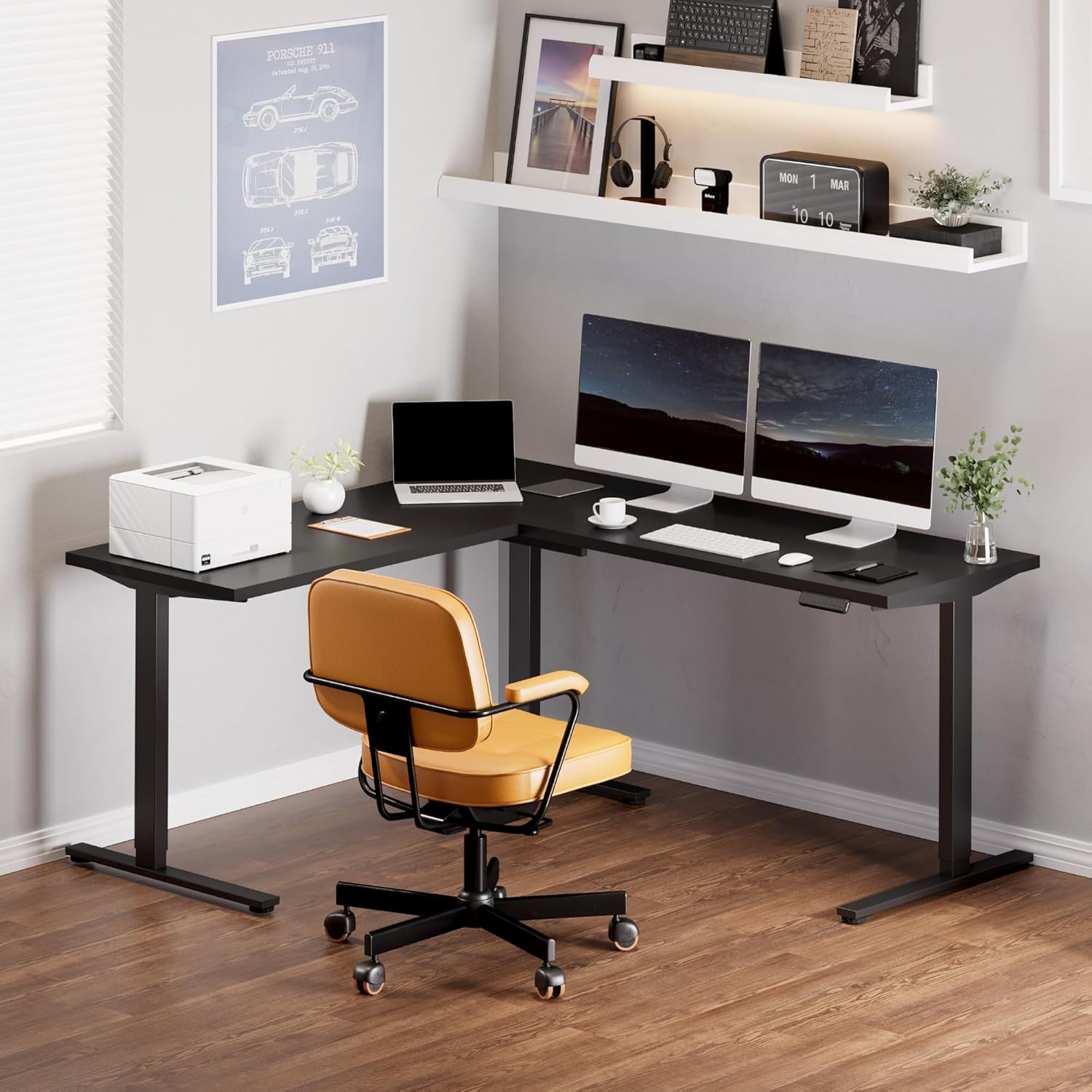

Image: Fully assembled FLEXISPOT L-Shaped Standing Desk in a modern office environment, showcasing its spacious design and functionality.
Image: Detailed dimensions of the L-shaped desk, highlighting its width, depth, and adjustable height range.
Istruzzioni di funziunamentu
Funzioni di u pannellu di cuntrollu:
Image: The smart control panel with buttons for height adjustment and memory presets.
- Up/Down Buttons (Arrows): Press and hold the up or down arrow to adjust the desk height. Release the button to stop at the desired height.
- Preimpostazioni di memoria (1, 2, 3, 4): To save a height setting, adjust the desk to your preferred height, then press the 'M' button followed by the desired number (1, 2, 3, or 4). The display will show 'S-' and then the number to confirm. To recall a saved height, simply press the corresponding number button.
- Funzione anticollisione: The desk is equipped with an anti-collision system. If the desktop encounters an obstacle while moving, it will automatically stop and reverse slightly to prevent damage.
Mantenimentu
- Regularly check all screws and connections to ensure they are tight. Tighten if necessary.
- Pulite a superficia di u scrivania cù un pannu dolce èamp pannu. Evitate detergenti abrasivi o chimichi aggressivi.
- Mantene u mutore è i cumpunenti elettrichi liberi da polvere è umidità.
- Ensure cables are neatly managed to prevent snagging or damage during height adjustments.
Risoluzione di prublemi
| Prublemu | Causa Possibile | Soluzione |
|---|---|---|
| U scrivania ùn si move micca o ùn risponde micca à i cumandamenti. | Power cable disconnected; control panel cable loose; motor cable loose. | Check all power and motor connections. Ensure they are securely plugged in. Reset the system by unplugging for 10 seconds and plugging back in. |
| U scrivania si move in modu irregulare o face rumori inusuali. | Loose connections; uneven load; drive rod not properly installed. | Check all frame connections and ensure they are tightened. Distribute weight evenly on the desktop. Verify drive rod installation as per assembly video. |
| A funzione anticollisione si attiva spessu. | Obstruction in desk's path; sensitivity setting too high. | Remove any objects from the desk's path. Consult the full user manual for instructions on adjusting anti-collision sensitivity (if applicable). |
| E sezzioni di u desktop ùn sò micca allineate perfettamente. | Assembly error; pilot holes not used correctly. | Cun cura riview assembly instructions and videos. Ensure all desktop connecting plates are correctly installed and tightened. Some users have noted that pilot holes are for reference and may require minor adjustments or re-drilling for perfect alignment. |
Specificazioni
- Marca: FLEXISPOT
- Forma: Rectangular (L-shaped configuration)
- Desk Design: Centru di Stazione
- Dimensioni di u pruduttu: 63 "D x 70.9" W x 45.9 "H
- Culore: Cornice nera + Parte superiore nera
- Stile: Moderna
- Materiale di basa: Alloy Steel
- Tipu di materiale superiore: Legnu
- Tipu di Finitura: Pulitu
- Caratteristica speciale: Corded
- Spessore di a tavola: 1 inch
- Altezza massima: 45.9 inch
- Altezza minima: 28 inch
- Raccomandazione di pesu massimu: 220 liri
- Numeru di pusizioni d'altezza: 4 (Preimpostazioni di memoria)
- Assemblea necessaria: Iè (Raccomandatu 2 persone)
- Strumenti cunsigliati per l'assemblea: Trapanu
Garanzia è Supportu
Garanzia FLEXISPOT di 5 anni: Enjoy peace of mind with our 5-year coverage on the desk frame and motor, and 2-year protection on the control panel and electronics.
Per più assistenza, risoluzione di prublemi o reclami di garanzia, cuntattate l'assistenza clienti FLEXISPOT per mezu di u so serviziu ufficiale. websitu o u rivenditore induve u pruduttu hè statu acquistatu.
