1. Introduzione
Welcome to the user manual for your new DAMSON R5 Single Motor Foldable Electric Bike. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your electric bicycle. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.
The DAMSON R5 is designed for adults seeking a versatile and powerful electric bike, featuring a 1000W peak motor, 48V 20Ah removable battery, 26-inch fat tires, and full suspension for various terrains.
Figure 1.1: DAMSON R5 Single Motor Foldable Electric Bike
2. Informazioni di sicurezza
Your safety is paramount. Always adhere to local traffic laws and regulations. Failure to follow these guidelines may result in serious injury or property damage.
- Portate sempre un cascu chì risponde à e norme di sicurezza.
- Fate una ispezione prima di ogni usu, verificendu i freni, a pressione di i pneumatici è u livellu di a batteria.
- Siate attenti à ciò chì vi circonda è guidate in modu difensivu.
- Avoid riding in adverse weather conditions, such as heavy rain or snow, unless the bike is specifically designed and equipped for such conditions.
- Ùn superate micca a raccomandazione di pesu massimu di 400 libbre.
- Keep hands and feet clear of moving parts, especially the chain and wheels.
- Assicuratevi chì a batteria sia bè bluccata in u so postu prima di cullà.
- Do not modify the bike's electrical system or components.
3. Installazione è assemblaggio iniziale
Your DAMSON R5 electric bike comes approximately 95% pre-assembled. Final assembly typically involves attaching the front wheel, handlebars, pedals, and seat. Tools for assembly are included.
3.1 Unpacking è Inspection
- Eliminate cù cura a bicicletta è tutti i cumpunenti da l'imballu.
- Verificate s'ellu ci hè qualchì dannu durante u trasportu. Cuntattate subitu l'assistenza clienti s'ellu si trova un dannu.
- Verify all included components are present: Electric Bike, Battery, 1x 3A Charger, Kickstand, 1x Tools.
3.2 Carica di a Batteria
Fully charge the battery before your first ride. The removable 48V 20Ah lithium battery can be charged on or off the bike using the included 3A fast charger. Charging time is typically 4-6 hours.

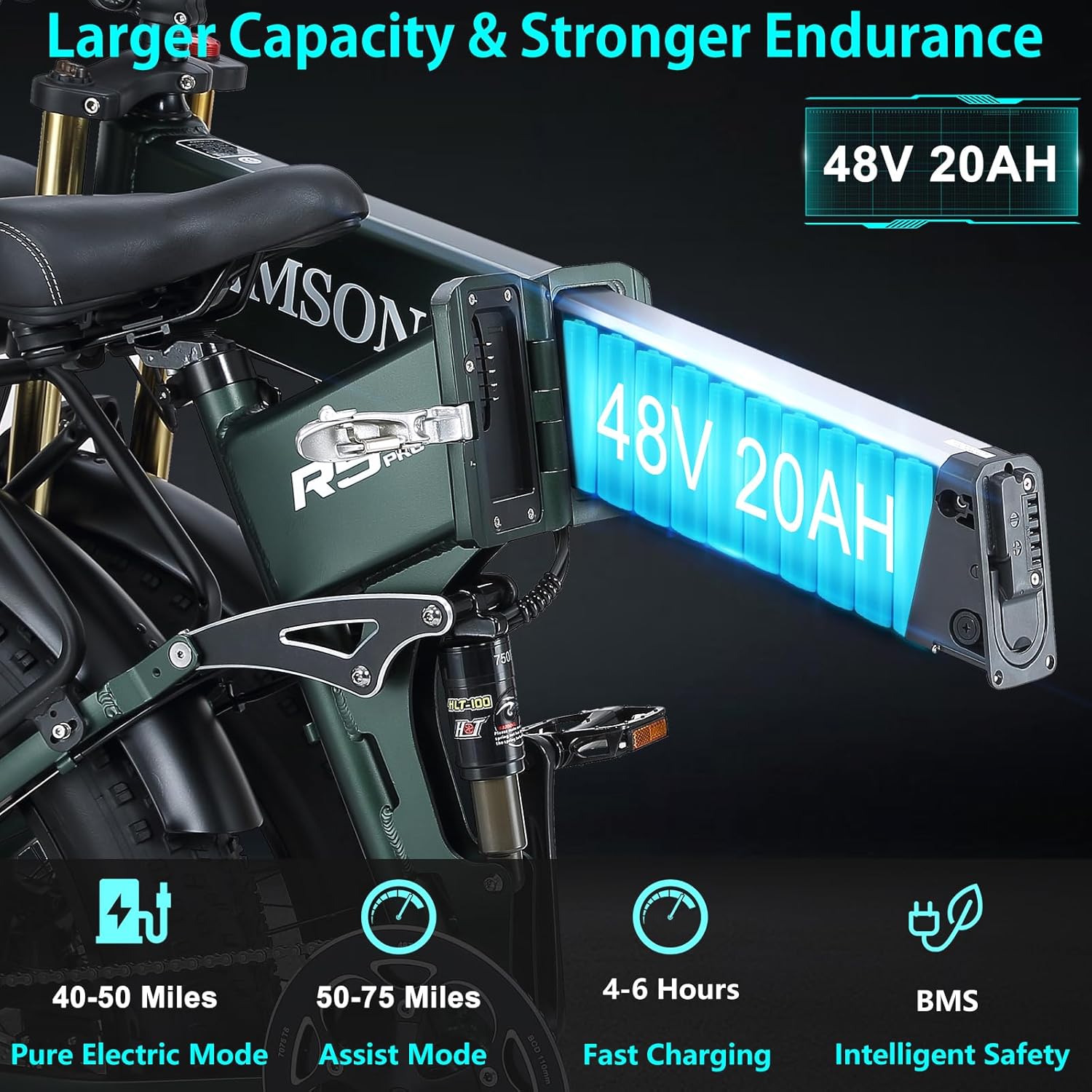

Figura 3.1: Batteria amovibile 48V 20Ah
3.3 Ajustamenti
Adjust the seat height and handlebar position for a comfortable and safe riding posture. The handlebar height is adjustable by twisting a screw.
Figure 3.2: Adjustable Handlebar
3.4 Meccanismu di piegatura
The R5 features a foldable design for easy storage and transport. To fold the bike, locate the quick-release levers on the frame and handlebar stem. Follow the instructions in the detailed PDF manual for proper folding and unfolding procedures.
Figure 3.3: Folding for Portability
4. Operating Instructions
Familiarize yourself with the controls and riding modes before operating the bike.
4.1 Accensione/Spegnimentu è Display
Press and hold the power button on the intelligent LCD display to turn the bike on or off. The display shows real-time speed, battery level, pedal assist level, mileage, and other vital statistics. It also includes a USB charging port for your devices.
4.2 Modi di guida
The DAMSON R5 offers 5 working modes:
- Modu E-bike: Pure electric power using the throttle.
- Modu di assistenza à u pedalu: Motor provides assistance as you pedal.
- Modu normale di bicicletta: Andà cum'è una bicicletta tradiziunale senza assistenza di mutore.
- Cruise Control: Mantene una velocità impostata senza un input continuu di l'acceleratore.
- Stimulante di caminata: Fornisce assistenza à bassa velocità per marchjà in bicicletta.
4.3 Motore è Prestazioni
The R5 is equipped with a 750W upgraded brushless geared hub motor, capable of 1000W peak power, reaching speeds over 30 mph with a max torque up to 85N/m. This powerful motor enhances hill climbing and off-road capability.
Figure 4.1: 1000W Peak Powerful Motor
4.4 Sistema di sospensjoni
The dual suspension system, including an adjustable front fork alloy hydraulic lockout suspension and rear suspension, reduces bumps by 80% for a comfortable ride on various terrains.
Figure 4.2: Full Suspension System
4.5 Sistema di frenata
The 160mm dual hydraulic disc brakes provide superior stopping power in all conditions, ensuring safety and control.
4.6 Illuminazione
The bike is equipped with an 800lm super bright LED headlight and an integrated taillight indicator to enhance visibility and safety, especially during night rides.
Figure 4.3: Super Bright Headlight and Integrated Taillight
4.7 Riding Video
Watch the official product video to see the DAMSON R5 in action, demonstrating its capabilities on various terrains.
Video 4.1: Forge your path to explore with the DAMSON R5 Electric Bike.
5. Mantenimentu
Una manutenzione regulare garantisce a longevità è u funziunamentu sicuru di a vostra bicicletta elettrica.
5.1 Routine Checks (Before Each Ride)
- Freni: Test front and rear brakes for proper function and responsiveness.
- Pneumatici: Check tire pressure (26"x4" fat tires) and inspect for wear or damage.
- Fissaggi: Ensure all bolts, nuts, and quick releases are securely tightened.
- Batteria: Verify battery is fully charged and securely seated.
- Lumi: Confirm headlight and taillight are working.
5.2 Pulizia è Conservazione
- Pulite a bicicletta regularmente cù l'annunziuamp pannu. Evitate u lavaggio à alta pressione direttamente nantu à i cumpunenti elettrichi.
- Store the bike in a cool, dry place, away from direct sunlight and extreme temperatures.
- If storing for extended periods, charge the battery to 50-70% and recharge every 1-2 months.
6. Risoluzione di prublemi
Questa sezione tratta di prublemi cumuni chì pudete scuntrà. Per prublemi più cumplessi, cuntattate l'assistenza clienti.
| Prublemu | Causa Possibile | Soluzione |
|---|---|---|
| A bicicletta ùn s'accende micca | Battery not charged or not connected; loose wiring. | Charge battery; ensure battery is properly seated; check all cable connections. |
| U mutore ùn aiuta micca | Pedal Assist System (PAS) level is 0; brake levers engaged; motor connection issue. | Increase PAS level on display; release brake levers; check motor cable connection. |
| I freni si sentenu debuli | Brake pads worn; air in hydraulic lines. | Inspect and replace brake pads if necessary; consult a professional for hydraulic brake bleeding. |
| Rumori insoliti | Loose components; chain issues; suspension squeak. | Check all fasteners; lubricate chain; inspect suspension components. |
7. Specificazioni
Detailed technical specifications for the DAMSON R5 Electric Bike.
| Feature | Specificazione |
|---|---|
| Tipu di bicicletta | Full Suspension Ebike, Mountain Electric Bike, Cruiser E Bike |
| Motore | 750W Upgraded Brushless Geared Hub Motor (1000W Peak) |
| Max Torque | 85 Nm |
| Batteria | Batteria à u litiu amovibile 48V 20Ah |
| Gamma elettrica pura | Finu à 50 chilometri |
| Gamma di assistenza à u pedale | Finu à 75 chilometri |
| Caricatore | Caricatore rapidu 3A |
| Size Wheel | 26 Inches (26"x4" Fat Tires) |
| Materiale di quadru | Alluminiu |
| Tipu di sospensjoni | Dual (Front Hydraulic Lockout, Rear Suspension) |
| Stile di frenu | Dual Hydraulic Disc Brakes (160mm) |
| Numeru di Velocità | 7 (Shima 7-speed) |
| Capacità massima di carica | 400 liri |
| Pesu di l'articulu | 74 LBS (Battery Only 8.5LBS) |
| Altezza consigliata | 1,27 m - 1,78 m |
| Dimensioni (L x H) | 79.5 inches x 43.3 inches (unfolded) |
Figure 7.1: Key Dimensions of the DAMSON R5
8. Garanzia è Support
DAMSON provides comprehensive support for your electric bike.
8.1 Garanzia infurmazione
A vostra bicicletta elettrica DAMSON R5 vene cun un 2 anni di garanzia for the electric motor, battery, and charger. Please retain your original packaging and proof of purchase for warranty claims.
8.2 Assistenza Clienti
For technical assistance, warranty claims, or any questions regarding your DAMSON R5, please contact our customer support team. We offer lifelong technical support to ensure your satisfaction.
You can also refer to the official PDF User Manual for more detailed instructions: Scaricà u Manuale d'Usu in PDF
