Introduzione
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Redragon K724 PRO Wireless Gasket Gaming Keyboard. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
Image: Redragon K724 PRO Wireless Gasket Gaming Keyboard with RGB lighting and LCD screen.
Funzioni chjave
- Schermu Smart Info-Island: A 1.14-inch TFT screen displays keyboard information, connection mode, battery level, and typing status.
- Cuncepimentu di a guarnizione: The body structure uses precision-locked covers with gaskets for noise reduction and flexibility, providing consistent feedback and reduced rigid noise.
- Cunnessione à 3 Modi: Supporta e modalità USB-C cablate, BT 3.0/5.0 è wireless 2.4Ghz per una connettività versatile.
- Interruttore Mint Mambo persunalizatu: Thick-lubed linear switches offer cushioned, creamy, and cozy typing feedback. The upgraded socket is compatible with nearly all 3/5-pin switches.
- 5-Layer Noise Dampening: Equipped with 3.5mm PO foam, IXPE switch foam, PET sound pad, bottom socket foam, silicone bottom pad, and silicone gasket to significantly reduce hollow noise.
- Disposizione di 81 tasti: A compact 75% layout that retains essential function keys while providing more mouse space.
- Cuntrollu cù una sola manopola: A convenient knob for adjusting keyboard backlight brightness and media functions (volume, play/pause, track switch).
- Software Pro supportatu: Software allows for custom modes, effects, macros, keybindings, and shortcuts.
Imagine: Più diview of Redragon K724 PRO features including 81 keys, custom switches, LCD screen, noise dampening, gasket design, and battery capacity.
Chì ci hè in u Box
- Redragon K724 PRO Wireless Gasket Gaming Keyboard
- Cavu USB
- Estrattore di tasti/interruttori
- Interruttori di ricambio
- Manuale d'usu
Istituisci
Modi di cunnessione
The Redragon K724 PRO keyboard supports three connection modes: USB-C wired, 2.4Ghz wireless, and Bluetooth (BT 3.0/5.0).
- USB-C cablatu: Connect the keyboard directly to your computer using the provided USB-C cable.
- Senza filu 2.4 GHz: Locate the USB-A dongle stored in the compartment on the side of the keyboard. Plug the dongle into an available USB port on your computer. Switch the keyboard's side selector to '2.4G'.
- Wireless Bluetooth: Switch the keyboard's side selector to 'BT'. On your device (PC, laptop, tablet), search for Bluetooth devices and select 'Redragon K724 PRO' to pair. The keyboard supports BT 3.0/5.0.
Image: The Redragon K724 PRO keyboard demonstrating its three connection modes: 2.4Ghz wireless, USB Type-C wired, and Bluetooth wireless.
Accensione iniziale
Upon initial power-on, the keyboard's LCD screen will display the Redragon logo and then show the current connection status, time, and battery level.
Video: Un overview of the Redragon K724 PRO Mechanical Keyboard, demonstrating its features and initial setup.
Operazione
Smart Info-Island Screen & Knob Control
The 1.14-inch TFT screen provides real-time information about your keyboard's status, including connection mode, battery level, and typing status. The multi-function knob allows for easy control of various settings.
- Girà a manopola: Adjusts volume when not in menu mode.
- Premete u buttone: Enters the menu on the LCD screen. Rotate to navigate through options like Config, Effect, Color, Brightness, Speed, Language, Layout, Time Format, and Time Set. Press again to select an option.
- Sincronizazione di u tempu: The on-screen time will auto-sync with your PC's system time upon the software's initial launch.

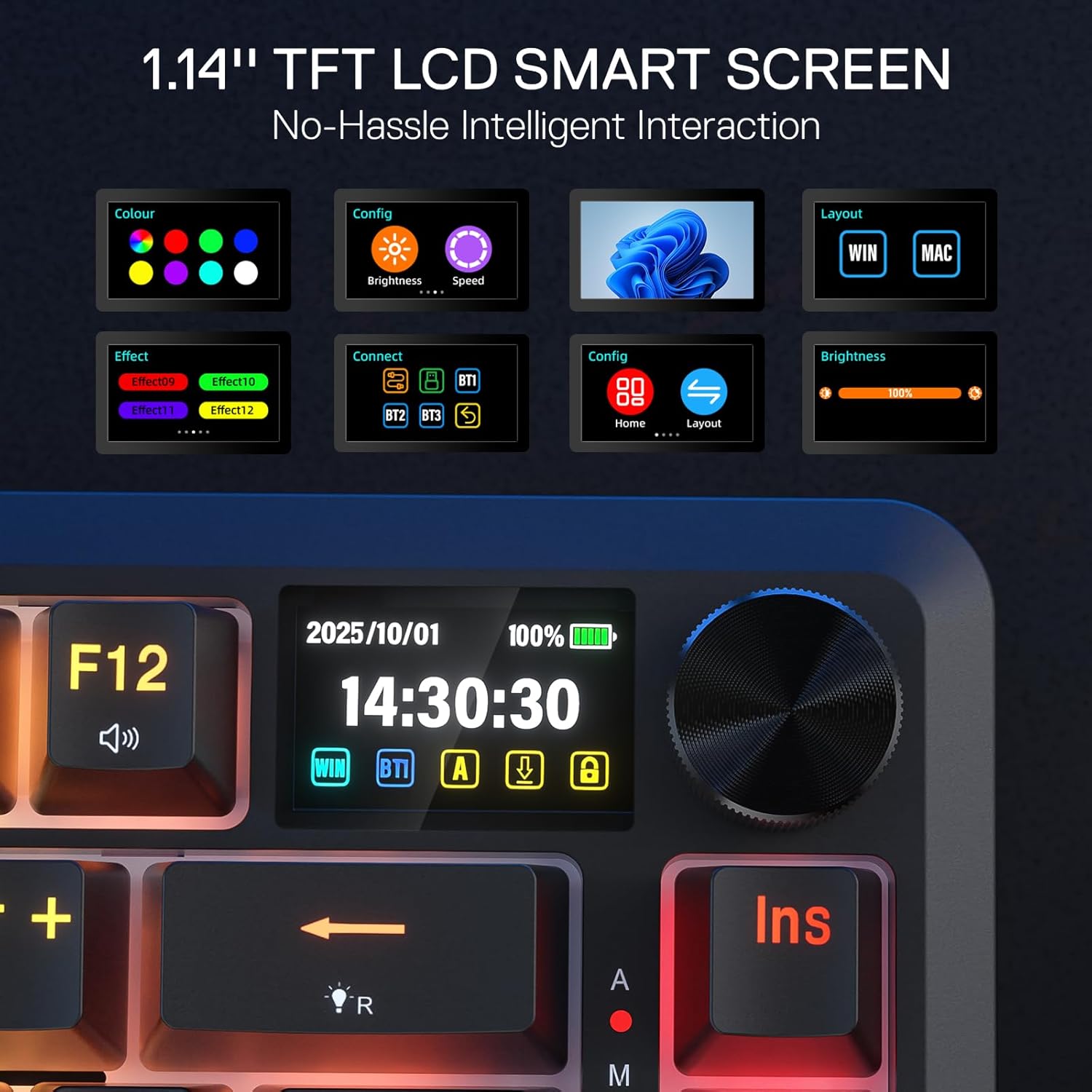

Image: The 1.14-inch TFT LCD Smart Screen of the Redragon K724 PRO, displaying configuration options for color, effects, brightness, and connection modes.
Image: The multi-function knob on the Redragon K724 PRO, used for controlling brightness, volume, and navigating screen operations.
Cuntrollu di retroilluminazione RGB
The keyboard features vibrant RGB backlighting with multiple effects and colors. You can control these directly from the keyboard or through the software.
- Change RGB Effects: Press FN + INS per passà da diversi effetti di illuminazione RGB.
- Change Single Colors: Press FN + ENTER to cycle through single color options.
- Aghjustate a luminosità: Press FN + UP Arrow per aumentà a luminosità è FN + DOWN Arrow per diminuisce a luminosità.
- Turn RGB On/Off: Press FN + SPACE to toggle the RGB lighting on or off.
Video: Un novuview and unboxing of the RGB Gaming Keyboard, showcasing its lighting features.
Key Combinations (FN Key)
The FN key can be combined with other keys for additional functions:
| Funzione | Windows O.S. | OS MAC |
|---|---|---|
| Luminosità di u schermu - | FN + F1 | F1; FN+F1 |
| Luminosità di u screnu + | FN + F2 | F2; FN+F2 |
| Multiple windows | FN + F3 | F3; FN+F3 |
| Speech recognition (Win10 or newer) | FN + F4 | F4; Siri / FN+F4 |
| Mostra u desktop | FN + F5 | F5; FN+F5 |
| Search | FN + F6 | F6; FN+F6 |
| Pre pista | FN + F7 | F7; FN+F7 |
| Play / Pausa | FN + F8 | F8; FN+F8 |
| Prussima pista | FN + F9 | F9; FN+F9 |
| Mutu | FN + F10 | F10; FN+F10 |
| Volume giù | FN + F11 | F11; FN+F11 |
| Volume su | FN + F12 | F12; FN+F12 |
Software Pro
Expand your customization options by downloading the available software from redragonshop.com. The software allows you to design your own lighting modes and effects, create macros with different keybindings or shortcuts, and manage other keyboard settings. The on-screen time will auto-sync with your PC's system time upon the software's initial launch.
Image: The Redragon K724 PRO software interface, illustrating options for GIF settings, key redefinition, macro editing, and RGB backlight customization.
Mantenimentu
Carica
When the keyboard's battery is low, the backlight will turn off, and the power LED will blink. Connect the keyboard with the provided USB-C cable to your computer for charging. The battery power indicator on the LCD screen will show the current charge level.
Image: The Redragon K724 PRO keyboard highlighting its 4000mAh battery capacity.
Cleaning and Spill Handling
If you spill liquid on the keyboard, immediately unplug the keyboard from the computer. Wipe off any excess liquid and place the keyboard in a well-ventilated area. Ensure the keyboard is completely dry before its next use.
Risoluzione di prublemi
If the keyboard does not respond, please check if the keyboard is properly inserted into the corresponding USB port on the computer, or try another USB port. For wireless connections, ensure the dongle is correctly inserted or Bluetooth is properly paired.
Specificazioni
- Marca: Redragon
- Mudellu: K724 PRO
- Serie: Behemoth
- Piattaforma Hardware: Laptop, PC, Tablet
- Pesu di l'articulu: 2.53 liri
- Dimensioni di u pacchettu: 14.84 x 7.52 x 2.76 inch
- Culore: Neru
- Fonte di energia: Wired
- Batterie: 1 Batteria Lithium Polymer necessaria
- Tecnulugia di cunnessione: 2.4Ghz, BT, USB-C
- Descrizzione di a tastiera: Tastiera di ghjocu senza filu cù guarnizione à 81 tasti
- Usi cunsigliati per u produttu: Lusinghi
- Caratteristica speciale: 3-Mode Tech, 81 Keys Gasket Design, Custom Mambo Switch, Hype Display & Knob, Knob Control
- Supportu di culore di retroilluminazione di tastiera: RGB
- Materiale: Acrylonitrile Butadiene Styrene, Polybutylene Terephthalate
Garanzia è Supportu
Per infurmazioni nantu à a garanzia è l'assistenza tecnica, vi pregu di cunsultà a ducumentazione inclusa cù u vostru pruduttu o visitate u situ ufficiale di Redragon. websitu. Conservate a vostra ricevuta di compra per qualsiasi reclamu di garanzia.
