FreedConn R3Pro Motorcycle Intercom with 2K Camera

Introduzione

Thank you for choosing the FreedConn R3Pro Motorcycle Intercom with 2K Camera. This device is designed to enhance your riding experience by providing seamless communication, high-definition video recording, and entertainment features. This manual provides detailed instructions on how to set up, operate, and maintain your R3Pro unit. Please read it carefully before use to ensure optimal performance and safety.

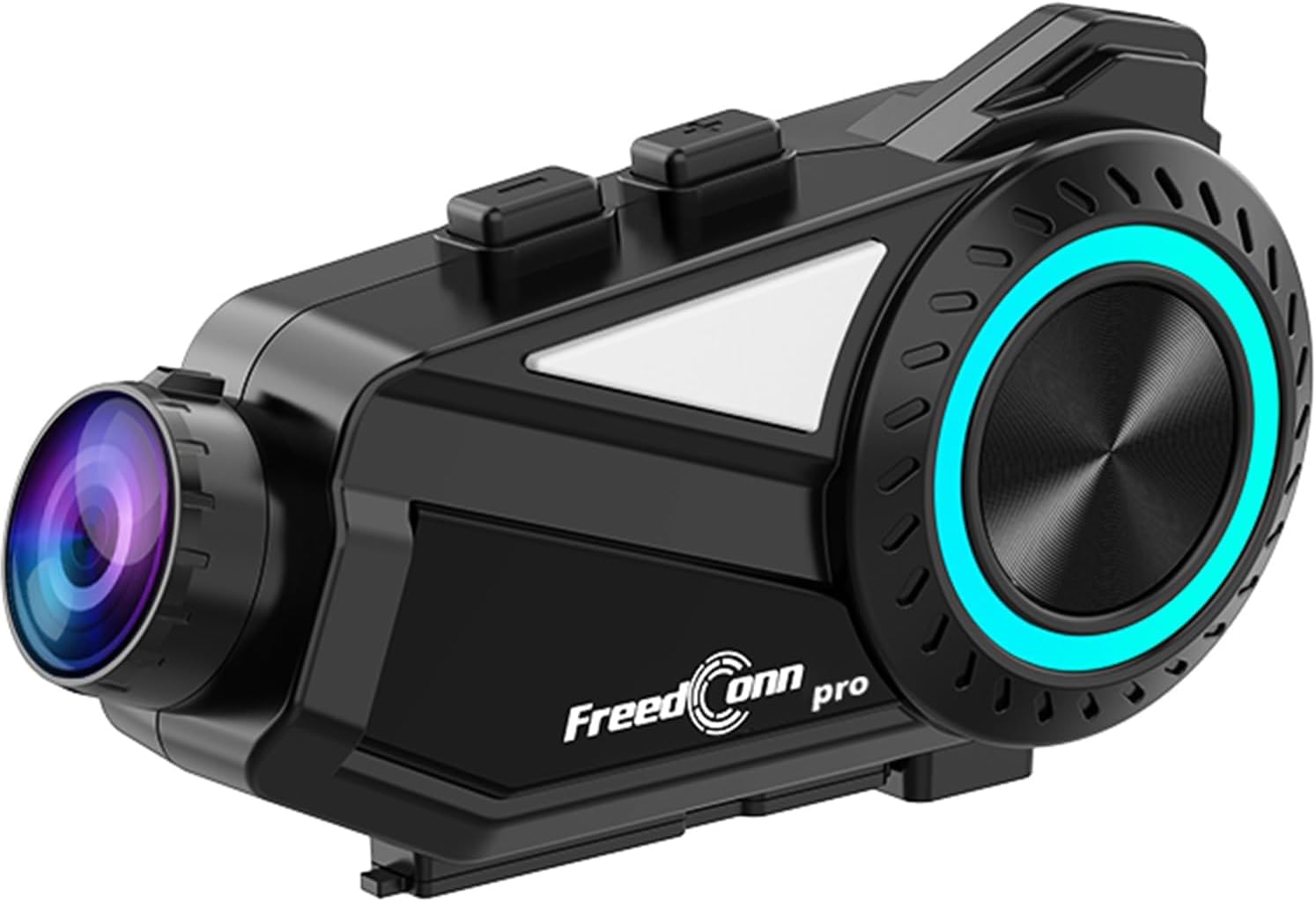

A sleek, black FreedConn R3Pro motorcycle intercom unit, featuring a camera lens on one end and a control dial with blue LED illumination on the side. It is designed to attach to a motorcycle helmet.

Product Overview

Funzioni chjave

• Connettività Bluetooth 5.1: High-speed chip for stable connections, supporting HFP/HSP/A2DP protocols.
• Intercom di gruppu: Supports up to 6 riders simultaneously with a communication range of 1.2km.
• 2K Camera & Loop Recording: Captures clear 1440p video, with adjustable lens and 360-degree unit rotation. Supports up to 512GB memory cards.
• Cancellazione avanzata di rumore: CVC and DSP/C technologies reduce wind and engine noise for clear audio up to 120km/h.
• Batteria di lunga durata: 2000mAh battery provides up to 45 hours of talk time and 7 hours of continuous recording.
• Dedicated Mobile App: "RoadCam" app for real-time video viewing and downloading via Wi-Fi.
• Radio FM: Built-in FM radio function for entertainment and information.
• Supportu di l'assistente vocale: One-touch activation for hands-free control.
• IP65 Impermeabile è Antipolvere: Cuncepitu per sustene diverse cundizioni climatichi.
• Accoppiamentu Universale: Compatible with other intercom brands (FODSPORTS, SENA) and various Bluetooth devices.

Cuntenutu di u pacchettu

This image displays the contents of the FreedConn R3Pro package, including the Bluetooth kit, 2-in-1 soft & hard microphones, hook clip, velcro clip, headphone velcro, USB cable, and manual. Below, a seven-step visual guide illustrates how to install the intercom unit onto a motorcycle helmet.

The FreedConn R3Pro package typically includes:

• FreedConn R3Pro Intercom Unit
• 2-in-1 Soft & Hard Microphones
• Helmet Mounting Kit (Hook Clip, Velcro Clip)
• Cuscinetti in velcro per cuffie
• Cavu di carica USB
• Manuale d'usu

Schema di cumpunenti

A detailed diagram of the FreedConn R3Pro unit, highlighting its various buttons and ports. Labels indicate the camera, WiFi button, recorder power ON/OFF, record/pause button, multi-function button, Bluetooth ON/OFF/intercom button, LED indicator, volume/next track, volume/previous track, microphone, earphone jack, reset button, TF card slot, and charging/USB port.

Familiarize yourself with the buttons and ports on your R3Pro unit:

• Camera: Integrated 2K camera lens.
• Pulsante WiFi: Activates Wi-Fi for app connection.
• Recorder Power ON/OFF / Record/Pause Button: Controls camera recording.
• Pulsante multifunzione: Used for various controls including pairing and voice assistant.
• Bluetooth ON/OFF / Intercom Button: Manages Bluetooth and intercom functions.
• Indicatore LED: Mostra u statu di u dispusitivu.
• Volume / Next Track: Adjusts volume and skips tracks.
• Volume / Previous Track: Adjusts volume and goes to previous tracks.
• Portu di microfonu: Connects the external microphone.
• Jack di l'auriculare: Connects the helmet speakers.
• Pulsante di reset: Per resettà u dispusitivu.
• Slot per Carta TF: For inserting a microSD card for recording.
• Charging / USB Port: Per carica è trasferimentu di dati.

Istituisci

1. Installazione di u cascu

Follow these steps to securely install the R3Pro unit on your motorcycle helmet:

1. Attach the hook clip or velcro clip to the side of your helmet.
2. Mount the R3Pro unit onto the attached clip.
3. Insert the microphone into the helmet's interior, positioning it near your mouth.
4. Attach the speakers inside the helmet using the provided velcro pads, ensuring they are aligned with your ears.
5. Connect the microphone and speaker cables to the corresponding ports on the R3Pro unit.

2. Accoppiamentu iniziale (Bluetooth)

An illustration showing the internal Bluetooth 5.1 chip of the FreedConn R3Pro, emphasizing high-speed communication, energy saving, low latency, and ultra-stability. An inset image demonstrates the multi-function button used for automatic pairing after the initial setup.

The R3Pro features automatic pairing after the first successful connection:

1. Ensure your R3Pro unit is charged.
2. Turn on the R3Pro unit.
3. Attivate Bluetooth nant'à u vostru smartphone o altru dispusitivu.
4. Cerca "FreedConn R3Pro" in your device's Bluetooth settings and select it to pair.
5. Once paired, the unit will automatically connect to your device when powered on.

3. App Connection (RoadCam)

This image illustrates the loop recording capability of the R3Pro and its integration with the "RoadCam" smartphone application. A motorcycle rider is shown, with the app interface on a phone displaying real-time video footage, indicating that recorded videos can be viewed and downloaded via Wi-Fi.

To connect to the dedicated "RoadCam" app:

1. Download the "RoadCam" app from your smartphone's app store.
2. Turn on the R3Pro unit and activate its Wi-Fi function (refer to the component diagram for the Wi-Fi button).
3. Connect your smartphone to the R3Pro's Wi-Fi network (SSID and password usually found in the manual or on the device).
4. Open the "RoadCam" app to view real-time video, manage recordings, and download files.

Istruzzioni di funziunamentu

Power On/Off

• Power On: Press and hold the Power button (refer to component diagram) until the LED indicator lights up.
• Spegnimentu: Appughjà è tene premutu u buttone di accensione finu à chì l'indicatore LED si spegne.

Comunicazione Intercom

An image depicting multiple motorcycle riders on a road, connected wirelessly by the FreedConn R3Pro intercoms. It highlights the automatic communication reconnection feature, allowing riders to rejoin the conversation seamlessly even if they temporarily separate up to 1.2km.

• Avvia l'intercomunicazione: Press the Intercom button to start a conversation with paired units.
• Intercom di gruppu: The R3Pro supports up to 6 riders for simultaneous communication. Follow the specific pairing instructions in the full manual for multi-unit connections.
• Reconnessione automatica: If riders separate and exceed the 1.2km range, the units will automatically reconnect once they are back within range.

Funzionamentu Camera

This image demonstrates the adjustable camera features of the FreedConn R3Pro. It shows the camera lens can be adjusted by 30 degrees and the main unit can rotate 360 degrees, allowing riders to capture various angles.

• Start / Stop Recording: Press the Record/Pause button (refer to component diagram) to start or stop video recording.
• Registrazione in loop: A camera supporta a registrazione in loop, sovrascrivendu automaticamente i più vechji files quandu a carta di memoria hè piena.
• Ajustamentu di a camera: The camera lens can be adjusted by 30 degrees, and the entire unit can rotate 360 degrees for optimal viewl'anguli.
• Carta di memoria: Insert a microSD card (up to 512GB) into the TF card slot before recording.

Riproduzione è spartera di musica

This image illustrates the R3Pro's universal pairing with various Bluetooth devices like smartphones, action cameras, and other Bluetooth earphones. It also shows two riders sharing music, emphasizing the ability to enjoy favorite tunes with a partner.

• Play/Pause: Use the multi-function button for music control.
• Pista Next / Precedente: Use the Volume/Next Track and Volume/Previous Track buttons.
• Music Sharing: Share audio with a paired intercom unit up to 50 meters away.

Radio FM

A motorcycle rider is shown with the R3Pro, indicating the built-in FM radio feature. The image displays a frequency range from 76-108MHz, suggesting support for Japanese frequencies, and mentions support for sports broadcasts and news.

• Attivà a Radio FM: Press the designated FM radio button (refer to the full manual for specific button assignment).
• Canali di scansione: The unit will automatically scan and save available FM stations.
• Cambia canali: Use the Volume/Next Track and Volume/Previous Track buttons to switch between stations.

Telefonichi

An image showing a motorcycle rider receiving a call, with a graphic indicating automatic answering after 15 seconds of no operation. It also states that hands-free calls are possible while riding, and music playback resumes after the call ends.

• Rispondi à a chjama: The R3Pro supports automatic answering after 15 seconds of no operation. You can also tap the multi-function button to answer.
• Chjama finita: Tap the multi-function button to end a call.
• Reject Call: Appughjà è tene premutu u buttone multifunzione per ricusà una chjama entrante.
• Cunnessione telefonica doppia: The unit can connect to two smartphones simultaneously, allowing real-time switching between call, music, and navigation functions.

Assistant vocale

An illustration showing how to activate the voice assistant by long-pressing the multi-function button for 2 seconds. Examples of voice commands are displayed, such as "Cerca gas station," "Call Mr. Matsumoto," "What day is today?", and "How's the weather tomorrow?".

To activate your smartphone's voice assistant (e.g., Siri, Google Assistant):

• Attivate: Mantene premutu u buttone multifunzione per 2 seconde.
• Once activated, you can issue commands for navigation, calls, weather checks, and more.

Cancellazione di u rumore

A diagram illustrating the effect of noise cancellation, showing sound waves before and after processing, with a significant reduction in noise. It also displays the internal components of the speaker, highlighting Hi-Res audio quality and an omnidirectional microphone for clear conversations up to 120km/h.

The R3Pro features advanced CVC and DSP/C noise cancellation technology, which automatically reduces ambient noise such as wind and engine sounds. This ensures clear voice communication and high-quality music playback even at speeds up to 120km/h.

Mantenimentu

Caricà a Batteria

Una mostra d'imagineasing the 2000mAh battery of the R3Pro, indicating approximately 2.5 hours for a full charge. It highlights extended usage times: 42 hours for music, 33 hours for talk, and 7-8 hours for recording, with support for up to 512GB memory cards for loop recording.

• Connect the R3Pro to a power source using the provided USB charging cable via the Charging/USB Port.
• Una carica cumpleta dura di solitu circa 2.5 ore.
• L'indicatore LED mostrerà u statu di carica (per esempiu, rossu per a carica, blu per una carica cumpleta).

Pulizia è Cura

An image showing the FreedConn R3Pro unit being splashed with water, illustrating its IP65 waterproof and dustproof rating. This indicates stable communication and recording are possible even in sudden rain or bad weather conditions.

• Asciugà l'unità cù un soffiu, damp tela. Ùn aduprate micca chimichi duri o detergenti abrasivi.
• Assicuratevi chì tutti i porti sianu asciutti prima di carica o di cunnette accessori.
• The IP65 rating protects against water jets and dust, but avoid submerging the unit in water.

Risoluzione di prublemi

Problemi cumuni è Soluzioni

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please refer to the comprehensive troubleshooting section in the full user manual or contact customer support.

Specificazioni

Garanzia è Supportu

The FreedConn R3Pro comes with a 1 anni di garanzia da a data di compra, chì copre i difetti di fabricazione. Per piacè cunservate a vostra prova di compra per e richieste di garanzia.

For technical support, troubleshooting assistance, or warranty inquiries, please contact FreedConn customer service through the retailer where you purchased the product or visit the official FreedConn websitu per l'infurmazioni di cuntattu.
