YESIDO KM27 Wireless Video Intercom Doorbell User Manual

1. Produttu Finituview

The YESIDO KM27 is a 2.4G wireless video intercom doorbell system designed for enhanced home security and convenient communication. It features a 4.3-inch indoor display screen, infrared night vision capabilities, two-way audio communication, and supports video recording to a TF card for monitoring purposes.

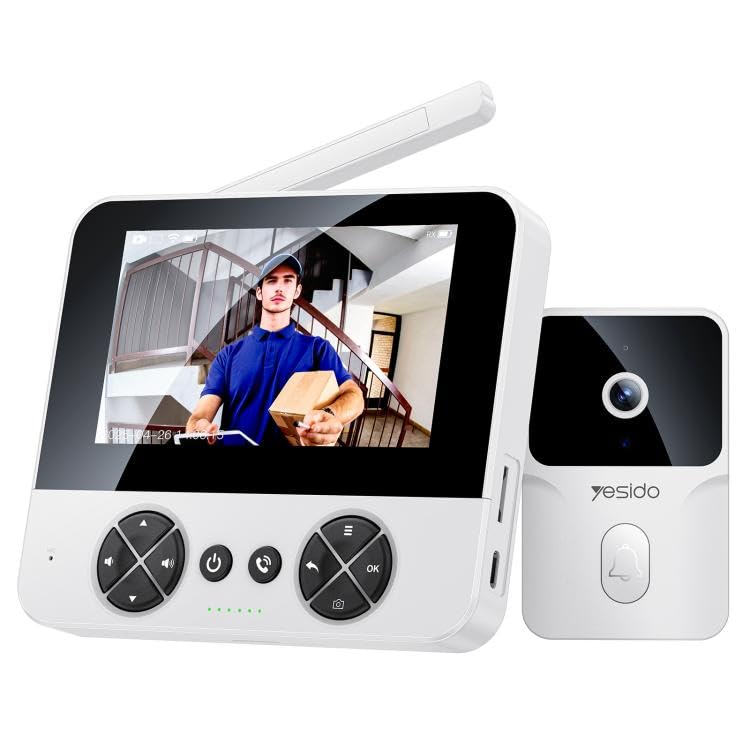

Image 1.1: The YESIDO KM27 wireless video intercom doorbell system, showing both the outdoor doorbell unit and the indoor display unit.

2. Cuntenutu di u pacchettu

Verificate chì tutti l'articuli sò presenti in u pacchettu:

• Unità di campanello per esterni
• Indoor Display Unit (4.3-inch screen)
• Cavu di Carica Type-C
• Ferramenta di muntatura (viti, tasselli murali)
• Manuale d'usu

3. Setup Instructions

3.1 Caricamentu di l'unità

Before initial use, fully charge both the outdoor doorbell unit and the indoor display unit using the provided Type-C charging cable and a DC5V/1A power adapter (not included). The outdoor unit's 1000mAh lithium battery provides approximately 6 months of standby time on a single charge.

3.2 Installing a TF Card (Optional)

To enable photo and video recording, insert a TF card (up to 256GB, not included) into the designated slot on the indoor display unit. Ensure the card is inserted correctly.

3.3 Muntatura di l'unità di campanello esterno

1. Choose a suitable location near your door, ensuring clear visibility and within the wireless range of the indoor unit (up to 50 meters indoors, 300 meters in open air).
2. Marcate i punti di perforazione aduprendu a staffa di muntatura cum'è mudellu.
3. Fate i fori è inserite i tasselli murali se necessariu.
4. Fissate u supportu di muntatura à u muru cù viti.
5. Attach the outdoor doorbell unit to the mounting bracket. The unit is IP65 waterproof, suitable for outdoor conditions.

3.4 Placing the Indoor Display Unit

Place the indoor display unit in a convenient location within your home where you can easily view the screen and hear notifications. Ensure it is within the effective wireless transmission range of the outdoor unit.

4. Operating Instructions

4.1 Accensione / spegnimentu

Press and hold the power button on both units to power them on or off.

4.2 Answering a Doorbell Call

When a visitor presses the doorbell button on the outdoor unit, the indoor display unit will ring and show a real-time video feed. Press the 'Answer' button on the indoor unit to initiate two-way voice intercom with the visitor.

Image 4.1: The indoor display unit showing a visitor and enabling two-way communication.

4.3 Citofonu bidirettu

After answering, you can speak to the visitor through the indoor unit's microphone and speaker, and hear their response through the outdoor unit's speaker and microphone. This allows for clear communication with low latency.

4.4 Visione Notturna à Infrarossi

The outdoor unit is equipped with infrared night vision, allowing for clear visibility of visitors at the door both day and night. This feature automatically activates in low-light conditions.

Image 4.2: The outdoor unit utilizing intelligent infrared night vision for clear visibility in darkness.

Image 4.3: Comparison demonstrating clear night vision capability of the YESIDO KM27.

4.5 Photo/Video Recording

Durante una chjama o in diretta view, press the 'Record' button on the indoor unit to take a photo or start video recording. This function helps maintain a record of door activity.

Image 4.4: The outdoor unit automatically capturing photos or recording videos when the doorbell is pressed.

4.6 Ajusting Settings

The indoor unit features shortcut keys for adjusting volume and screen brightness. There are four selectable ringtones with adjustable volume levels.

5. Mantenimentu

5.1 Carica

Regularly charge both units. The outdoor unit's battery life is approximately 6 months on standby. The indoor unit should be charged as needed.

5.2 Pulizia

Wipe the units with a soft, dry cloth. Avoid using abrasive cleaners or solvents that could damage the surfaces.

5.3 TF Card Management

Periodicamente riview è gestisce foo arregistratatage on the TF card. Format the card if necessary to free up space or resolve recording issues.

6. Risoluzione di prublemi

• Nisun video/audio: Ensure both units are powered on and fully charged. Check that they are within wireless range. Restart both units.
• Scarsa portata wireless: Reduce obstacles between the outdoor and indoor units. Ensure the indoor unit is not placed near sources of interference (e.g., microwaves, large metal objects). The external industrial-grade antenna provides a range of 300 meters in open air and 50 meters indoors (through walls).
• A batteria si scarica rapidamente: Ensure units are fully charged. Excessive use of live view or recording can reduce battery life.
• Problemi di registrazione: Check if a TF card is properly inserted and has sufficient free space. Format the TF card if necessary.
• U screnu ùn risponde micca: Try restarting the indoor display unit. If the issue persists, ensure it is charged.

7. Specificazioni

8. Garanzia infurmazione

Specific warranty details for the YESIDO KM27 are not provided in the product information. Please refer to the retailer or manufacturer's official website for warranty terms and conditions, or contact their customer service directly.

9. Assistenza Clienti

For technical assistance, troubleshooting, or further inquiries regarding your YESIDO KM27 Wireless Video Intercom Doorbell, please contact the retailer where you purchased the product or visit the official YESIDO support channels.
