Relaxdays 3-Tier Rolling Cart (Model 10052086_46) Instruction Manual

1. Introduzione

Thank you for choosing the Relaxdays 3-Tier Rolling Cart. This versatile storage solution is designed to provide convenient organization in various settings, including kitchens, bathrooms, offices, and craft rooms. Its mobile design and adaptable features make it an ideal aid for daily tasks and storage needs. Please read this manual carefully before assembly and use to ensure proper function and longevity of your product.

Image 1.1: The Relaxdays 3-Tier Rolling Cart, showcasing its use in a kitchen environment.

2. Istruzzioni di sicurità

• Leghjite tutte l'istruzzioni: Prima di u montaggio è di l'usu, leghjite attentamente è capite tutte l'istruzzioni furnite in questu manuale.
• L'assemblea di l'adultu hè necessariu: Assembly should be performed by an adult. Keep small parts away from children during assembly.
• Limiti di pesu: Do not exceed the maximum load capacity of 5 kg (11 lbs) per shelf. Overloading can cause instability and damage.
• Superficie stabile: Always place the cart on a flat, stable, and level surface.
• Lock wheels: Engage the locking brakes on the castors when the cart is stationary to prevent accidental movement.
• Avoid climbing: Ùn lasciate micca i zitelli di cullà o di ghjucà cù u carrettu.
• chimichi: Avoid using harsh chemicals or abrasive cleaners, which can damage the product's finish.
• Ispezione regulare: Verificate periodicamente tutte e viti è i cunnessione per assicurassi ch'elli sianu sempre ben stretti.

3. Cuntenutu di u pacchettu

Verificate chì tutti i cumpunenti elencati quì sottu sò presenti prima di principià u montaggio. Se qualchì parte manca o hè dannighjata, cuntattate l'assistenza clienti.

• 1x Serving Trolley (in parts)
• 5x Dividers
• 1x Hanging Cup
• 4x Ganci
• 1x Assembly Instructions (this manual)

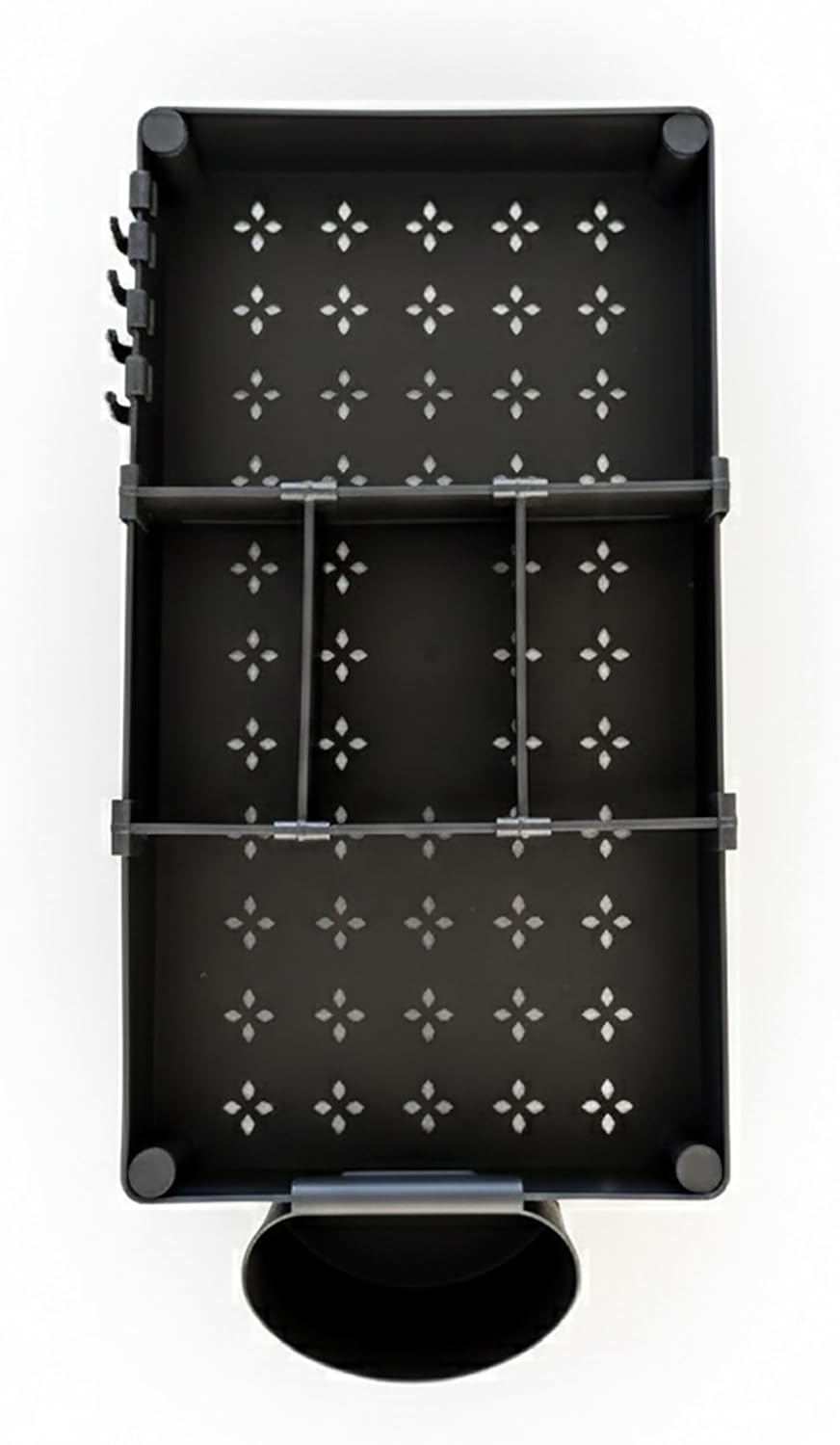

Imagine 3.1: Esempiuample of a shelf with included dividers and hanging cup.

4. Setup è Assemblea

Assembly of the Relaxdays 3-Tier Rolling Cart is straightforward. Follow these steps:

1. Unpack Components: Eliminate cù cura tutte e parte da l'imballu è metteli nantu à una superficia pulita è morbida per impedisce graffi.
2. Attaccà e rote: Insert the four swivel castors into the designated holes on the bottom of the lowest shelf. Ensure they are securely fitted. Two of the castors have locking brakes.
3. Assemble Frame: Connect the support poles to the corners of the shelves. Start with the lowest shelf, then attach the middle shelf, and finally the top shelf. Ensure all connections are firm.
4. Installa i Divisori: Place the five dividers into the slots on the shelves as desired to create customized compartments.
5. Attach Hanging Cup and Hooks: Clip the hanging cup and the four hooks onto the edges of the shelves as needed for additional storage.
6. Verificazione finale: Una volta assemblatu, scuzzulate delicatamente u carrettu per assicurà chì tutte e cunnessione sianu sicure è chì u carrettu sia stabile.

Image 4.1: Detail of a swivel castor with locking brake for stability.

5. Operating Instructions

5.1 Trasferimentu di u Carrello

The cart is equipped with 360° swivel castors for easy mobility. To move the cart, simply release the locking brakes on the two braked castors (if engaged) and push the cart to your desired location. Ensure the path is clear of obstacles.

5.2 Securing the Cart

When the cart is in its desired position, engage the locking brakes on the two castors to prevent unintended movement. This ensures stability, especially when loading or unloading items.

5.3 Utilizà e Funzioni di Archiviazione

• Scaffali: Use the three spacious shelves to store various items. Remember the 5 kg (11 lbs) weight limit per shelf.
• Divisori: The included dividers can be repositioned within the shelves to create custom compartments for better organization of smaller items.
• Hanging Cup: Attach the hanging cup to the side of any shelf for quick access to utensils, pens, or other small tools.
• Ganci: Utilize the four hooks to hang towels, aprons, or other lightweight accessories on the cart's exterior.
• Separate Shelf Use: The shelves can also be used individually or as a 2-tier unit by adjusting the assembly. For example, a single shelf can serve as a draining rack on a kitchen counter.

Image 5.1: The versatile rolling cart demonstrated in multiple home and office environments.

Image 5.2: The rolling cart configured for under-sink storage in a kitchen, highlighting its adaptability.

6. Mantenimentu

• Pulizia: Wipe the cart surfaces with a soft, damp cloth. For stubborn dirt, a mild soap solution can be used. Dry thoroughly immediately after cleaning.
• Evitate i detergenti aggressivi: Do not use abrasive cleaners, scouring pads, or strong chemical detergents, as these can damage the finish and material.
• Verificate e cunnessione: Verificate periodicamente tutte e viti è e cunnessione per assicurassi ch'elle sianu strette. Stringhjitele di novu se necessariu per mantene a stabilità.
• Wheel care: Keep the castors free from hair, dust, and debris to ensure smooth rolling.

7. Risoluzione di prublemi

8. Specificazioni

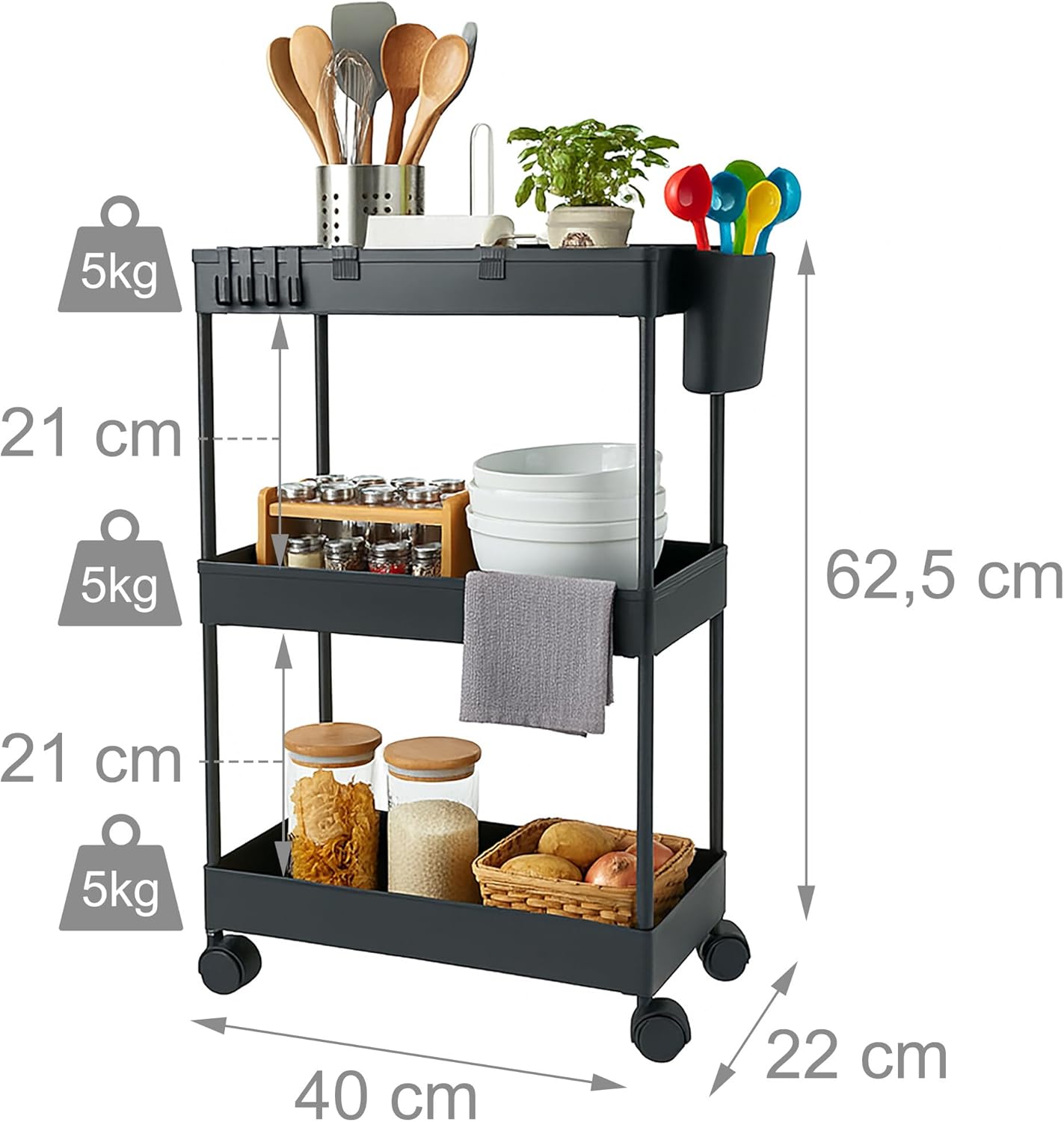

Image 8.1: Detailed dimensions and load capacity of the Relaxdays Rolling Cart.

9. Garanzia è Support

Relaxdays products are manufactured with quality and durability in mind. For specific warranty information, please refer to the documentation provided at the time of purchase or visit the official Relaxdays website. If you encounter any issues or have questions regarding your Relaxdays 3-Tier Rolling Cart, please contact Relaxdays customer support through their official channels. Please have your model number (10052086_46) and purchase details ready when contacting support.
