ZIPRO Eclipse X Foldable Exercise Bike User Manual

Introduzione

Thank you for choosing the ZIPRO Eclipse X Foldable Exercise Bike. This manual provides essential information for the safe and efficient use of your new fitness equipment. The Eclipse X is designed for comfortable home workouts, featuring a foldable structure, adjustable seat, and stable design. It integrates easily into small spaces and is simple to move. Its adjustable magnetic resistance system offers 8 levels, ensuring smooth and silent operation suitable for all fitness levels.

Informazioni di sicurezza

Leghjite attentamente tutte l'istruzzioni prima di u montaggio è di l'usu. Cunservate stu manuale per riferimenti futuri.

Cunsultate u vostru duttore prima di inizià ogni prugramma di eserciziu.
Assicuratevi chì tutte e parte sianu fissate bè prima di ogni usu.
Pone a bicicletta d'eserciziu nantu à una superficia piana è stabile.
Mantene i zitelli è l'animali alluntanati da l'equipaggiu durante l'operazione.
Ùn superate micca u pesu massimu di l'utilizatore di 110 kg (242 lbs).
Portate vestiti è scarpe adatti per l'eserciziu.
Smette subitu di fà eserciziu s'è vo vi sentite svenimentu, vertigini o avete dolore.

Setup è Assemblea

The ZIPRO Eclipse X is designed for easy setup. Follow these steps to prepare your bike for use.

1. Unpacking

Carefully remove all components from the packaging. Check against the parts list (not provided in this manual, refer to your product's included guide) to ensure all items are present and undamaged.

2. Unfolding the Bike

To unfold the bike, locate the folding mechanism (often a pin or lever near the main frame hinge). Release the mechanism and carefully extend the frame until it locks into the upright position. Ensure the locking pin is fully engaged for stability.

Image showing the ZIPRO Eclipse X exercise bike being unfolded, highlighting the folding mechanism. — Figure 1: Unfolding the ZIPRO Eclipse X exercise bike. The image illustrates the process of extending the bike frame from its folded state to its operational position, with an emphasis on the hinge and locking mechanism.

Diagram showing the folding and unfolding process of the ZIPRO Eclipse X bike. — Figure 2: Visual guide to folding and unfolding the exercise bike. Arrows indicate the movement for folding and unfolding, demonstrating how the bike transforms from a compact state to a ready-to-use configuration.

3. Ajustà u Sedile

The seat height and distance are adjustable for optimal comfort. Loosen the adjustment knob located beneath the seat, slide the seat to your desired height and distance, and then securely tighten the knob. Ensure your knees have a slight bend at the bottom of the pedal stroke.

Image showing a person adjusting the seat height of the ZIPRO Eclipse X exercise bike, with dimensions indicated. — Figure 3: Adjusting the seat of the ZIPRO Eclipse X. This image shows a user adjusting the seat, with measurements for optimal height (80-85 cm) and user height (160-185 cm) and weight (<110 kg) guidelines.

Detailed view of seat adjustment and user dimensions for the ZIPRO Eclipse X. — Figure 4: Seat adjustment and user compatibility. This image provides a clear visual of the adjustable seat mechanism and recommended user dimensions for comfortable and safe operation.

Istruzzioni di funziunamentu

1. Powering On the Console

The console is battery-powered. It will automatically turn on when you start pedaling or press any button. To conserve battery, it will automatically turn off after a period of inactivity.

2. Using the Console Display

The integrated computer display tracks your workout metrics:

Tempu: Durata di u vostru allenamentu.
Velocità: Velocità ciclistica attuale.
Distanza: Distanza tutale percorsa durante a sessione.
Calorie: Calorie stimate brusgiate.
Pulse: Heart rate measured via hand sensors on the handlebars.

Use the "MODE" button to cycle through display functions. "RESET" typically clears current workout data. "SET" may be used for setting target values.

Close-up of the ZIPRO Eclipse X exercise bike's console displaying workout metrics. — Figure 5: Console display and controls. This image highlights the digital display showing various workout parameters like time, pulse, calories, distance, and speed, along with the control buttons.

User interacting with the ZIPRO Eclipse X console, showing various metrics. — Figure 6: Detailed tracking via the console. The image shows a user's hand on the console, with icons representing tracked metrics: Time, Pulse, Calories Burned, Distance, and Speed.

3. Aghjustà a Resistenza Magnetica

The bike features 8 levels of magnetic resistance. Turn the resistance knob, located on the main frame, clockwise to increase resistance and counter-clockwise to decrease it. Start with a lower resistance and gradually increase as your fitness improves.

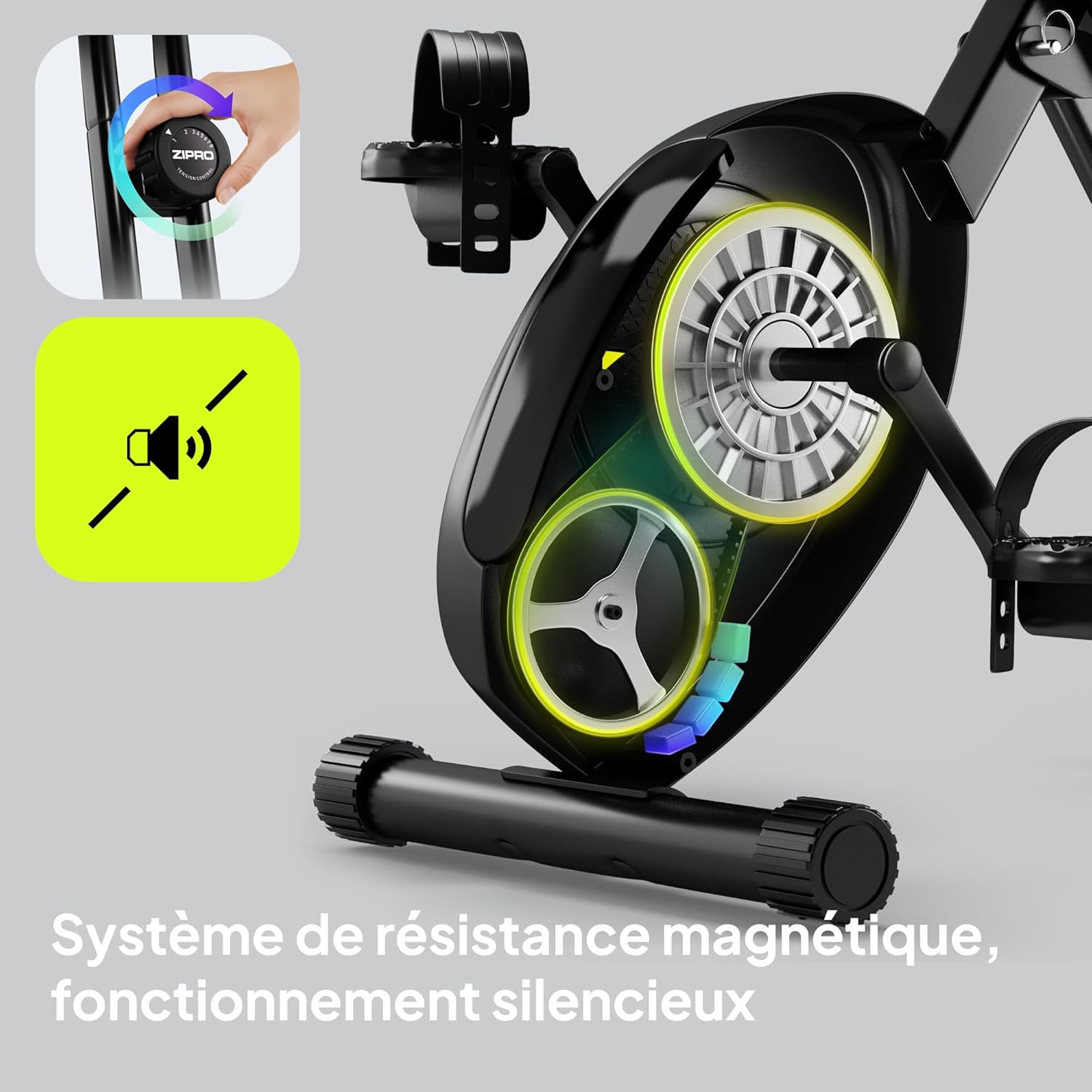

Image showing the magnetic resistance adjustment knob and internal mechanism of the ZIPRO Eclipse X. — Figure 7: Magnetic resistance system. This image displays the resistance adjustment knob and an internal view of the magnetic resistance mechanism, emphasizing silent operation.

Hand adjusting the 8-level resistance knob on the ZIPRO Eclipse X. — Figure 8: Resistance control dial. A hand is shown turning the resistance knob, which has settings from 1 to 8, indicating the adjustable magnetic resistance levels.

4. Using Pedal Straps

The non-slip pedals are equipped with adjustable straps. Place your feet on the pedals and tighten the straps to secure your feet, preventing them from slipping during your workout.

5. Bluetooth Connectivity and Phone Holder

The ZIPRO Eclipse X features Bluetooth connectivity, allowing for data management with compatible fitness applications. A phone holder is integrated into the console for convenience.

Close-up of the phone holder integrated into the console of the ZIPRO Eclipse X. — Figure 9: Integrated phone holder. This image shows a tablet or smartphone securely placed in the holder above the console, indicating the bike's connectivity features.

Mantenimentu

Una manutenzione regulare garantisce a longevità è u funziunamentu sicuru di a vostra bicicletta d'eserciziu.

Pulizia: Asciugà a bicicletta cù l'annunziuamp pannu dopu ogni usu per caccià u sudore è a polvera. Evitate i detergenti abrasivi.
Ispezioni: Verificate periodicamente tutti i bulloni, i dadi è e parti mobili per a tenuta è l'usura. Stringhjite qualsiasi elementu di fissaggio allentatu.
Lubrificazione: U sistema di resistenza magnetica hè generalmente senza manutenzione. Ùn lubrificate micca i cumpunenti interni, salvu chì ùn sia specificamente istruitu da u fabricatore.
Conservazione: When not in use, fold the bike for compact storage. Ensure it is stored in a dry, cool place away from direct sunlight.

Image of the ZIPRO Eclipse X exercise bike folded and stored compactly next to a wall. — Figure 10: Compact storage of the folded bike. The image shows the ZIPRO Eclipse X folded, occupying less than 0.5 m², demonstrating its space-saving design for easy storage.

The ZIPRO Eclipse X exercise bike folded, showing its minimal footprint. — Figure 11: Folded dimensions for space efficiency. This image illustrates the bike in its folded state, highlighting its compact dimensions and minimal space requirement.

Risoluzione di prublemi

Riferitevi à sta sezione per i prublemi cumuni è e so suluzioni.

Prublemu	Causa Possibile	Soluzione
A cunsola ùn si mostra micca	Batterie scariche; Cunnessione allentata	Replace batteries (AA or AAA, typically); Check console cable connections.
Rumore inusual durante l'operazione	Loose parts; Friction from moving components	Check and tighten all bolts and nuts. Ensure no foreign objects are caught in the mechanism.
A resistenza ùn cambia micca	Cavu di resistenza scollegatu o dannighjatu	Inspect the resistance cable connection to the knob and the flywheel. Contact support if damaged.
A bicicletta si sente instabile	Not fully unfolded/locked; Uneven surface	Ensure the folding mechanism is fully engaged. Place the bike on a level surface.

Specificazioni

Feature	Detail
Nome di mudellu	Eclipse X
Numeru di mudellu di l'articulu	15248434
Marca	ZIPRO
Culore	Neru
Meccanismu di resistenza	Magneticu (8 livelli)
Sistema di Drive	Pedali
Materiale	PU (main material)
Capacità massima di pesu di l'utente	110 chilògrammi
Max Recommended User Height	185 centimetri
Dimensioni di u produttu (L x W x H)	85.5 x 44.5 x 107.5 cm (Spiegatu)
Folded Footprint	Less than 0.5 m²
Pesu di l'articulu	14.4 chilògrammi
Fonte d'energia	Alimentatu da batteria (per a cunsola)
Funzioni spiciali	Bluetooth connectivity, Integrated transport wheels, Adjustable seat (height and distance), Foldable design
Usu cunsigliatu	Internu
Paese d'origine	Cina

Infurmazioni di Garanzia

The ZIPRO Eclipse X exercise bike comes with a standard manufacturer's warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration. Keep your proof of purchase for any warranty claims.

Assistenza Clienti

For technical assistance, spare parts, or any questions regarding your ZIPRO Eclipse X exercise bike, please contact ZIPRO customer support. Contact details can typically be found on the manufacturer's websitu o nantu à i materiali d'imballu.

You may also visit the official ZIPRO websitu per FAQ è risorse supplementari: www.zipro.pl (Nota: Questu hè un segnapostu) URL, please verify the correct support websitu).
